Product Description

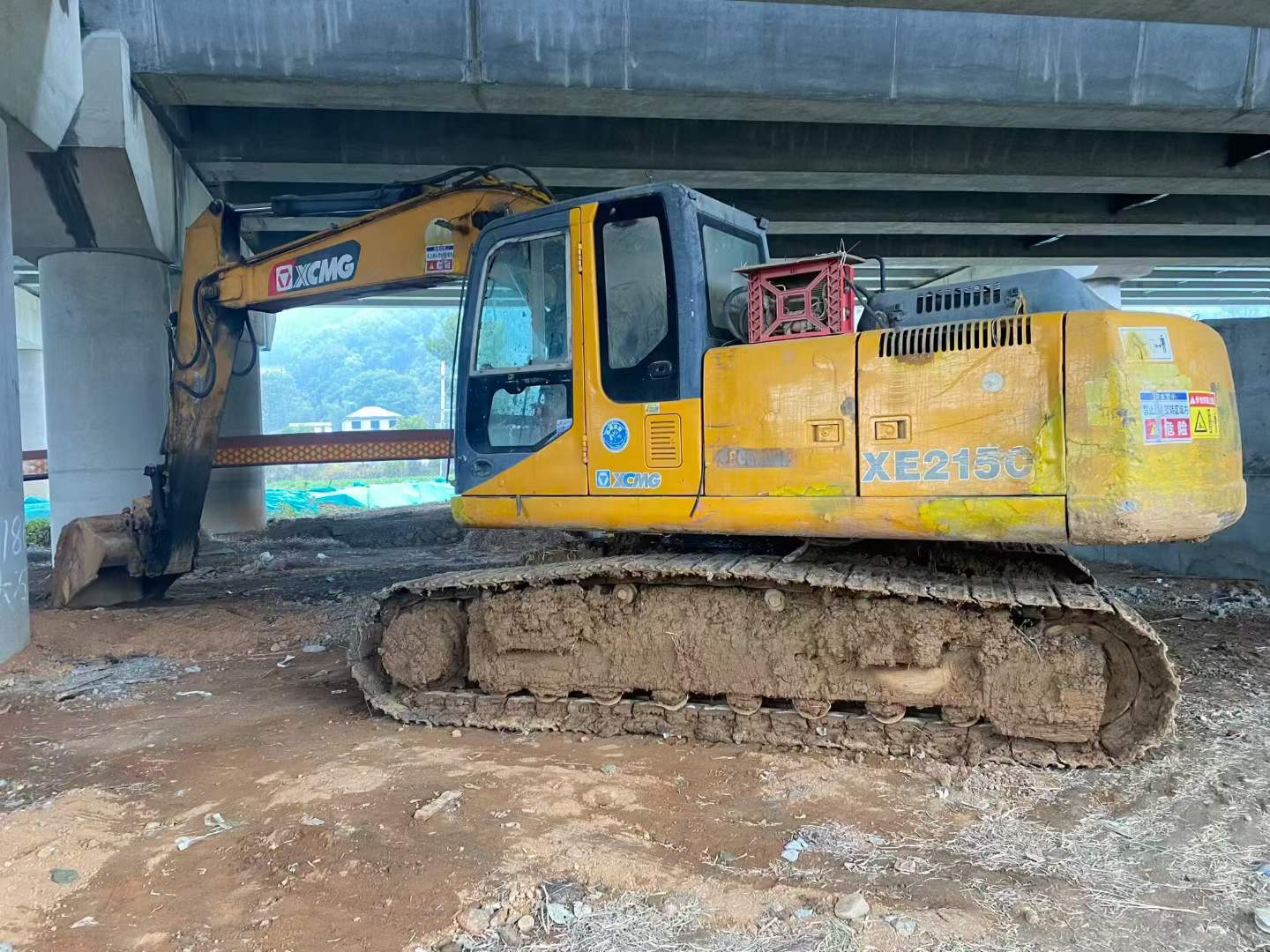

With a working weight of 21,450 kg and a bucket capacity ranging from 0.8 to 1.0 m³, this 2016 XCMG XE215C excavator offers high performance at a fraction of the cost of new equipment. Located in Jiangxi, China, this machine is powered by an ISUZU BB-6BG1TRP engine, delivering 106.5 kW at 1950 rpm. Featuring a boom length of 5680 mm and a rod length of 2910 mm, it provides impressive digging forces: 138 kN for the bucket and 103 kN for the rod. The XE215C is equipped with two plunger pumps, ensuring a maximum flow of 2*206 l/min and a main overflow set pressure of 31.5/34.3 Mpa. Its travel speed of 5.5/3.5 km/h and climbing ability of 35° make it versatile for various terrains. Invest smartly in this reliable, high-performance excavator, ideal for construction and excavation projects.
- Working weight: 21,450 kg
- Bucket capacity: 0.8-1.0 m³

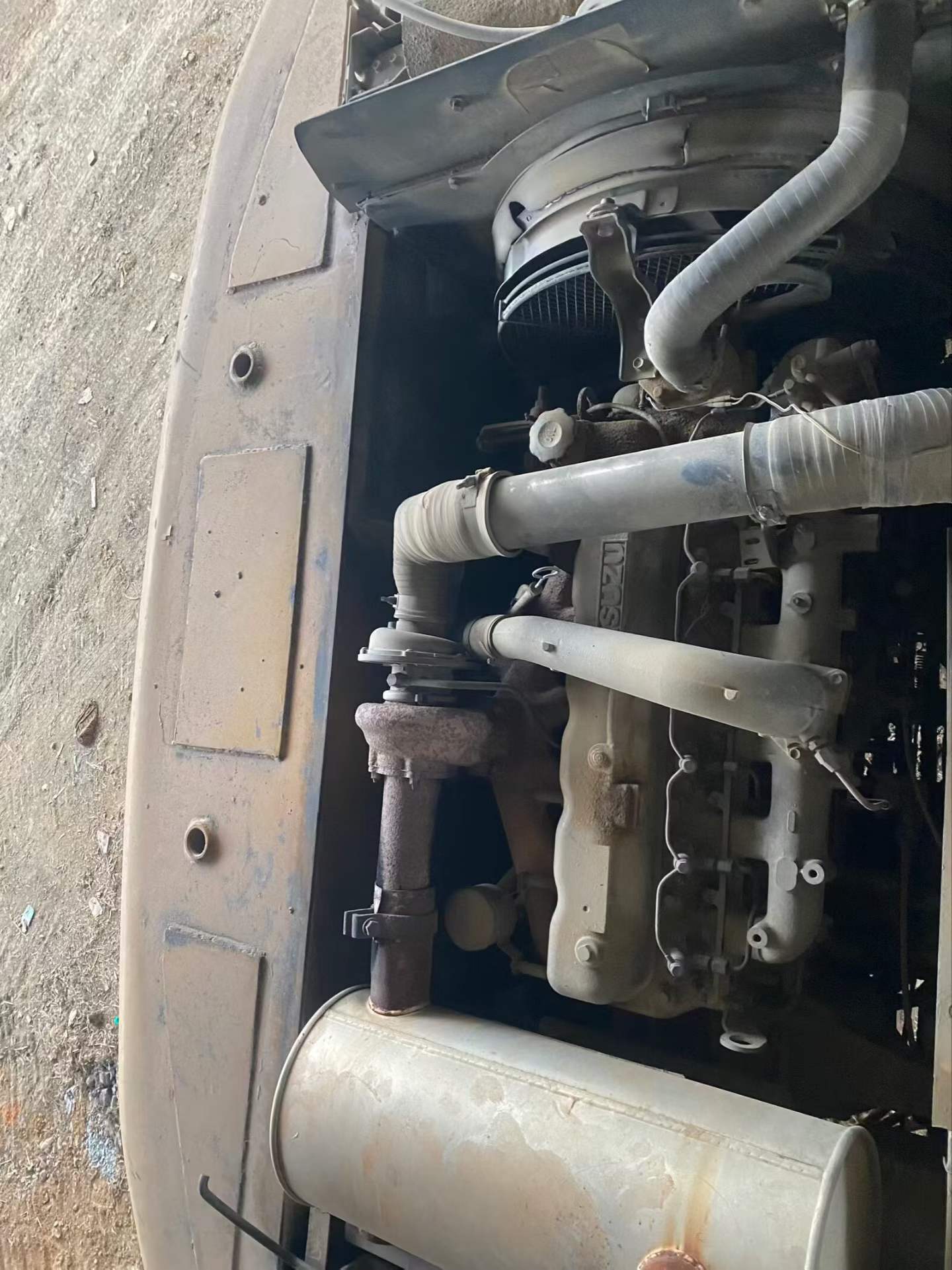

- Engine: ISUZU BB-6BG1TRP, 106.5 kW at 1950 rpm
- Digging forces: 138 kN (bucket), 103 kN (rod)
- Travel speed: 5.5/3.5 km/h
- Climbing ability: 35°
| Specifications | Value |
|---|---|
| No. | 1003906 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21450 |
| Bucket capacity (m³) | 0.8-1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1TRP |
| Rated power (kw/rpm) | 106.5/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*206 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9525 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3462 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
