Product Description

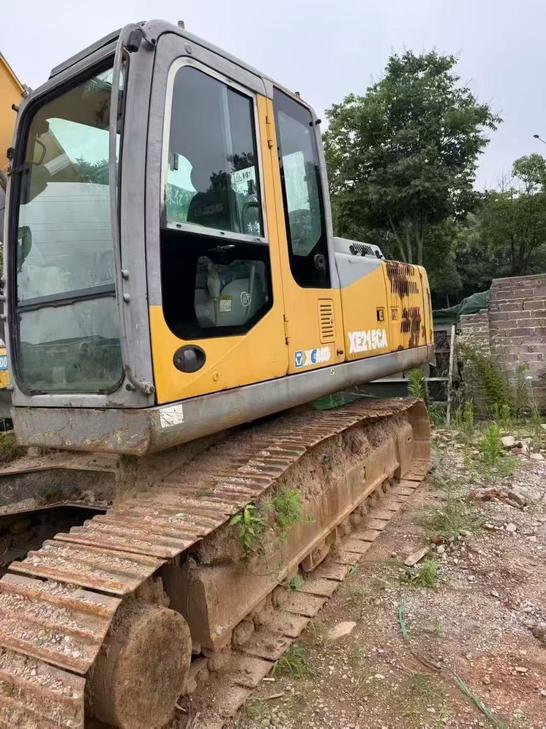

Discover the 2020 XCMG XE215CA, a robust and reliable excavator available in Hunan, China. This machine, priced at 99,000 RMB, is ideal for construction and mining operations, offering powerful performance and durability. The XE215CA is designed to handle tough environments with ease, making it a valuable asset for any industrial project.
- Year: 2020
- Brand: XCMG
- Model: XE215CA
- Location: Hunan, China
- Price: 99,000 RMB
| Specifications | Value |
|---|---|
| No. | 1080283 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1TRP |
| Rated power (kw/rpm) | 128.5/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.5/3.3 |
| Maximum flow of main pump (l/min) | 2 x 209 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9565 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2790 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4270 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
