HOME>>XCMG>>XCMG XE215D

2020 XCMG XE215D

1/4

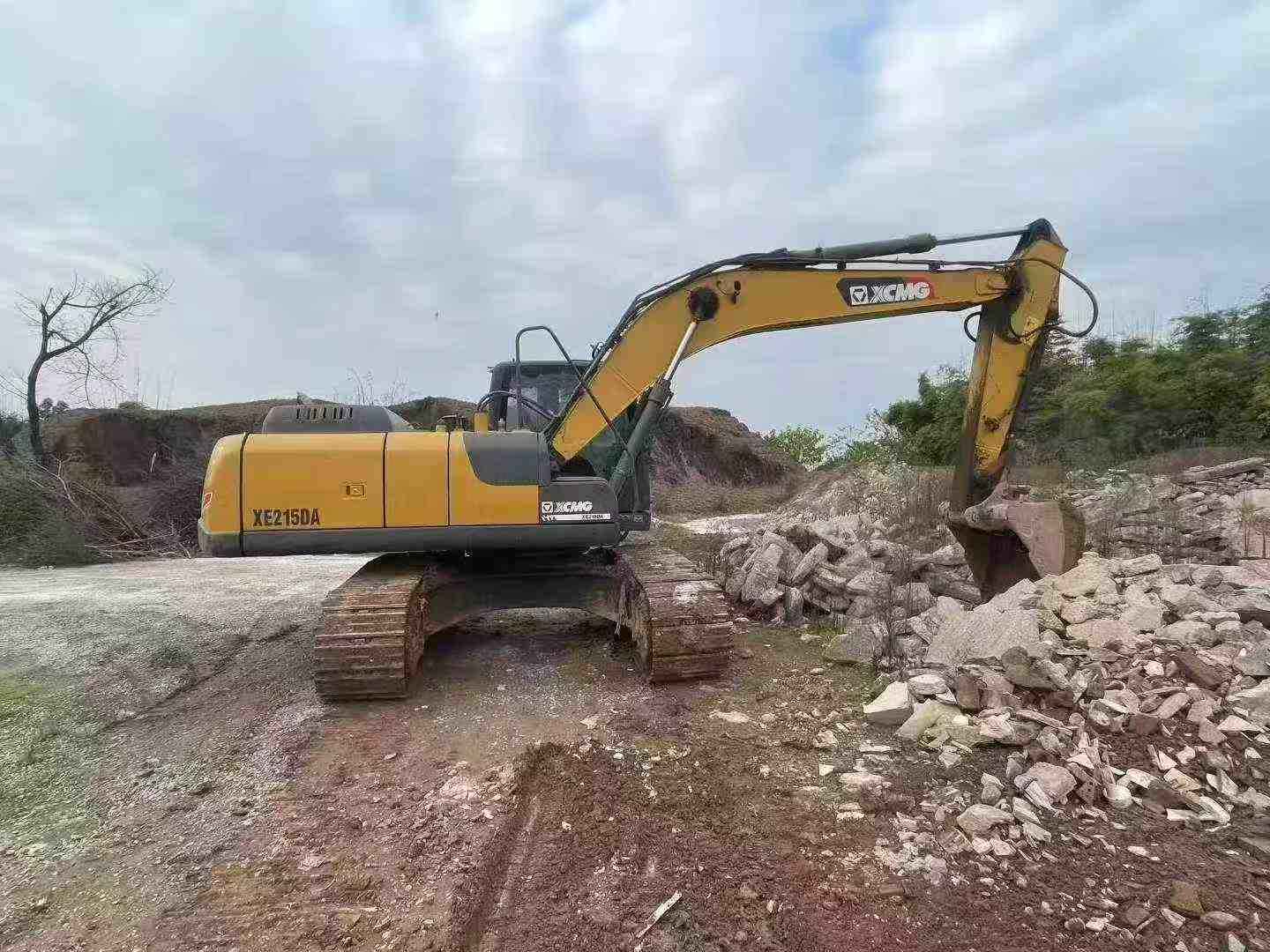

Buy XCMG XE215D Used Excavator / 1

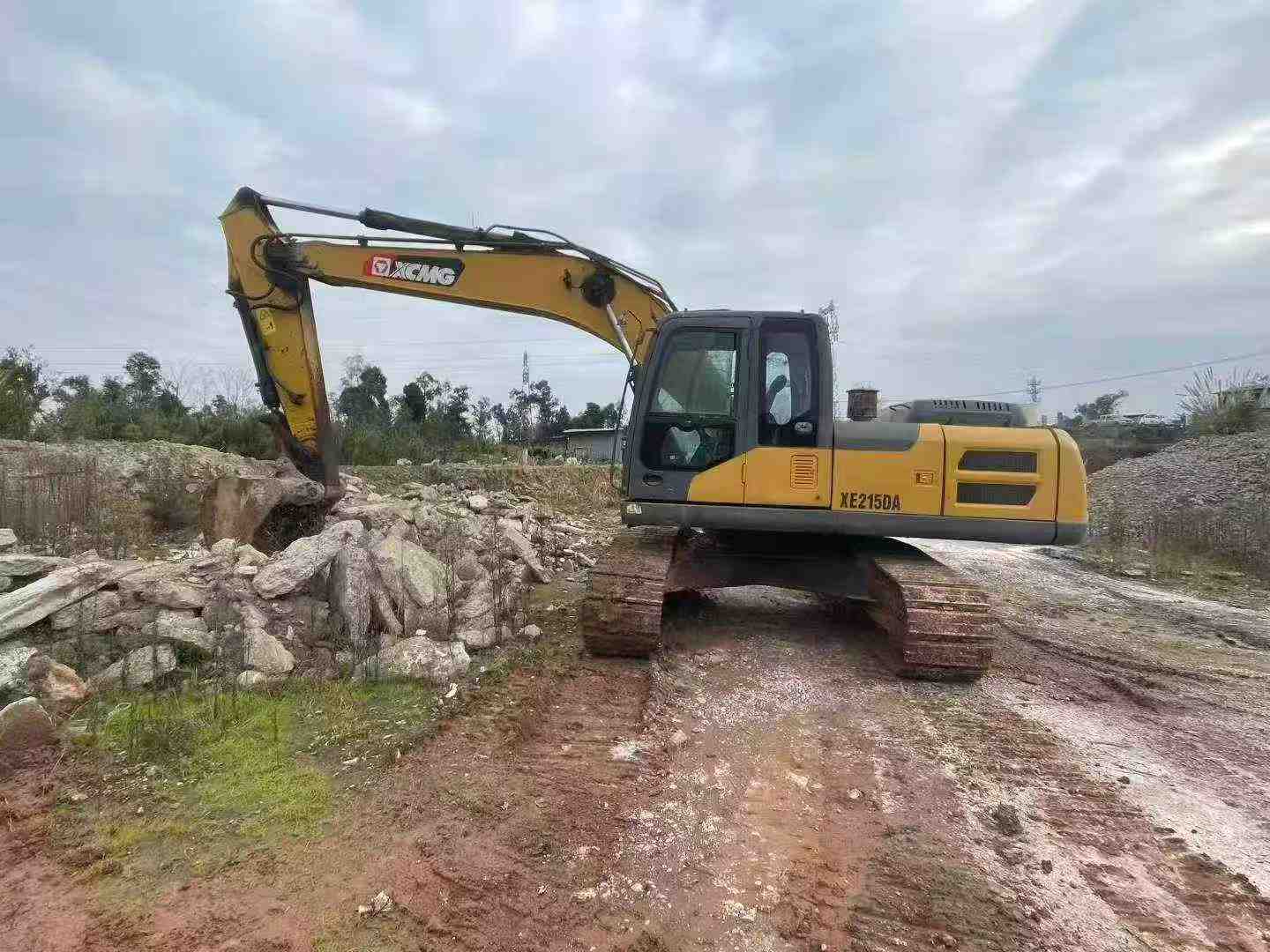

Buy XCMG XE215D Used Excavator / 2

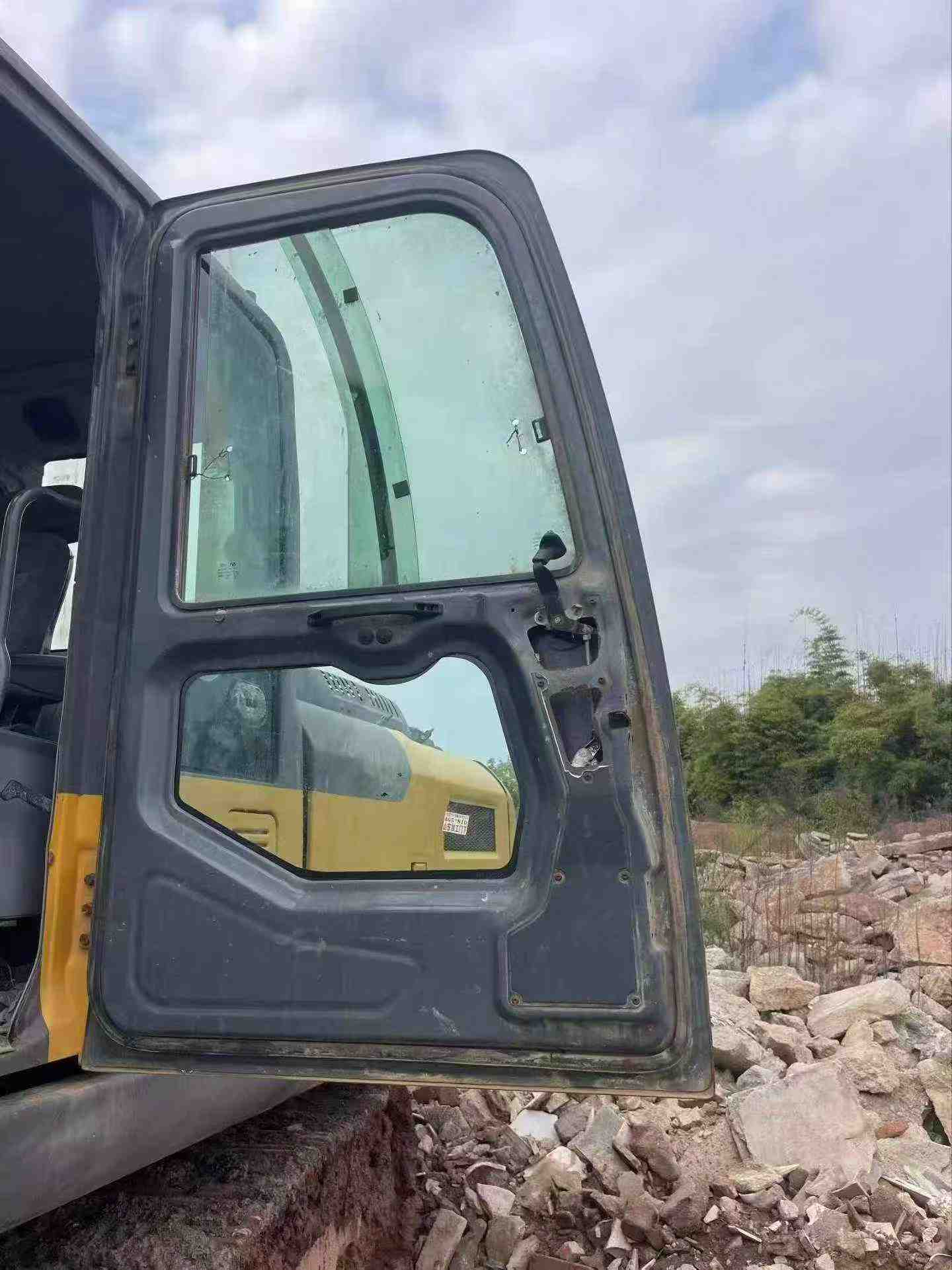

Buy XCMG XE215D Used Excavator / 3

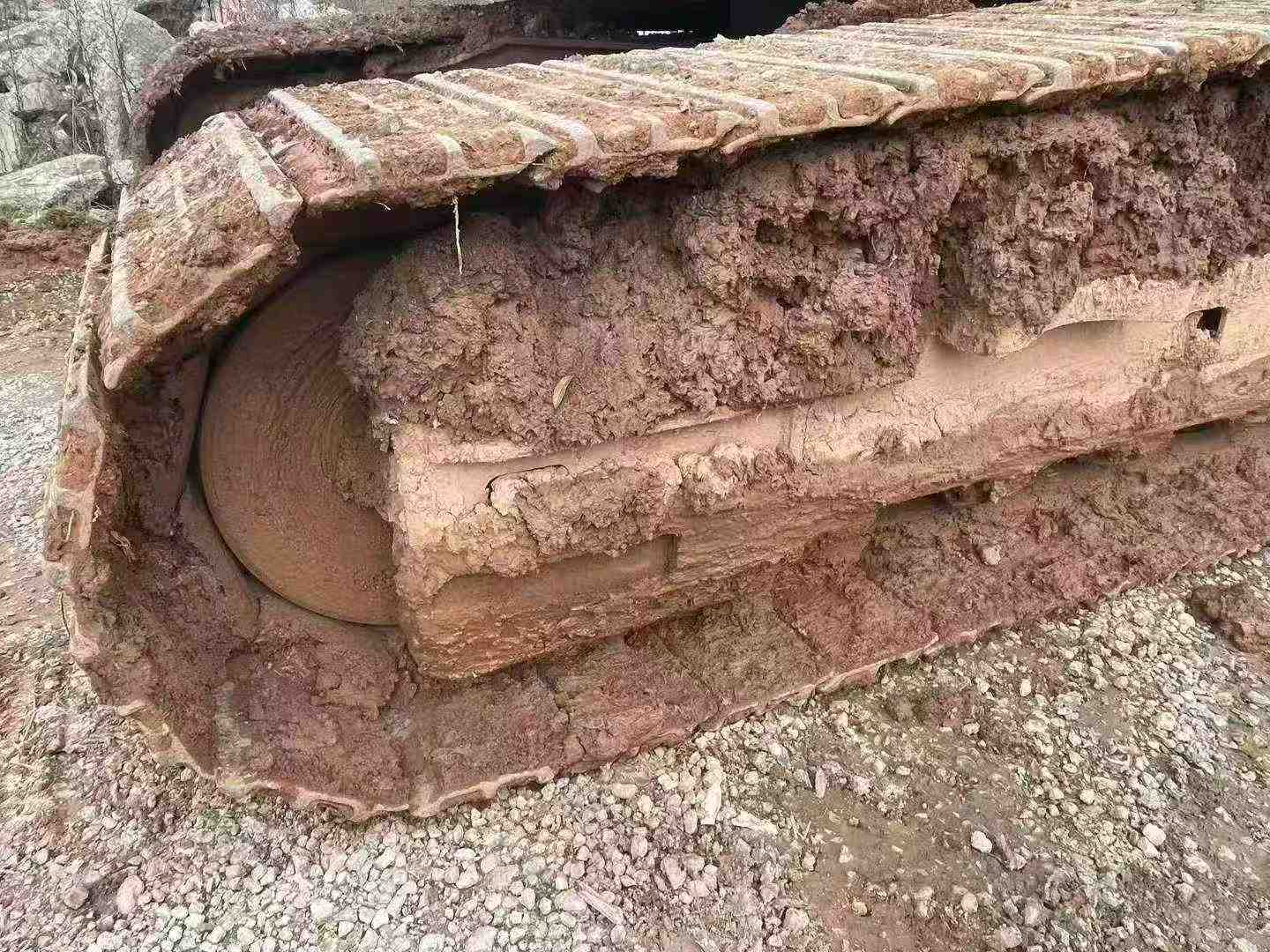

Buy XCMG XE215D Used Excavator / 4

Product Description

Discover the reliability and performance of the 2020 XCMG XE215D excavator, now available for immediate purchase. This high-configuration model is designed to meet the demanding needs of construction and excavation projects. Located in Sichuan, China, this used machine is offered at a competitive price of 159,000 RMB, making it an excellent investment for your fleet.

  • Year: 2020
  • Brand: XCMG
  • Model: XE215D
  • Location: Sichuan, China
  • Price: 159,000 RMB
SpecificationsValue
No.1073048
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)0.8-1.3
Boom length (mm)5680
Rod length (mm)2910
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)135/2050
Cooling modewater-cooling
Maximum torque (N.m)740/1250
Number of cylinders (PCS)6
Displacement (L)6.7
Working formturbocharging
Ground specific pressure (Kpa)47.2
Rotation speed (rpm)11.8
Climbing ability (%)35
Bucket digging force (kN)149
Rod digging force (kN)111
Maximum tractive force (kN)184
Travel speed (km/h)5.4/3.1
Main overflow set pressure (Mpa)31.5/34.3
Maximum flow of main pump (l/min)2 x 225
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.5
Hydraulic crushing pipeline is standardno
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)19.5
Total transport length (mm)9625
Total transport width (mm)2990
Total transport height (mm)3100
Counterweight ground clearance (mm)1050
Minimum ground clearance (mm)476
Minimum turning radius of front working device (mm)3530
Back end turning radius (mm)2890
Onboard width (mm)2830
Total track length (mm)4255
Track gauge (mm)2390
Track plate width (mm)600
Track ground length (mm)3462
Maximum digging radius (mm)9940
Maximum digging depth (mm)6680
Maximum excavation height (mm)9620
Maximum unloading height (mm)6780
Maximum vertical digging depth (mm)5715
see more

Overview

No.1073048

Brand Name:

XCMG

Model Number:

XE215D

Year:

2020

Location:

Sichuan China

Pub Date
