HOME>>XCMG>>XCMG XE215DA

2019 XCMG XE215DA

1/4
Buy XCMG XE215DA Used Excavator / 1

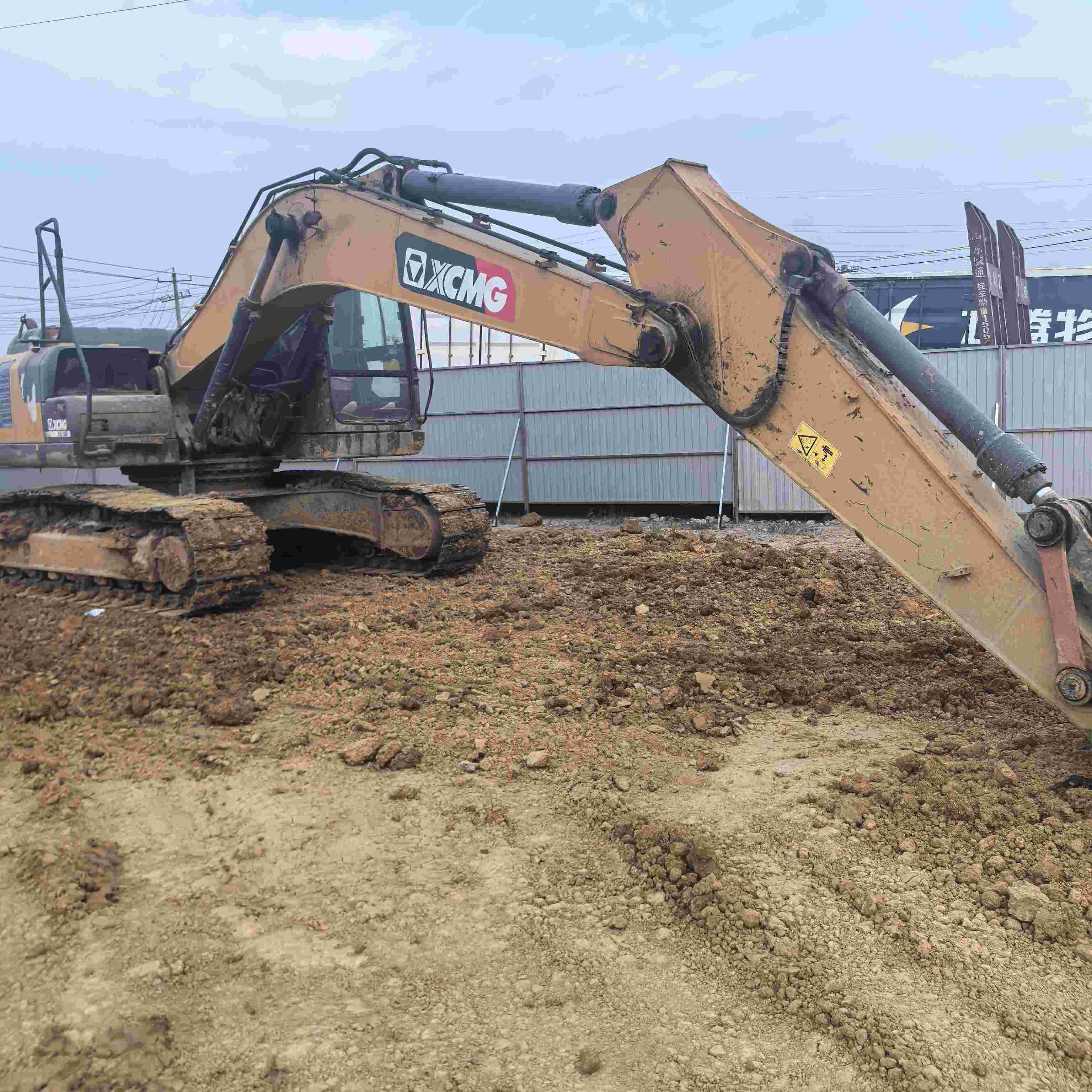

Buy XCMG XE215DA Used Excavator / 2

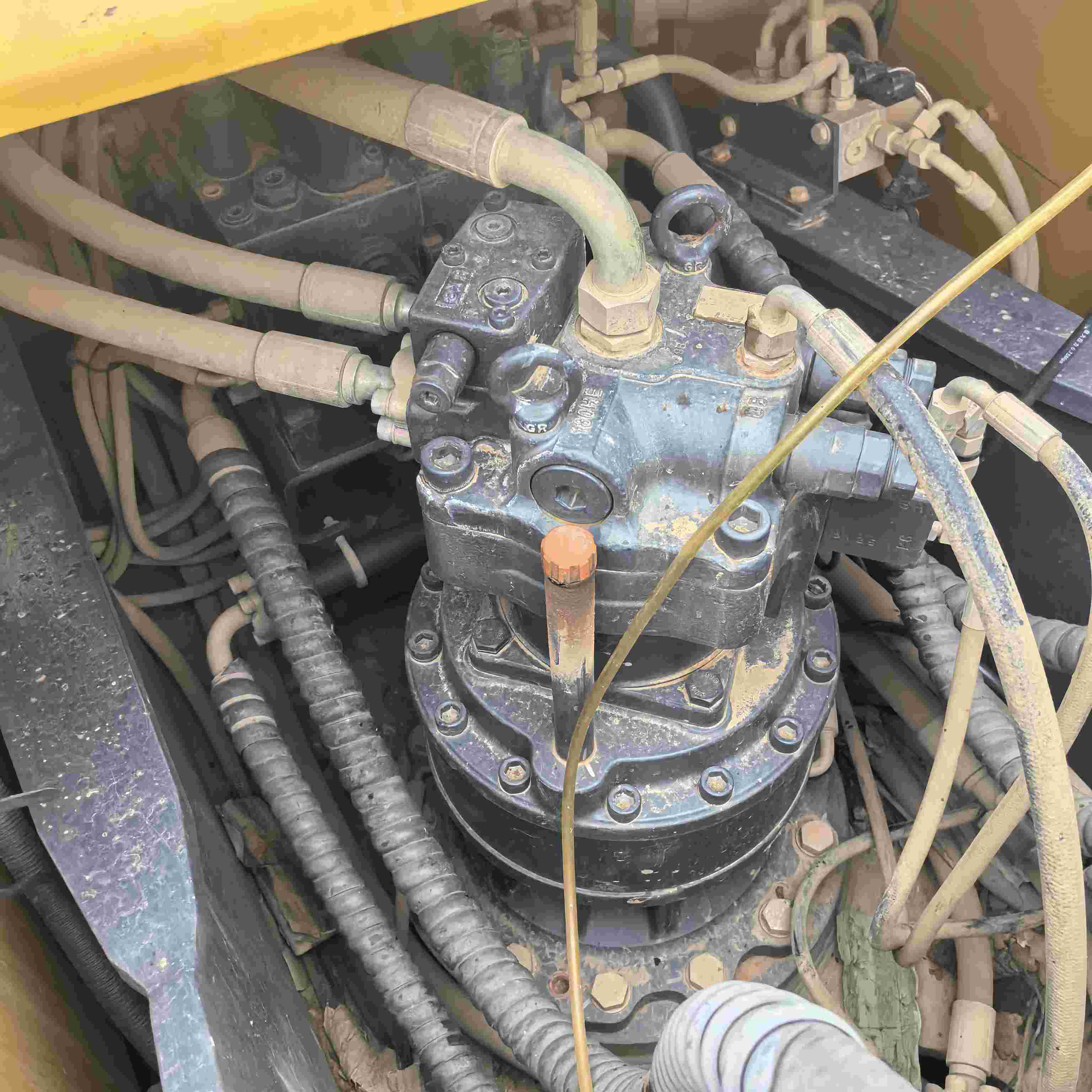

Buy XCMG XE215DA Used Excavator / 3

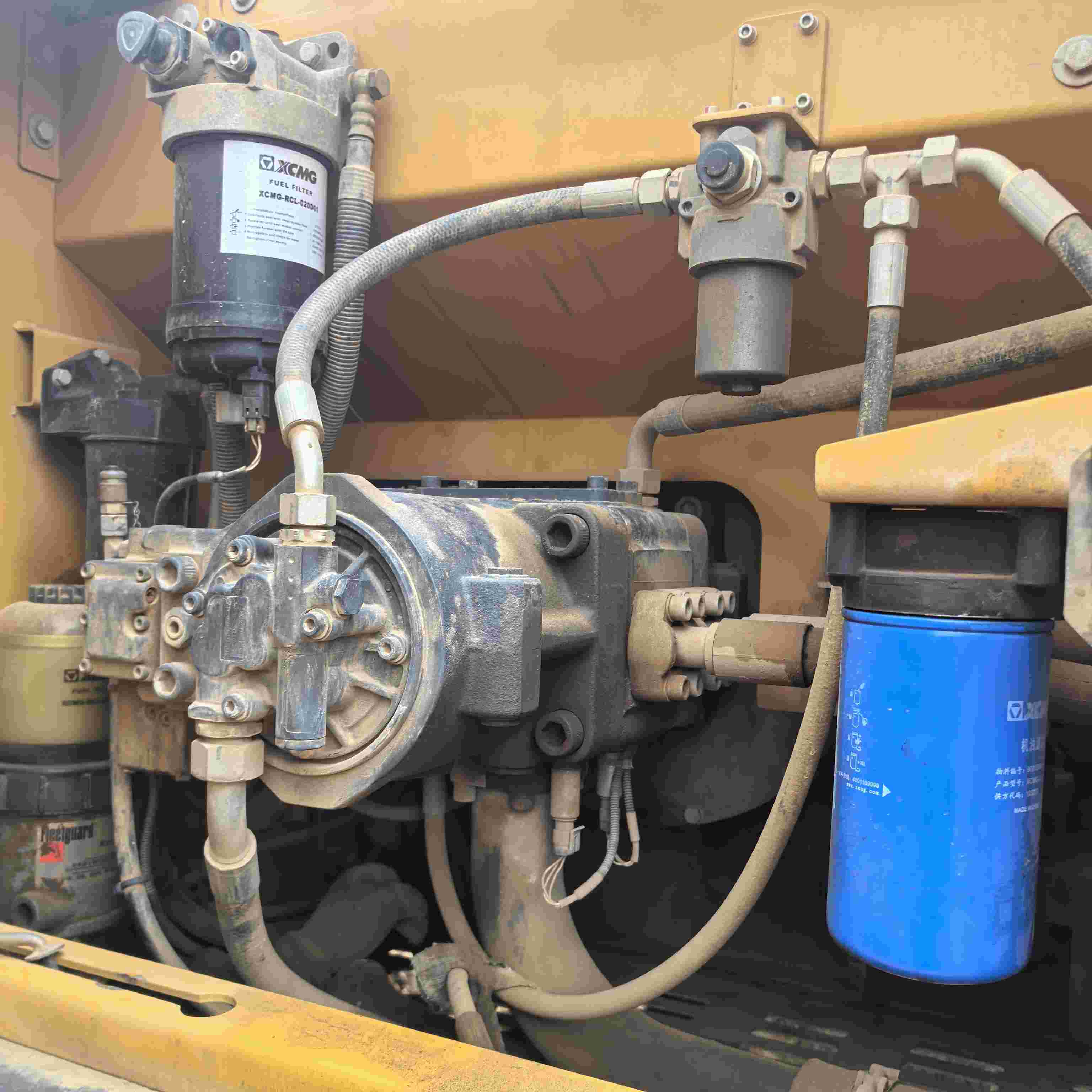

Buy XCMG XE215DA Used Excavator / 4

Product Description

This 2019 XCMG XE215DA hydraulic excavator represents a solid opportunity for earthmoving operations. As a single-owner machine purchased new in October 2019, this unit has been dedicated exclusively to excavation and earthwork applications throughout its operational life. Located in Henan, China, the XE215DA delivers dependable performance in the 21-ton class with XCMG's proven hydraulic system and reinforced undercarriage.

  • Year: 2019 (October)
  • Model: XCMG XE215DA
  • Ownership: Single owner from new
  • Application history: Earthmoving and excavation
  • Current location: Henan Province, China

The XE215DA combines operational efficiency with maintainability, making it suitable for contractors focused on earthwork, site preparation, and general excavation. Available for inspection in Henan.

SpecificationsValue
No.1170179
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.05
Boom length (mm)5680
Rod length (mm)2910
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)135/2050
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)6.7
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)47.2
Rotation speed (rpm)11.8
Climbing ability (%)35
Bucket digging force (kN)149
Rod digging force (kN)111
Maximum tractive force (kN)184
Travel speed (km/h)5.4/3.1
Maximum flow of main pump (l/min)2*216
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)19.5
Total transport length (mm)9625
Total transport width (mm)2990
Total transport height (mm)3100
Counterweight ground clearance (mm)1050
Minimum ground clearance (mm)486
Minimum turning radius of front working device (mm)3530
Back end turning radius (mm)2844
Total track length (mm)4255
Track gauge (mm)2390
Track plate width (mm)600
Maximum digging radius (mm)9940
Maximum digging depth (mm)6680
Maximum excavation height (mm)9620
Maximum unloading height (mm)6780
Maximum vertical digging depth (mm)5715
see more

Overview

No.1170179

Brand Name:

XCMG

Model Number:

XE215DA

Year:

2019

Location:

Henan China

Pub Date:
