Product Description
With a robust 21-ton working weight and a powerful QSB7 engine, this 2020 XCMG XE215DA excavator is designed for immediate deployment in demanding construction environments. Located in Jiangsu Suqian, it excels in digging, grading, and demolition tasks. Equipped with a 1.05 m³ backhoe bucket, it delivers a formidable 149 kN of bucket digging force, ensuring efficient material handling. The machine's 5680 mm boom and 2910 mm rod provide extensive reach, making it ideal for deep excavation and high-reach operations. Its 4-stroke, turbocharged, air-to-air cooled engine offers 135 kW of power at 2050 rpm, coupled with a water-cooling system for reliable performance. Capable of a 35% gradeability and a maximum travel speed of 5.4 km/h, this excavator is ready to tackle any site challenges with precision and reliability.
- Working weight: 21,900 kg
- Bucket capacity: 1.05 m³
- Boom length: 5680 mm
- Rod length: 2910 mm
- Rated power: 135 kW at 2050 rpm
- Travel speed: 5.4/3.1 km/h
- Maximum digging depth: 6680 mm
- Maximum unloading height: 6780 mm
| Specifications | Value |
|---|---|
| No. | 1023100 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

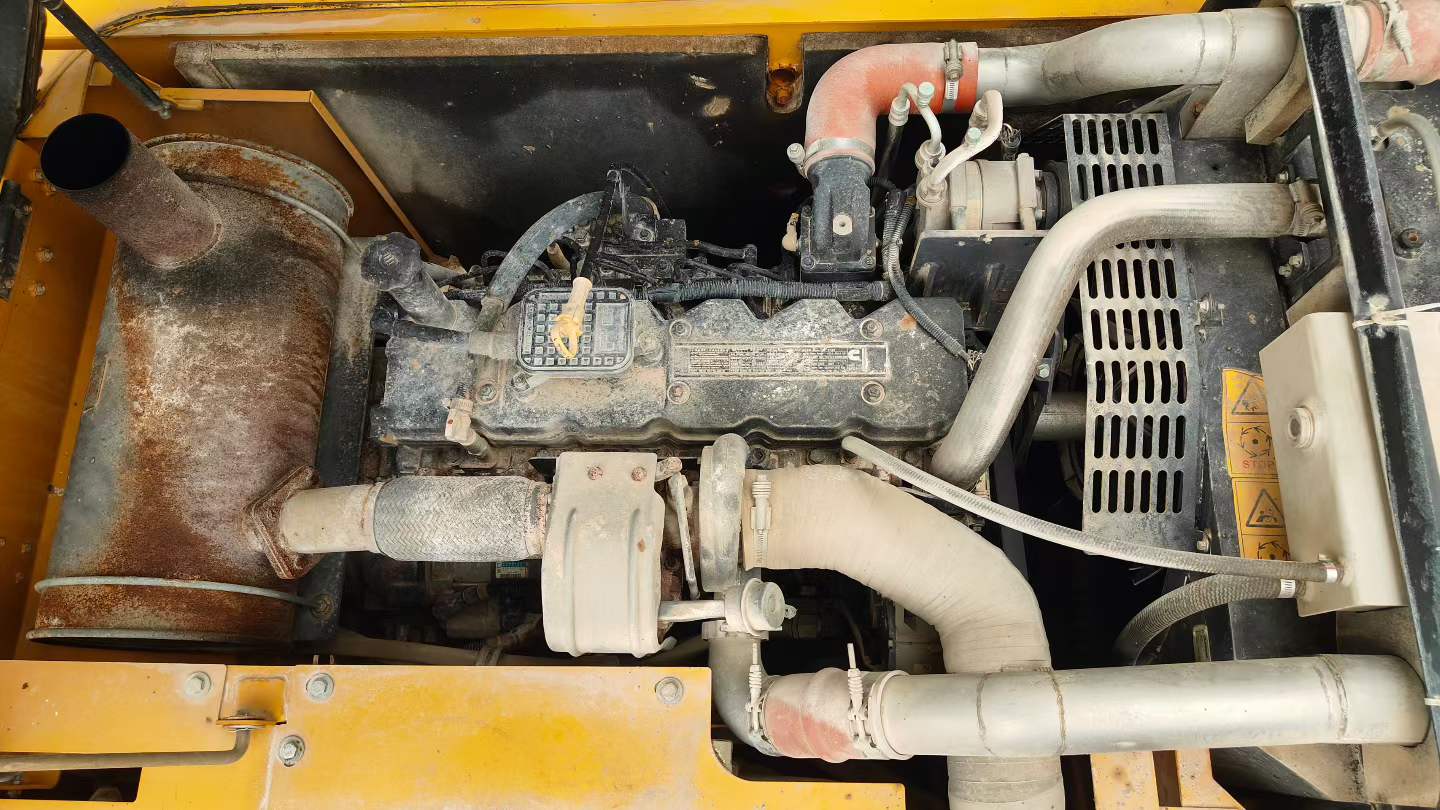

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
