Product Description

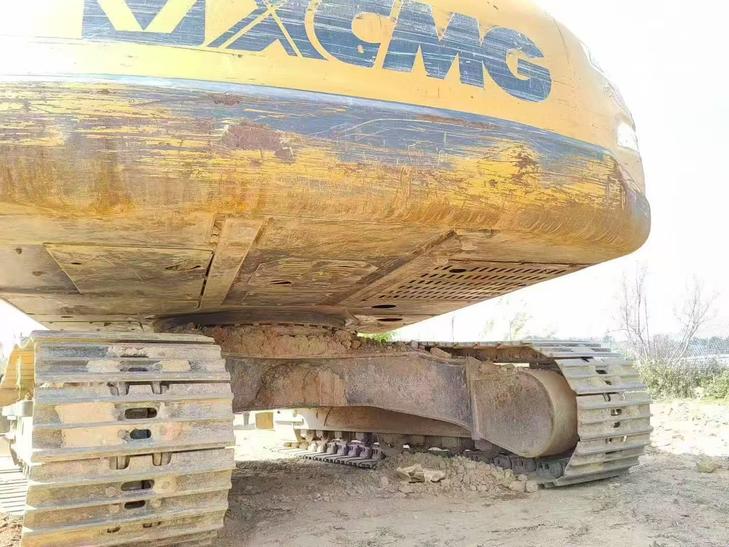

Available for immediate sale: 2020 XCMG XE215DA hydraulic excavator, currently located in Yunnan, China. This 21-ton class earthmoving machine represents a prime example of XCMG's reliable mid-range excavator lineup, ideally suited for general construction, earthwork operations, and civil engineering projects.
This unit has been maintained under single private ownership since new, ensuring consistent maintenance standards and complete operational history. The XE215DA features XCMG's proven hydraulic system and reinforced boom structure, designed for demanding excavation and loading applications in various soil conditions.
- Year of Manufacture: 2020
- Model: XCMG XE215DA
- Application: Earthmoving and general excavation
- Ownership: Single private owner
- Current Location: Yunnan Province, China
This excavator is available for inspection by serious buyers. International shipping and export documentation can be arranged as required.
| Specifications | Value |
|---|---|
| No. | 1088441 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
