Product Description

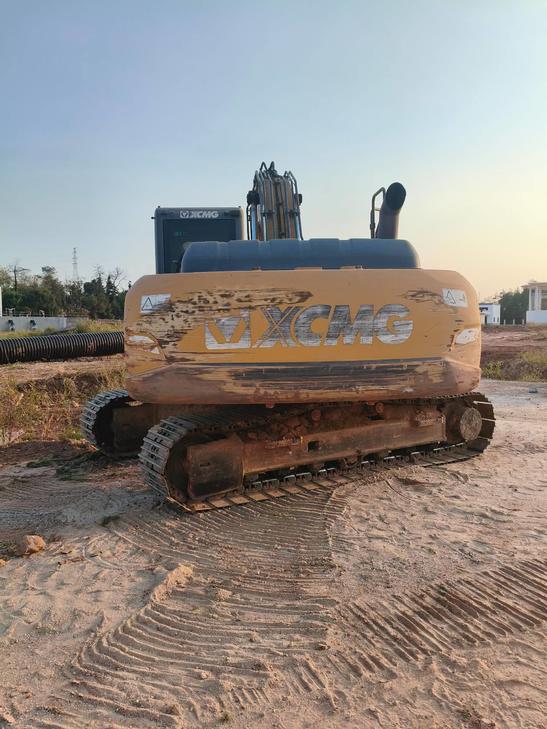

Well-maintained 2020 XCMG XE215DA hydraulic excavator available in Guangdong, China. This 21-ton class machine has accumulated approximately 1,700 operating hours in construction site applications, positioning it as a low-hour unit with substantial service life remaining. The excavator comes equipped with a hydraulic breaker attachment, adding versatility for demolition and rock-breaking tasks.
XCMG's 215DA series is known for reliable performance in general earthmoving, trenching, and material handling operations. The machine has been actively used in field conditions and shows corresponding wear consistent with its work history.
- Operating weight class: 21 tonnes
- Includes hydraulic hammer attachment
- Approximately 1,700 working hours
- Suitable for construction and excavation contractors
- Available for inspection in Guangdong Province
This unit represents a cost-effective option for operators seeking proven XCMG reliability with minimal depreciation exposure.
| Specifications | Value |
|---|---|
| No. | 1166336 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
