Product Description
This 2021 XCMG XE215DA hydraulic excavator offers solid performance for contractors seeking reliable earthmoving equipment. With approximately three years of operational history, this 21-ton class machine combines XCMG's proven engineering with practical functionality for general excavation, trenching, and loading applications.
Currently located in Hunan, China, this unit is available for inspection and negotiation. The XE215DA features standard hydraulic systems, operator comfort considerations, and the durability expected from XCMG's commercial excavator line.
- Year of Manufacture: 2021
- Model: XCMG XE215DA
- Location: Hunan Province, China
- Negotiable pricing available
- Suitable for construction, infrastructure, and earthworks projects
Contact us to discuss specifications, arrange viewing, and negotiate terms. This machine represents an opportunity to acquire established Chinese manufacturing at a competitive entry point for your fleet.
| Specifications | Value |
|---|---|
| No. | 1161340 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

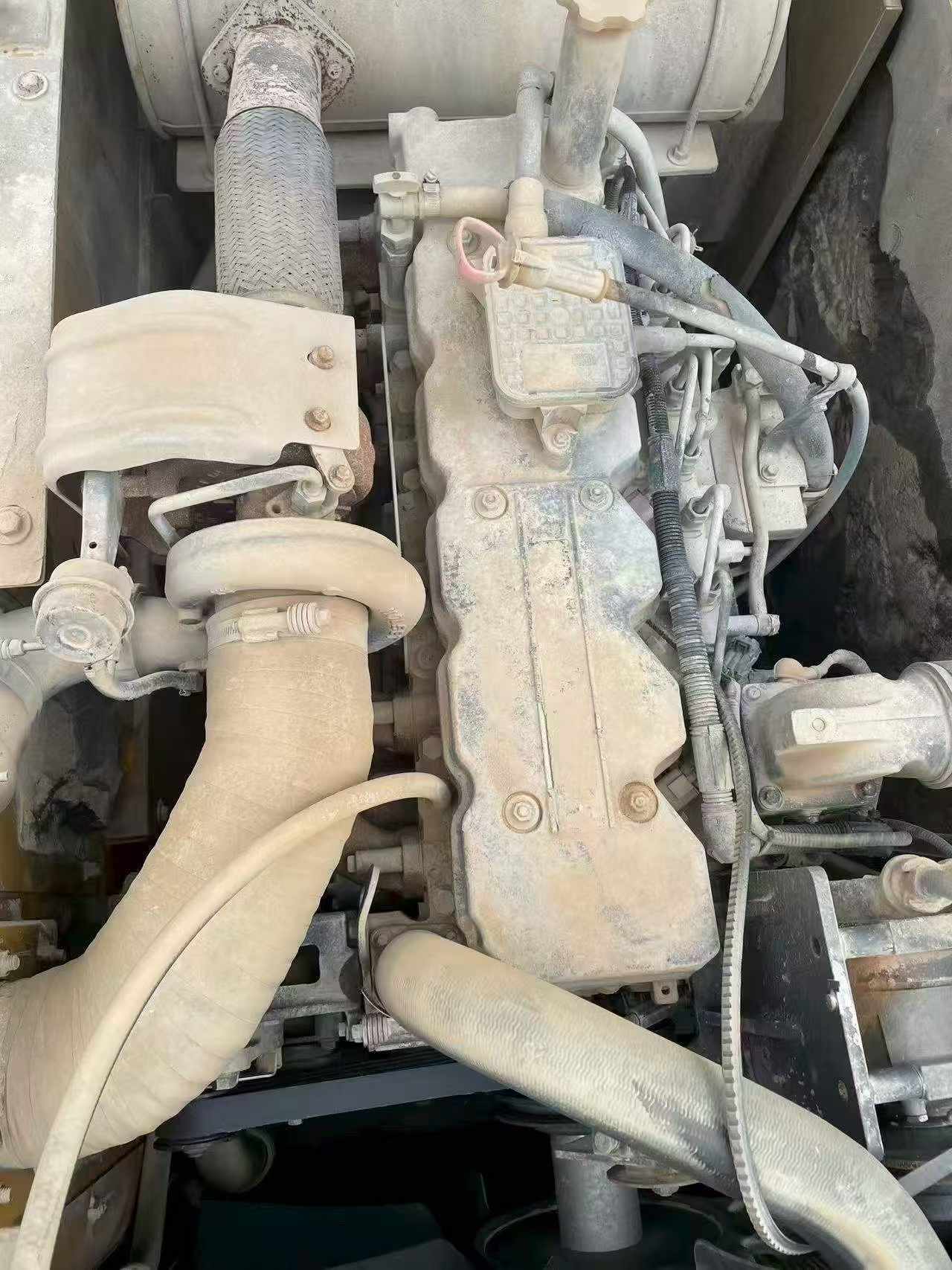

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
