Product Description

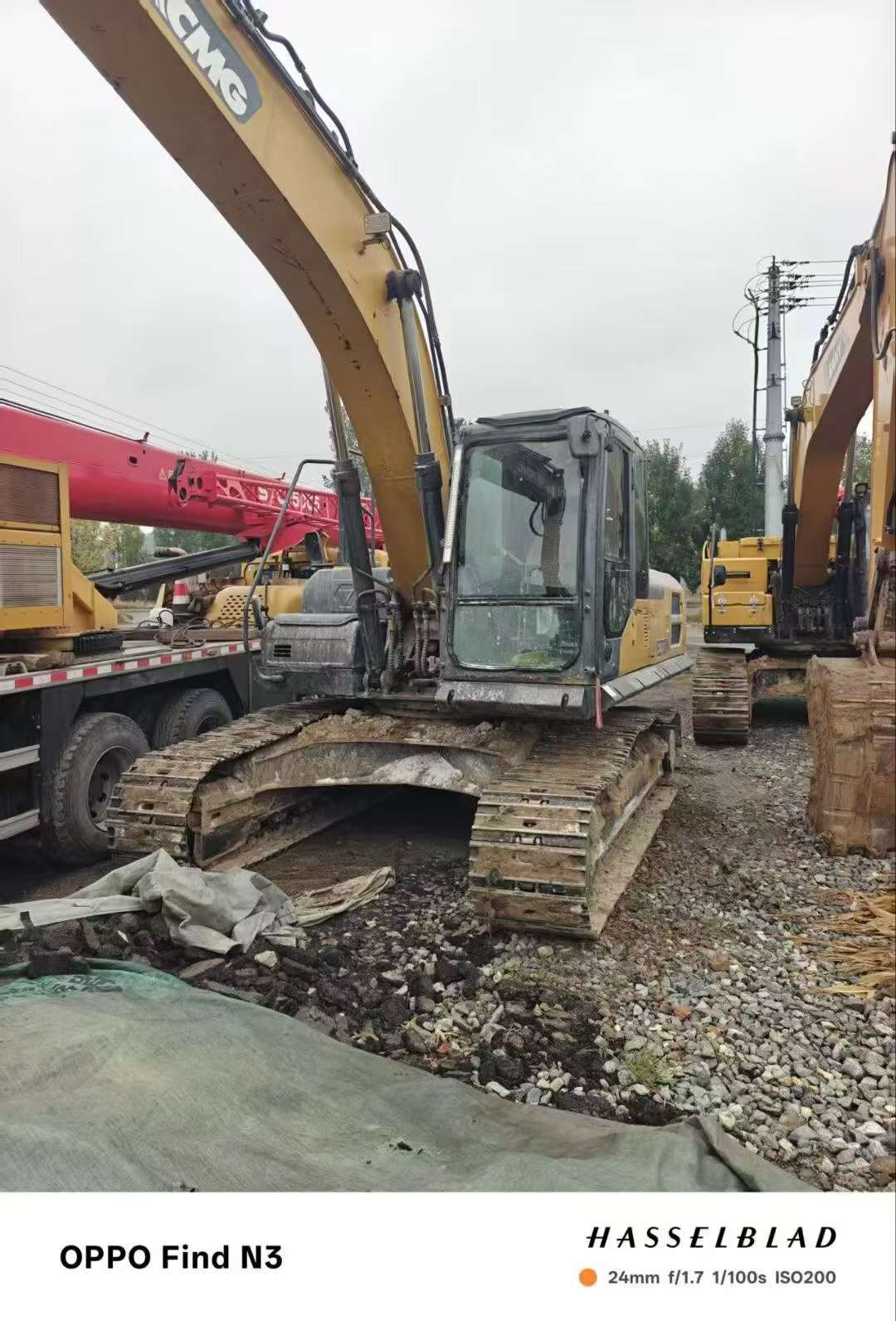

This 2019 XCMG XE225DK excavator offers reliable performance for medium to heavy-duty applications. The XE225DK is part of XCMG's proven excavator lineup, designed for durability and operational efficiency in demanding work environments.
Currently located in Fujian, China, this machine represents solid value for contractors and equipment operators seeking dependable used machinery. The 2019 model year provides a balance of modern features and proven technology at a competitive price point.
Key features include:
- XCMG XE225DK model designation
- 2019 manufacture year
- Suitable for excavation, grading, and material handling
- Available for inspection in Fujian, China
Contact us for detailed specifications, current condition assessment, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1173004 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22100 |
| Bucket capacity (m³) | 1.0-1.2 (1.14) |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

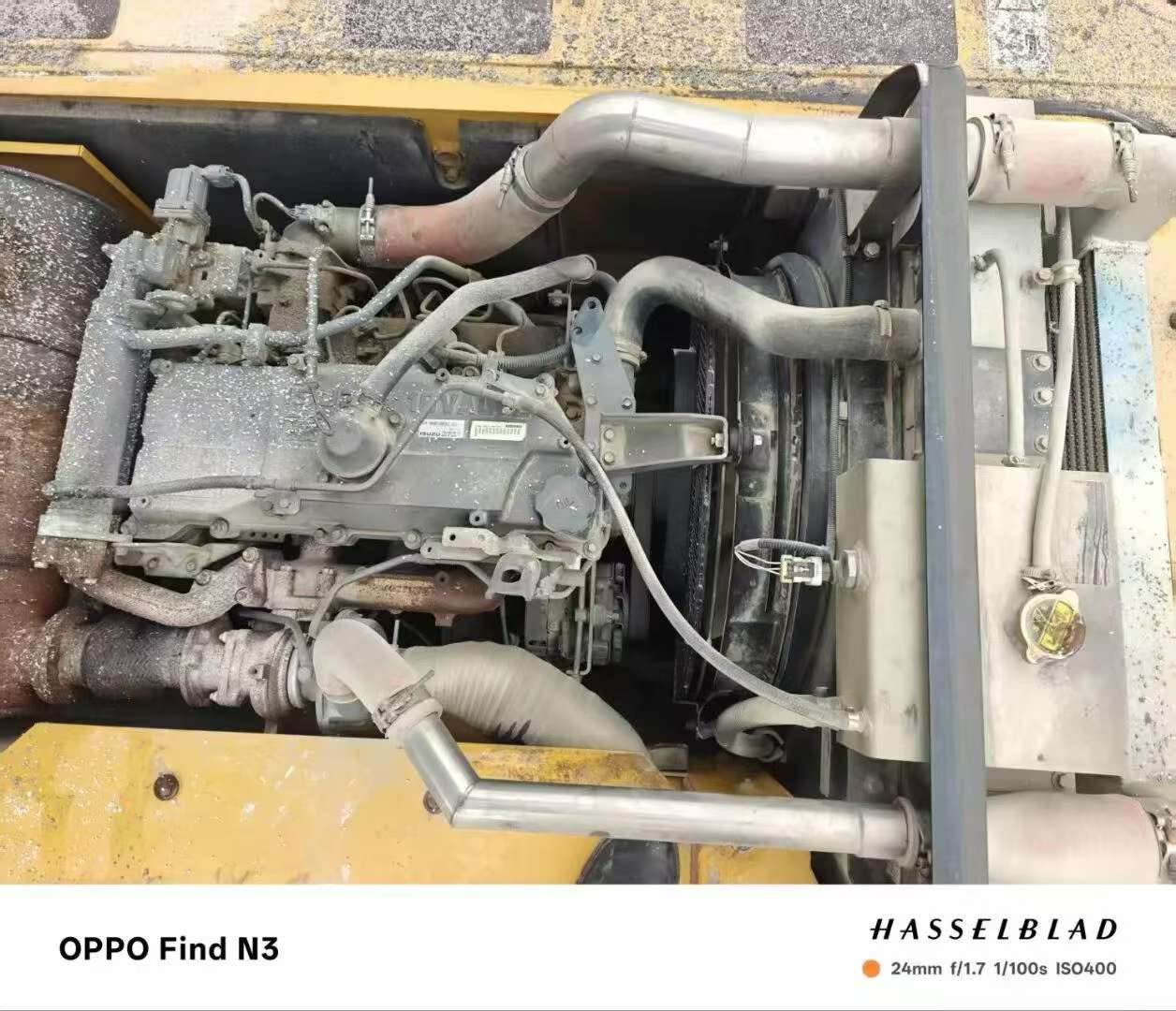

| Engine type | 4HK1 |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 676/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.3 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/3.0 |
| Fuel Tank (L) | 400 |
| Engine Oil changes (L) | 19.5 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
