Product Description

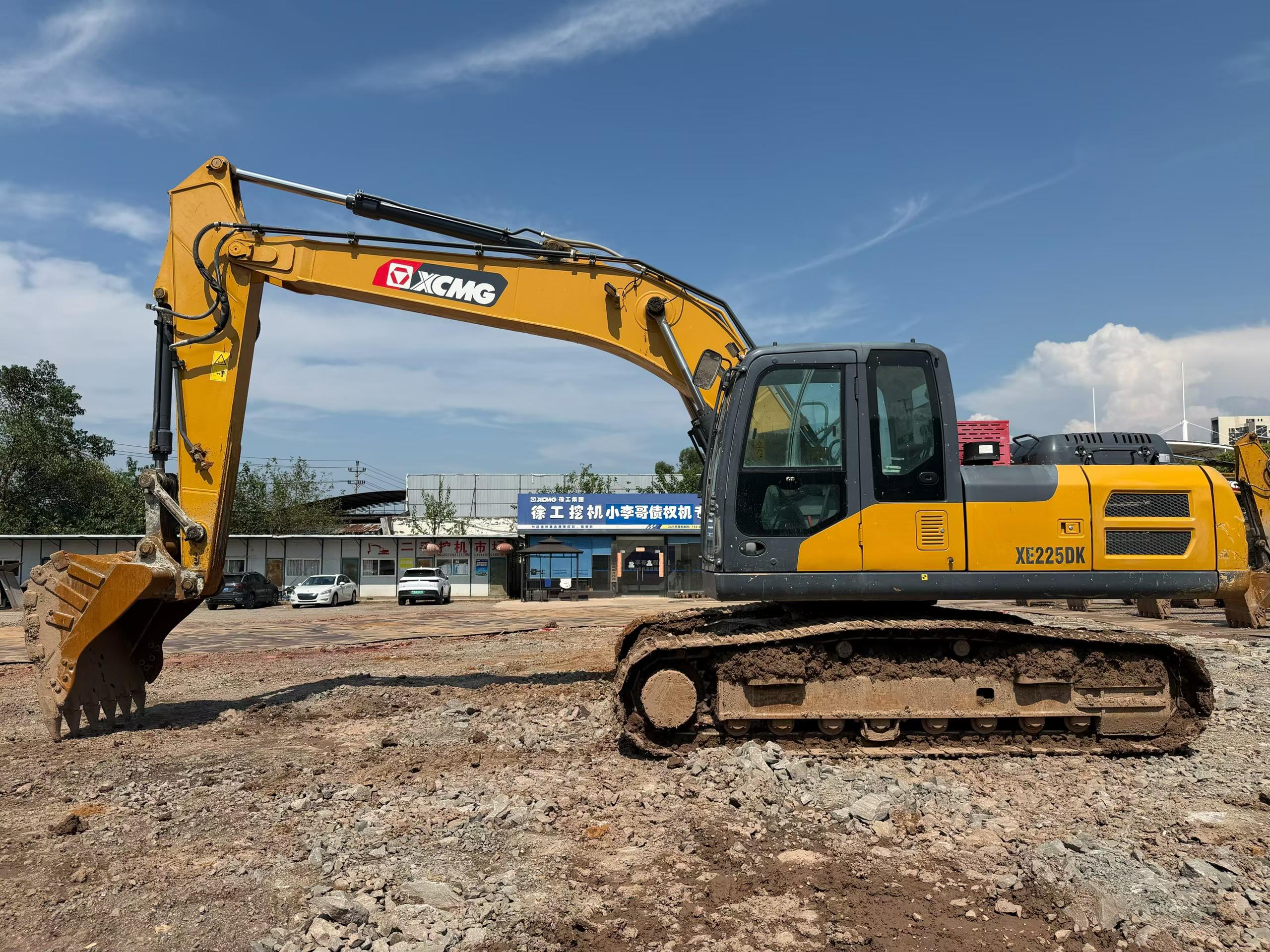

Discover the 2023 XCMG XE225DK, a robust and reliable excavator currently available in Chongqing, China. This machine is equipped with an Isuzu engine and Kawasaki hydraulic components, ensuring powerful performance and durability. Ideal for various construction and excavation tasks, this model is offered at a competitive price, making it a cost-effective choice for your project needs.
- Year: 2023
- Brand: XCMG
- Model: XE225DK
- Location: Chongqing, China

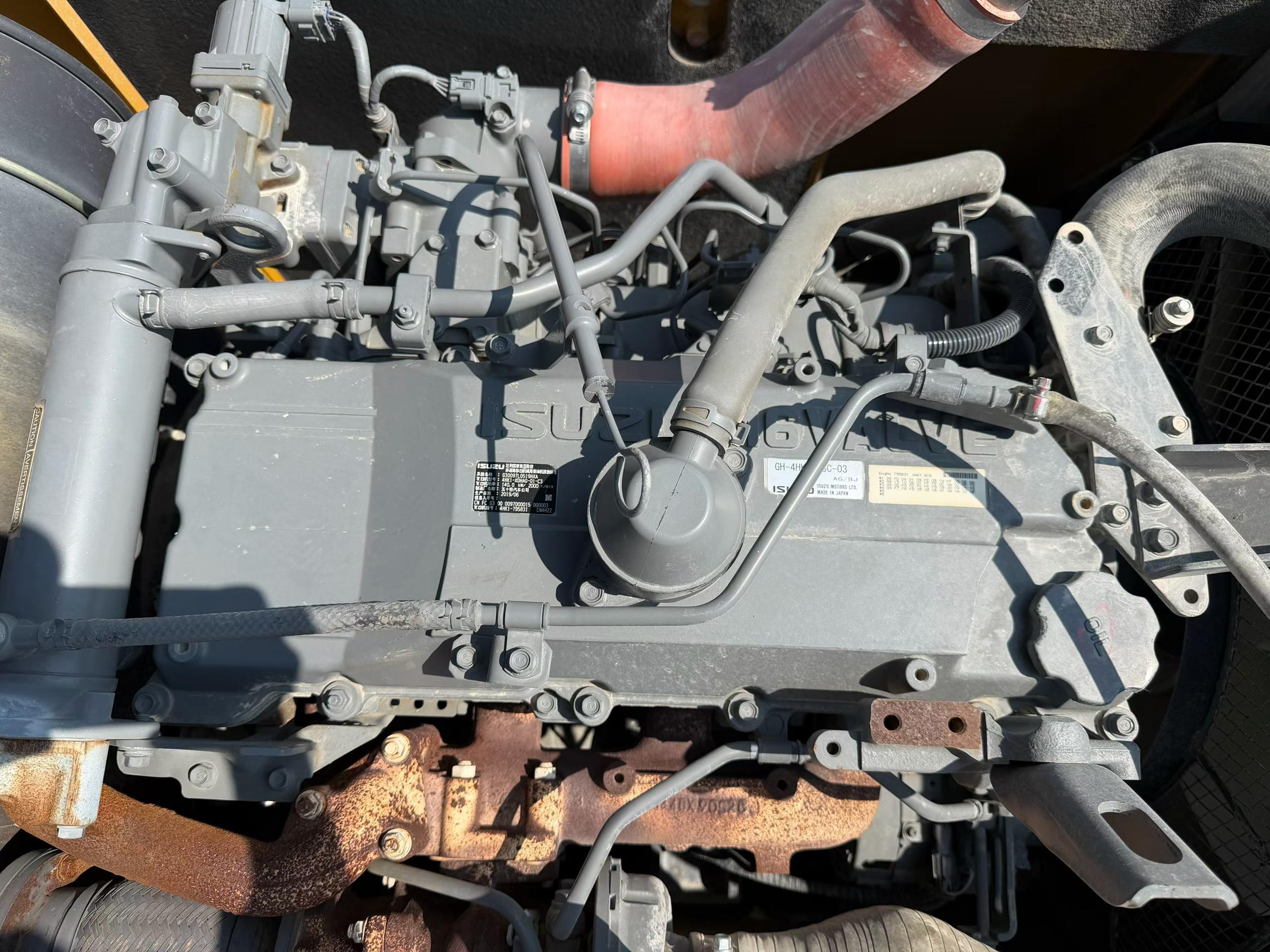

- Engine: Isuzu

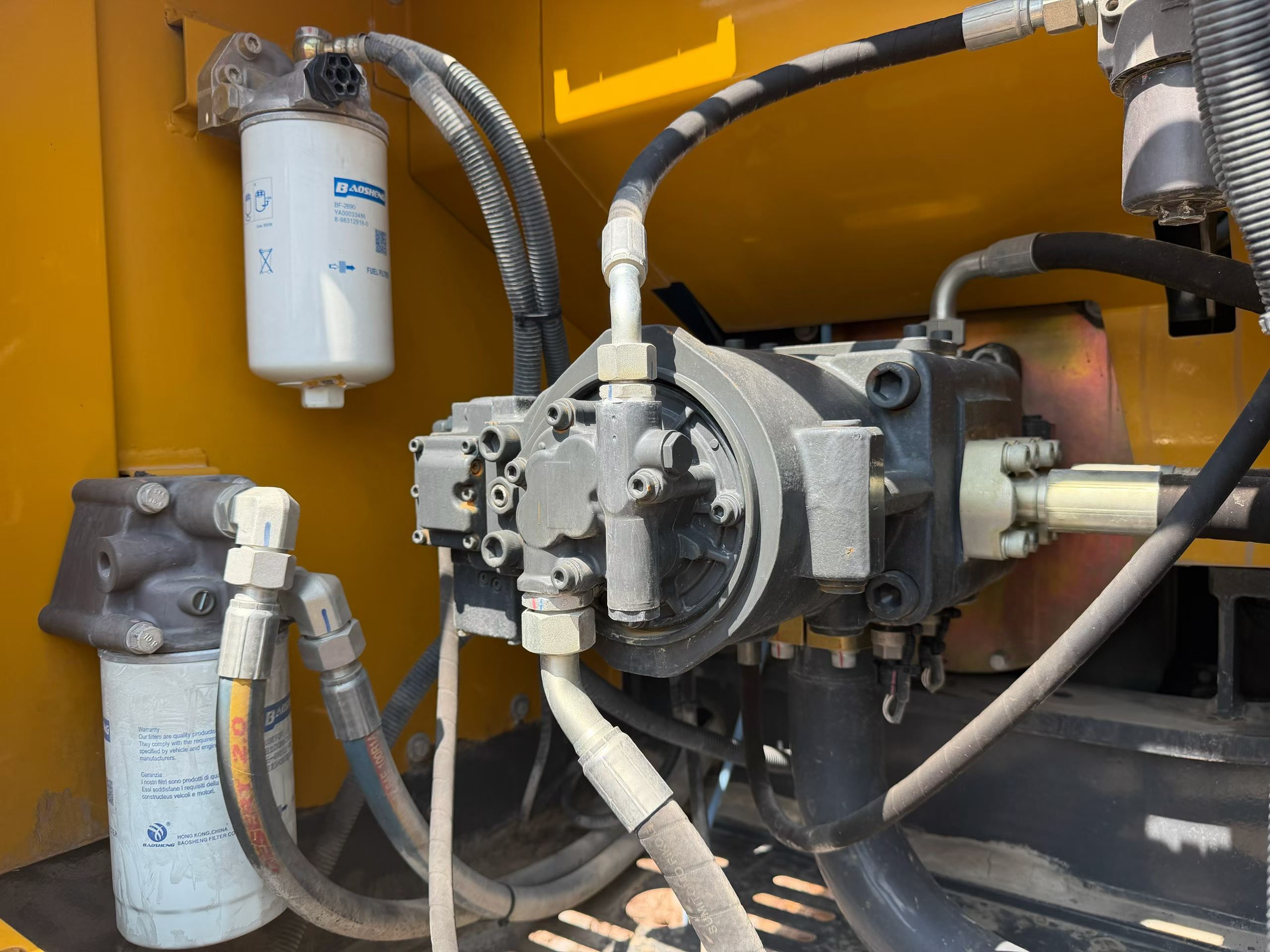

- Hydraulics: Kawasaki
- Available for both rental and purchase
- Financing options available
| Specifications | Value |
|---|---|
| No. | 1135033 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22100 |
| Bucket capacity (m³) | 1.0-1.2 (1.14) |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4HK1 |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 676/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.3 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/3.0 |
| Fuel Tank (L) | 400 |
| Engine Oil changes (L) | 19.5 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
