Product Description

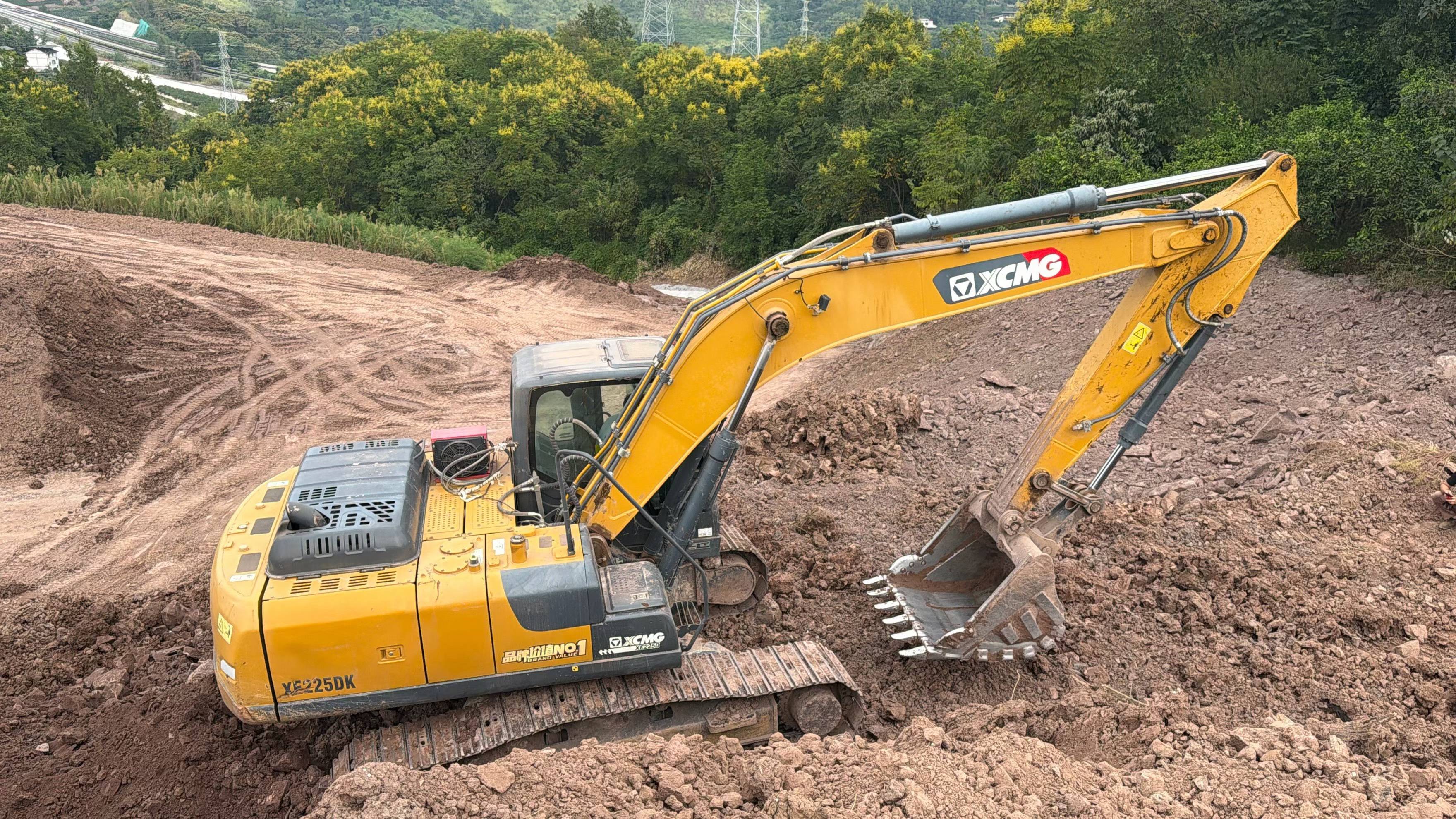

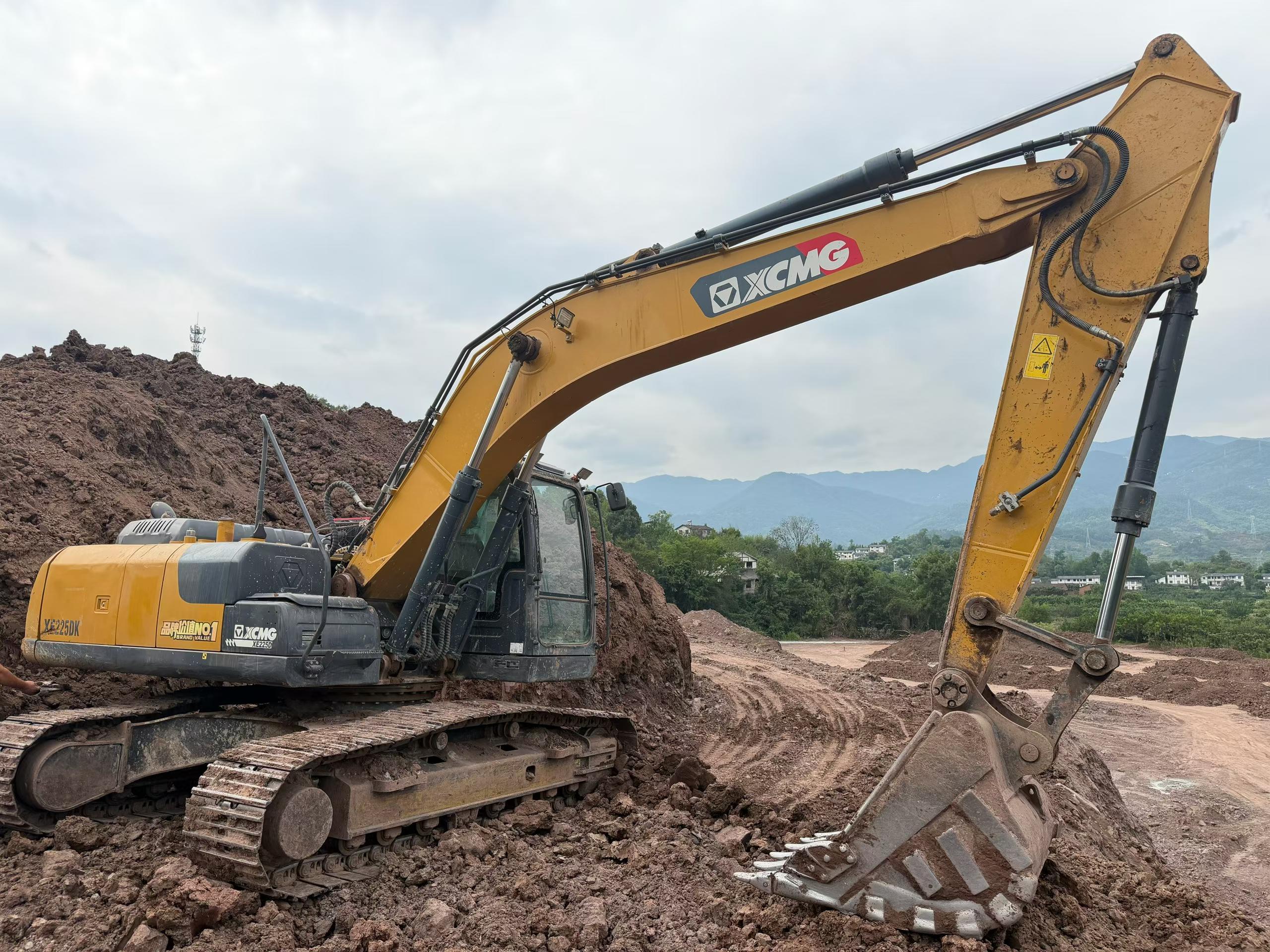

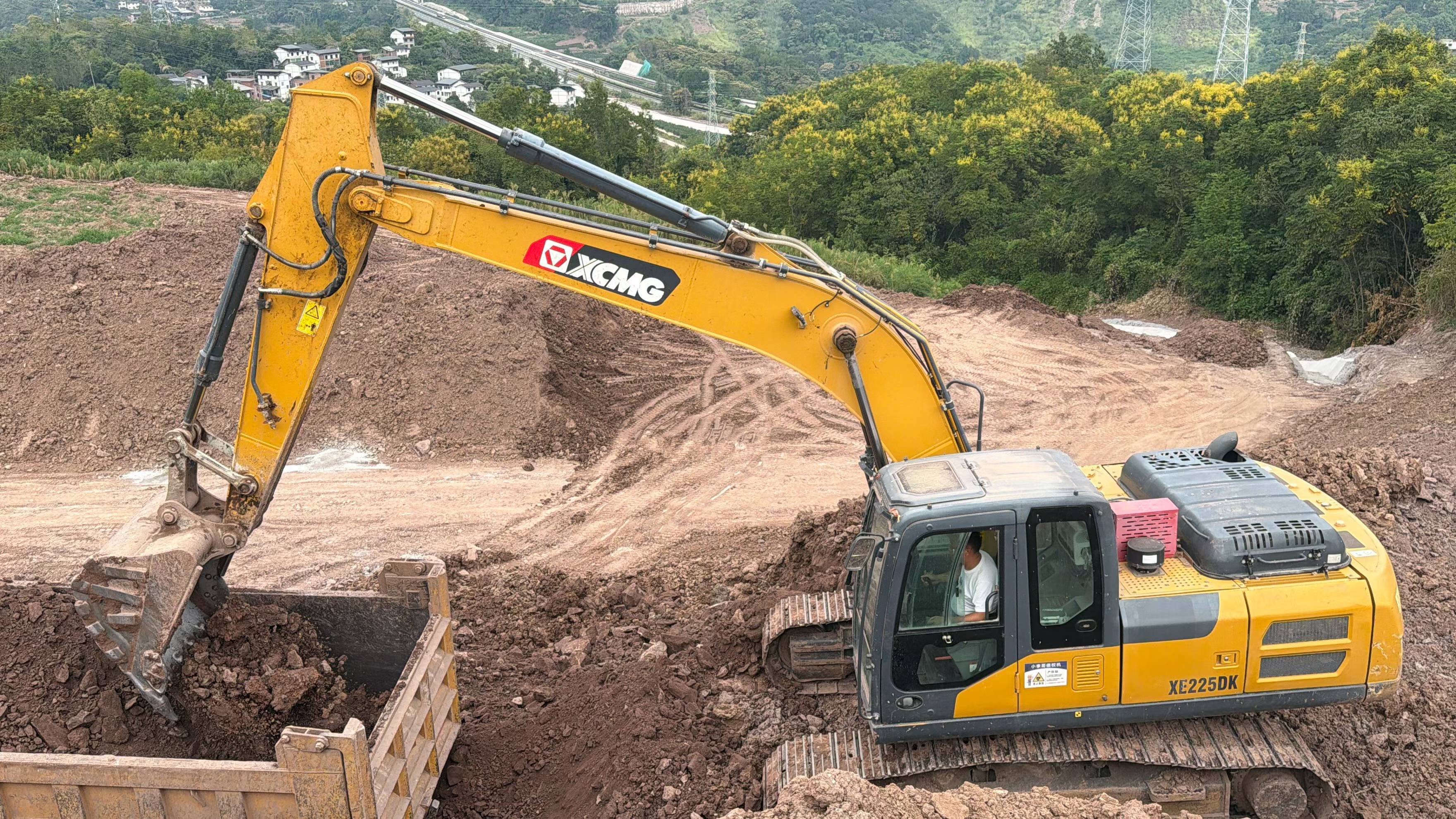

2023 XCMG XE225DK hydraulic excavator available from Chongqing, China. This 22-ton class machine has been actively deployed on construction sites, demonstrating reliable operational performance in real working conditions. The XE225DK features XCMG's proven hydraulic system and robust undercarriage designed for demanding earthmoving applications.
Key features include:
- Year of manufacture: 2023
- Model: XCMG XE225DK
- Operating weight class: approximately 22 tons
- Current location: Chongqing, China
- Condition: Used, actively maintained work machine
- Flexible acquisition terms available
This excavator is suitable for general earthmoving, trenching, and site development operations. Available for purchase or lease arrangements. Financing options can be discussed to accommodate qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1143188 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22100 |
| Bucket capacity (m³) | 1.0-1.2 (1.14) |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

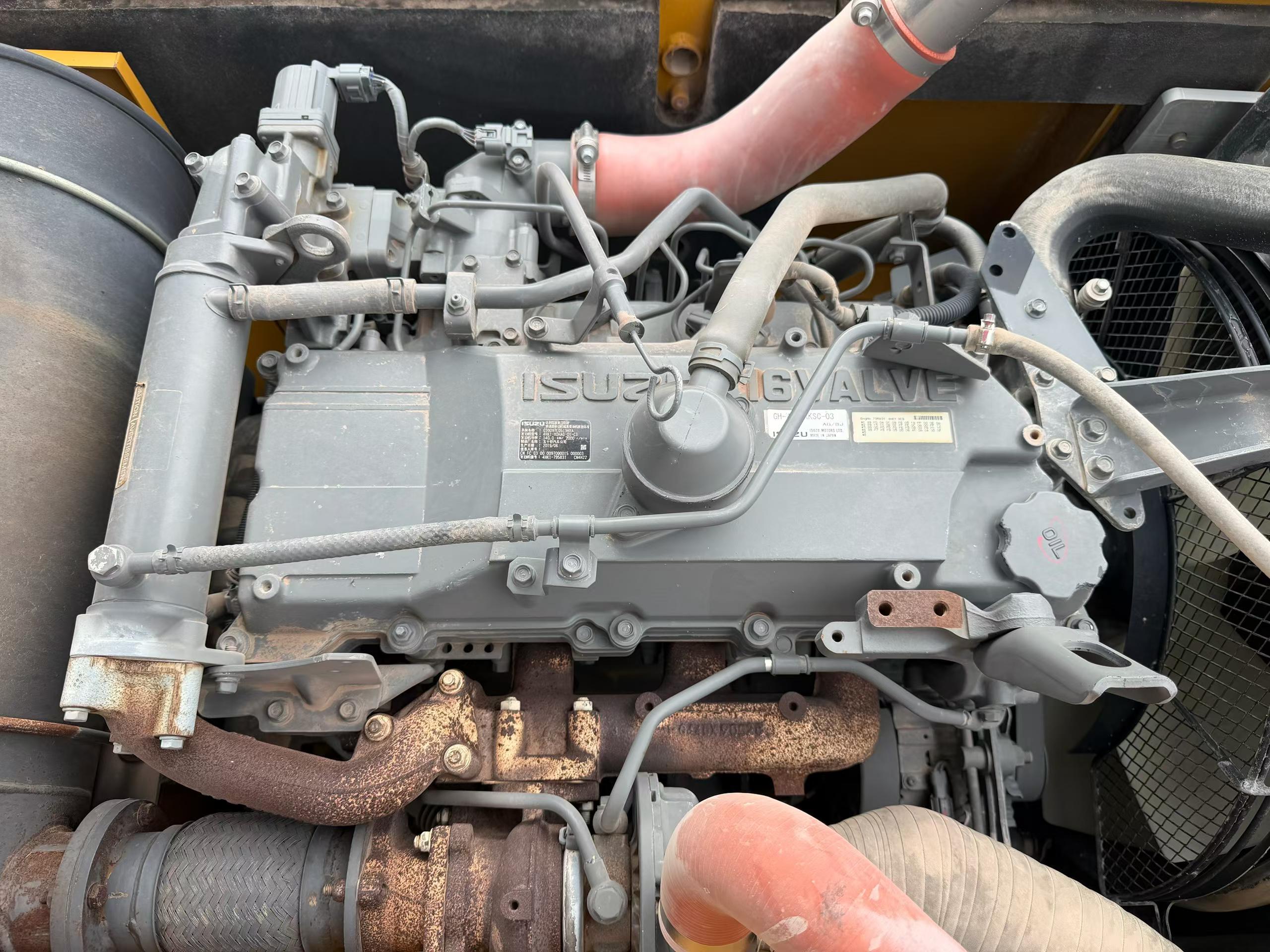

| Engine type | 4HK1 |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 676/1800 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.3 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/3.0 |
| Fuel Tank (L) | 400 |
| Engine Oil changes (L) | 19.5 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
