Product Description

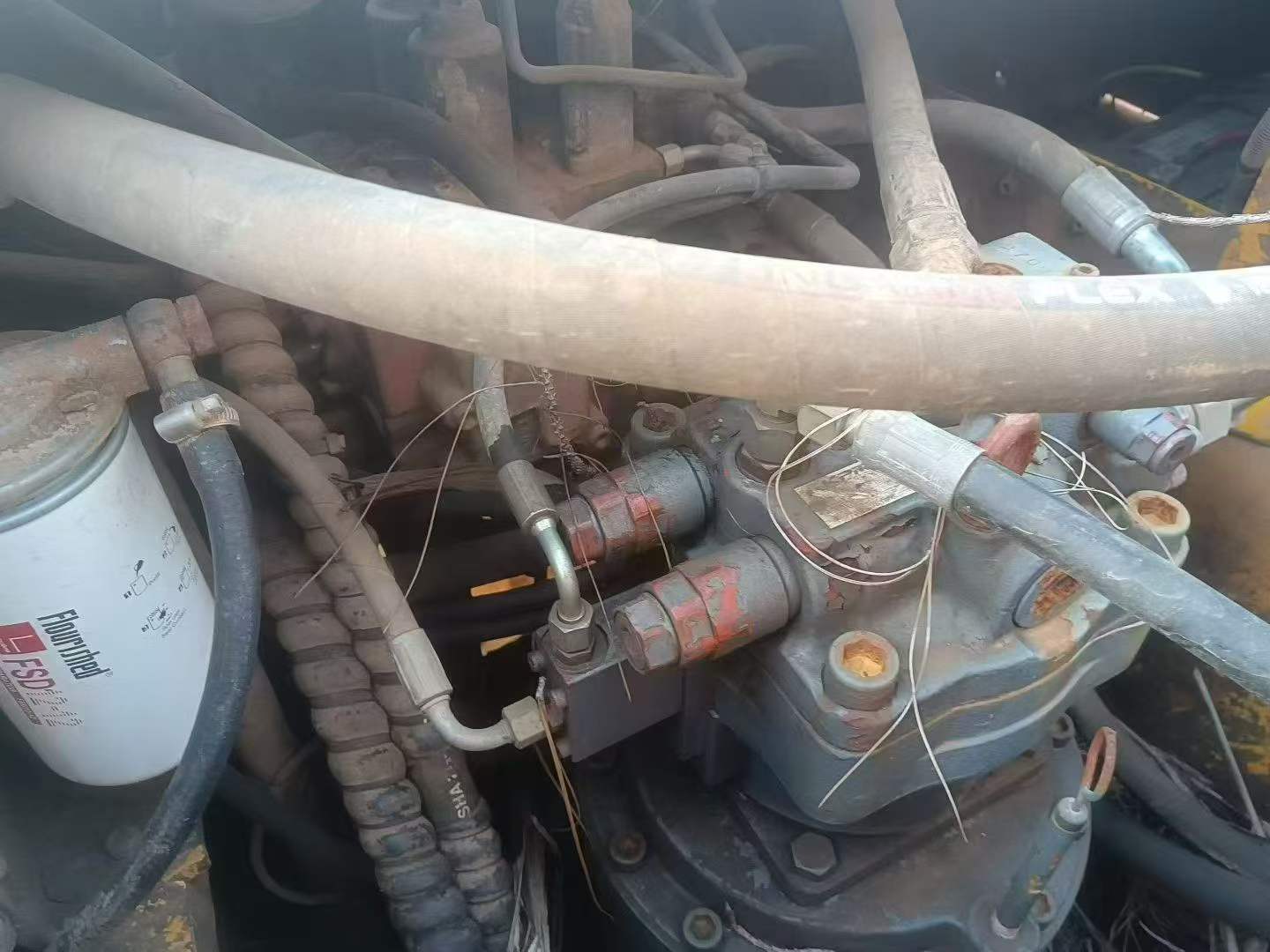

Engineered for demanding excavation operations, this 23-ton hydraulic excavator delivers robust performance through precision-built components. Powered by an ISUZU CC-6BG1TRP engine generating 125 kW at 2100 rpm, the machine combines a 6.494L displacement with water-cooling technology to maintain consistent output across extended work cycles. Dual variable pumps drive plunger hydraulic motors in both rotary and travel systems, ensuring responsive control and efficient power distribution throughout the hydraulic circuit.
Performance specifications demonstrate the engineering quality inherent to XCMG's XE230 series. With 163 kN bucket digging force and a maximum digging radius of 10,270 mm, this Xuzhou-manufactured excavator handles substantial material volumes through its 1 m³ backhoe bucket. The 23,520 kg working weight provides stability during operation, while the 70% (35°) climbing ability enables work on challenging terrain. Rotation speed reaches 12.1 rpm for efficient positioning, supported by 400L fuel and 240L hydraulic tank capacities that minimize downtime.
Key technical advantages include:
- Maximum digging depth: 6,920 mm with 6,795 mm unloading height
- Compact transport dimensions: 10,
| Specifications | Value |
|---|---|
| No. | 1006524 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23520 |
| Bucket capacity (m³) | 1 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

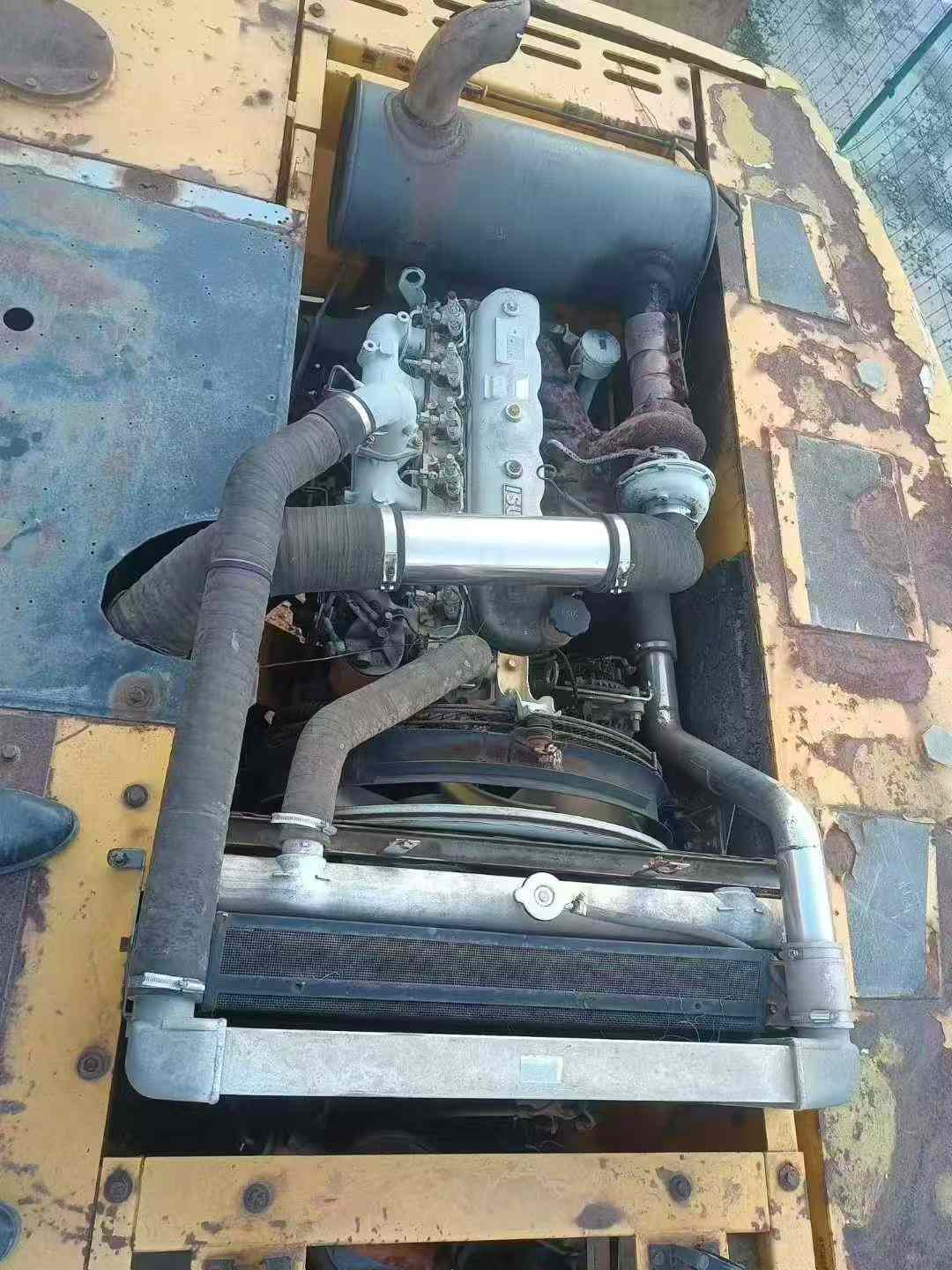

| Engine type | ISUZU CC-6BG1TRP |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 12.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 163 |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |

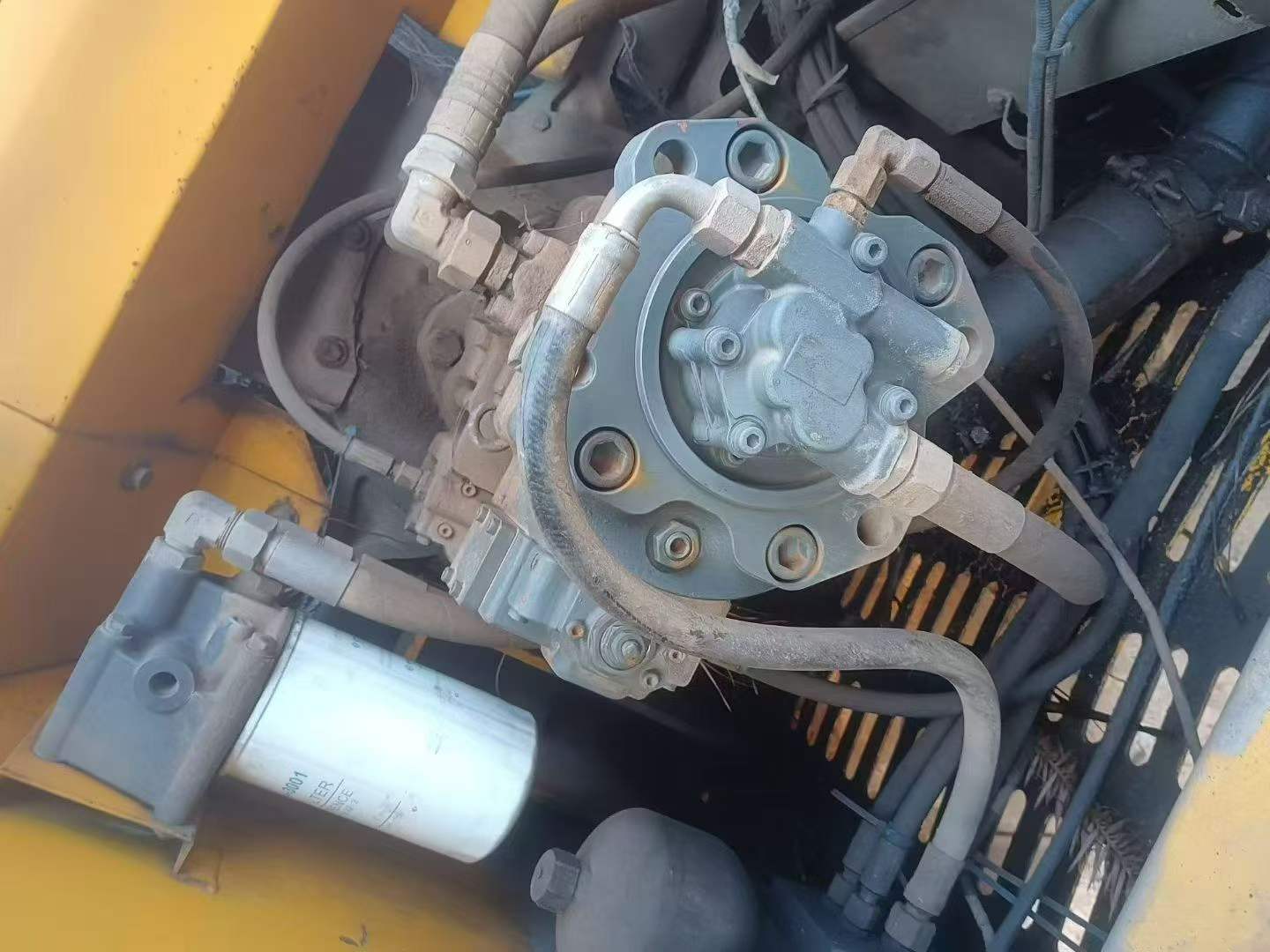

| Main pump type | Variable pump ×2 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10,160 |
| Total transport width (mm) | 2,990 |
| Total transport height (mm) | 3,050 |
| Back end turning radius (mm) | 2,940 |
| Total track length (mm) | 4,255 |
| Track gauge (mm) | 2,390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3,462 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6,920 |
| Maximum excavation height (mm) | 9,670 |
| Maximum unloading height (mm) | 6,795 |
| Maximum vertical digging depth (mm) | 6,165 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
