Product Description

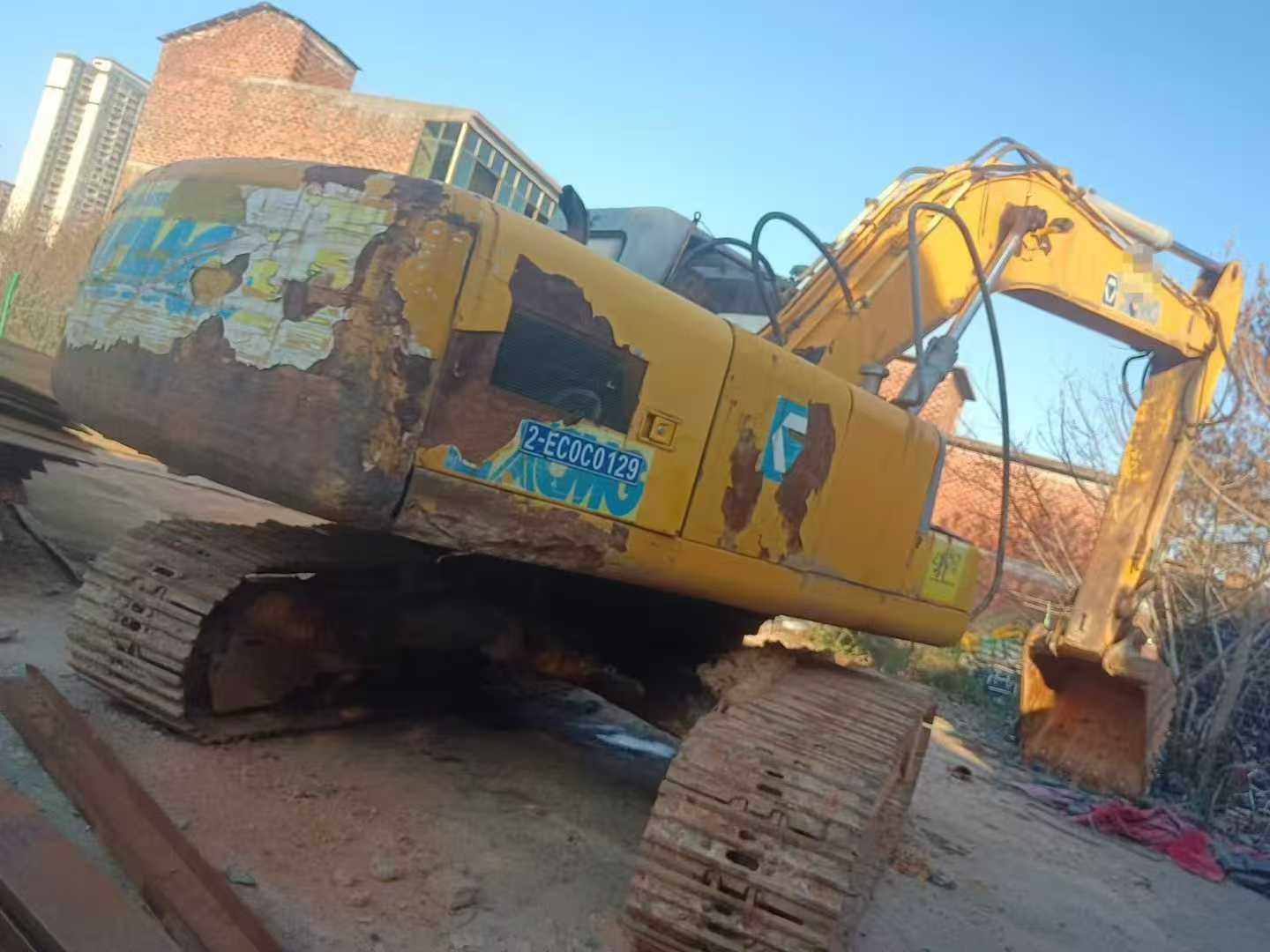

With a 23-ton capacity and powered by a robust ISUZU CC-6BG1TRP engine, this 2010 XCMG XE230 excavator, located in Hunan, offers a smart investment for your construction needs. Featuring a 23520 kg working weight and a 1 m³ bucket, it delivers high performance at a fraction of the cost of new machinery. Equipped with a water-cooled, 4-cylinder engine, this excavator provides 125 kW of rated power at 2100 rpm, ensuring reliable operation. Its 70% climbing ability and 163 kN bucket digging force make it suitable for tough terrains and demanding tasks. The XE230 also boasts a travel speed of 3.5/5.5 km/h, enhancing efficiency on site. Choose this used XCMG excavator for its proven reliability and significant cost savings.
| Specifications | Value |
|---|---|
| No. | 995469 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23520 |
| Bucket capacity (m³) | 1 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU CC-6BG1TRP |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 12.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 163 |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Main pump type | Variable pump ×2 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 240 |
| Total transport length (mm) | 10,160 |
| Total transport width (mm) | 2,990 |
| Total transport height (mm) | 3,050 |
| Back end turning radius (mm) | 2,940 |
| Total track length (mm) | 4,255 |
| Track gauge (mm) | 2,390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3,462 |
| Maximum digging radius (mm) | 10,270 |
| Maximum digging depth (mm) | 6,920 |
| Maximum excavation height (mm) | 9,670 |
| Maximum unloading height (mm) | 6,795 |
| Maximum vertical digging depth (mm) | 6,165 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
