HOME>>XCMG>>XCMG XE235C

2016 XCMG XE235C

1/8
Buy XCMG XE235C Used Excavator / 1

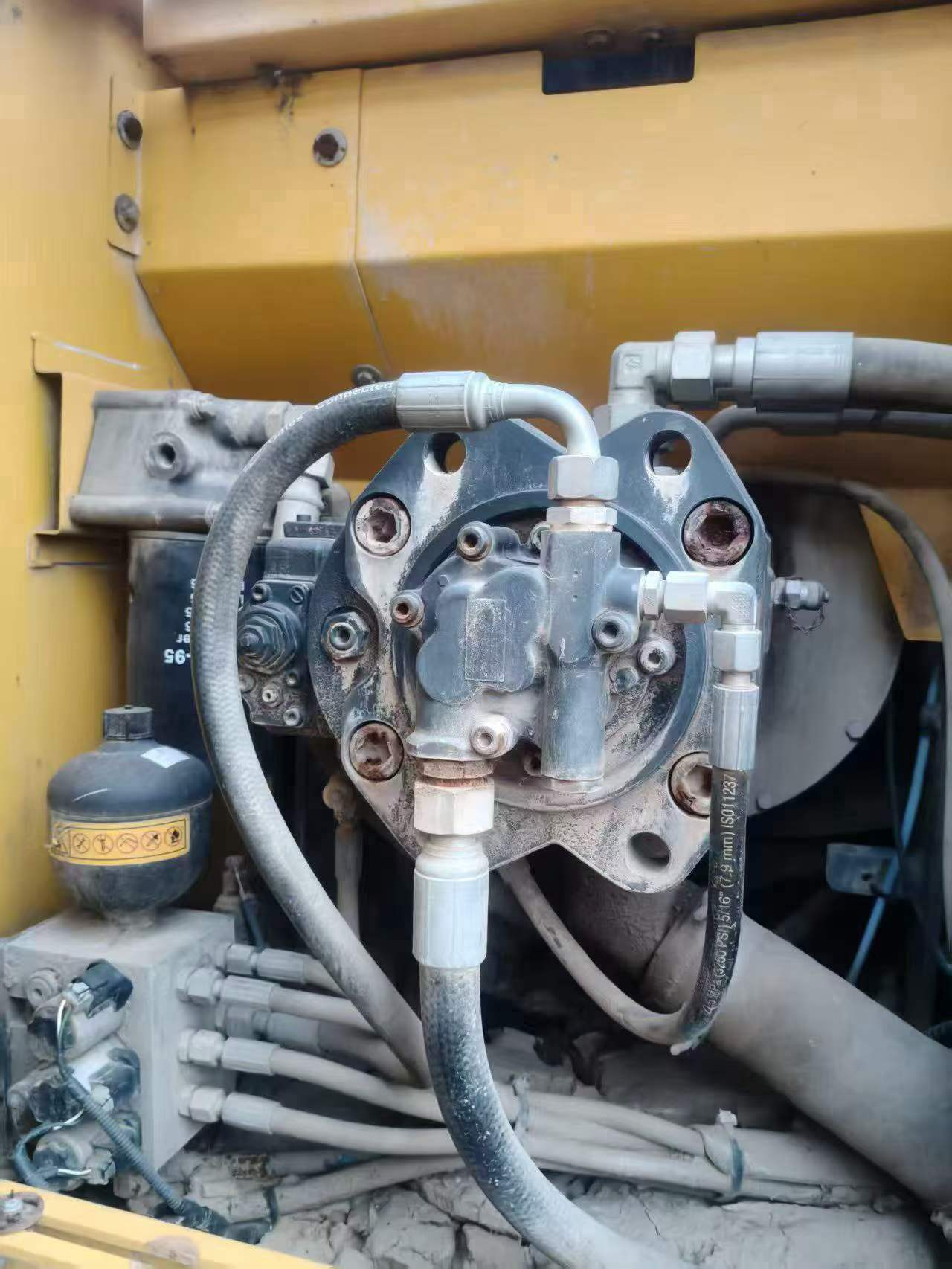

Buy XCMG XE235C Used Excavator / 2

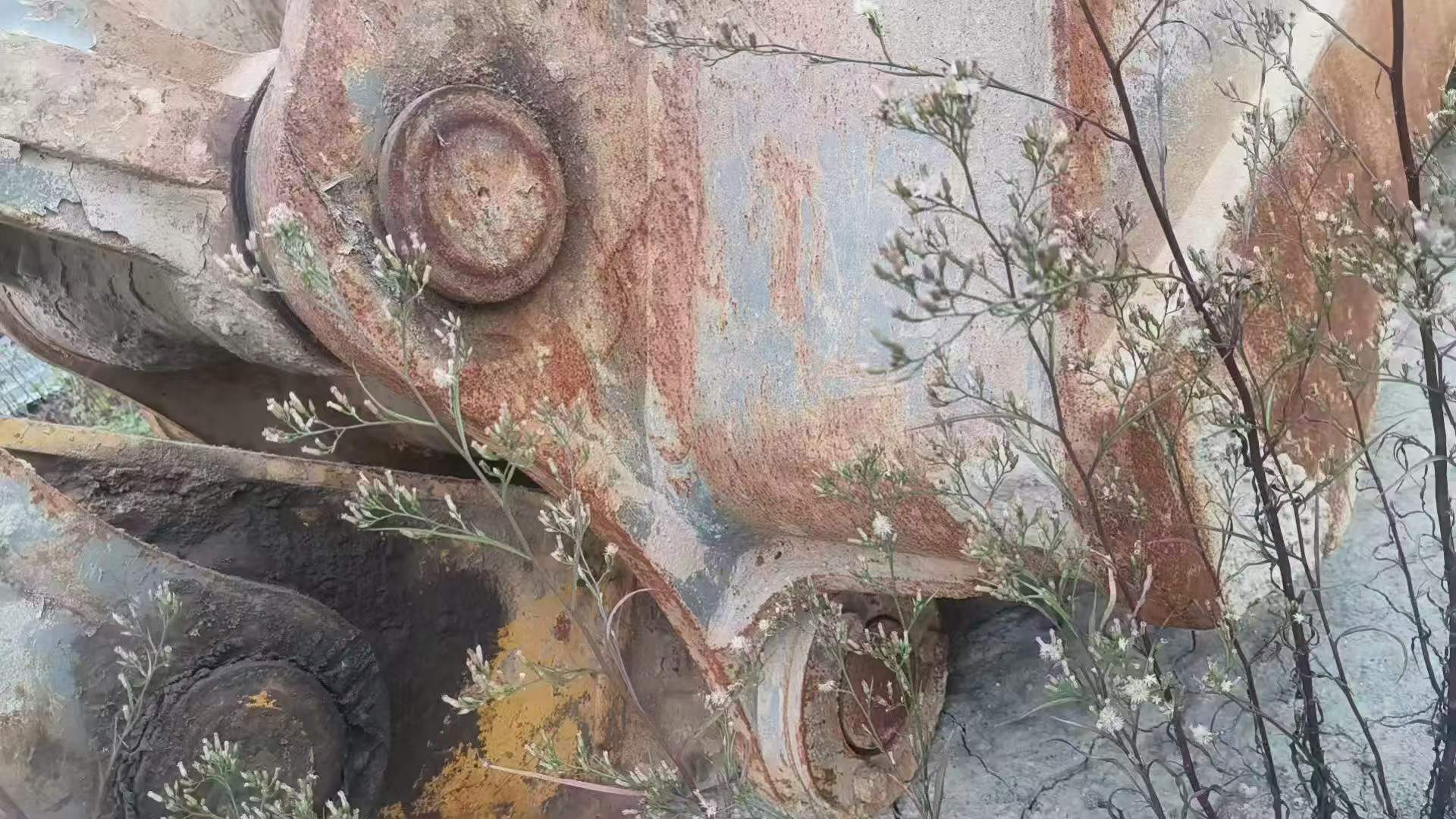

Buy XCMG XE235C Used Excavator / 3

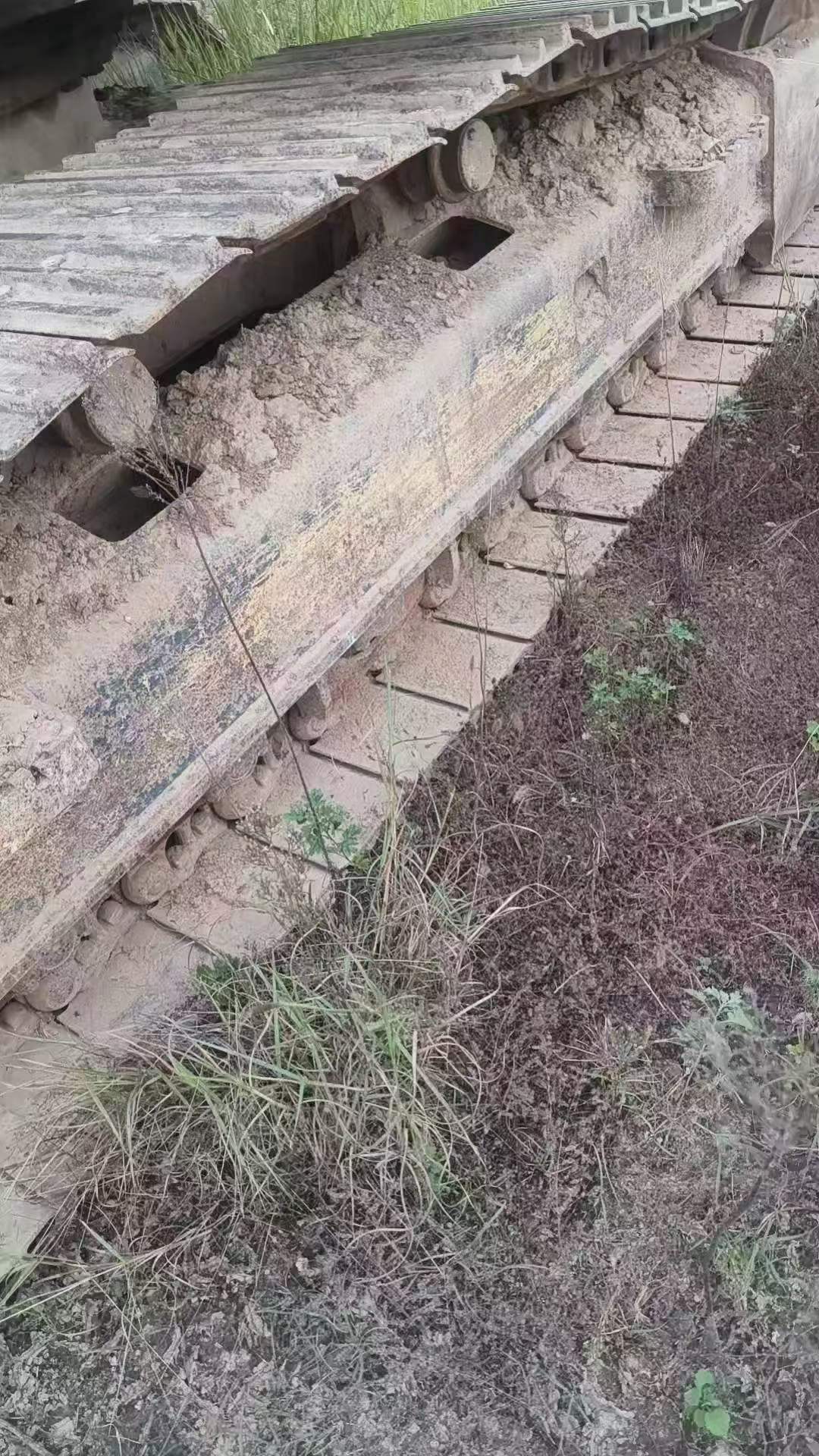

Buy XCMG XE235C Used Excavator / 4

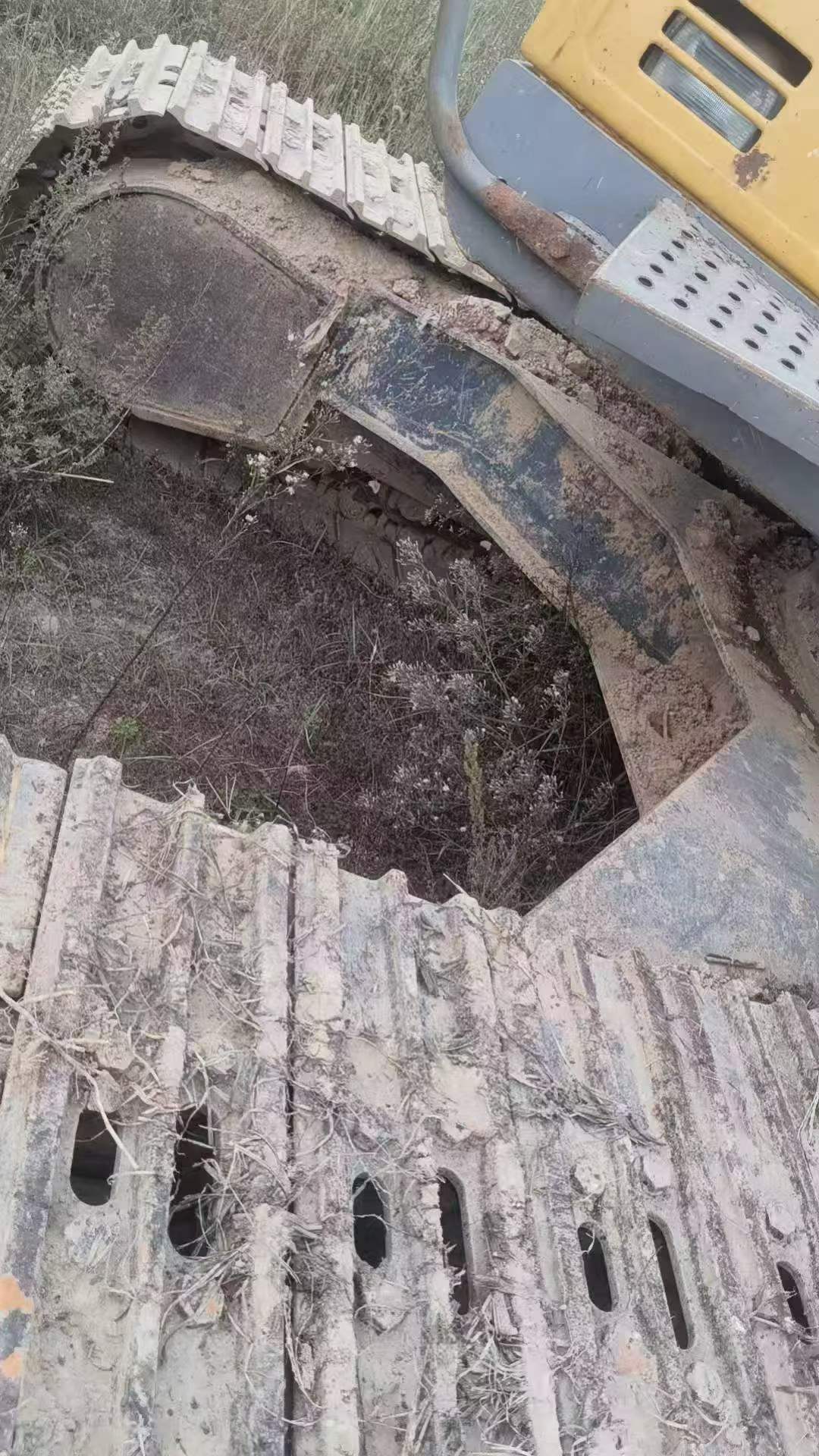

Buy XCMG XE235C Used Excavator / 5

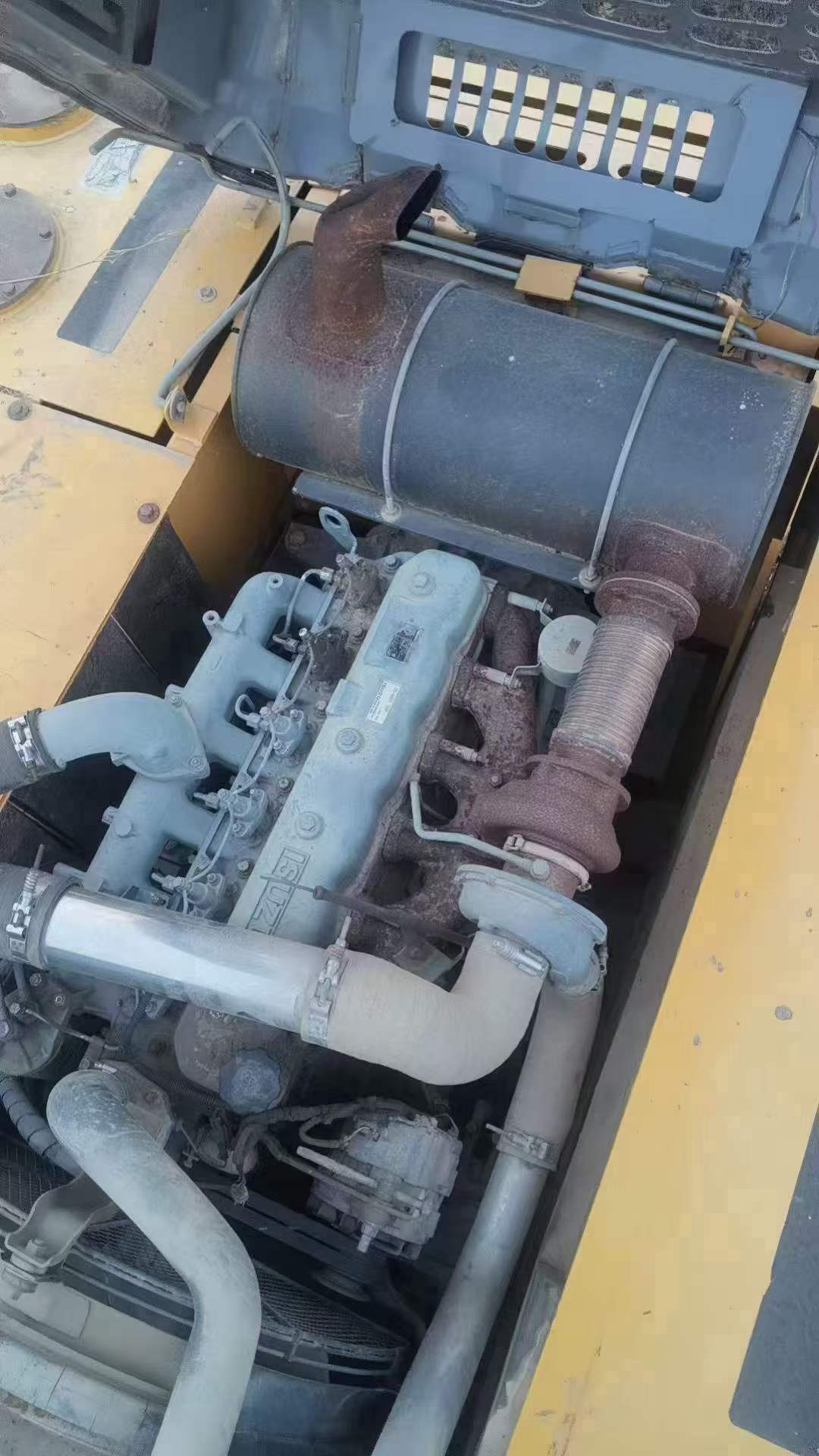

Buy XCMG XE235C Used Excavator / 6

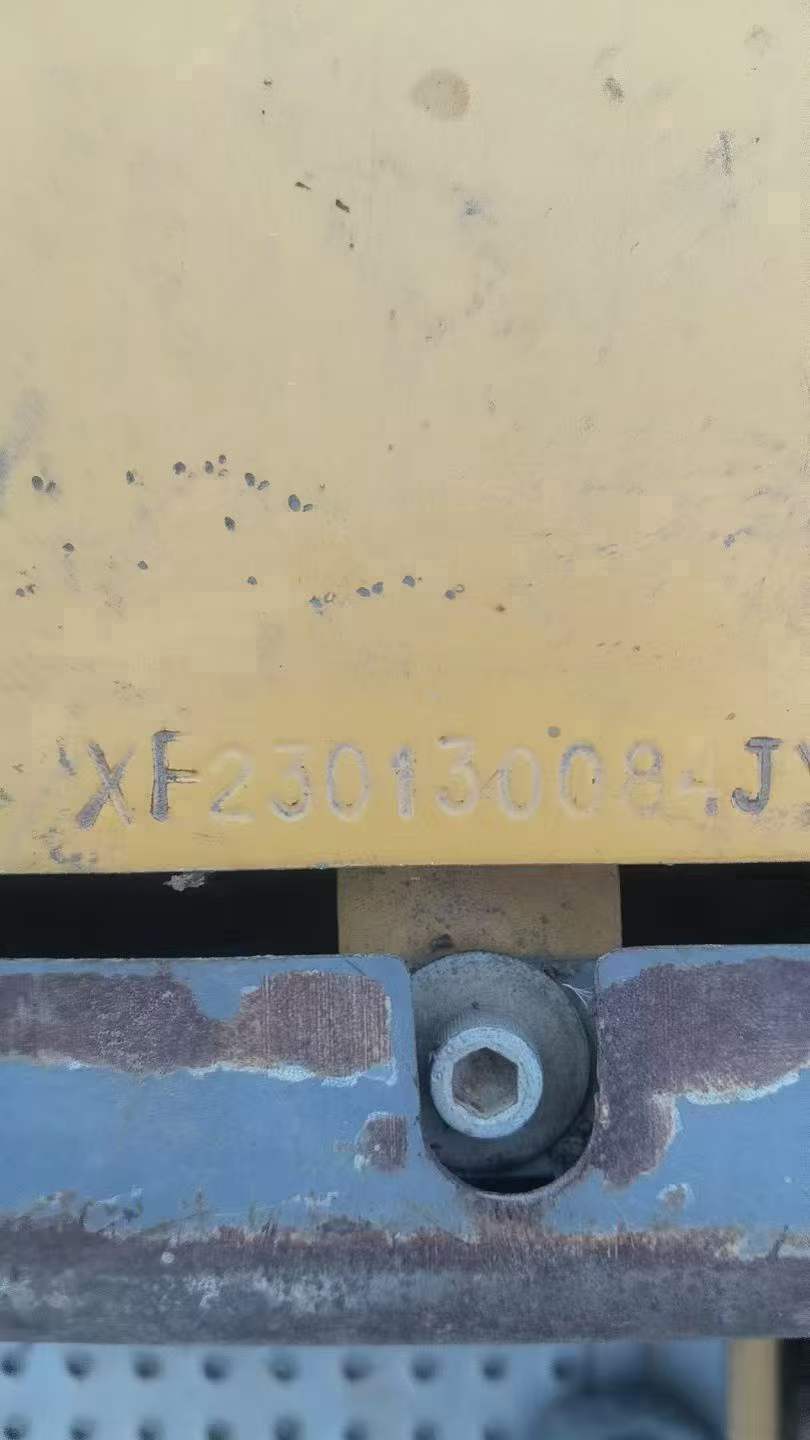

Buy XCMG XE235C Used Excavator / 7

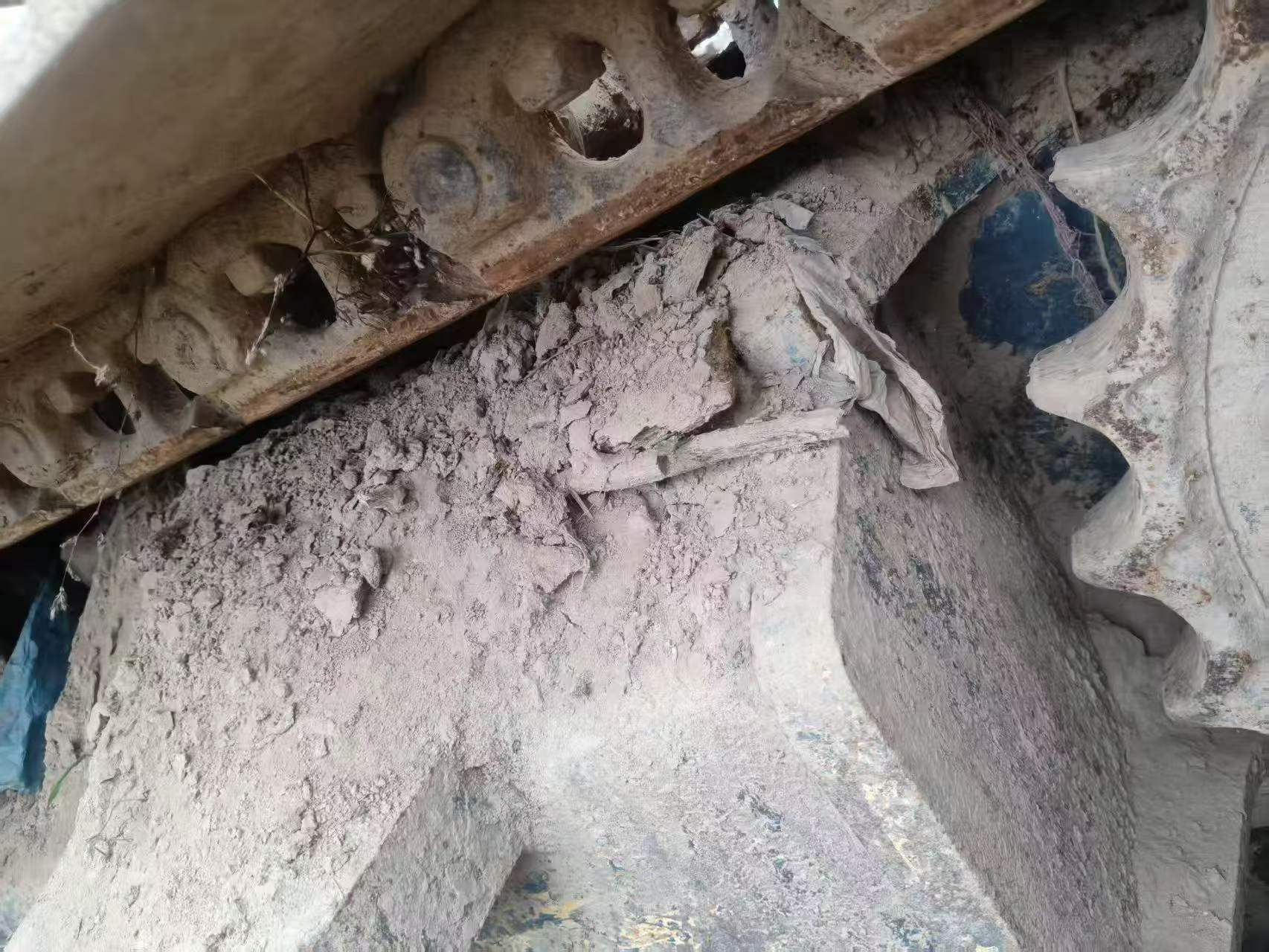

Buy XCMG XE235C Used Excavator / 8

Product Description

Discover the 2016 XCMG XE235C, a robust and reliable excavator available from our inventory in Zhejiang, China. This machine has been meticulously maintained and is offered at a competitive price, making it an excellent choice for your construction needs. With a confirmed operational hour count of just over 6,000, this XE235C model is ready to deliver high performance and efficiency on any job site. Ideal for a variety of applications, this excavator combines durability with the advanced engineering standards that XCMG is known for.

  • Year: 2016
  • Brand: XCMG
  • Model: XE235C
  • Location: Zhejiang, China
  • Operational Hours: Over 6,000
SpecificationsValue
No.1165651
Tonnage (tons)23
Working weight (kg)23500
Bucket capacity (m³)0.9 ~ 1.1
Boom length (mm)6000
Rod length (mm)2960
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCC-6BG1TRP
Cooling modewater-cooling
Maximum torque (N.m/rpm)637/1800
Number of cylinders (PCS)6
Displacement (L)6.494
Ground specific pressure (Kpa)48.9
Rotation speed (rpm)12.1
Climbing ability (%)35 or less
Bucket digging force (kN)176
Rod digging force (kN)125
Maximum tractive force (kN)194.8
Travel speed (km/h)6.0/4.0
Maximum flow of main pump (l/min)2 x 246
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)400
Hydraulic Tank (L)240
Engine Oil changes (L)25
Total transport length (mm)10160
Total transport width (mm)2990
Total transport height (mm)3100
Counterweight ground clearance (mm)1050
Minimum ground clearance (mm)485
Back end turning radius (mm)2985
Total track length (mm)4255
Track gauge (mm)2390
Total track width (mm)600
Maximum digging radius (mm)10240
Maximum digging depth (mm)6960
Maximum excavation height (mm)9595
Maximum unloading height (mm)6725
Maximum vertical digging depth (mm)6090
see more

Overview

No.1165651

Brand Name:

XCMG

Model Number:

XE235C

Year:

2016

Location:

Zhejiang China

Pub Date:
