Product Description

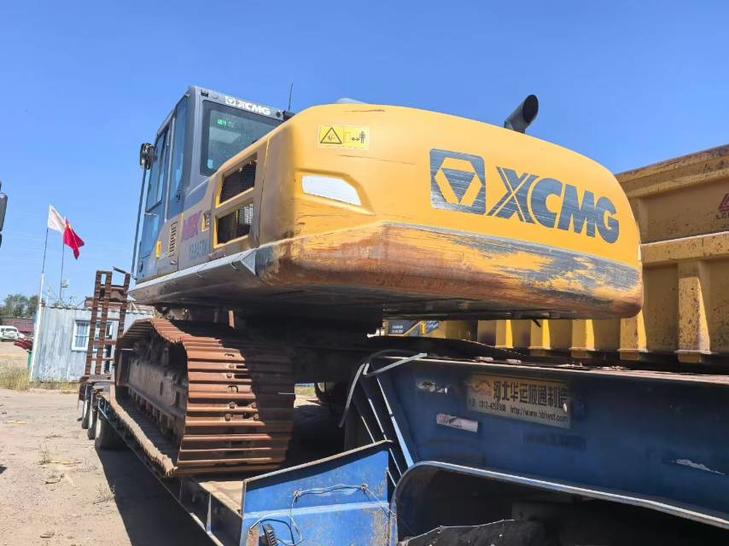

2022 XCMG XE245DK hydraulic excavator available from Inner Mongolia, China. This mid-size crawler excavator shows just 1,200 verified operating hours, indicating minimal use since commissioning. The machine remains in excellent overall condition with well-maintained systems throughout.
The XE245DK represents XCMG's reliable 24-ton class excavator platform, designed for general earthmoving, foundation work, and material handling applications. Current meter reading confirms low utilization for a machine of this vintage.
- Year of Manufacture: 2022
- Verified Hours: 1,200
- Operating Weight Class: ~24 tonnes
- Current Location: Inner Mongolia, China
- Condition: Well-maintained, low-hour unit
Suitable for contractors seeking a late-model excavator with documented low hours and remaining service life. Inspection welcome by appointment.
| Specifications | Value |
|---|---|
| No. | 1144496 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 0.9-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 56.7 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 199 |
| Travel speed (km/h) | 5.3/3.6 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1062 |
| Minimum ground clearance (mm) | 1062 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6972 |
| Maximum excavation height (mm) | 10048 |
| Maximum unloading height (mm) | 7123 |
| Maximum vertical digging depth (mm) | 5567 |
