2020 XCMG XE265C

1/4
Buy XCMG XE265C Used Excavator / 1

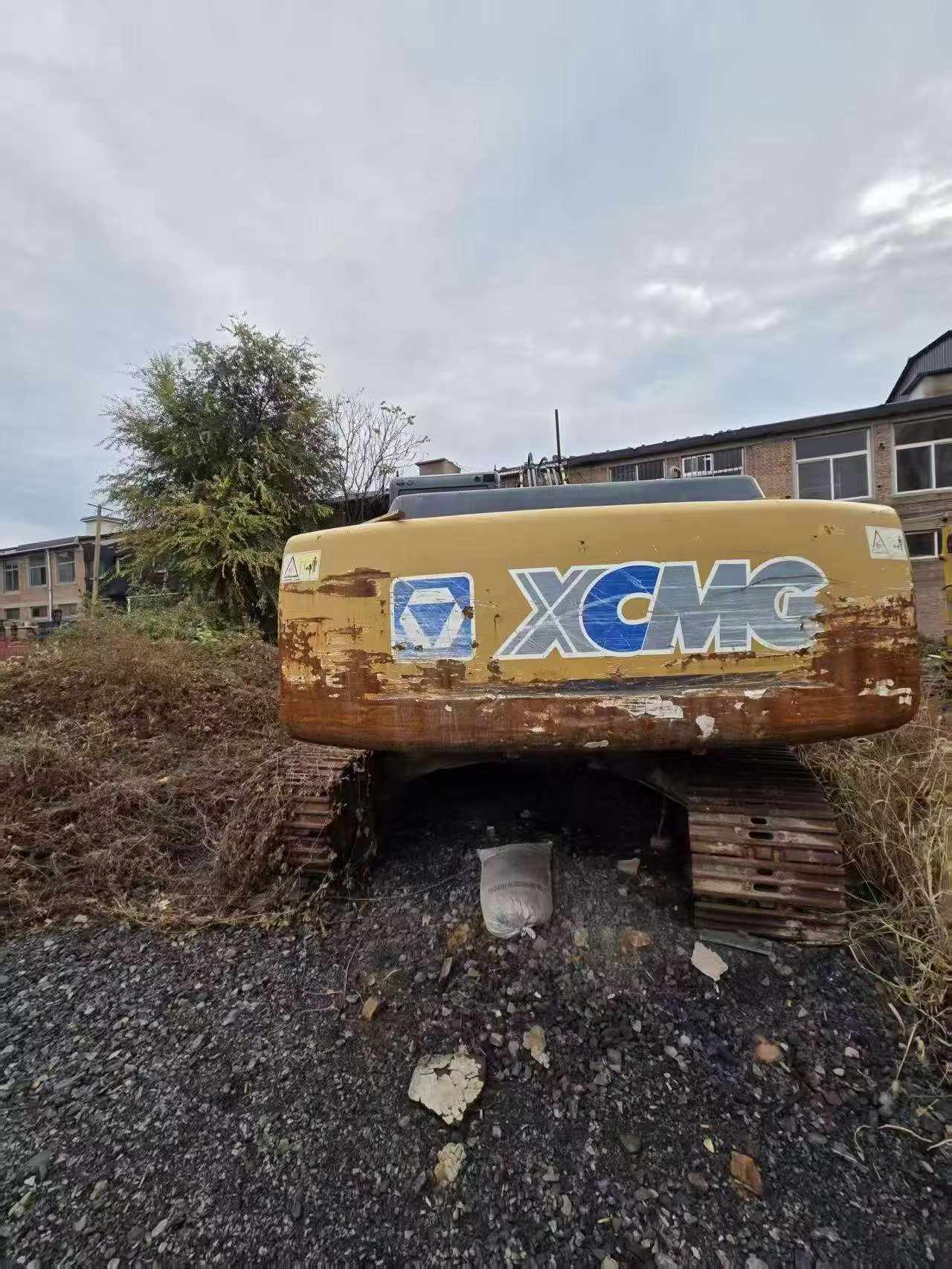

Buy XCMG XE265C Used Excavator / 2
Buy XCMG XE265C Used Excavator / 3
Buy XCMG XE265C Used Excavator / 4

Product Description

This 2020 XCMG XE265C hydraulic excavator offers reliable performance for demanding earthmoving operations. Manufactured by XCMG, one of China's leading construction equipment producers, this 26-ton class machine combines proven engineering with practical functionality. The XE265C features a wide-format display screen for enhanced operator visibility and intuitive machine monitoring.

Currently located in Jiangsu, China, this excavator is well-suited for contractors and heavy civil projects requiring a mid-sized machine with solid digging force and fuel efficiency. The 2020 model year represents relatively low operating hours in the equipment's service life.

  • Year of Manufacture: 2020
  • Operating Weight Class: Approximately 26 tons

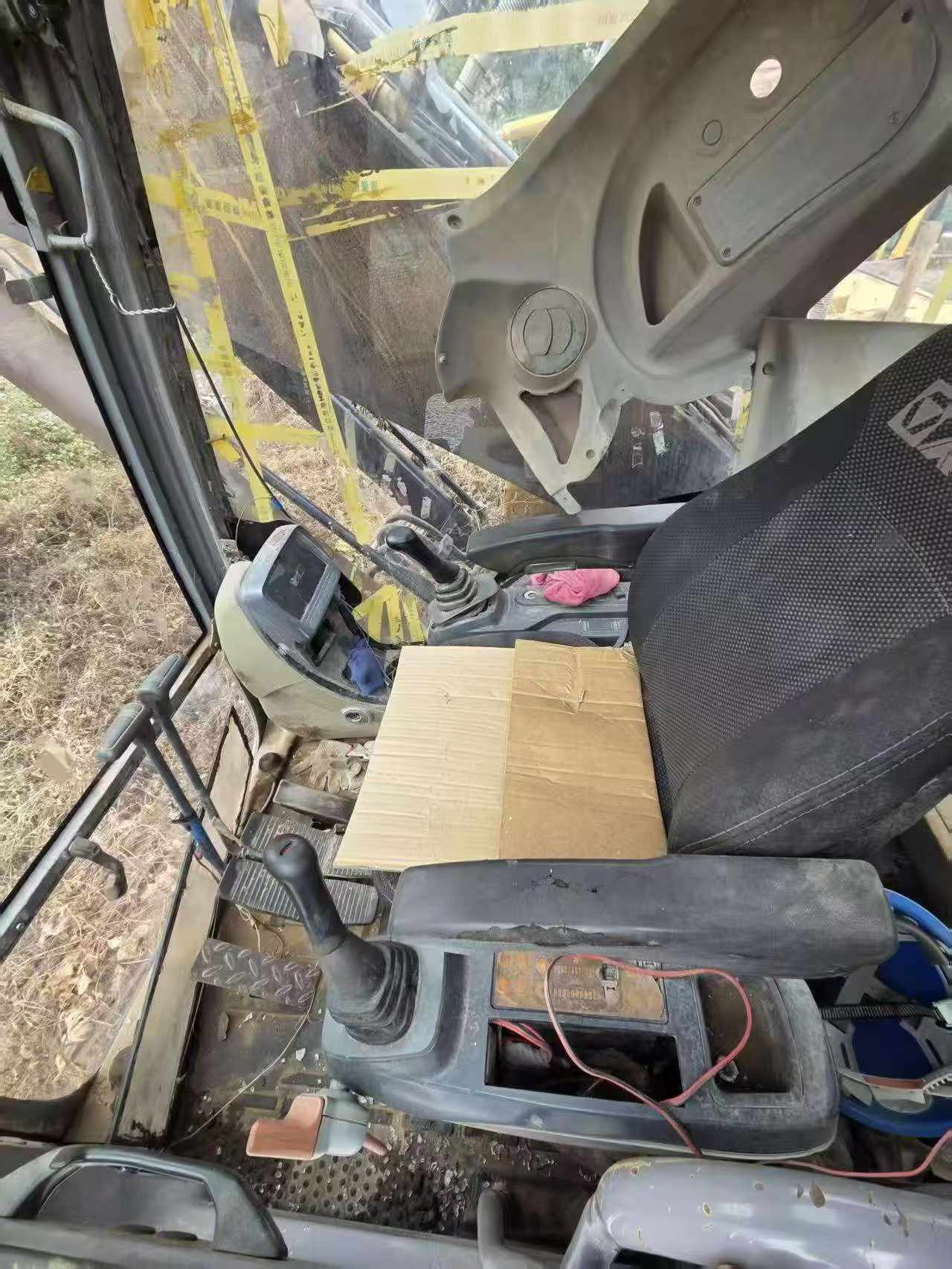

  • Wide display screen for operator interface
  • Hydraulic system designed for earthmoving applications
  • Available for inspection in Jiangsu Province
SpecificationsValue
No.1173850
Tonnage (tons)26
Working weight (kg)25500
Bucket capacity (m³)1.05 ~ 1.25
Boom length (mm)6000
Rod length (mm)2960
powerTraditional power
manufacturerMade in China
bucketbackhoe

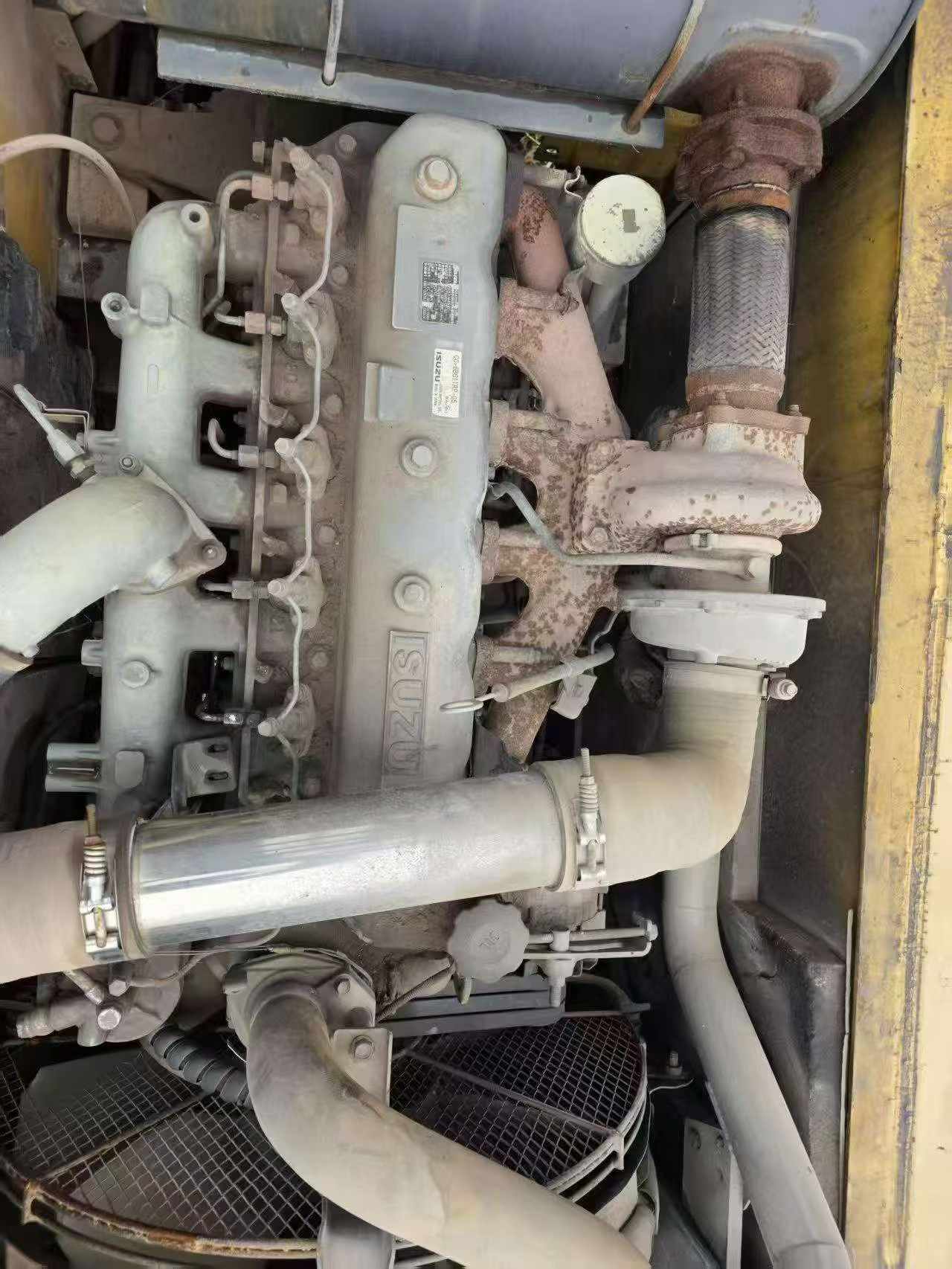

Engine typeISUZU CC-6BG1TRP-05
Rated power (kw/rpm)135.5/2150
Maximum torque (N.m/rpm)637
Ground specific pressure (Kpa)50.1
Rotation speed (rpm)11.3
Climbing ability (%)35 or less
Bucket digging force (kN)161
Rod digging force (kN)125
Maximum tractive force (kN)194
Travel speed (km/h)5.9/4.0
Main overflow set pressure (Mpa)34.3/37
Maximum flow of main pump (l/min)2 x 256
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)28
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)400
Hydraulic Tank (L)240
Engine Oil changes (L)25
Total transport length (mm)10160
Total transport width (mm)3190
Total transport height (mm)3100
Minimum turning radius of front working device (mm)3850
Total track length (mm)4640
Track gauge (mm)2590
Track plate width (mm)600
Maximum digging radius (mm)10240
Maximum digging depth (mm)6895
Maximum excavation height (mm)9662
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5480
Maximum excavation radius of stop surface (mm)6750
see more

Overview

No.1173850

Brand Name:

XCMG

Model Number:

XE265C

Year:

2020

Location:

Jiangsu China

Pub Date:
