Product Description

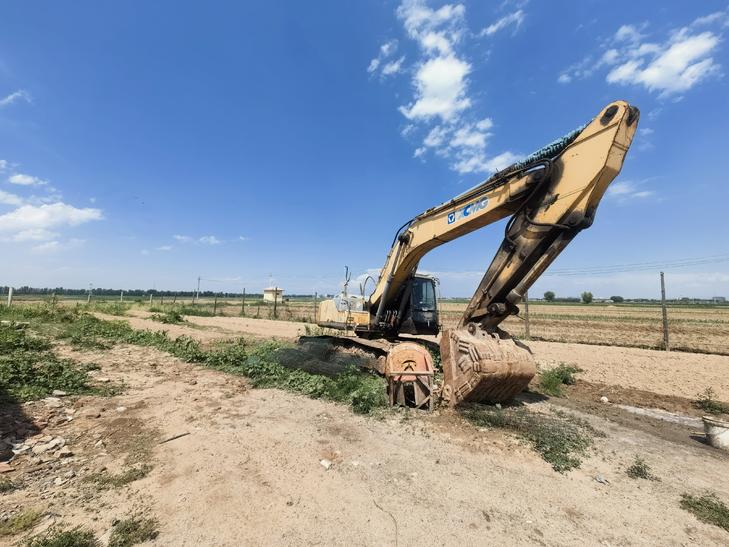

This 2014 XCMG XE265CK excavator is currently located in Shanxi, China and available for immediate inspection. The machine demonstrates strong operational performance with a robust undercarriage and well-maintained hydraulic systems showing no oil leaks. Regular service intervals have been observed throughout its service life.
Key highlights:
- Powerful engine performance suitable for demanding earthmoving applications
- Stable chassis design for enhanced operational safety
- Clean hydraulic system with no visible leaks
- Documented maintenance history
- Ready for deployment in construction, mining, or excavation projects
The XCMG XE265CK series is recognized for durability in challenging work environments. This unit has been properly maintained and is available for purchase. Pricing is negotiable based on inspection and buyer requirements. Contact us to arrange a site visit or request additional documentation.
| Specifications | Value |
|---|---|
| No. | 1144498 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1TRP-05 |
| Rated power (kw/rpm) | 135.5/2150 |
| Maximum torque (N.m) | 637/1800 |
| Displacement (L) | 6.494 |
| Ground specific pressure (Kpa) | 52.3 |
| Rotation speed (rpm) | 13.2 |
| Climbing ability (%) | 70 or less |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 206 |
| Travel speed (km/h) | 6.0/3.8 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2 x 256 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 10150 |
| Total transport width (mm) | 3205 |
| Total transport height (mm) | 3014 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 3850 |
| Back end turning radius (mm) | 2985 |
| Onboard width (mm) | 2830 |
| Total track length (mm) | 4637 |
| Track gauge (mm) | 2605 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3205 |
| Maximum digging radius (mm) | 10241 |
| Maximum digging depth (mm) | 6926 |
| Maximum excavation height (mm) | 10094 |
| Maximum unloading height (mm) | 7171 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum effective digging depth (mm) | 6704 |
