Product Description
This 2018 XCMG XE270DK hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Located in Sichuan, China, this mid-sized crawler excavator comes from XCMG's established DK series, known for durability in challenging working conditions.
Key features include:
- 27-ton operating weight class suitable for general excavation, trenching, and loading operations
- Fuel-efficient engine meeting emission standards

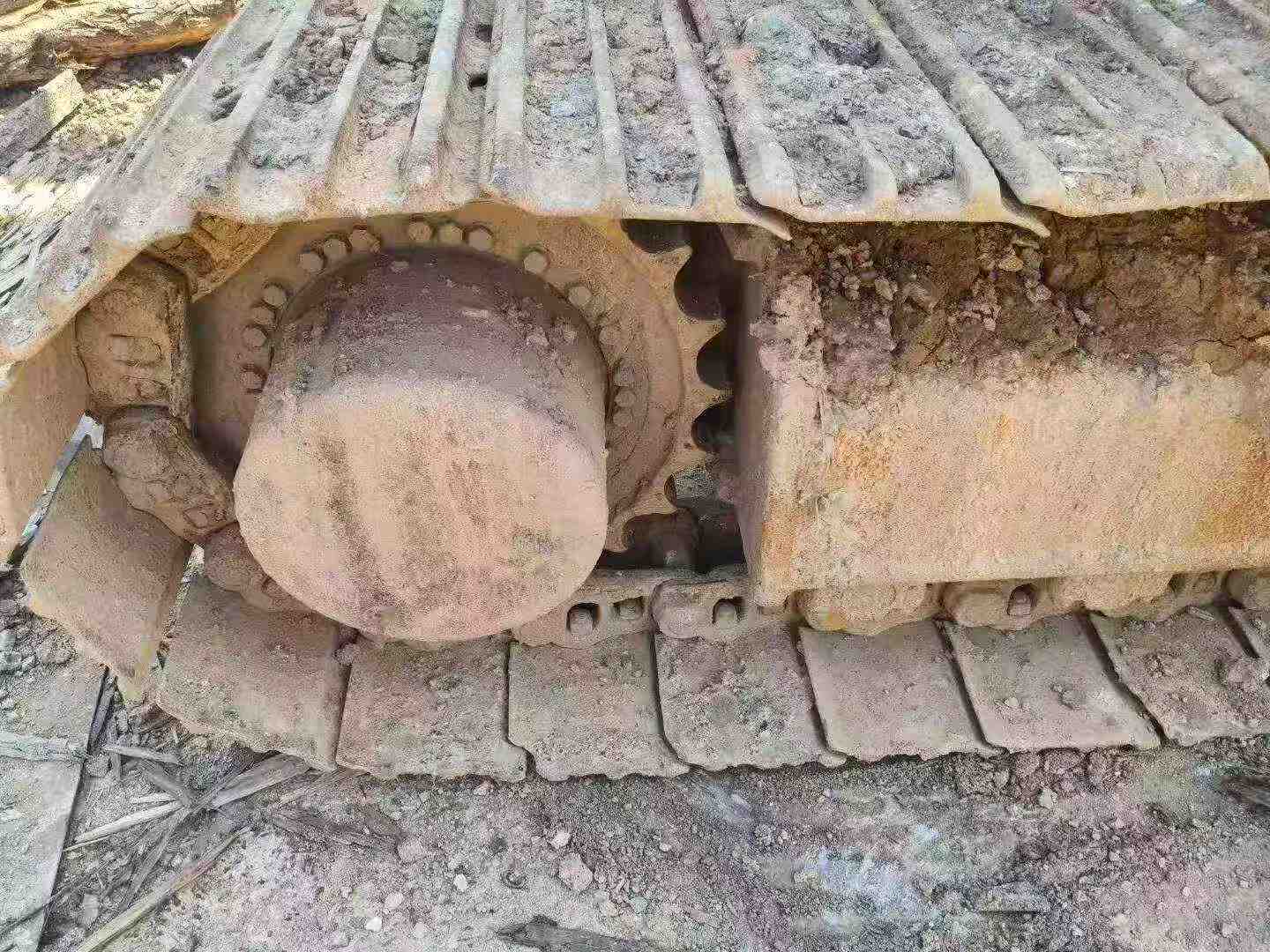

- Robust undercarriage designed for extended service life
- Spacious operator cabin with improved visibility

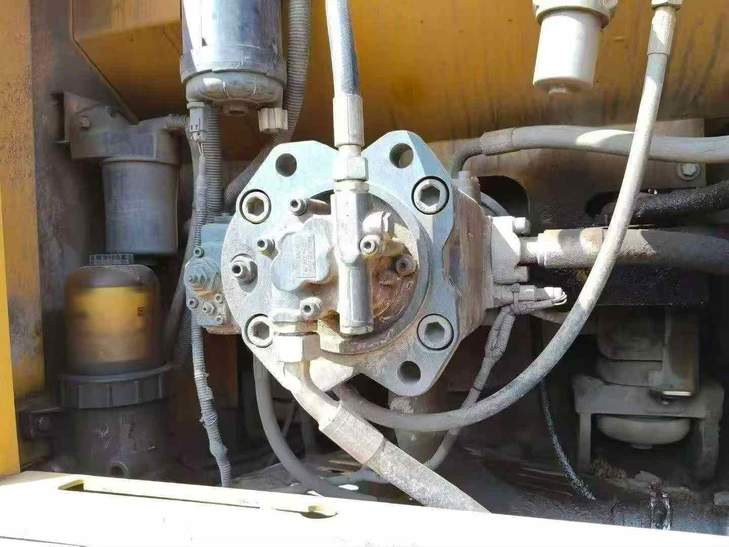

- Hydraulic system optimized for smooth operation and cycle times
With five years of operational history, this machine represents a cost-effective solution for contractors and fleet operators seeking proven excavation capacity. The unit is available for inspection in Sichuan province. Competitively priced for the used equipment market, it provides an accessible entry point into the 27-ton excavator segment.
| Specifications | Value |
|---|---|
| No. | 1162903 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
