Product Description

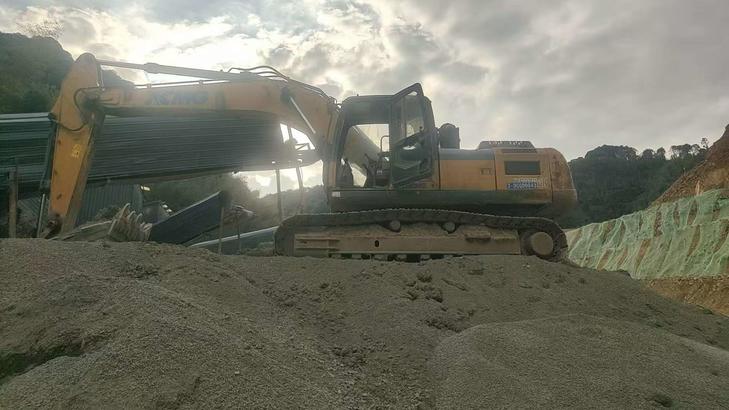

This 2018 XCMG XE270DK hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Purchased new in 2018, this 27-ton class machine combines XCMG's proven engineering with practical operational features suited for contractors and fleet operators.
Key features include:
- 27-ton operating weight class for versatile job site applications
- Fuel-efficient diesel engine meeting emission standards
- Hydraulic system designed for productive digging and lifting cycles
- Reinforced undercarriage for extended component life
- Spacious operator cabin with ergonomic controls
Currently located in Fujian, China, this excavator has been maintained for commercial use. The XE270DK series is recognized for durability in infrastructure development, material handling, and general excavation work. Suitable for buyers seeking proven mid-size excavator capacity with established parts availability across Asian markets.
| Specifications | Value |
|---|---|
| No. | 1171646 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
