Product Description

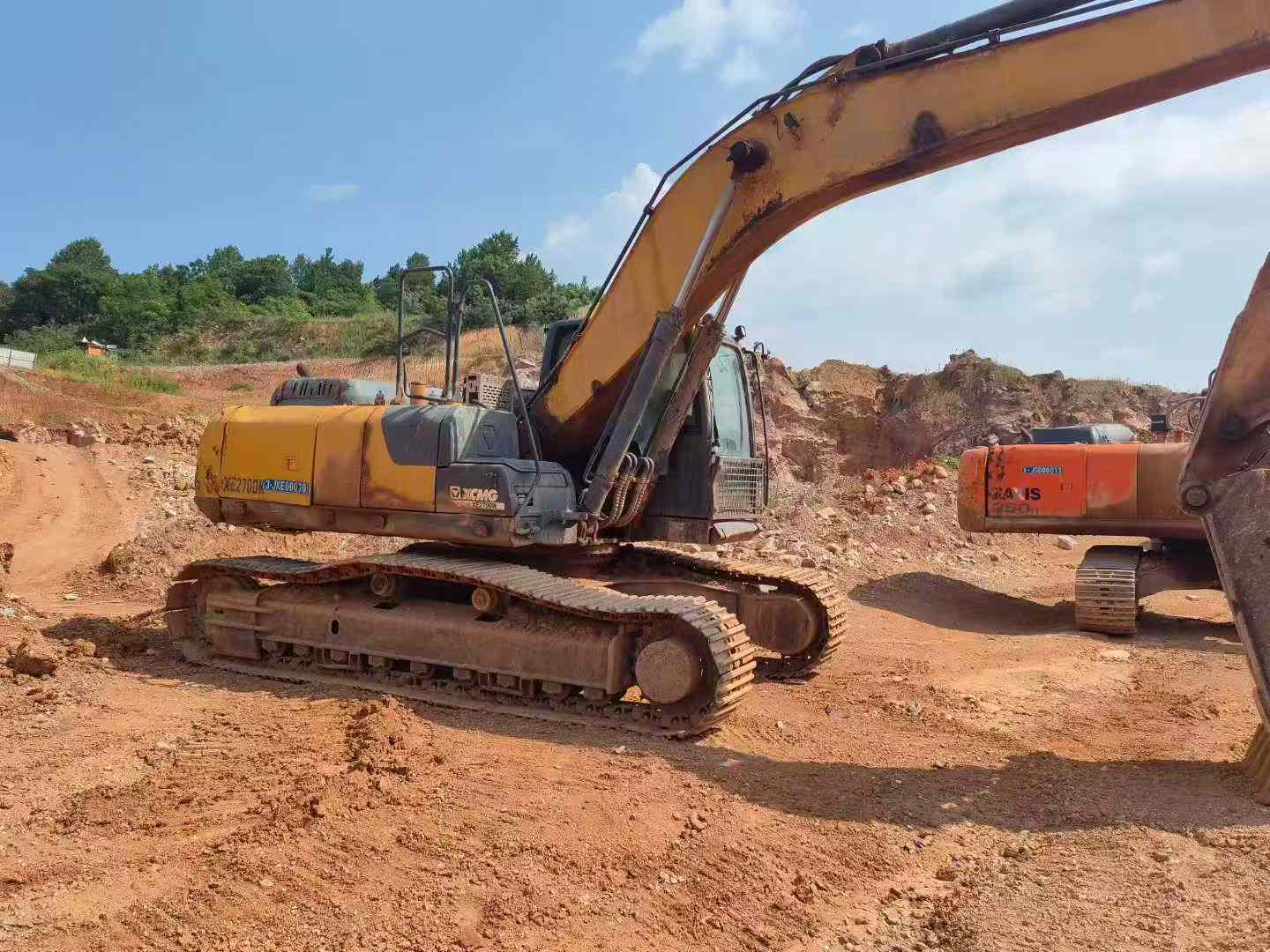

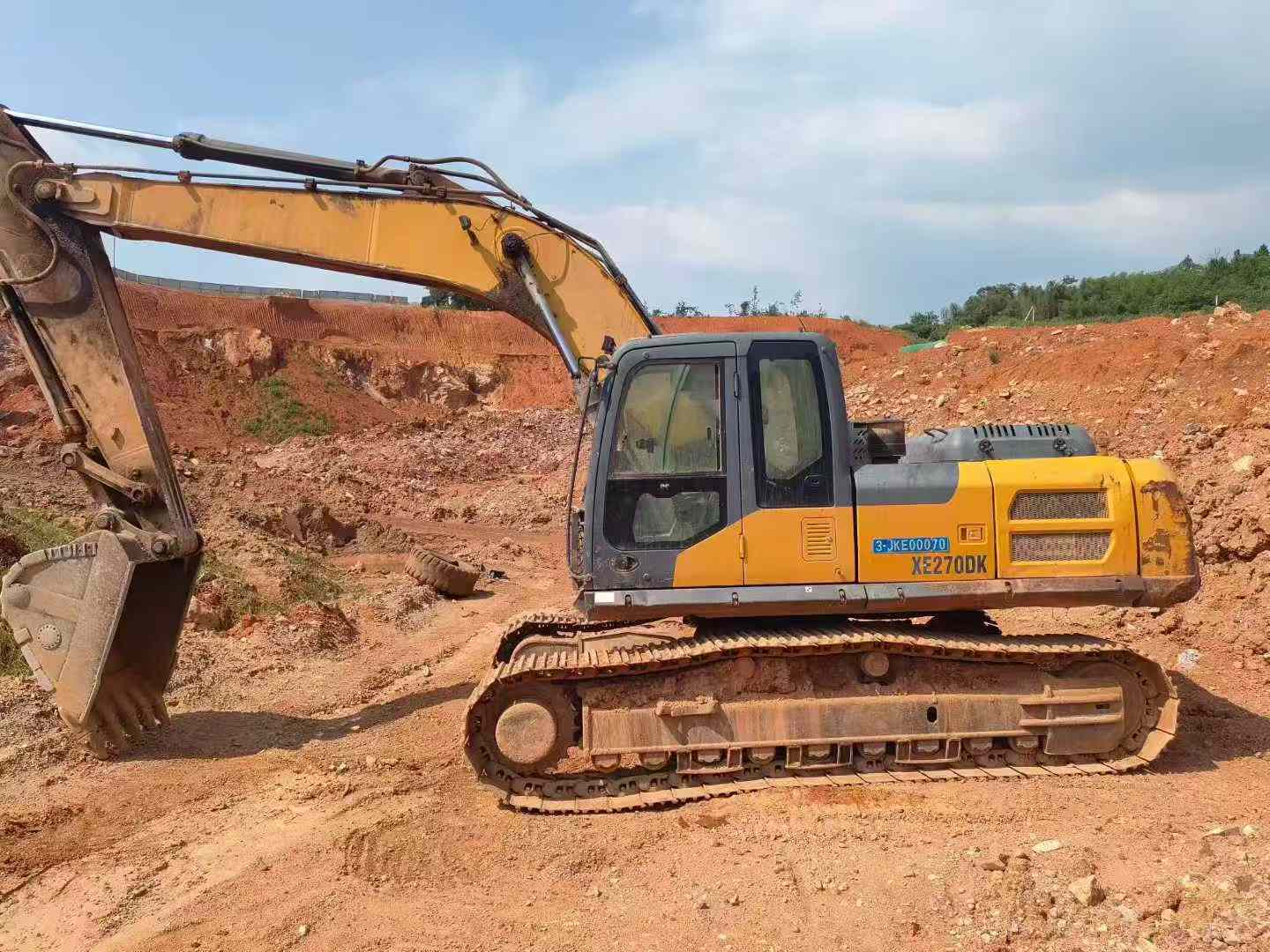

Available now from our Guangxi facility, this 2019 XCMG XE270DK excavator eliminates factory wait times and gets your crew working faster. With 27 tons of operating weight and a proven QSB7 engine delivering 150kW at 2050 rpm, this machine handles demanding excavation, trenching, and loading operations without compromise.

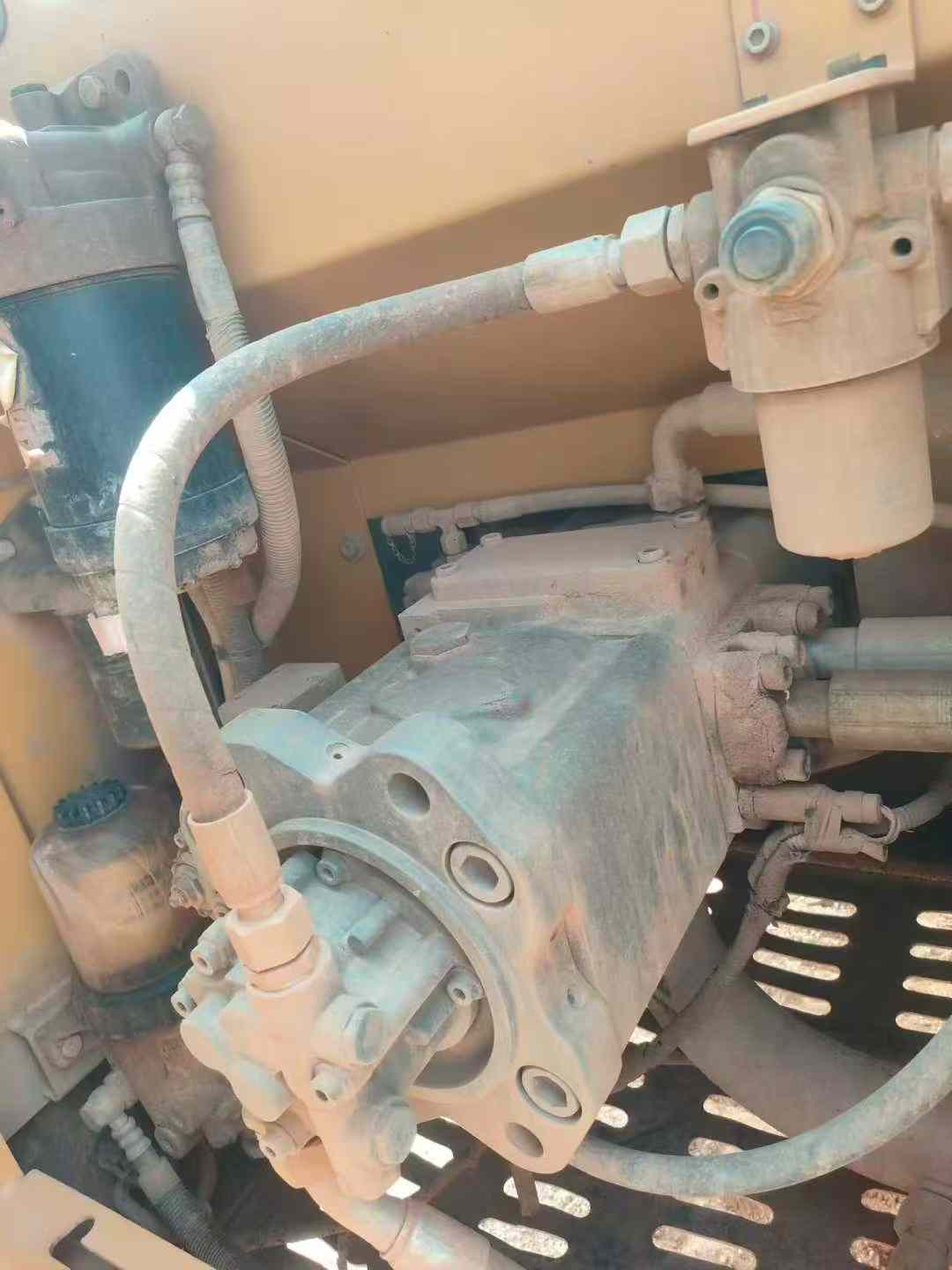

Equipped with a 6-meter boom and 1.1-1.4 m³ bucket capacity, the XE270DK reaches a maximum digging radius of 10,240mm and digs to 6,925mm depth. The dual main pumps flow 2×259 L/min for responsive hydraulics, while 185kN bucket digging force and 129kN arm force power through tough material. Track-mounted stability and 52.1 kPa ground pressure enable work across varied terrain.
Key specifications include:
- Operating weight: 26,500 kg with 400L fuel capacity

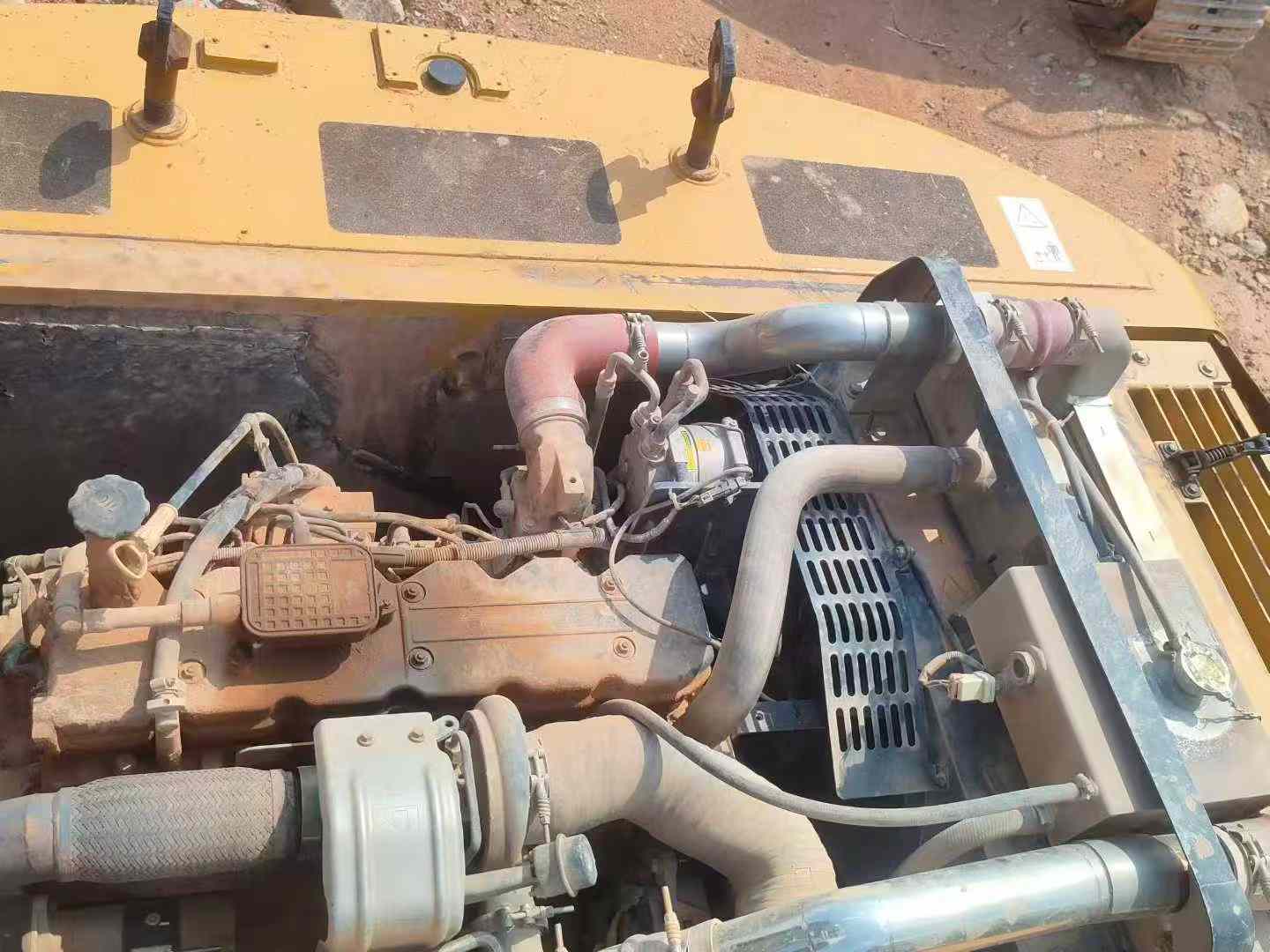

- 6.7L turbocharged engine with air-to-air intercooling
- Maximum digging height: 10,095mm; unloading height: 7,170mm
- Travel speeds: 6.1/3.8 km/h for efficient repositioning
- Transport dimensions: 10,170mm × 3,190mm × 3,175mm
Ready for immediate deployment from Guangxi. Contact Fair Trade Machinery today for fast delivery to your project site.
| Specifications | Value |
|---|---|
| No. | 1021057 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
