2020 XCMG XE270DK

1/9
Buy XCMG XE270DK Used Excavator / 1
Buy XCMG XE270DK Used Excavator / 2
Buy XCMG XE270DK Used Excavator / 3

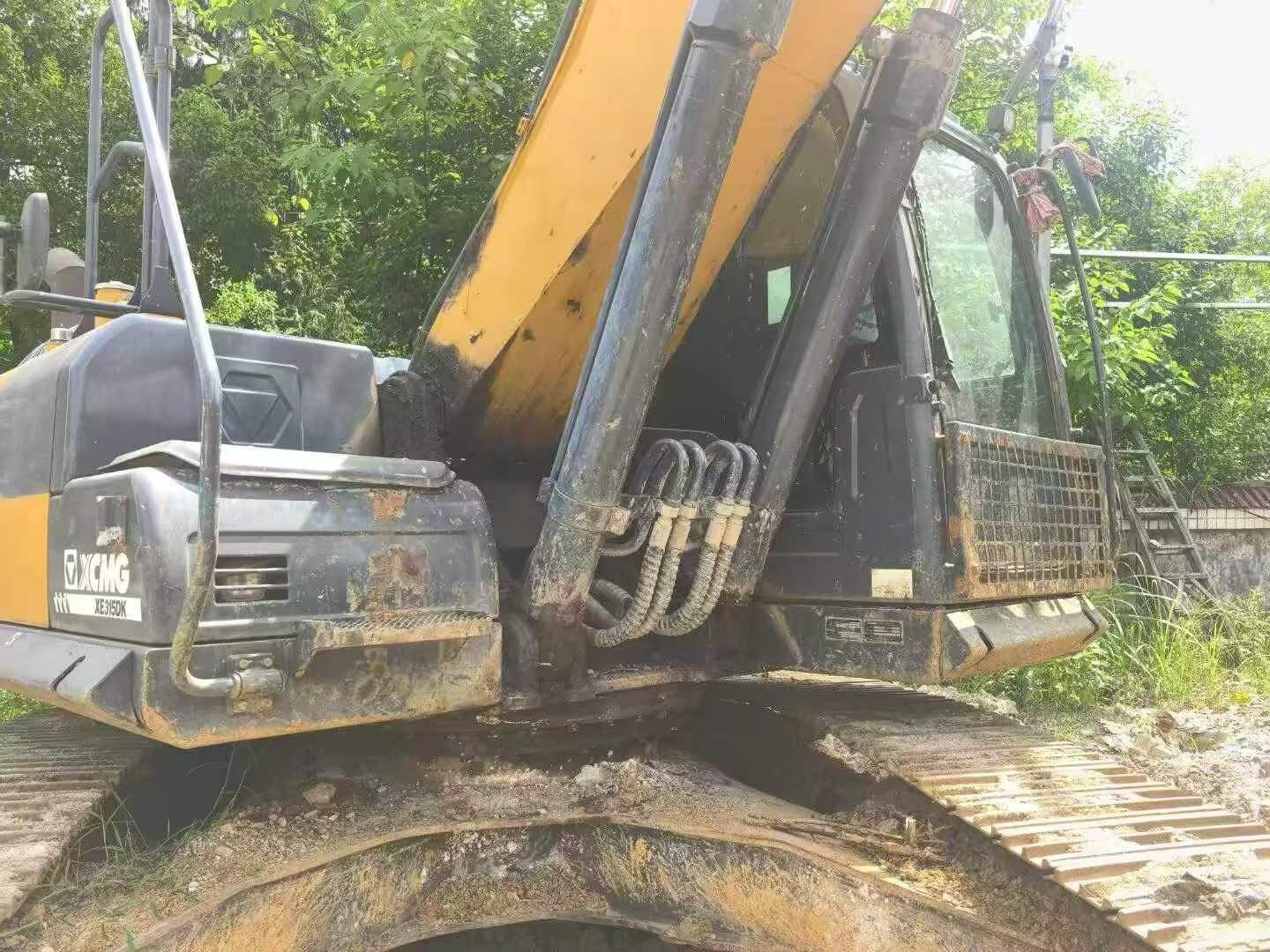

Buy XCMG XE270DK Used Excavator / 4

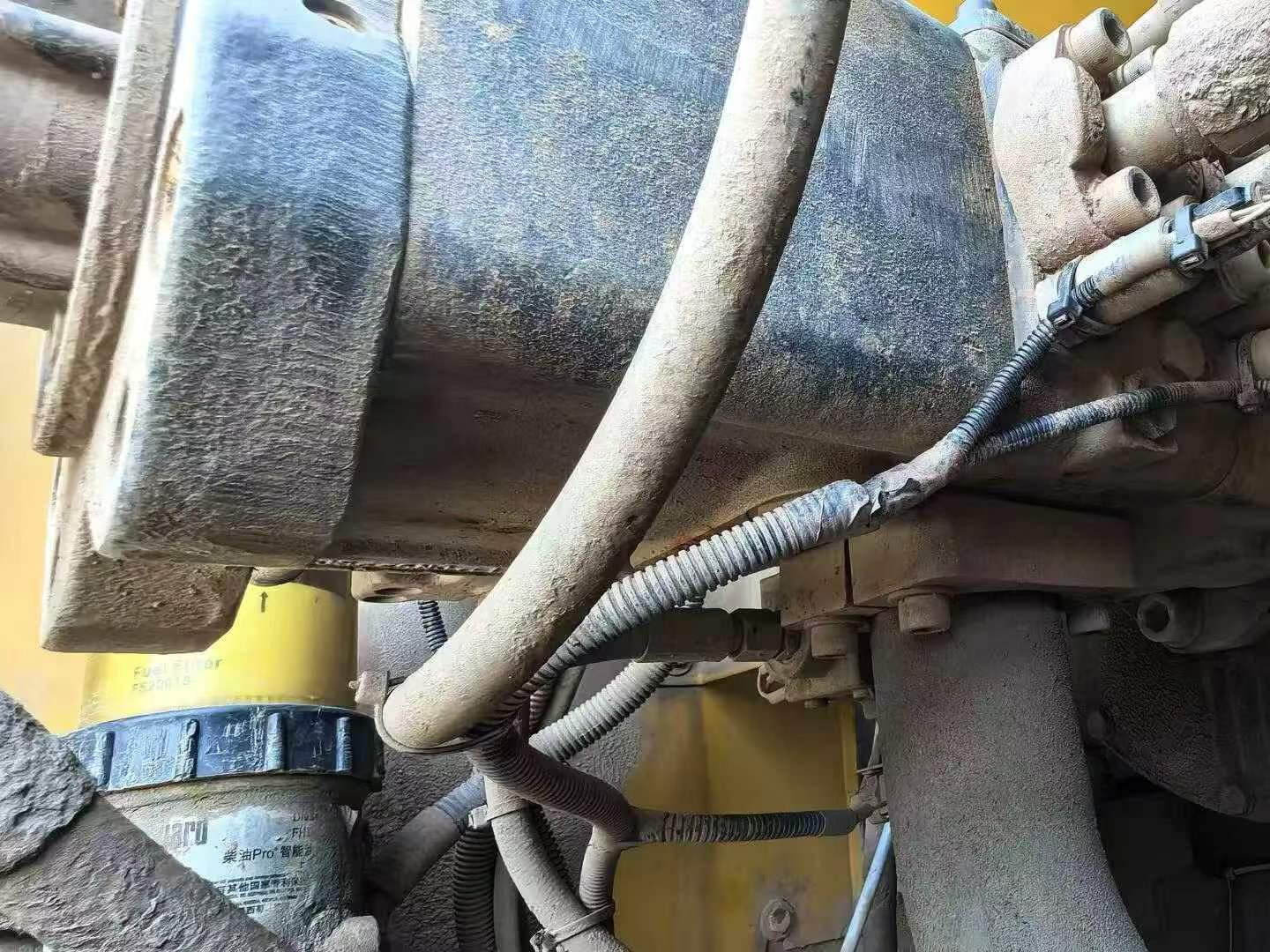

Buy XCMG XE270DK Used Excavator / 5

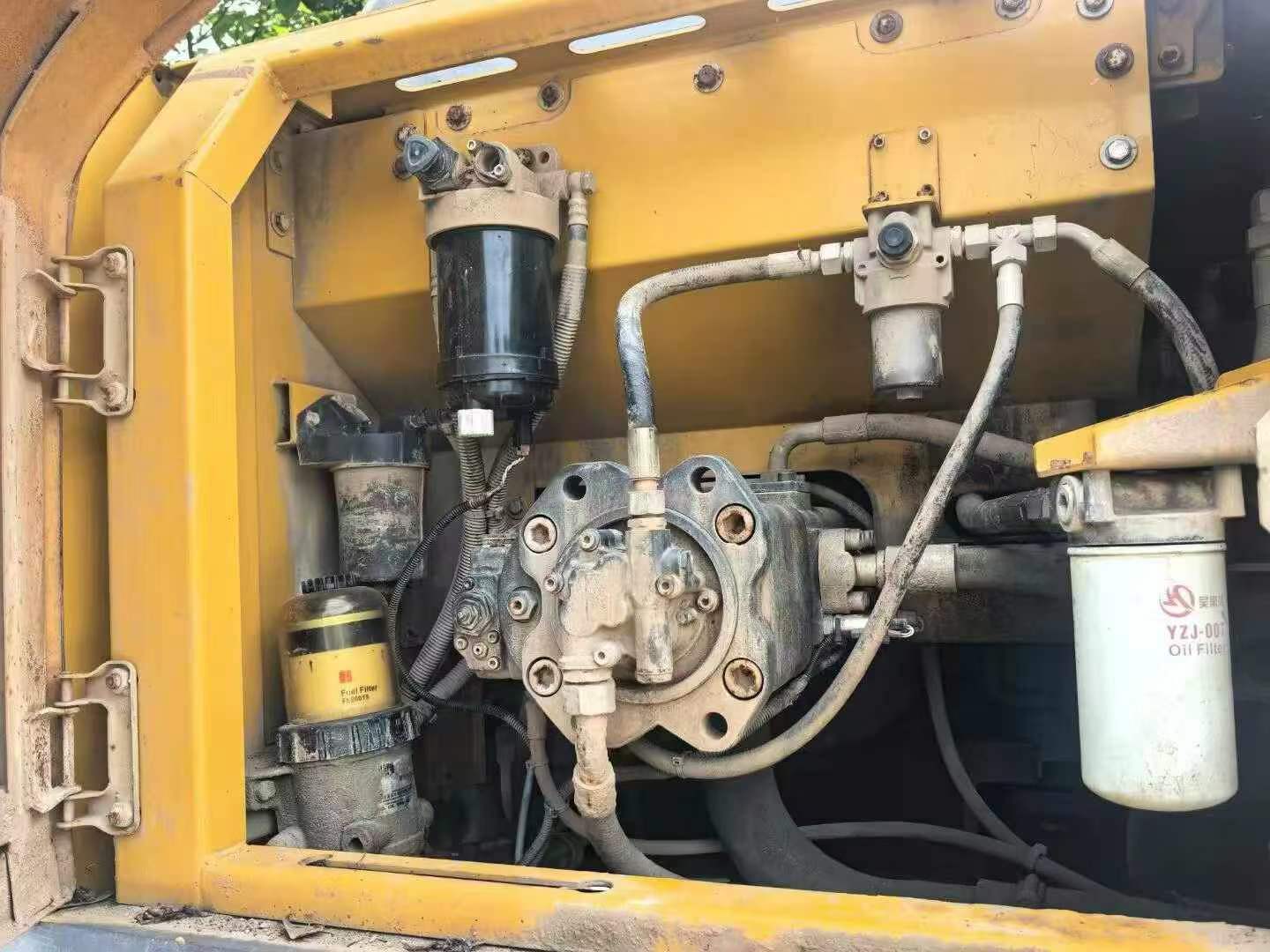

Buy XCMG XE270DK Used Excavator / 6

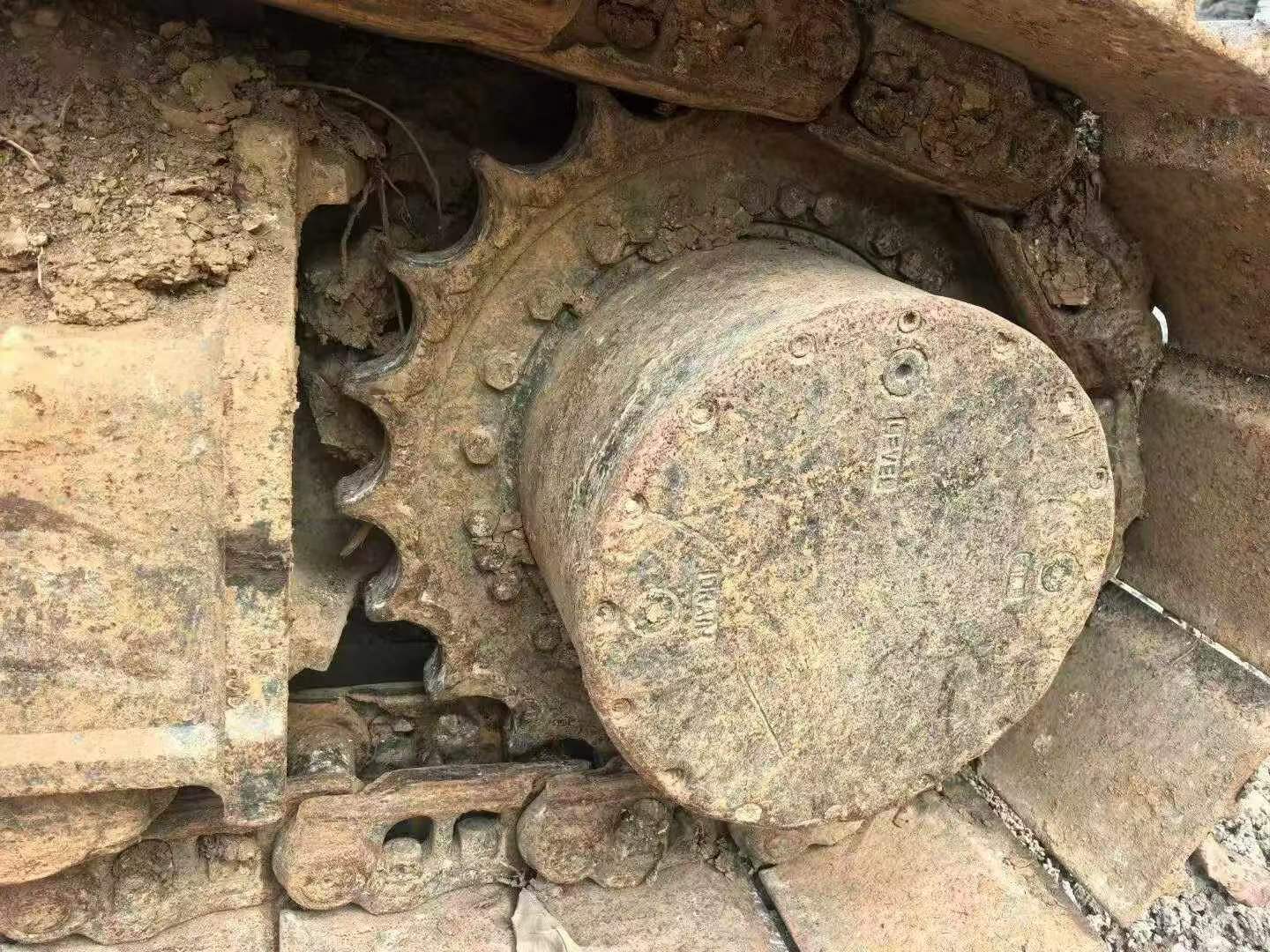

Buy XCMG XE270DK Used Excavator / 7

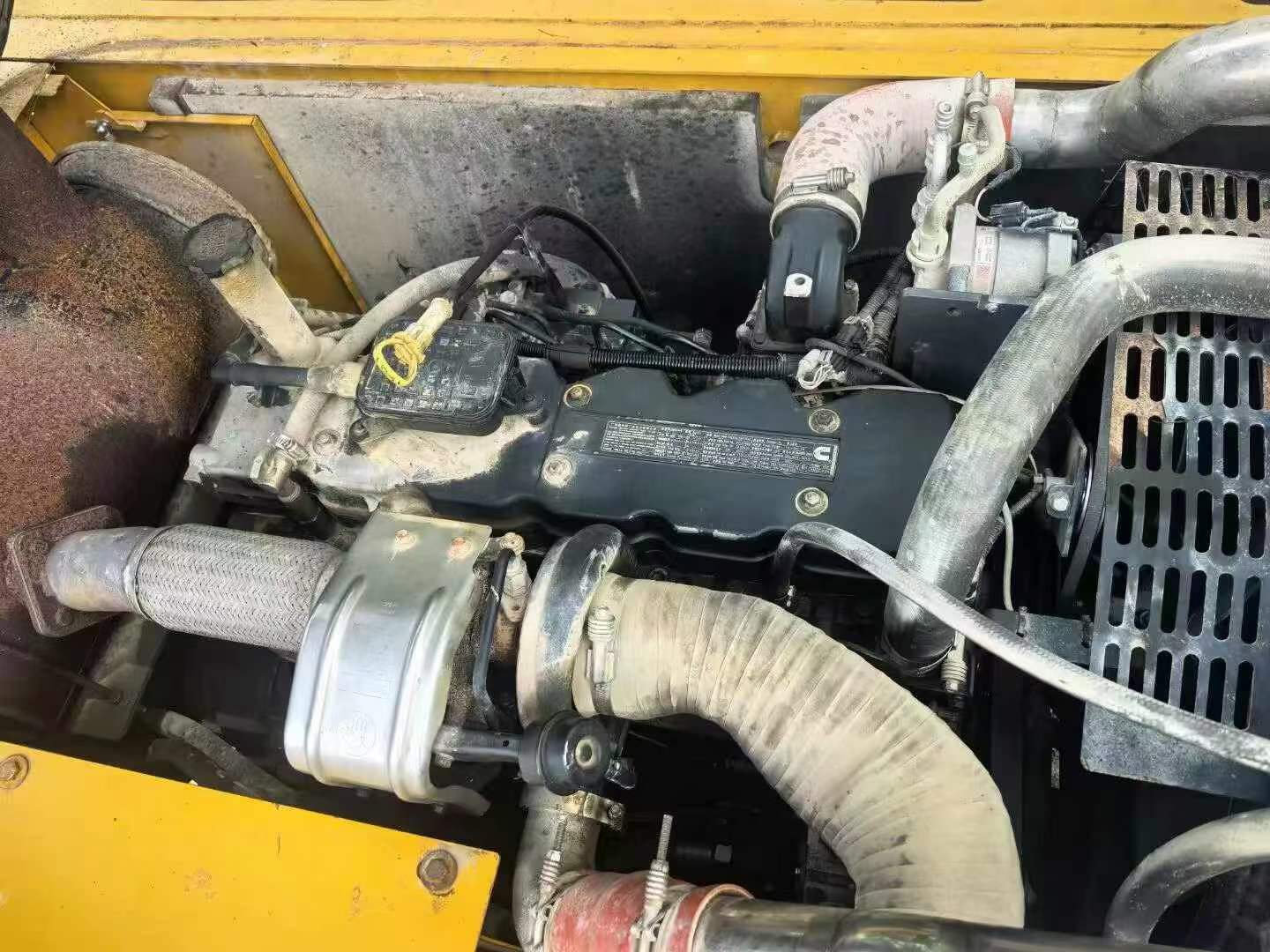

Buy XCMG XE270DK Used Excavator / 8

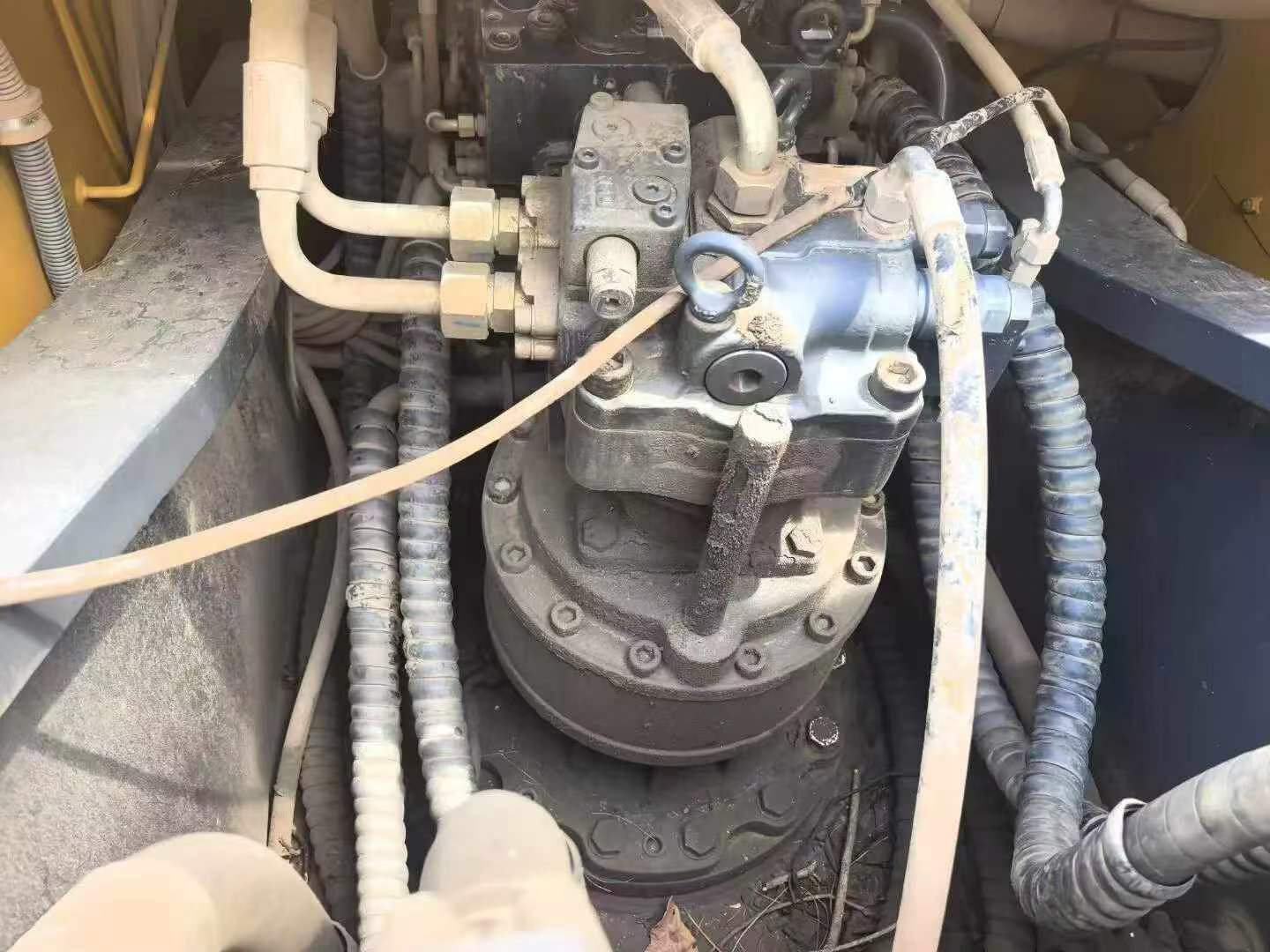

Buy XCMG XE270DK Used Excavator / 9

Product Description

This 2020 XCMG XE270DK excavator represents solid value in the mid-size hydraulic excavator segment. With an operating weight in the 27-ton class, this machine delivers reliable performance for general earthmoving, site development, and construction applications. XCMG's proven engineering ensures durability and serviceability in demanding work environments.

Currently located in Zhejiang, China, this unit comes with operational video documentation available for remote inspection. The XE270DK features XCMG's reinforced boom and arm structure, along with efficient hydraulic systems designed for productivity in various ground conditions.

  • Year of Manufacture: 2020
  • Model: XCMG XE270DK
  • Location: Zhejiang Province, China
  • Video inspection available upon request
  • Suitable for earthmoving and general construction

Contact our sales team for detailed specifications, current condition assessment, and international shipping arrangements.

SpecificationsValue
No.1116095
Tonnage (tons)27
Working weight (kg)26500
Bucket capacity (m³)1.1-1.4
Boom length (mm)6000
Rod length (mm)2964
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)150/2050
Maximum torque (N.m)825/1250
Number of cylinders (PCS)6
Displacement (L)6.7
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)52.1
Rotation speed (rpm)11.4
Climbing ability (%)35
Bucket digging force (kN)185
Rod digging force (kN)129
Maximum tractive force (kN)220
Travel speed (km/h)6.1/3.8
Maximum flow of main pump (l/min)2*259
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)19.5
Total transport length (mm)10170
Total transport width (mm)3190
Total transport height (mm)3175
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)495
Minimum turning radius of front working device (mm)3510
Back end turning radius (mm)2955
Total track length (mm)4640
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10240
Maximum digging depth (mm)6925
Maximum excavation height (mm)10095
Maximum unloading height (mm)7170
Maximum vertical digging depth (mm)5620
see more

Overview

No.1116095

Brand Name:

XCMG

Model Number:

XE270DK

Year:

2020

Location:

Zhejiang China

Pub Date
