HOME>>XCMG>>XCMG XE270DK

2020 XCMG XE270DK

1/5

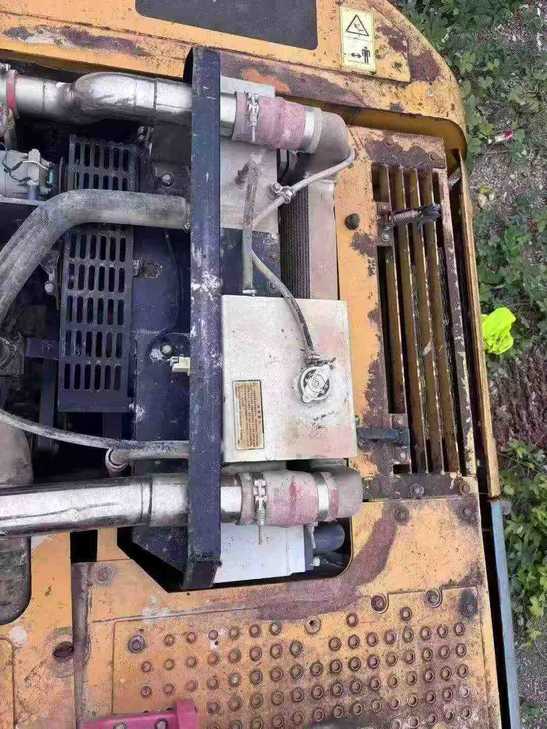

Buy XCMG XE270DK Used Excavator / 1
Buy XCMG XE270DK Used Excavator / 2
Buy XCMG XE270DK Used Excavator / 3
Buy XCMG XE270DK Used Excavator / 4
Buy XCMG XE270DK Used Excavator / 5

Product Description

This 2020 XCMG XE270DK hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Located in Sichuan, China, this 27-ton class machine features XCMG's proven design with robust undercarriage components and efficient hydraulic systems. The DK series is engineered for durability in challenging working conditions, making it suitable for quarrying, road construction, and general excavation work.

  • Year of Manufacture: 2020
  • Operating Weight Class: 27 tonnes
  • Hydraulic excavator configuration
  • Currently located in Sichuan Province, China
  • Competitive pricing for the regional market

This used excavator provides an economical solution for contractors seeking proven XCMG engineering quality. Inspection welcomed. Contact us for detailed specifications, service records, and export arrangements.

SpecificationsValue
No.1169582
Tonnage (tons)27
Working weight (kg)26500
Bucket capacity (m³)1.1-1.4
Boom length (mm)6000
Rod length (mm)2964
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)150/2050
Maximum torque (N.m)825/1250
Number of cylinders (PCS)6
Displacement (L)6.7
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)52.1
Rotation speed (rpm)11.4
Climbing ability (%)35
Bucket digging force (kN)185
Rod digging force (kN)129
Maximum tractive force (kN)220
Travel speed (km/h)6.1/3.8
Maximum flow of main pump (l/min)2*259
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)19.5
Total transport length (mm)10170
Total transport width (mm)3190
Total transport height (mm)3175
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)495
Minimum turning radius of front working device (mm)3510
Back end turning radius (mm)2955
Total track length (mm)4640
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10240
Maximum digging depth (mm)6925
Maximum excavation height (mm)10095
Maximum unloading height (mm)7170
Maximum vertical digging depth (mm)5620
see more

Overview

No.1169582

Brand Name:

XCMG

Model Number:

XE270DK

Year:

2020

Location:

Sichuan China

Pub Date:

Are you interested in this machine?

Please contact us
