HOME>>XCMG>>XCMG XE270DK

2020 XCMG XE270DK

1/6
Buy XCMG XE270DK Used Excavator / 1

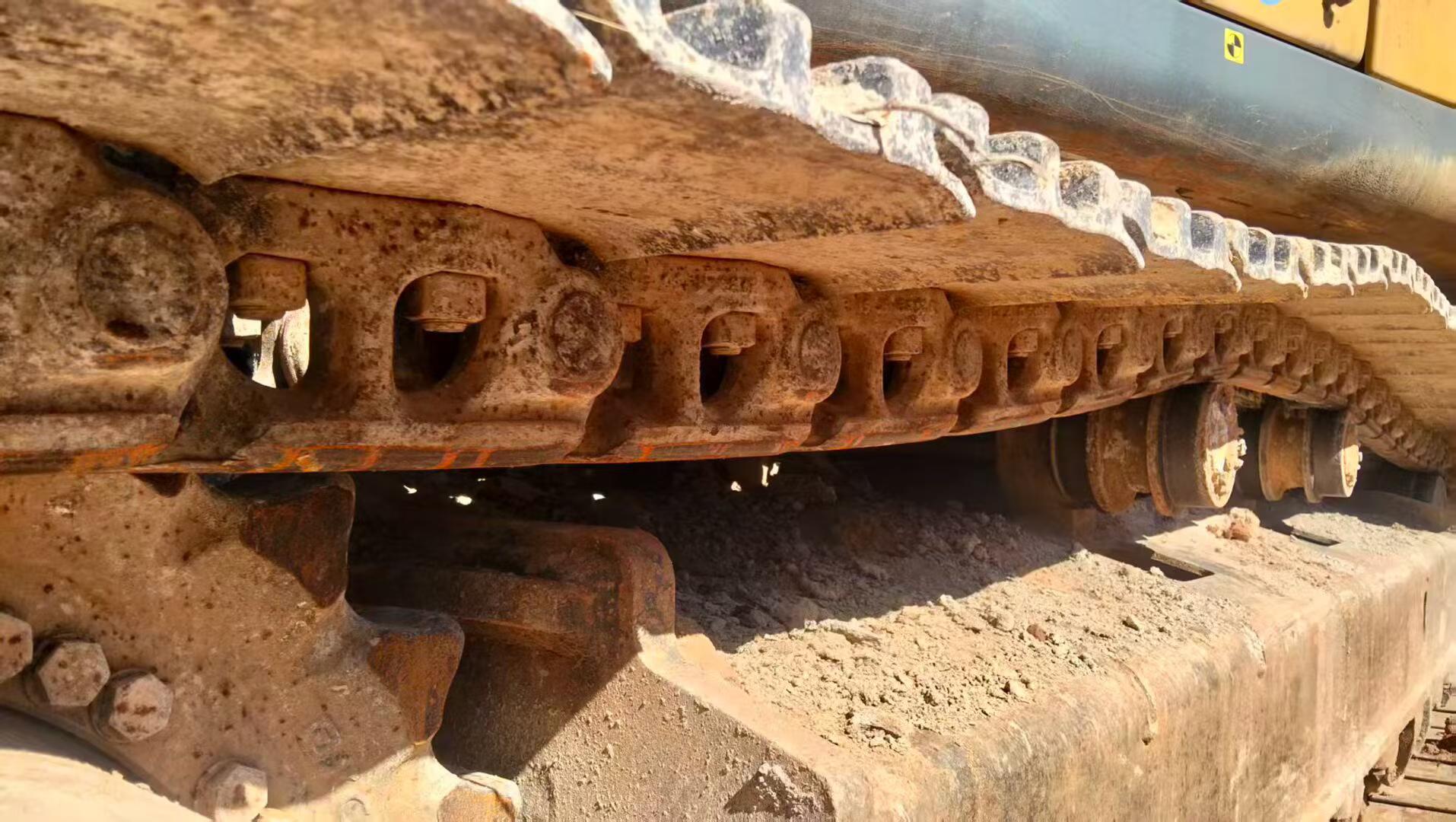

Buy XCMG XE270DK Used Excavator / 2

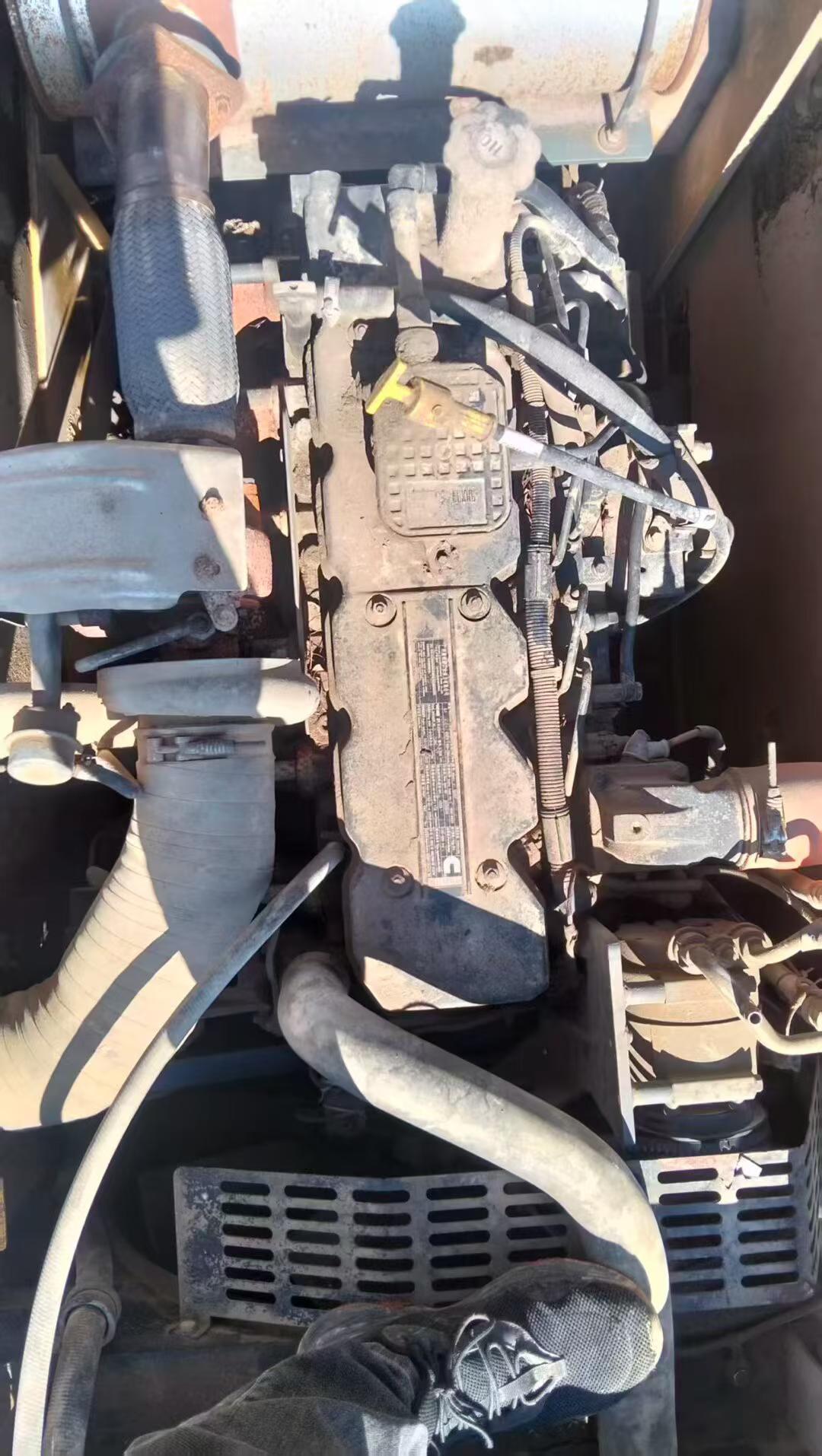

Buy XCMG XE270DK Used Excavator / 3

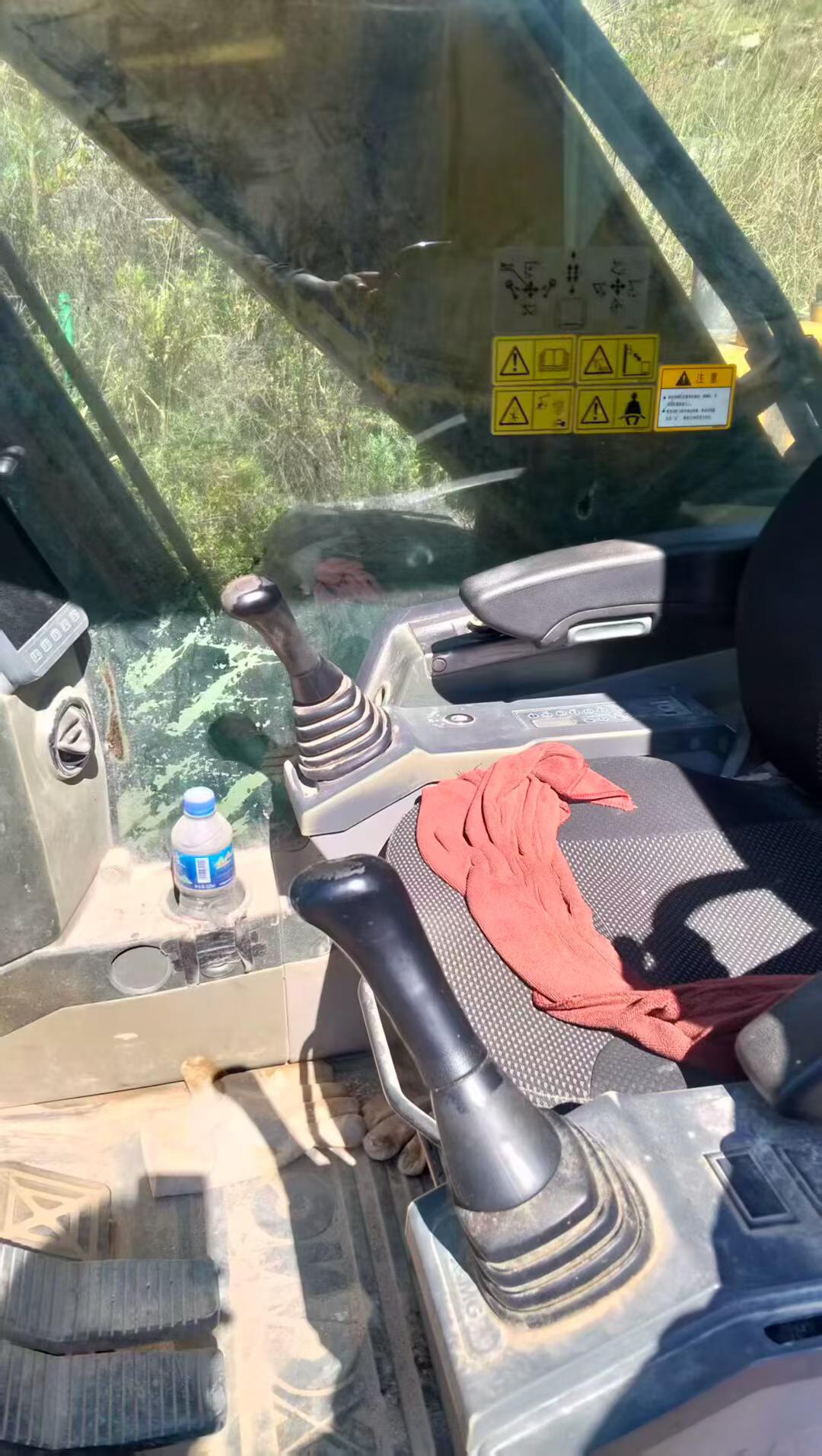

Buy XCMG XE270DK Used Excavator / 4

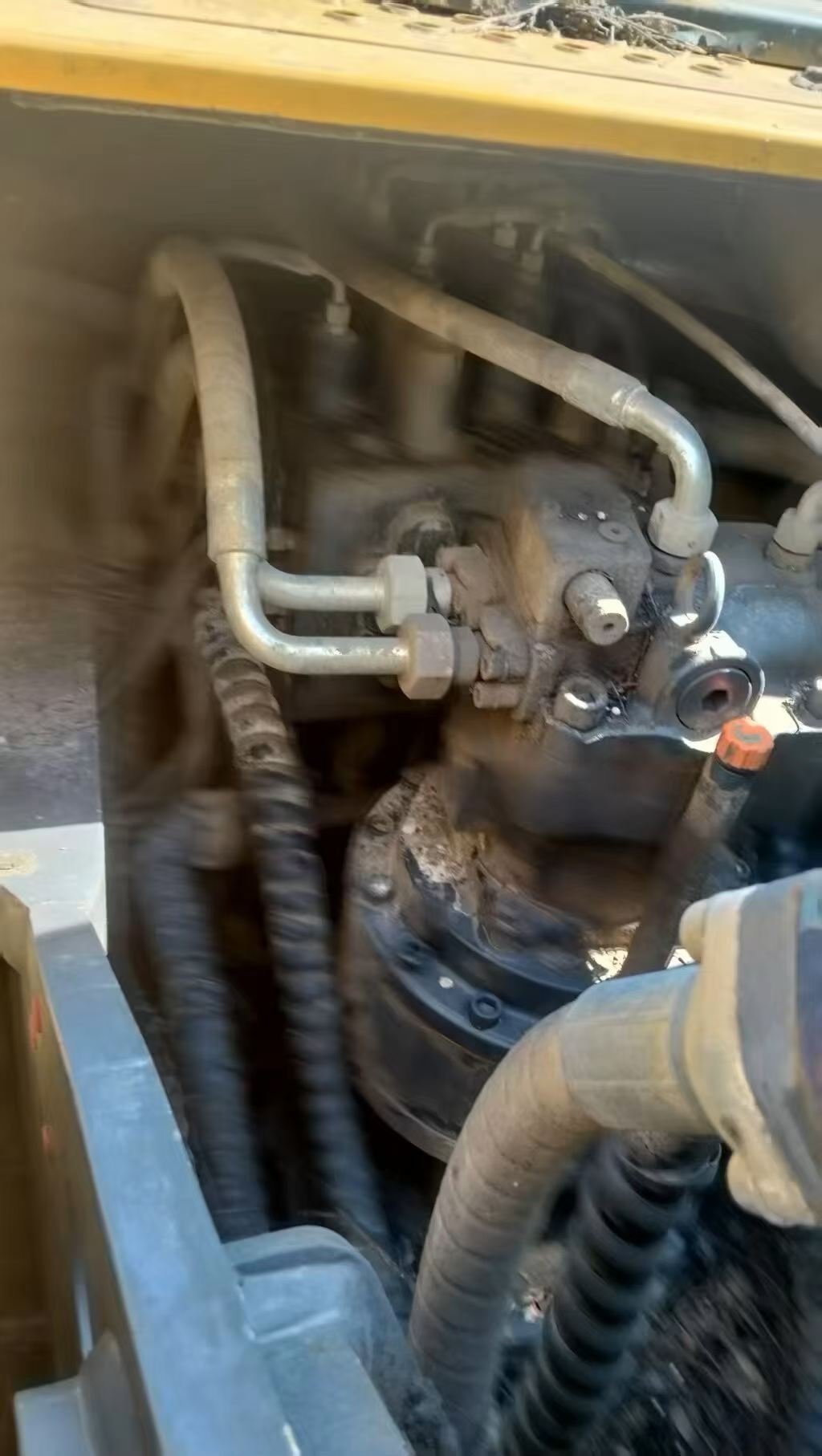

Buy XCMG XE270DK Used Excavator / 5

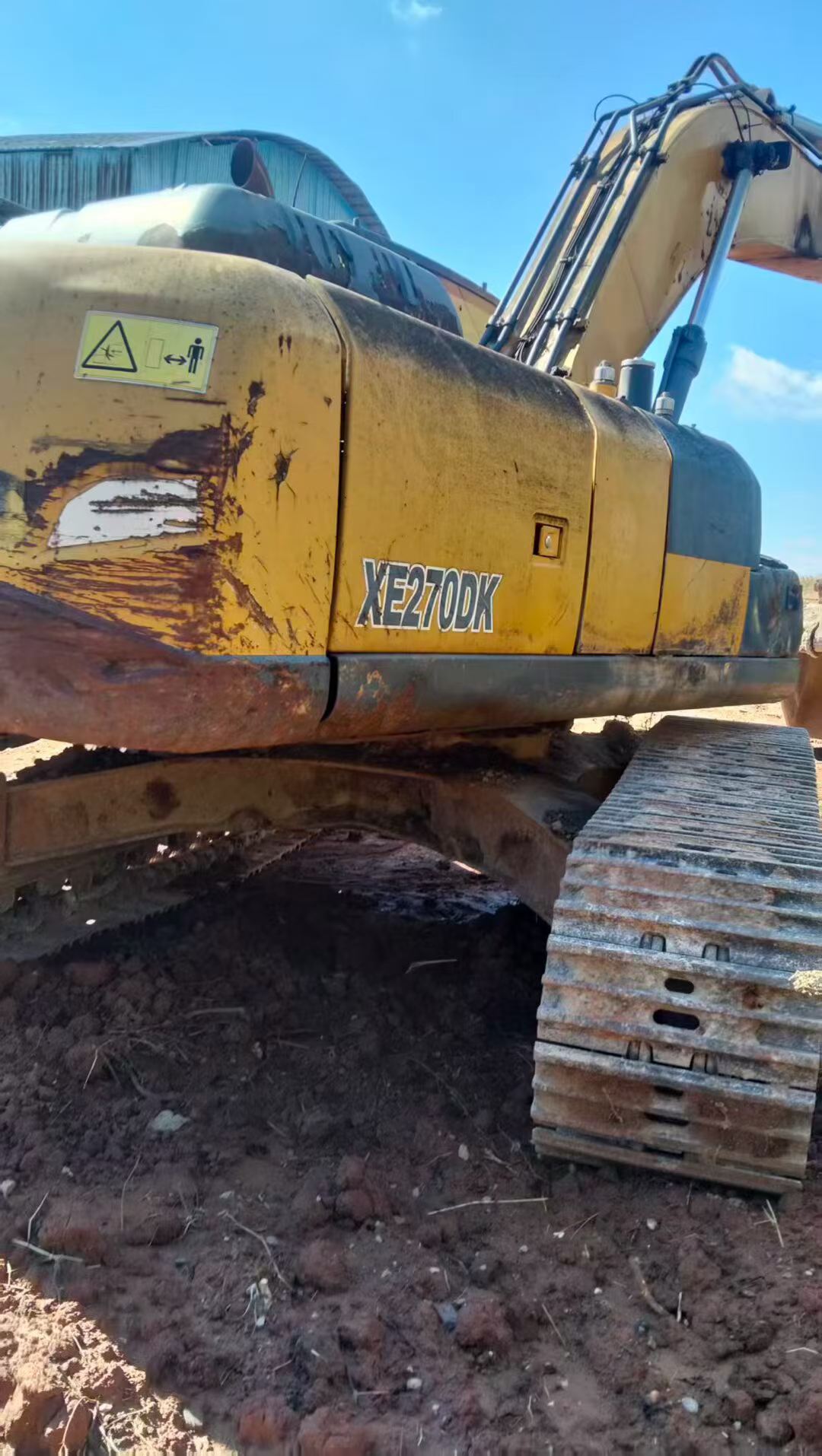

Buy XCMG XE270DK Used Excavator / 6

Product Description

This 2020 XCMG XE270DK hydraulic excavator offers reliable performance for mining, earthmoving, and heavy construction applications. With approximately 100,000 hours of operational use, this machine has been maintained in excellent working condition and is located in Yunnan, China. The XE270DK is built on XCMG's proven platform, featuring a robust undercarriage, efficient hydraulic system, and operator-focused cab design.

Key features include:

  • 27-ton operating weight class suitable for medium to heavy-duty tasks
  • Fuel-efficient engine meeting current emission standards
  • Durable excavator arm and bucket configuration
  • Well-maintained condition with documented service history
  • Ready for immediate deployment in quarry, mining, or civil works

This unit represents an economical entry point into proven excavator technology. Inspection welcome by appointment in Yunnan province.

SpecificationsValue
No.1171099
Tonnage (tons)27
Working weight (kg)26500
Bucket capacity (m³)1.1-1.4
Boom length (mm)6000
Rod length (mm)2964
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)150/2050
Maximum torque (N.m)825/1250
Number of cylinders (PCS)6
Displacement (L)6.7
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)52.1
Rotation speed (rpm)11.4
Climbing ability (%)35
Bucket digging force (kN)185
Rod digging force (kN)129
Maximum tractive force (kN)220
Travel speed (km/h)6.1/3.8
Maximum flow of main pump (l/min)2*259
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)19.5
Total transport length (mm)10170
Total transport width (mm)3190
Total transport height (mm)3175
Counterweight ground clearance (mm)1090
Minimum ground clearance (mm)495
Minimum turning radius of front working device (mm)3510
Back end turning radius (mm)2955
Total track length (mm)4640
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10240
Maximum digging depth (mm)6925
Maximum excavation height (mm)10095
Maximum unloading height (mm)7170
Maximum vertical digging depth (mm)5620
see more

Overview

No.1171099

Brand Name:

XCMG

Model Number:

XE270DK

Year:

2020

Location:

Yunnan China

Pub Date:
