Product Description
This 2022 XCMG XE270DK excavator represents a well-maintained opportunity for operations requiring reliable earthmoving capacity. With 5,200 metered hours, the machine has been dedicated to earthwork applications since purchase. Located in Zhejiang, China, this unit retains its original major components—engine, hydraulic pump, and main control valve—with no rebuild history.
Key highlights include:

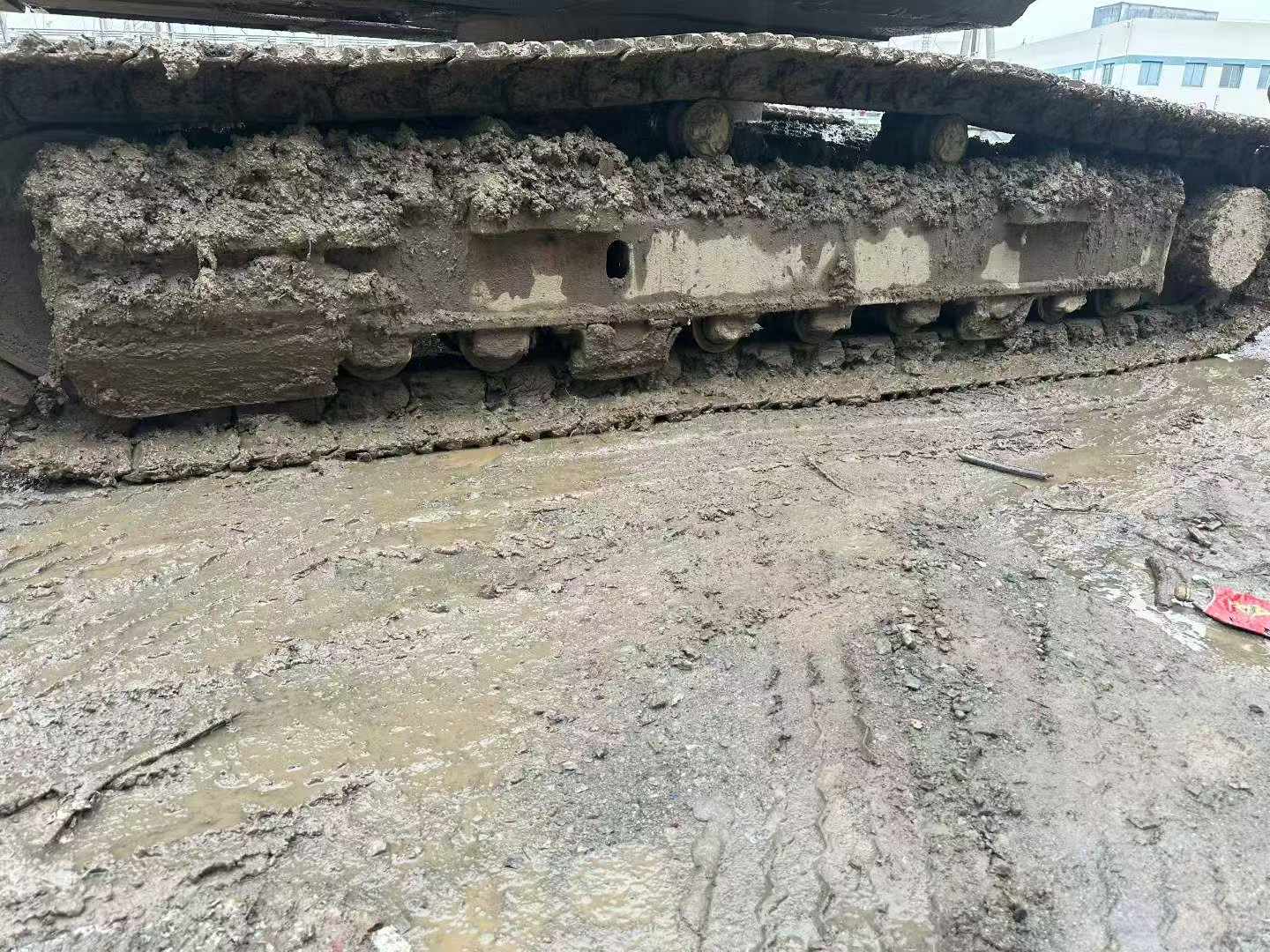

- Original factory undercarriage with minimal wear on track rollers and track shoes
- Complete service records from single-owner operation
- All OEM components maintained throughout operational life
- Ready for immediate deployment in excavation and grading projects
The XE270DK's documented maintenance history and preserved original configuration make it suitable for contractors seeking dependable mid-size excavation equipment without the premium of new machinery. Available for inspection in Zhejiang province.
| Specifications | Value |
|---|---|
| No. | 1156550 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
