Product Description

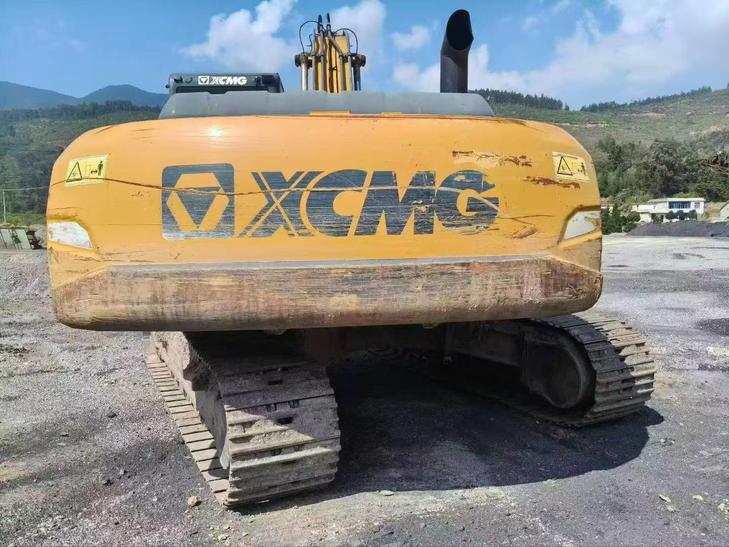

This 2022 XCMG XE270DK hydraulic excavator offers reliable performance for demanding earthmoving operations. With minimal operating hours since manufacture, this machine represents excellent value in the 27-ton class segment. The XE270DK features XCMG's proven hydraulic system and reinforced undercarriage designed for extended service life in construction and mining applications.
- Year of Manufacture: 2022
- Model: XCMG XE270DK
- Operating Weight Class: 27 tons
- Current Location: Hunan Province, China
- Condition: Used with low hours
- Availability: Ready for immediate inspection and delivery
Currently located in Hunan, China, this excavator is available for inspection by qualified buyers. The machine has been maintained according to manufacturer specifications and is ready for deployment on your next project. Suitable for general construction, infrastructure development, and material handling applications.
| Specifications | Value |
|---|---|
| No. | 1170824 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
