Product Description

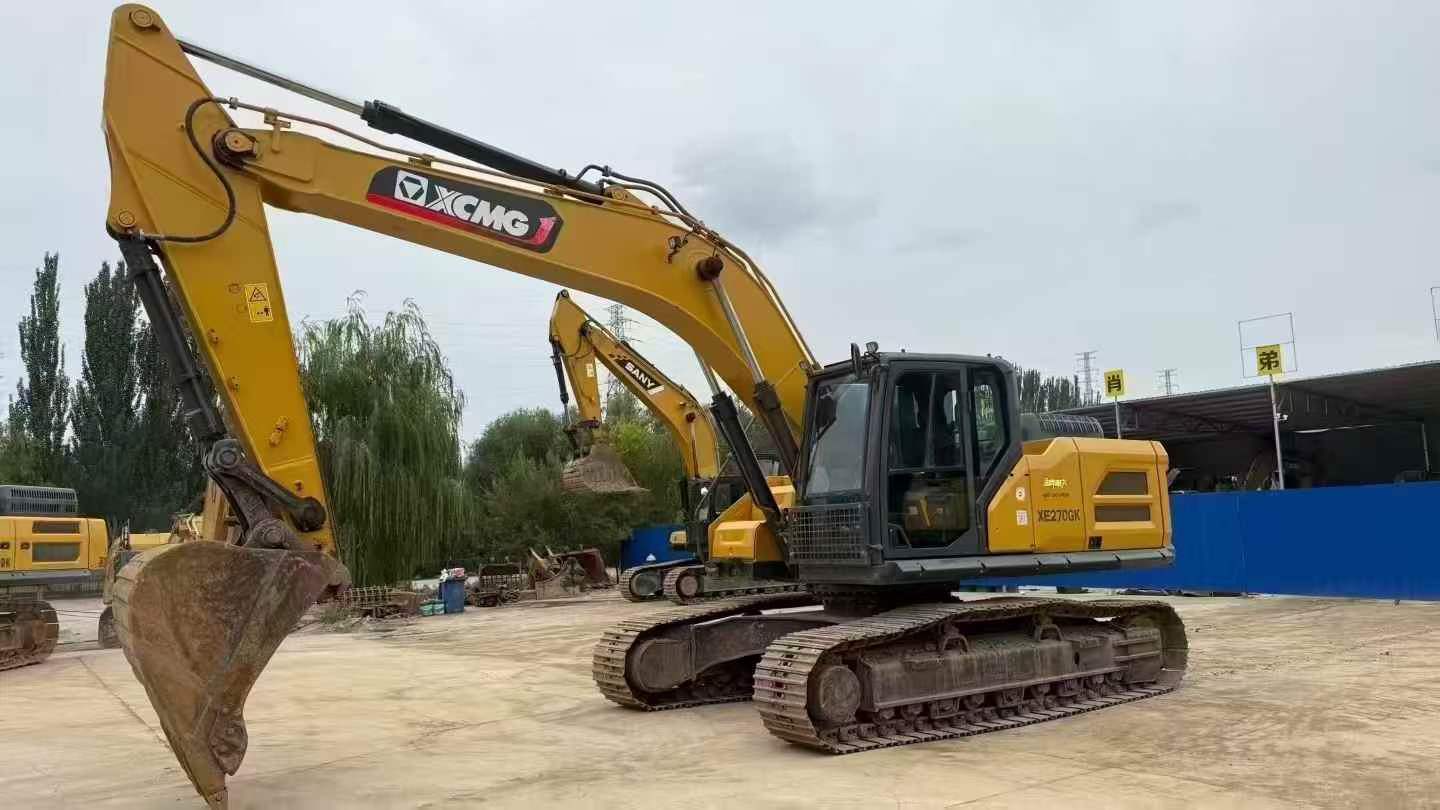

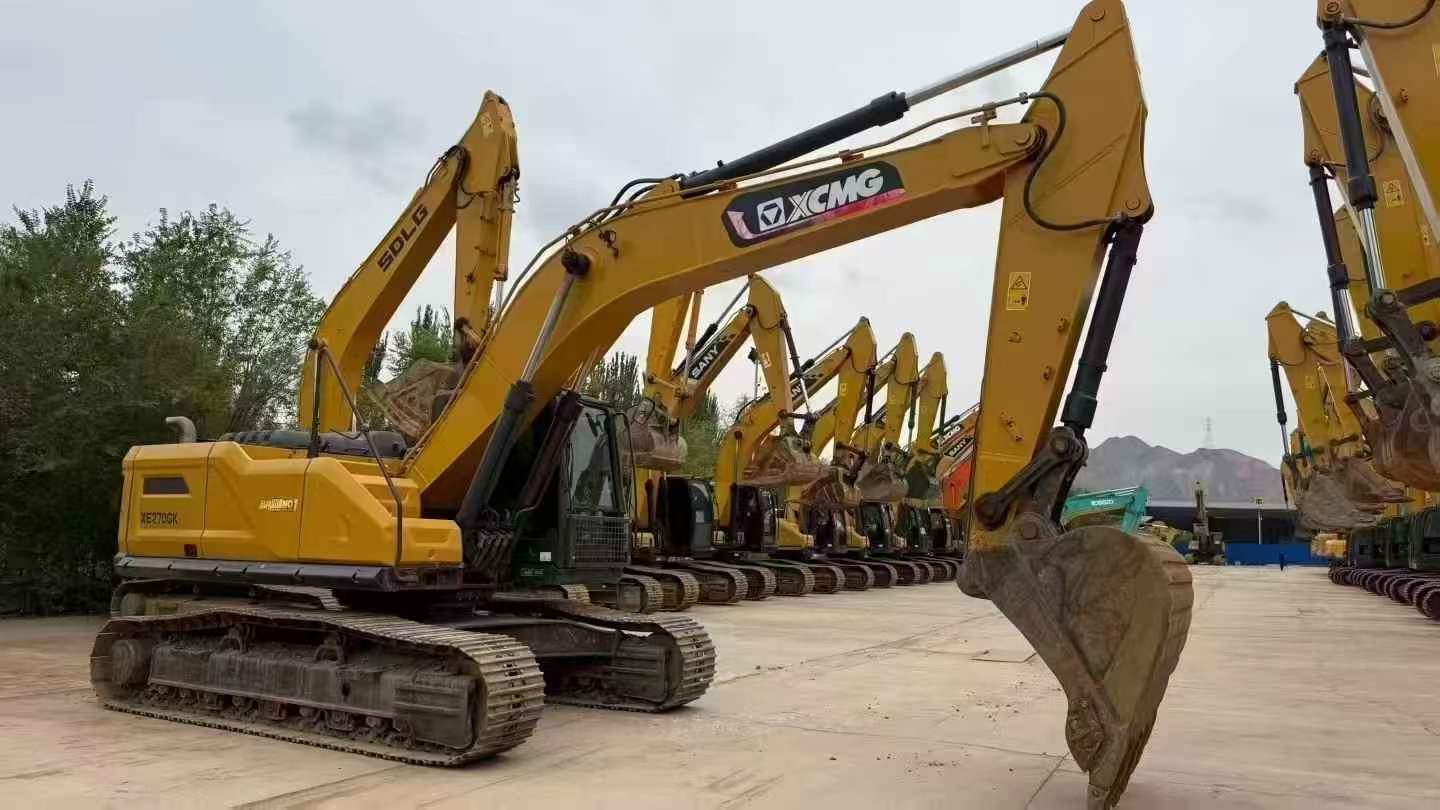

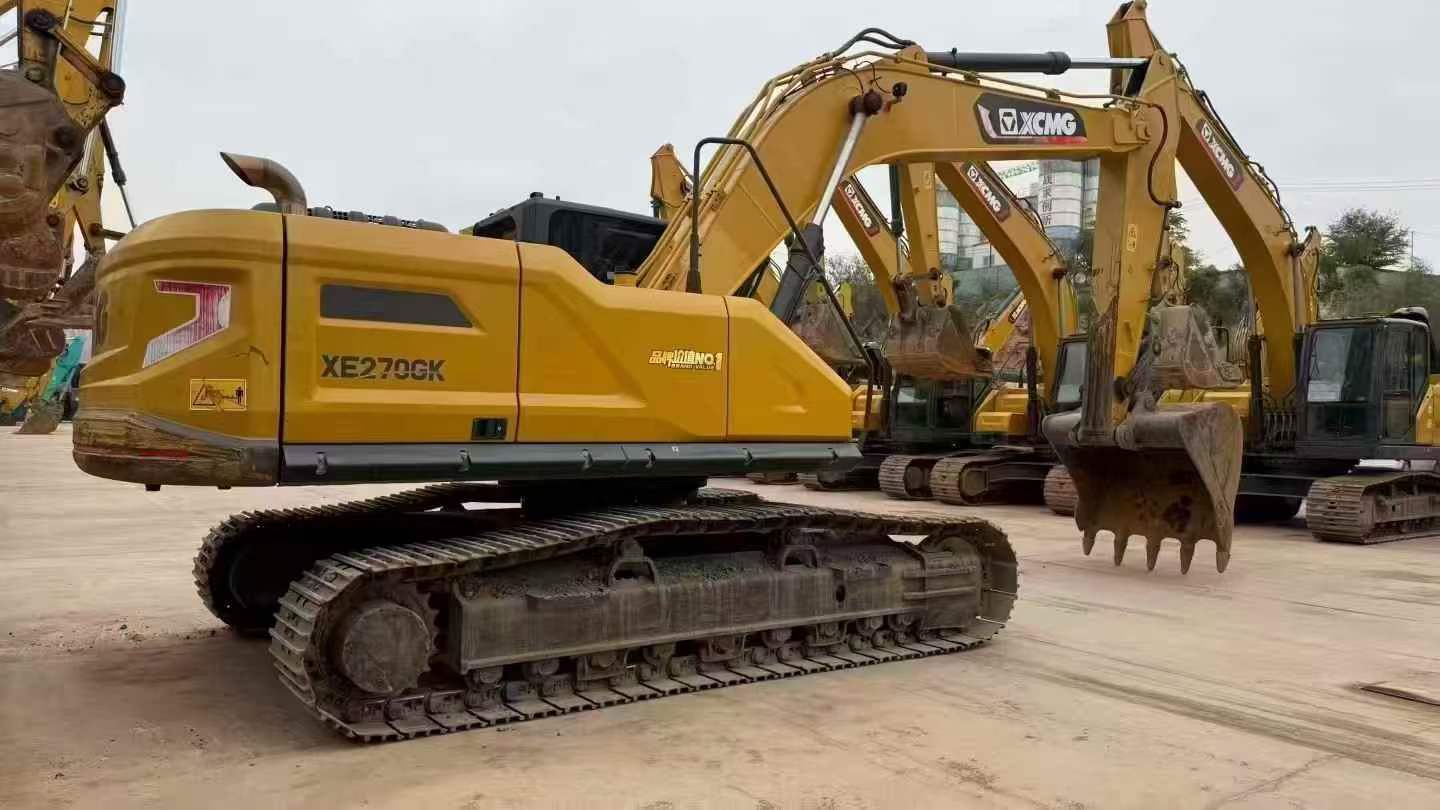

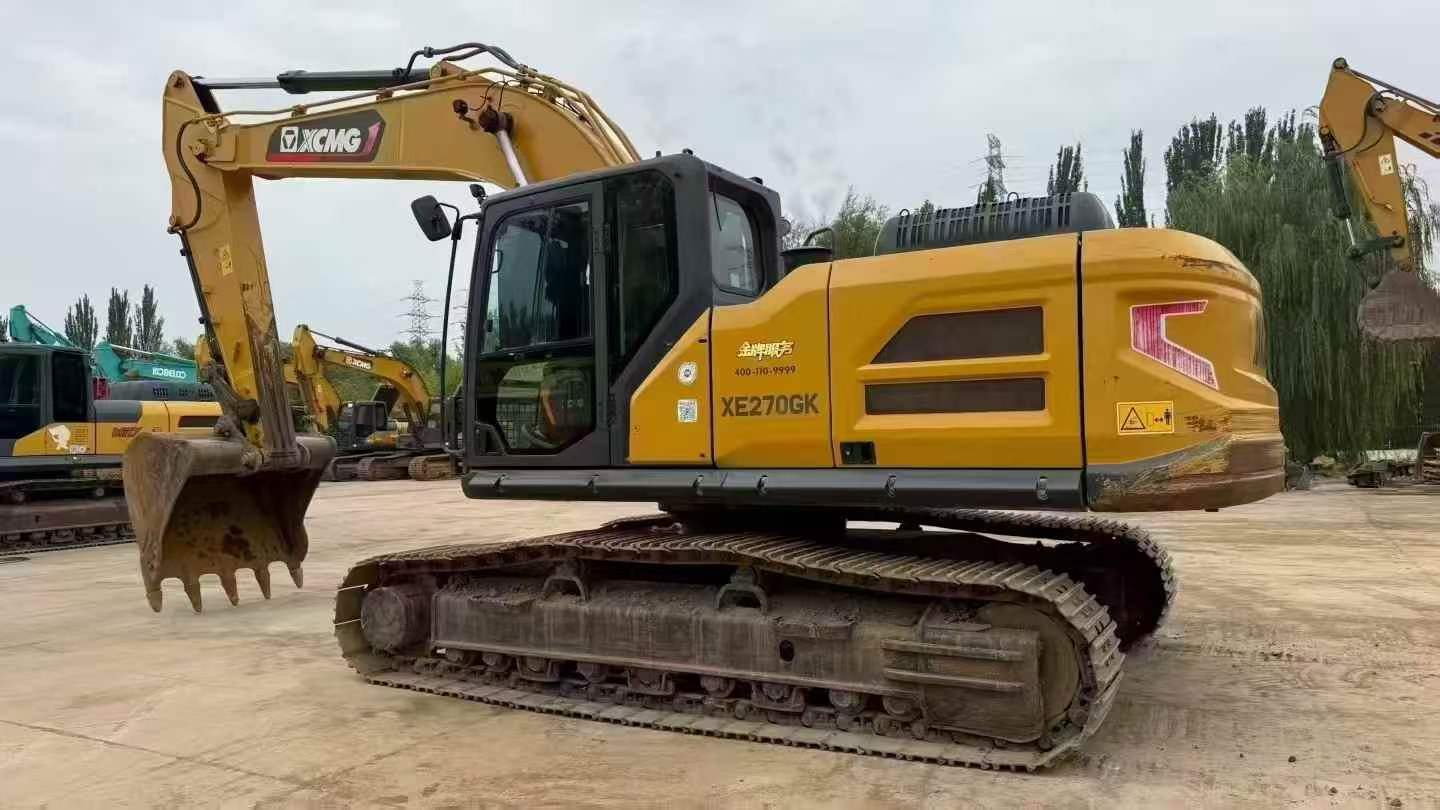

This 2023 XCMG XE270DK excavator, manufactured in March 2023, represents a near-new opportunity for contractors seeking reliable hydraulic excavation equipment. Currently located in Gansu, China, this locally-sourced machine offers immediate availability for regional and international buyers.
The XE270DK is a 27-ton class crawler excavator designed for medium to heavy-duty earthmoving, foundation work, and general construction applications. With minimal operating hours since its recent manufacture date, this unit delivers performance consistent with XCMG's engineering standards for fuel efficiency and operational reliability.
Key features include:
- 2023 model year with low operational hours
- 27-ton operating weight class
- Hydraulic excavator configuration
- Competitively priced for quick acquisition
- Ready for immediate inspection and deployment
Suitable for construction companies, mining operations, and infrastructure projects requiring dependable excavation capacity.
| Specifications | Value |
|---|---|
| No. | 1164800 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

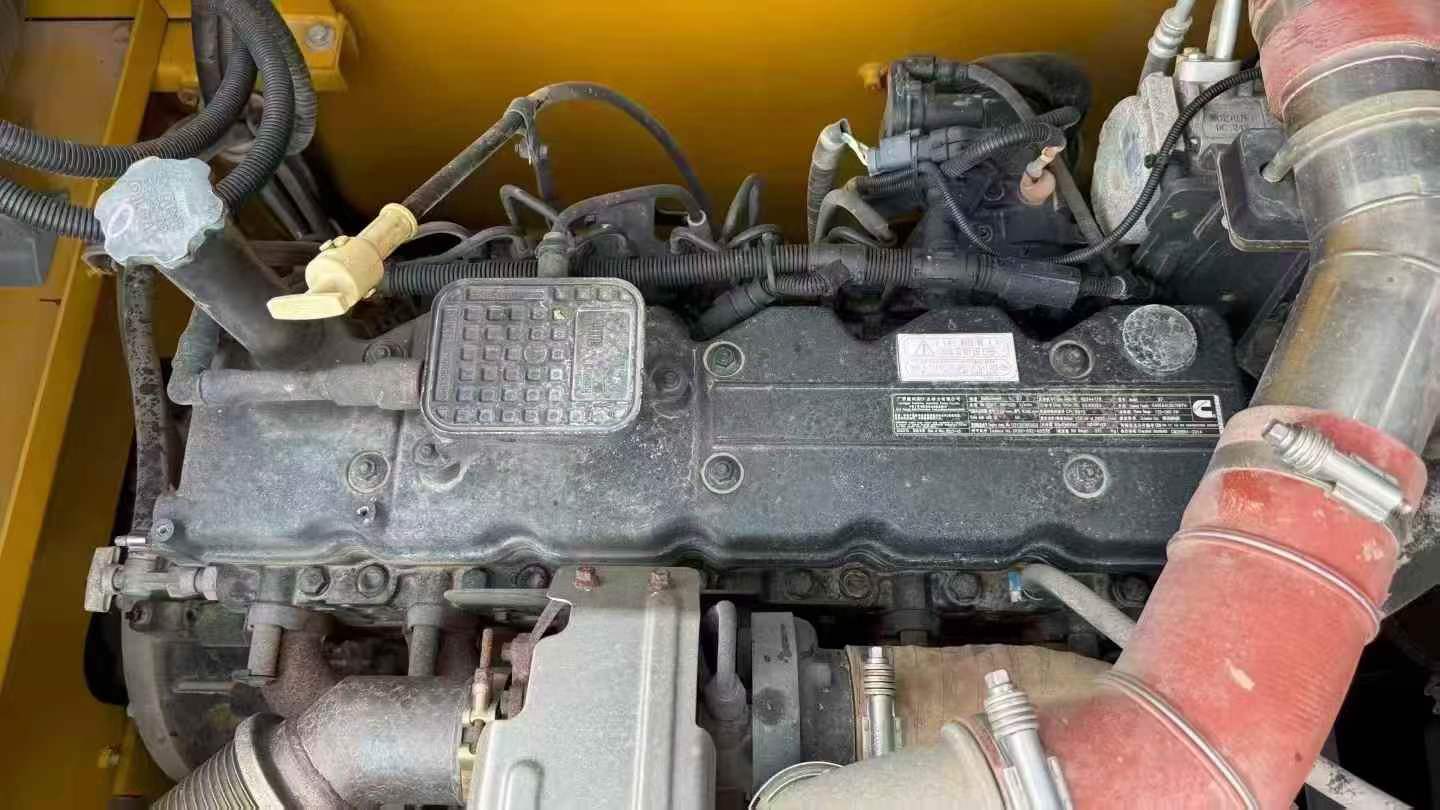

| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |

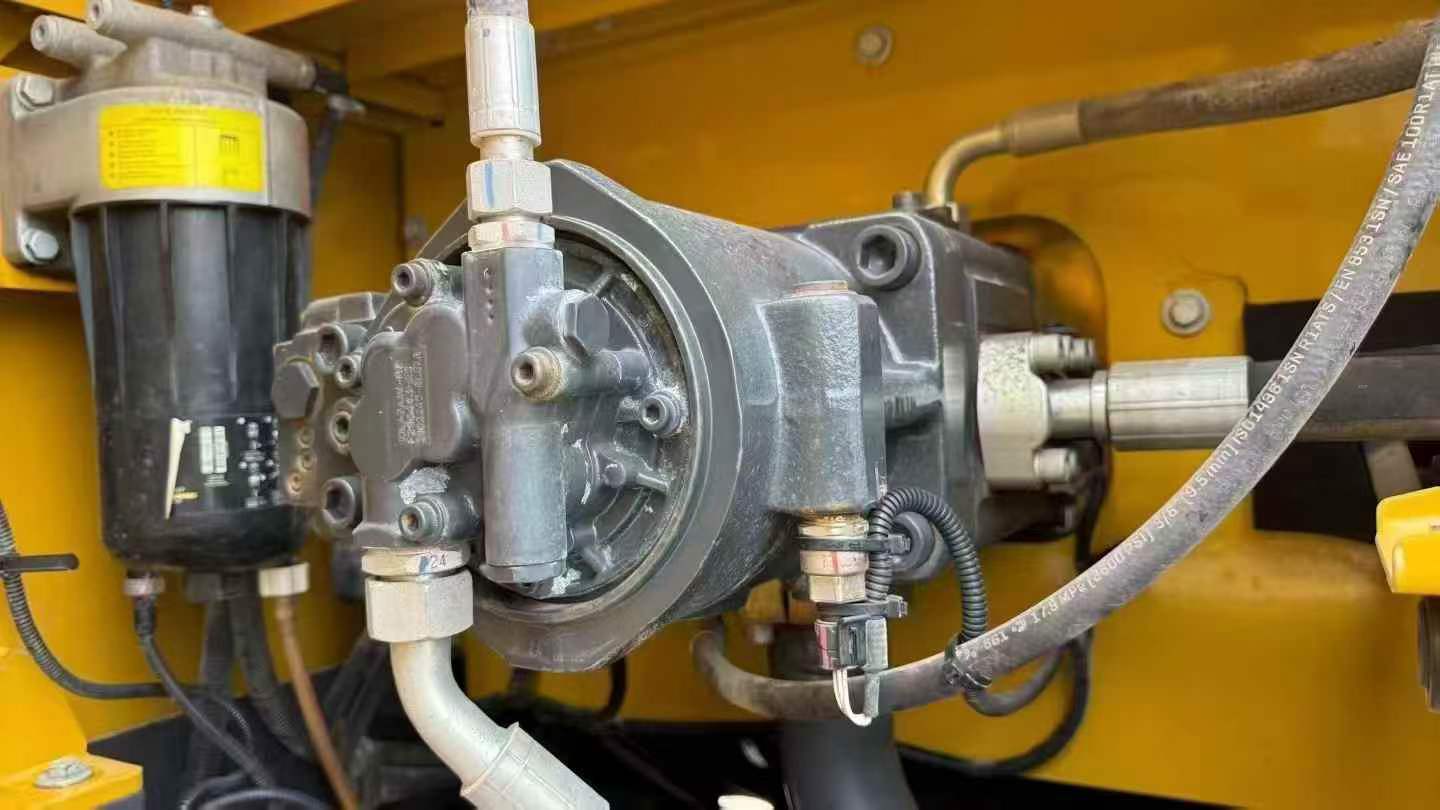

| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |

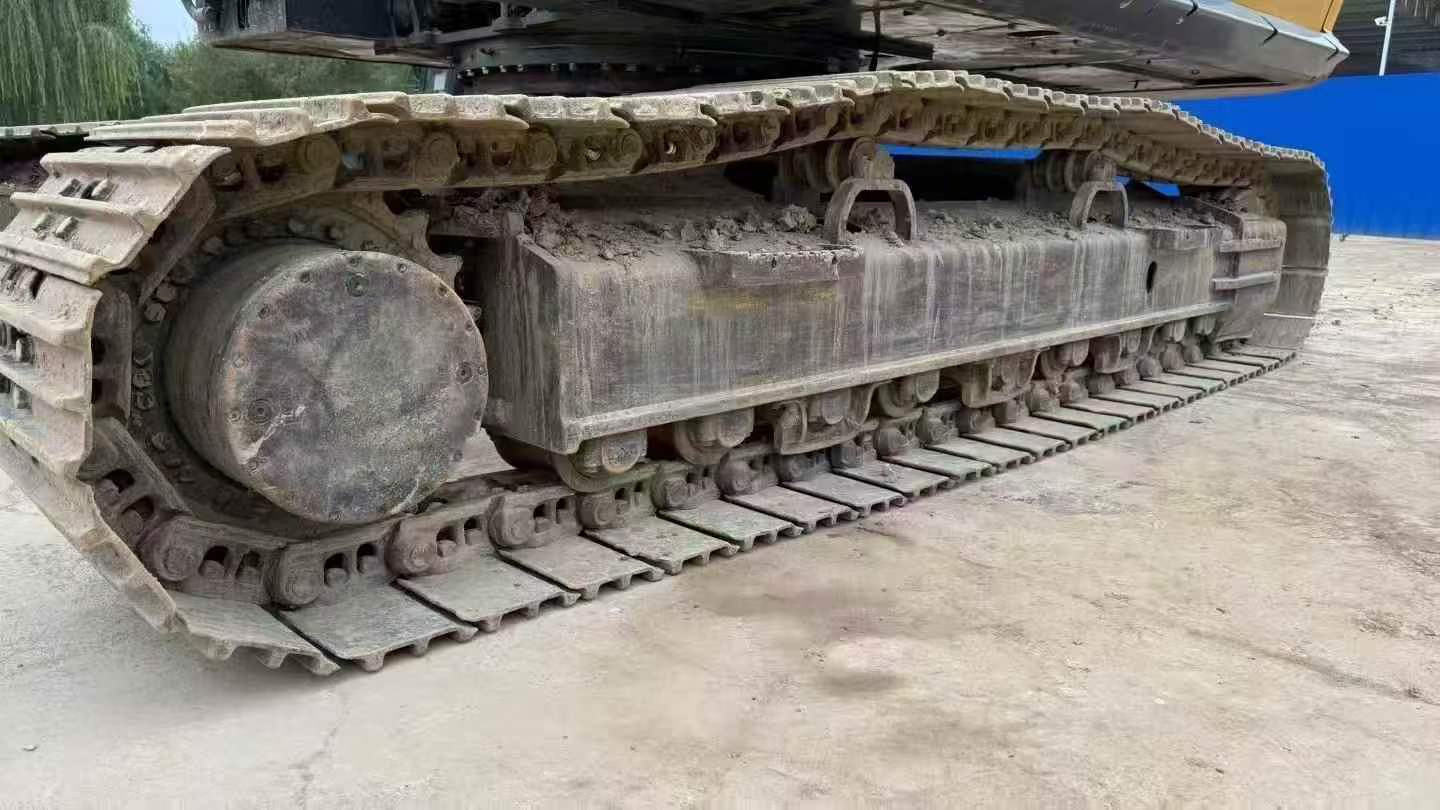

| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
