HOME>>XCMG>>XCMG XE335C

2020 XCMG XE335C

1/7

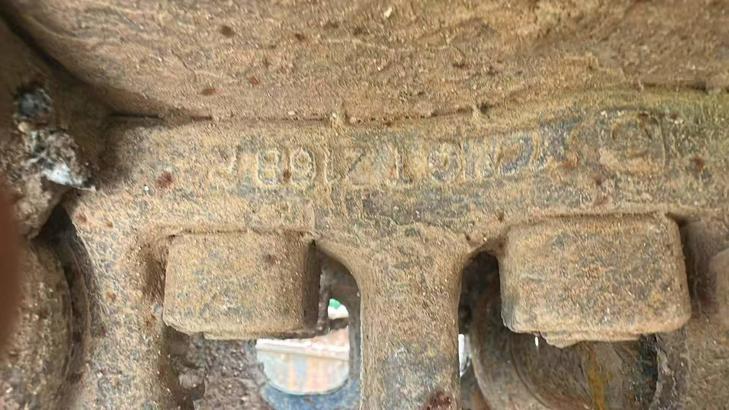

Buy XCMG XE335C Used Excavator / 1

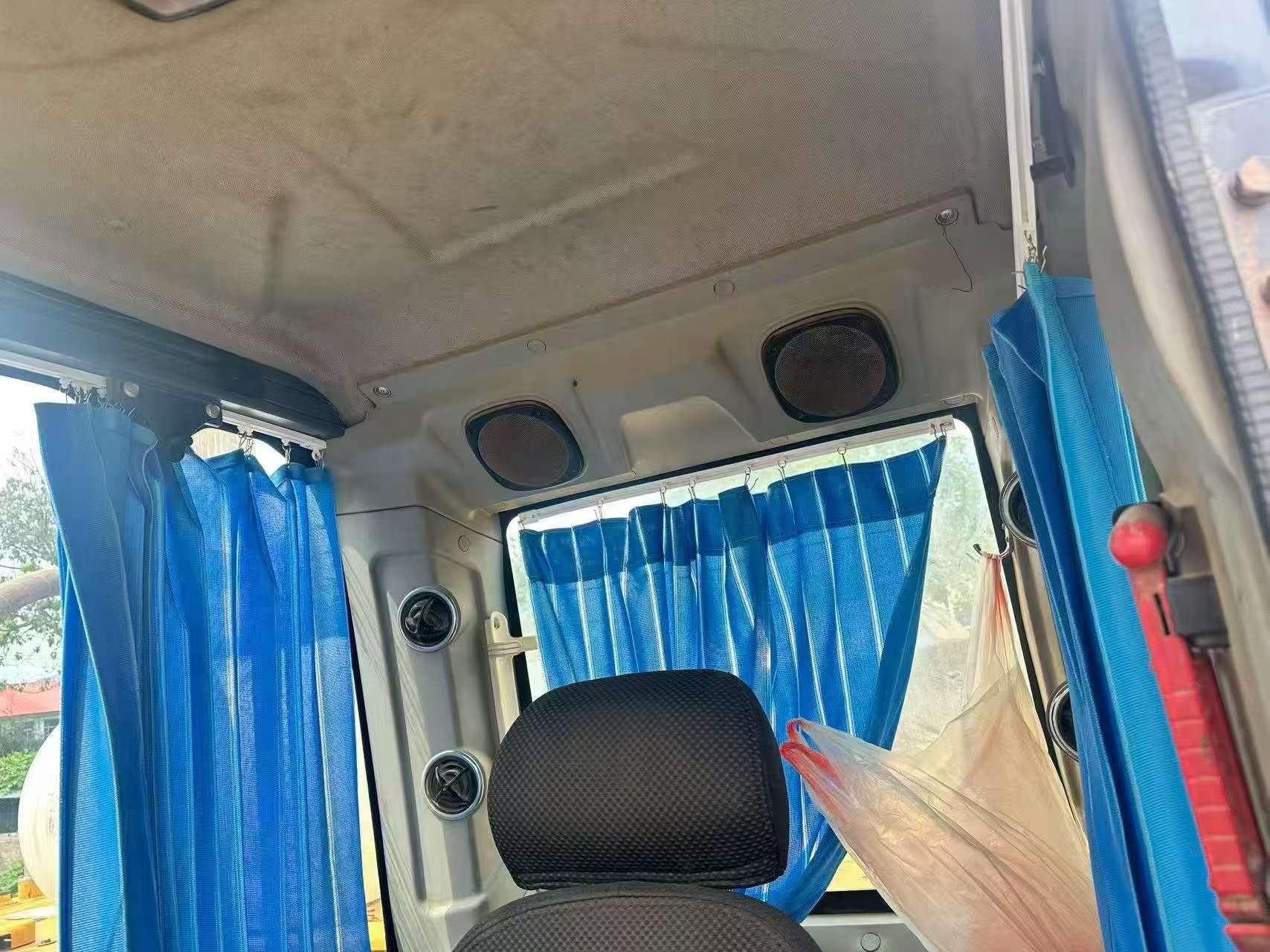

Buy XCMG XE335C Used Excavator / 2
Buy XCMG XE335C Used Excavator / 3
Buy XCMG XE335C Used Excavator / 4
Buy XCMG XE335C Used Excavator / 5
Buy XCMG XE335C Used Excavator / 6
Buy XCMG XE335C Used Excavator / 7

Product Description

Discover the 2020 XCMG XE335C, a robust and reliable excavator available in Zhejiang, China. This machine is in excellent condition, offering genuine performance and durability. Designed for heavy-duty applications, it is an ideal addition to any construction or excavation project.

  • Year: 2020
  • Brand: XCMG
  • Model: XE335C
  • Location: Zhejiang, China
  • Condition: Excellent, with major components covered under warranty

Take advantage of this opportunity to own a high-quality, used XCMG excavator that is ready to enhance your operational efficiency. Contact us now to secure this exceptional piece of machinery.

SpecificationsValue
No.1121278
Tonnage (tons)33
Working weight (kg)33800
Bucket capacity (m³)1.4-1.6
Boom length (mm)6400
Rod length (mm)2670
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeThe ISUZU Isuzu
Rated power (kw/rpm)184/2000
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)7.79
Working formTurbocharged/air-to-air cooling
Ground specific pressure (Kpa)66
Rotation speed (rpm)9.7
Climbing ability (%)35 °
Bucket digging force (kN)263
Rod digging force (kN)225
Travel speed (km/h)5.5/3.3
Main overflow set pressure (Mpa)34.3/37
Maximum flow of main pump (l/min)2*280
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot pump flow (L/min)3.9
Fuel Tank (L)630
Hydraulic Tank (L)320
Engine Oil changes (L)28
Total transport length (mm)11226
Total transport width (mm)3190
Total transport height (mm)3330
Counterweight ground clearance (mm)1170
Minimum ground clearance (mm)495
Minimum turning radius of front working device (mm)4424
Back end turning radius (mm)3450
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3183
Maximum digging radius (mm)10720
Maximum digging depth (mm)6912
Maximum excavation height (mm)10360
Maximum unloading height (mm)7134
Maximum vertical digging depth (mm)6480
see more

Overview

No.1121278

Brand Name:

XCMG

Model Number:

XE335C

Year:

2020

Location:

Zhejiang China

Pub Date
