Product Description

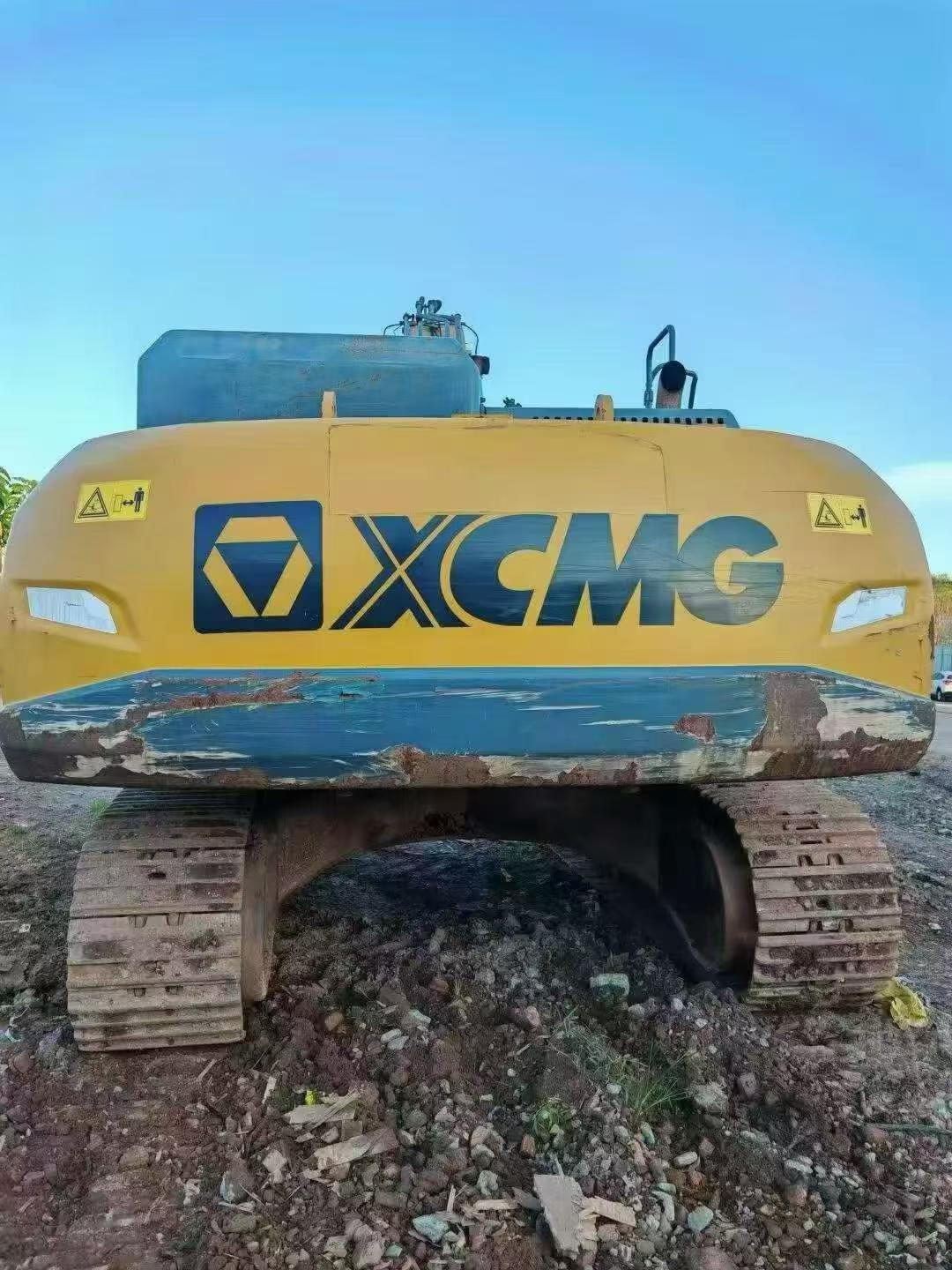

FairTradeMachinery presents a used 2020 XCMG XE335C hydraulic excavator, located in Yunnan, China. This 35-tonne-class crawler machine is listed as a clean, well-maintained unit, with the seller reporting the major assemblies — engine, hydraulic pumps and main control valve — in good condition.
The XE335C is a standard 35-tonne-class crawler excavator suited to earthmoving, quarry feed and general construction duty, with widely available parts and service support across the Chinese market.
Listing highlights:
• Model year 2020, XCMG XE335C, 35-tonne class.
• Major components reported in clean, work-ready condition.
• Located in Yunnan, China; on-site inspection and viewing can be arranged.
• Asking price starts in the RMB 250,000+ range, negotiable for serious buyers.
Buyers are encouraged to verify operating hours, undercarriage wear and service history through physical inspection before purchase. Shipping and export documentation can be coordinated from Yunnan. Contact FairTradeMachinery for photographs, a video walkaround and full details on this unit.
| Specifications | Value |
|---|---|
| No. | 1156529 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33800 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 225 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2*280 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot pump flow (L/min) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3330 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3183 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6912 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7134 |
| Maximum vertical digging depth (mm) | 6480 |
