Product Description
With a working weight of 33,800 kg and a bucket capacity ranging from 1.4 to 1.6 m³, the XCMG XE335C excavator offers robust performance for your construction needs. Powered by a reliable ISUZU engine with a rated power of 184 kW at 2000 rpm, this 2021 model ensures efficient and consistent operation. Located in Guangxi Guilin, this machine provides a smart investment opportunity, delivering high performance at a fraction of the cost of new equipment. Featuring a boom length of 6400 mm and a rod length of 2670 mm, it is well-suited for a variety of digging tasks. The XE335C also boasts a ground specific pressure of 66 Kpa and a climbing ability of 35%, making it versatile for different terrains. Equipped with two plunger pumps and a maximum flow of 2*280 l/min, this excavator is designed for demanding work environments. Invest in the XCMG XE335C for a cost-effective, high-performance solution.
| Specifications | Value |
|---|---|
| No. | 1023129 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33800 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 225 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2*280 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Hydraulic crushing pipeline is standard | no |

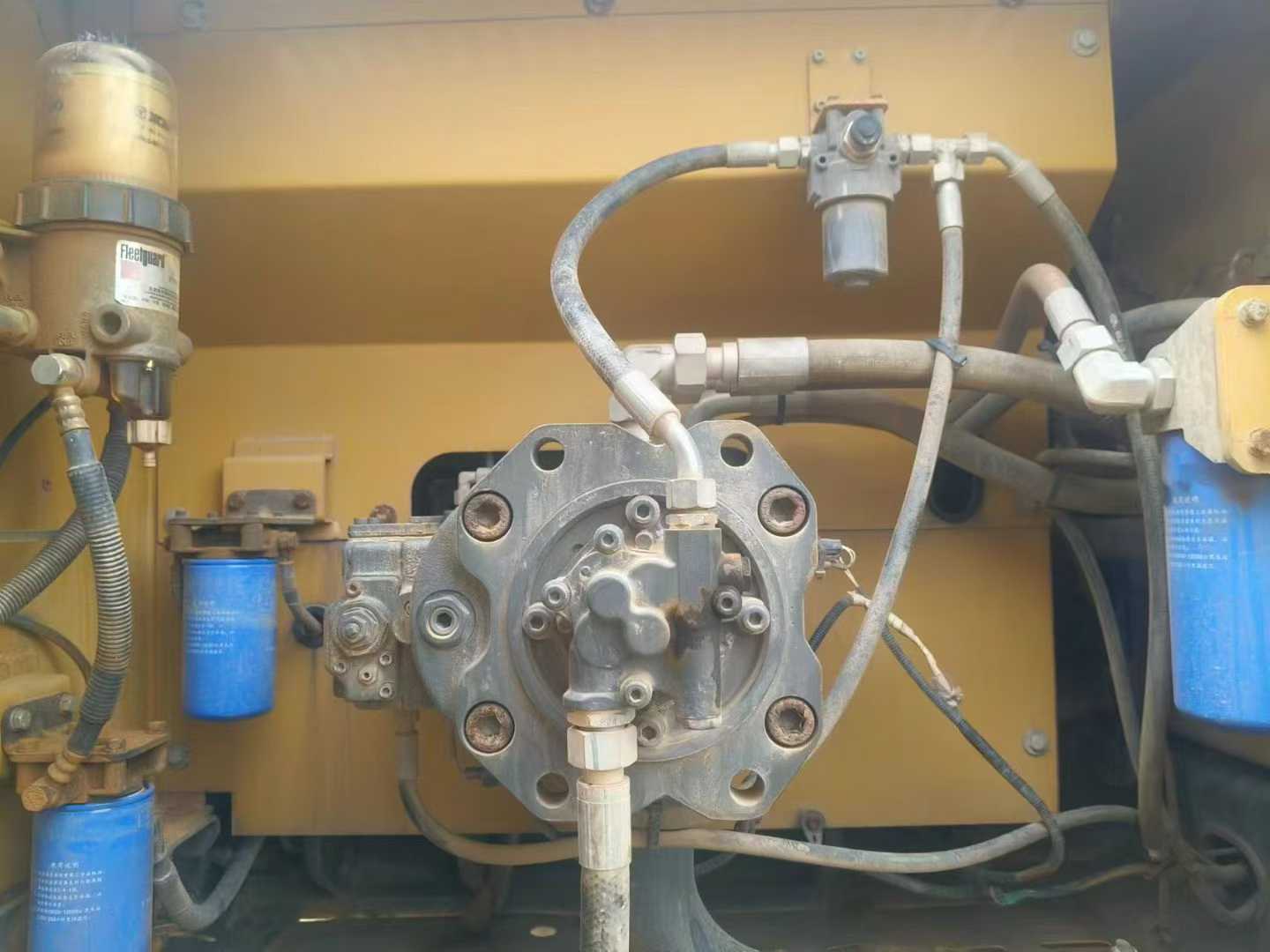

| Main pump type | Two plunger pumps |
| Pilot pump flow (L/min) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3330 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3183 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6912 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7134 |
| Maximum vertical digging depth (mm) | 6480 |
