Product Description

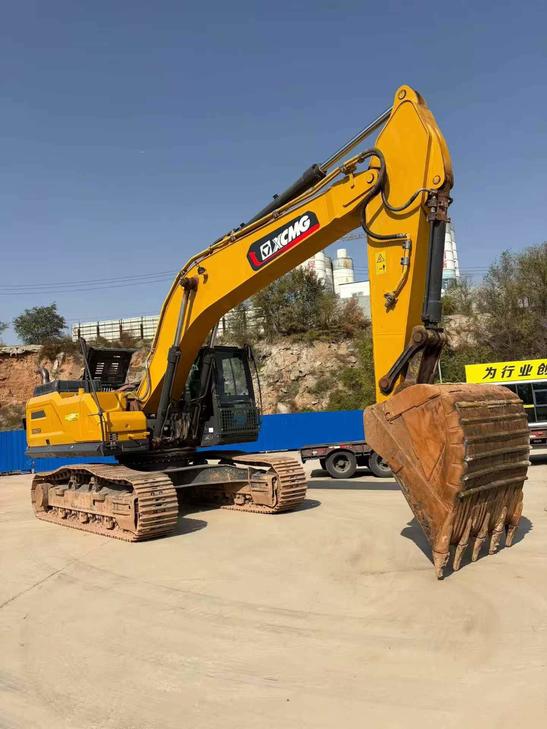

Discover the reliability and performance of the 2023 XCMG XE335C, now available in Gansu, China. This excavator, manufactured in December 2023, is in excellent condition and ready for immediate deployment on your next project. Known for its robust design and efficient operation, the XE335C is a top choice for demanding construction and excavation tasks. With a reputation for minimal downtime and easy maintenance, this machine is an ideal addition to any fleet. The XE335C is priced competitively, making it a smart investment for businesses looking to enhance their operational capabilities without compromising on quality.
- Year: 2023
- Brand: XCMG
- Model: XE335C
- Location: Gansu, China
- Condition: Excellent, with proven performance
- Immediate availability
| Specifications | Value |
|---|---|
| No. | 1174855 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33800 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 225 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2*280 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot pump flow (L/min) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3330 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3183 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6912 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7134 |
| Maximum vertical digging depth (mm) | 6480 |
