Product Description

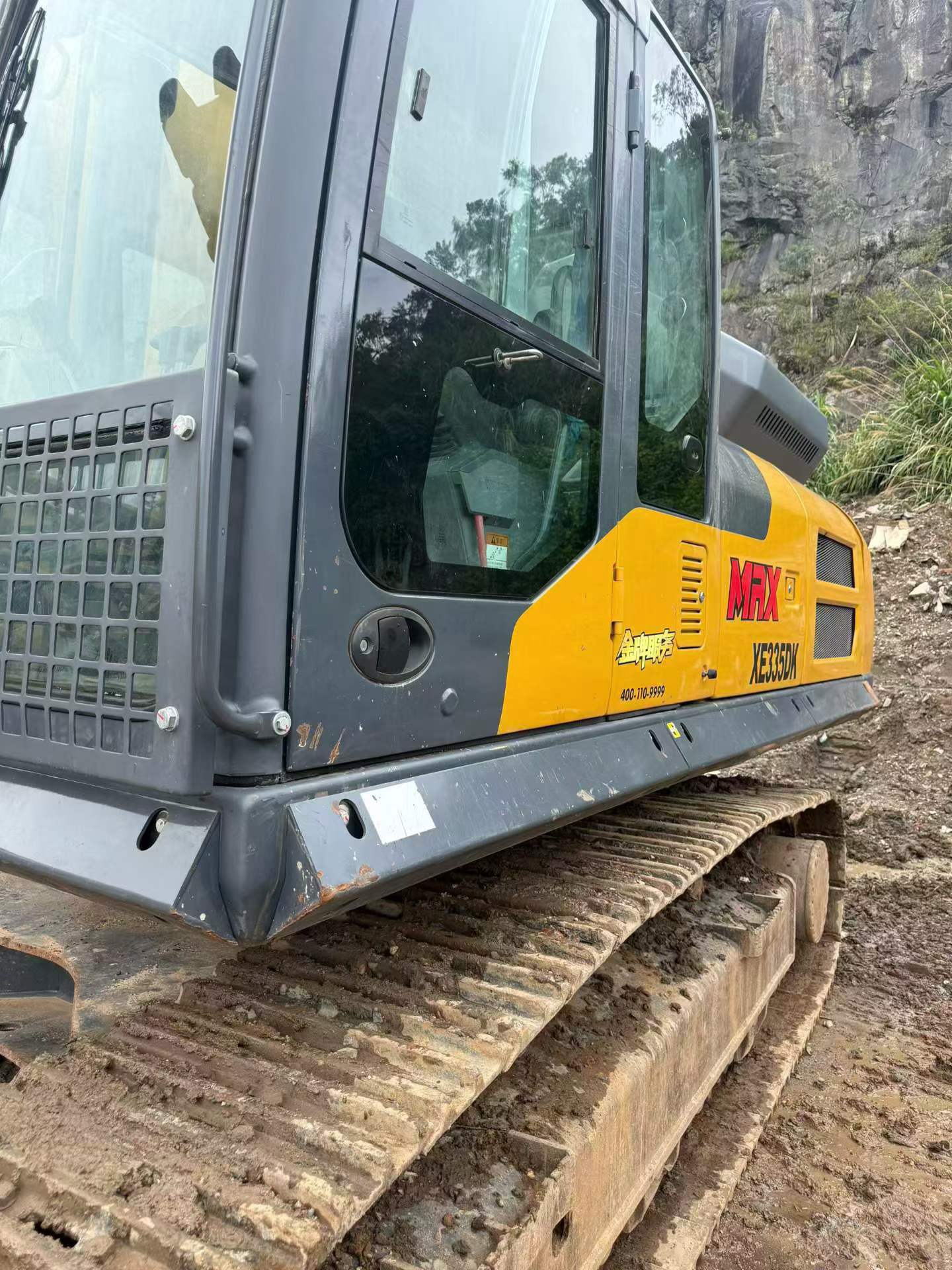

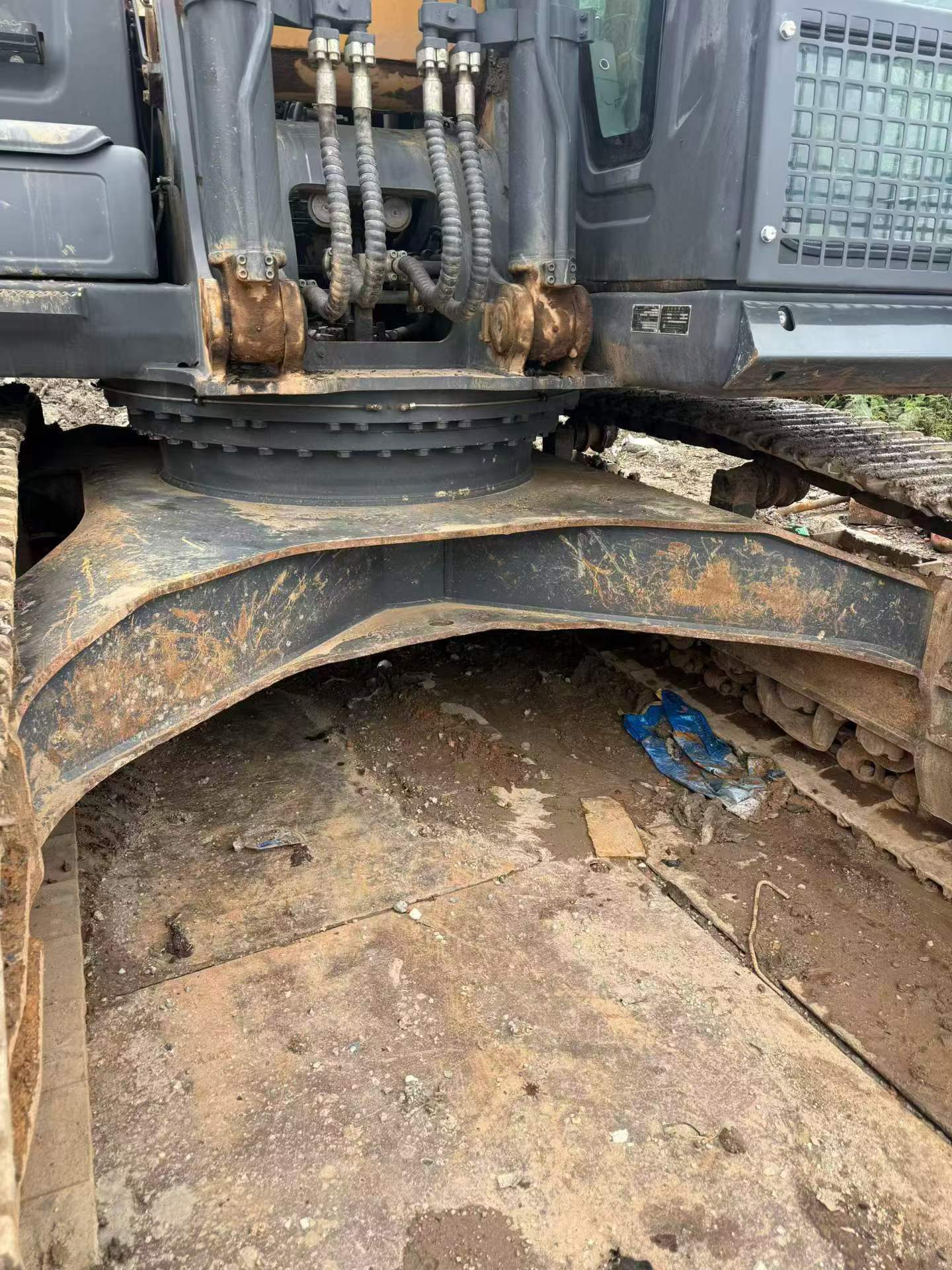

Discover the 2020 XCMG XE335DK, a robust and reliable excavator currently available in Zhejiang, China. This machine is in excellent condition, with its major components remaining dry and clean, showcasing the high-quality standards of XCMG. The original chassis, complete with the XCMG logo, retains most of its factory paint, indicating minimal wear. Designed for efficiency, this excavator operates smoothly at idle, capable of performing all functions effortlessly. Its swift operational speed ensures that your projects stay on schedule without compromising on performance or durability.
- Year: 2020
- Brand: XCMG
- Model: XE335DK
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1131433 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
