Product Description

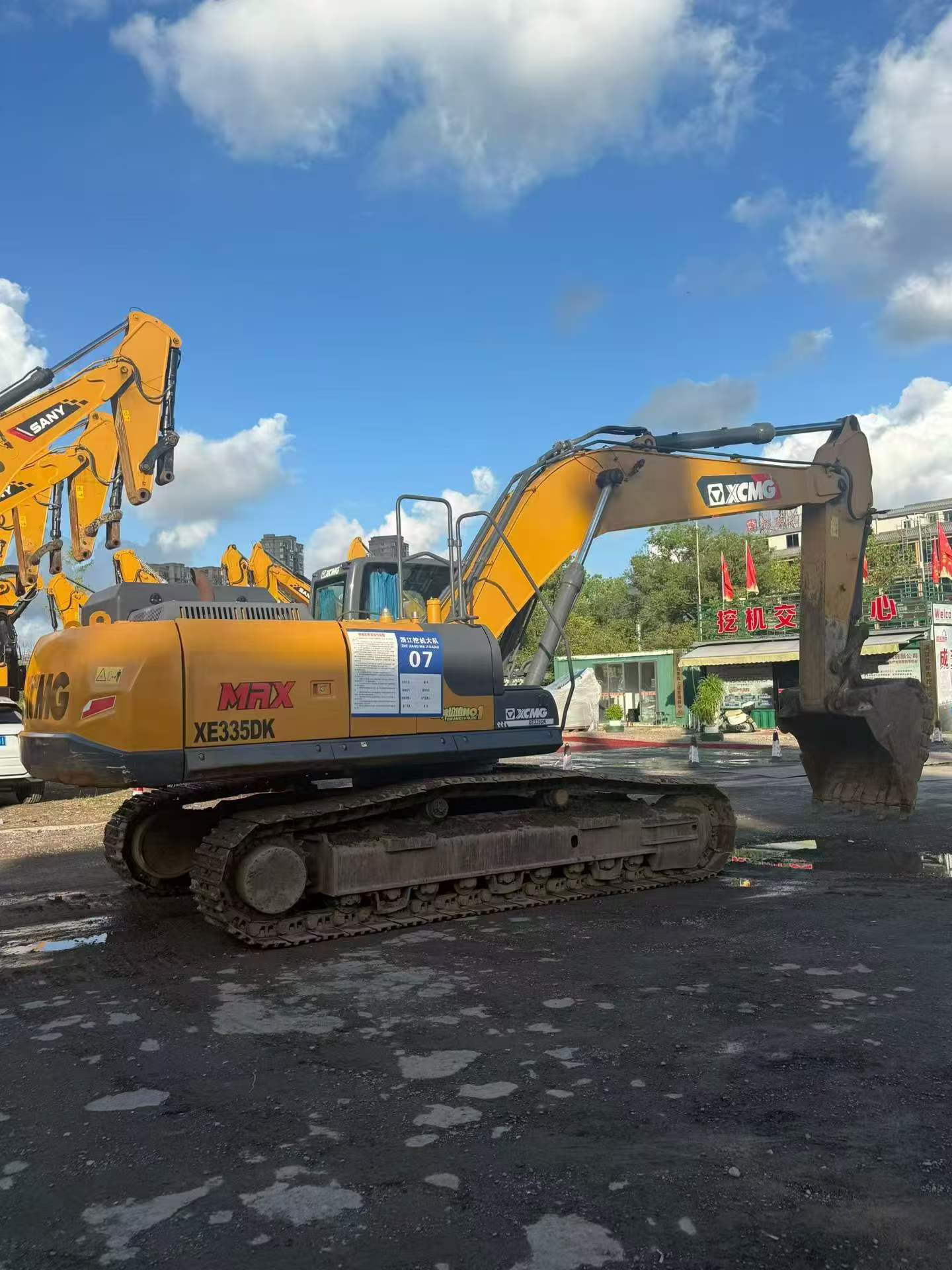

Discover the 2020 XCMG XE335DK, a premium used excavator located in Zhejiang, China. This machine is known for its high efficiency, surpassing even models like the XCMG 370 and 380. It features an authentic hour meter, ensuring transparency and reliability. The undercarriage, including the tracks and wheels, remains original, with the chassis in excellent condition, maintaining most of its original paint. Ideal for earthmoving tasks, this excavator is equipped with high-end configurations, making it a top choice for demanding projects. Additionally, it is renowned for its fuel efficiency, earning it the title of "Fuel Saver King." Major components are covered under warranty, providing added assurance for your investment.
- Year: 2020
- Brand: XCMG
- Model: XE335DK
- Location: Zhejiang, China
- Highly efficient, outperforming XCMG 370 and 380 models

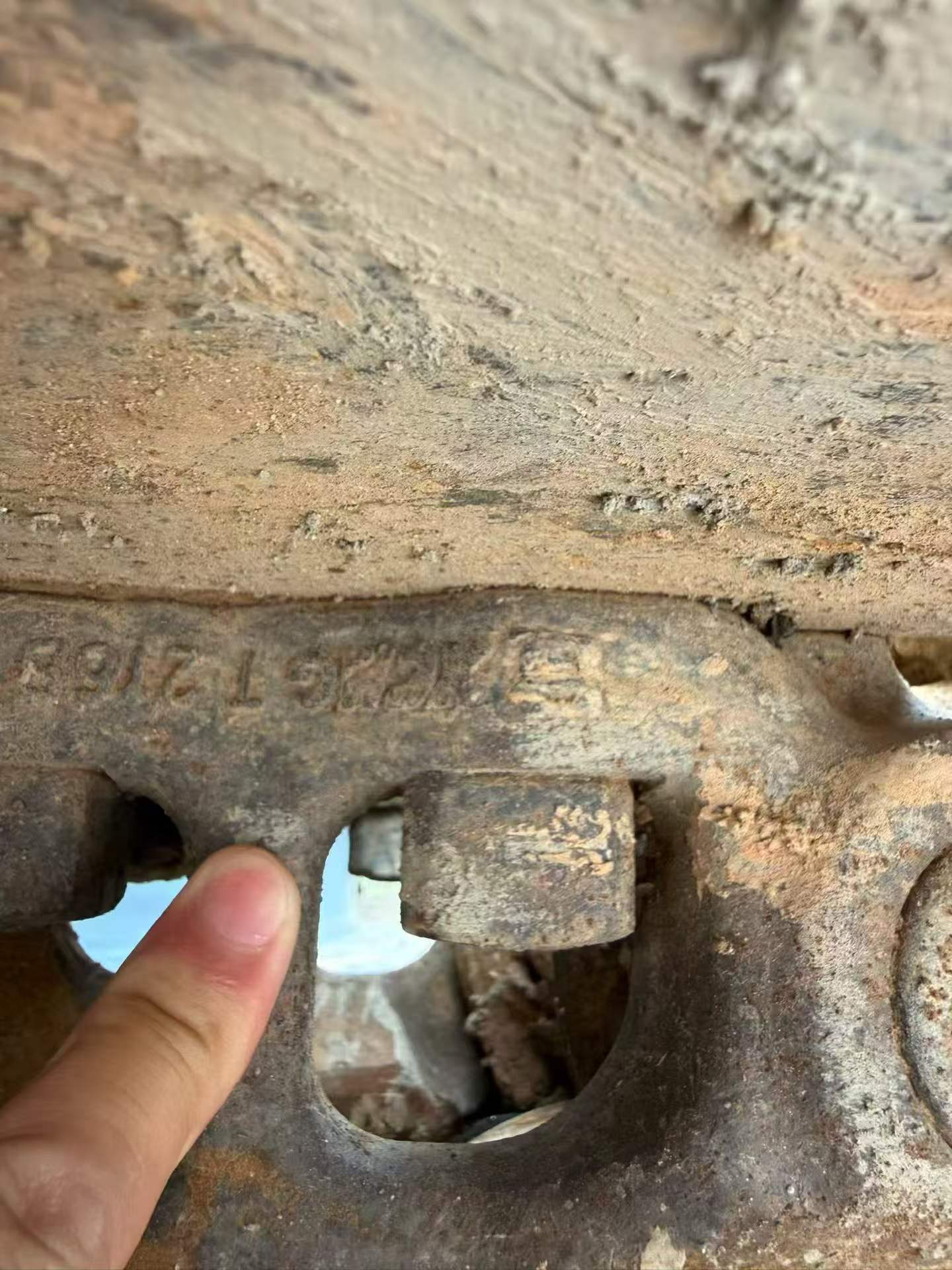

- Original undercarriage and chassis in excellent condition
- Fuel-efficient, ideal for earthmoving operations
- Warranty available on major components
| Specifications | Value |
|---|---|
| No. | 1131603 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
