2020 XCMG XE335DK

1/9
Buy XCMG XE335DK Used Excavator / 1
Buy XCMG XE335DK Used Excavator / 2
Buy XCMG XE335DK Used Excavator / 3
Buy XCMG XE335DK Used Excavator / 4
Buy XCMG XE335DK Used Excavator / 5
Buy XCMG XE335DK Used Excavator / 6

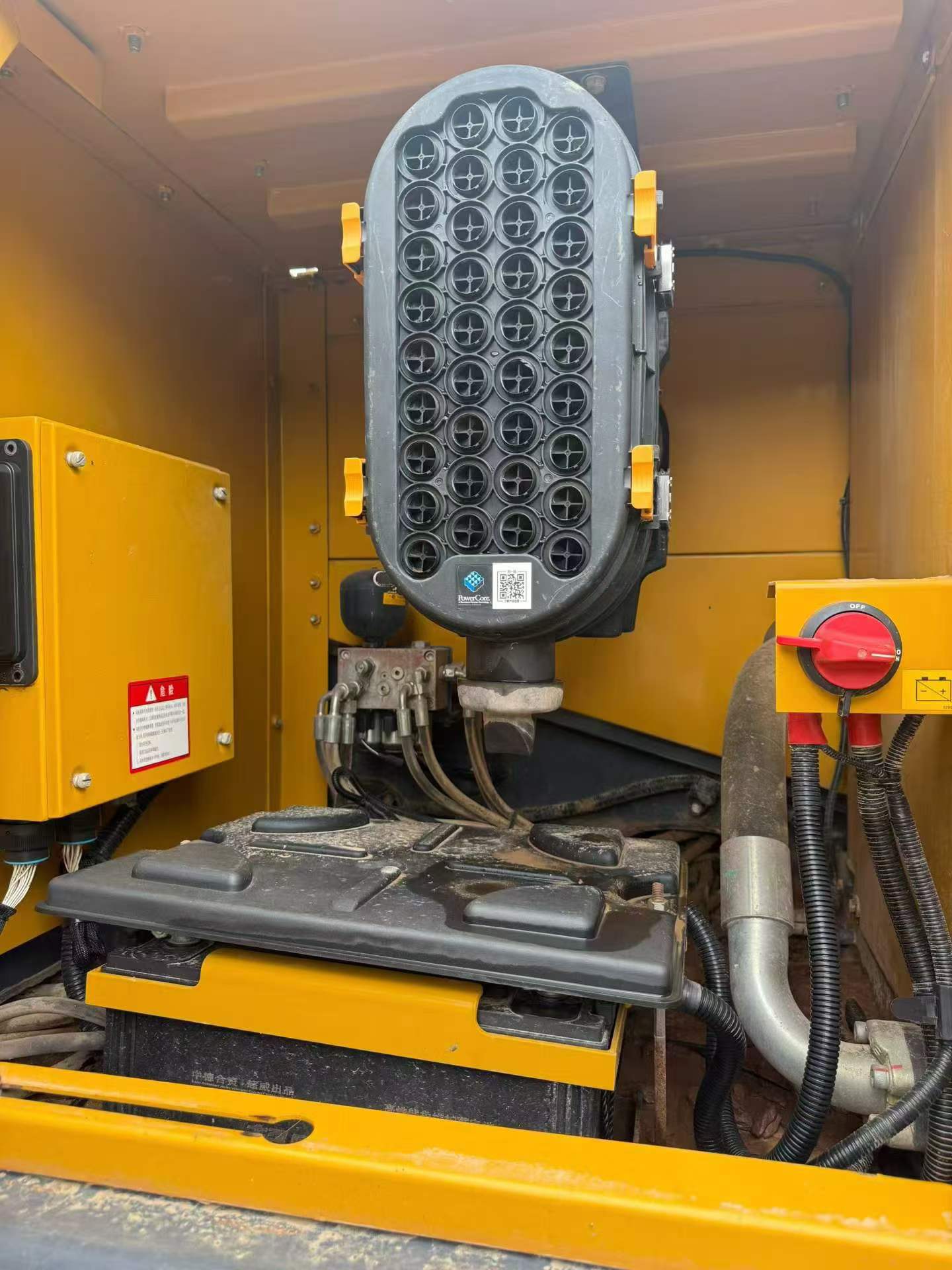

Buy XCMG XE335DK Used Excavator / 7
Buy XCMG XE335DK Used Excavator / 8
Buy XCMG XE335DK Used Excavator / 9

Product Description

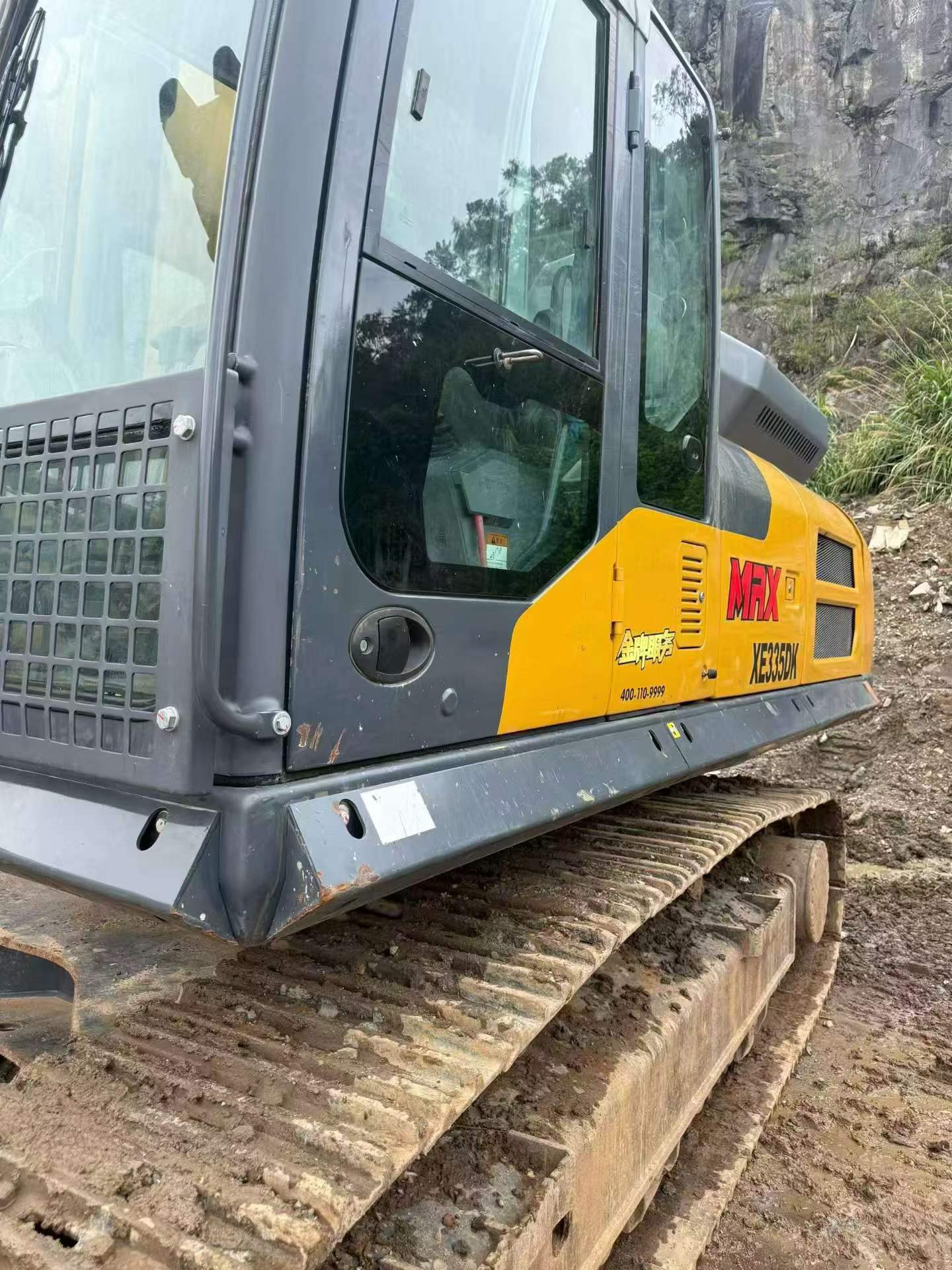

Discover the 2020 XCMG XE335DK, a robust and reliable excavator currently located in Zhejiang, China. This machine is in excellent condition, featuring a clean and well-maintained exterior with the original XCMG chassis, which still proudly displays the brand's logo. The paint on the chassis is nearly flawless, maintaining its factory-fresh appearance. Designed for efficiency and performance, this excavator operates smoothly even at idle speed, capable of performing all necessary functions without hesitation. Ideal for construction and heavy-duty tasks, the XE335DK combines durability with operational ease, making it a valuable addition to any fleet.

  • Year: 2020
  • Brand: XCMG
  • Model: XE335DK
  • Location: Zhejiang, China
SpecificationsValue
No.1131605
Tonnage (tons)33
Working weight (kg)33500
Bucket capacity (m³)1.6-2.0
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)202/2100
Displacement (L)8.9
Ground specific pressure (Kpa)61.4
Rotation speed (rpm)10.5
Climbing ability (%)70
Bucket digging force (kN)206
Rod digging force (kN)160
Maximum tractive force (kN)260
Travel speed (km/h)5.3/3.2
Maximum flow of main pump (l/min)2*272
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30
Fuel Tank (L)520
Hydraulic Tank (L)270
Engine Oil changes (L)30
Total transport length (mm)10790
Total transport width (mm)3200
Total transport height (mm)3640
Counterweight ground clearance (mm)1198
Minimum ground clearance (mm)538
Minimum turning radius of front working device (mm)4125
Back end turning radius (mm)3360
Total track length (mm)4944
Track gauge (mm)2590
Track plate width (mm)600
Maximum digging radius (mm)10680
Maximum digging depth (mm)6735
Maximum excavation height (mm)10265
Maximum unloading height (mm)7110
Maximum vertical digging depth (mm)5010
see more

Overview

No.1131605

Brand Name:

XCMG

Model Number:

XE335DK

Year:

2020

Location:

Zhejiang China
