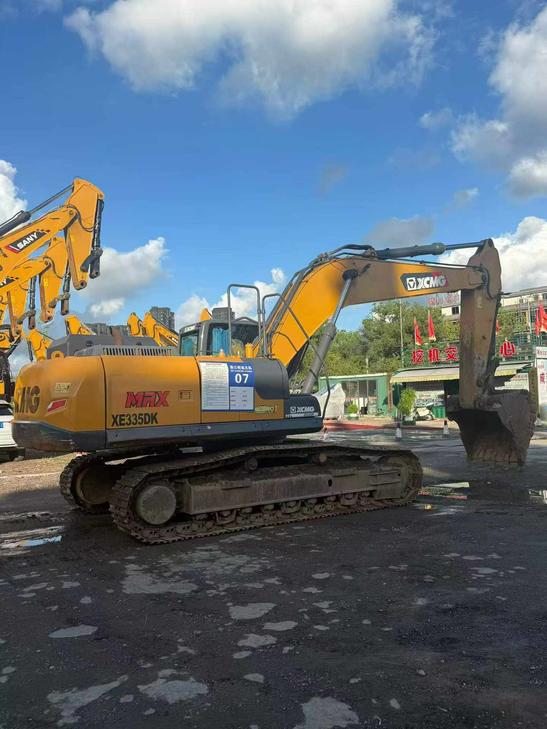

Buy XCMG XE335DK Used Excavator / 1
Buy XCMG XE335DK Used Excavator / 2
Buy XCMG XE335DK Used Excavator / 3

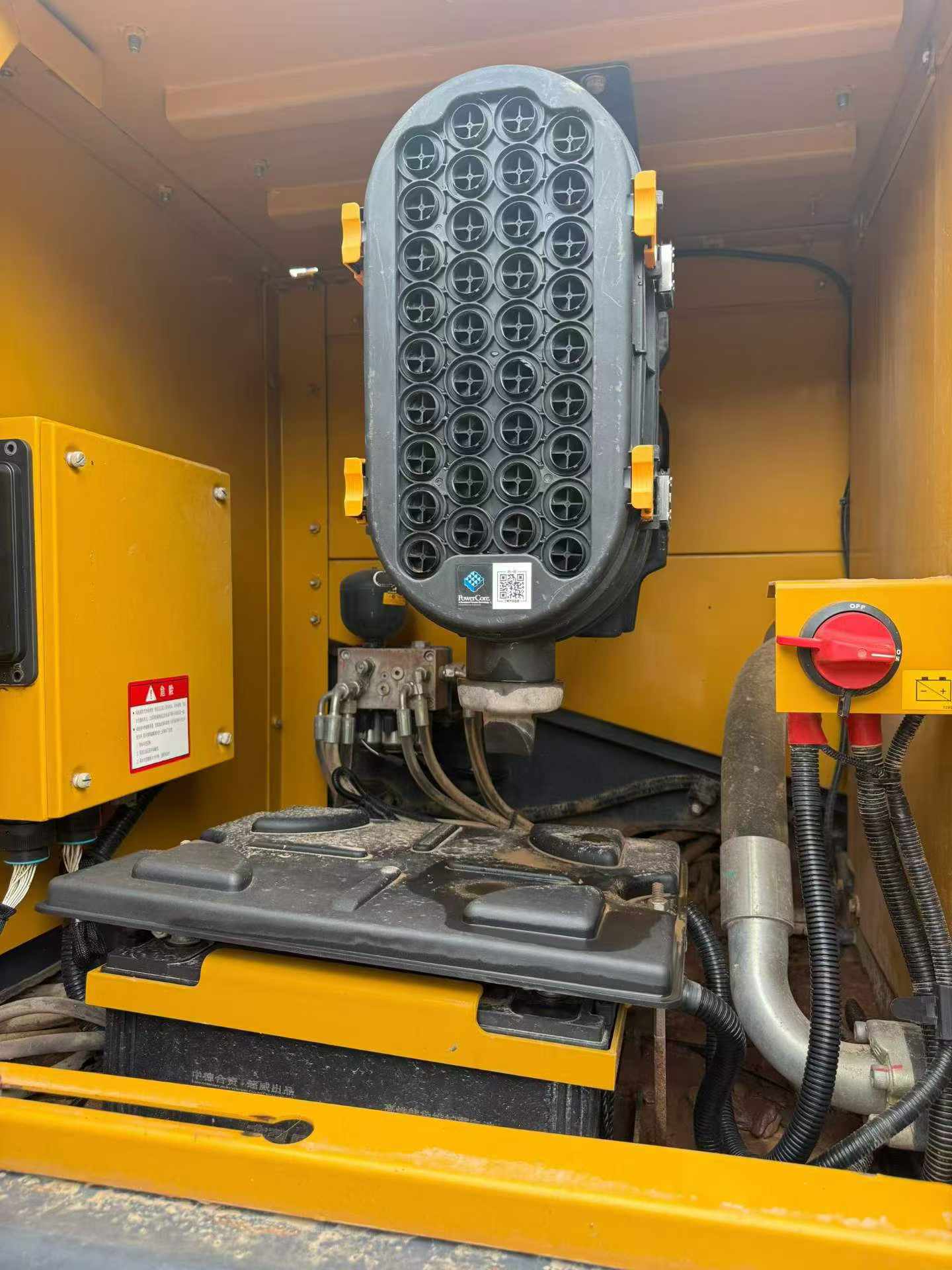

Buy XCMG XE335DK Used Excavator / 4

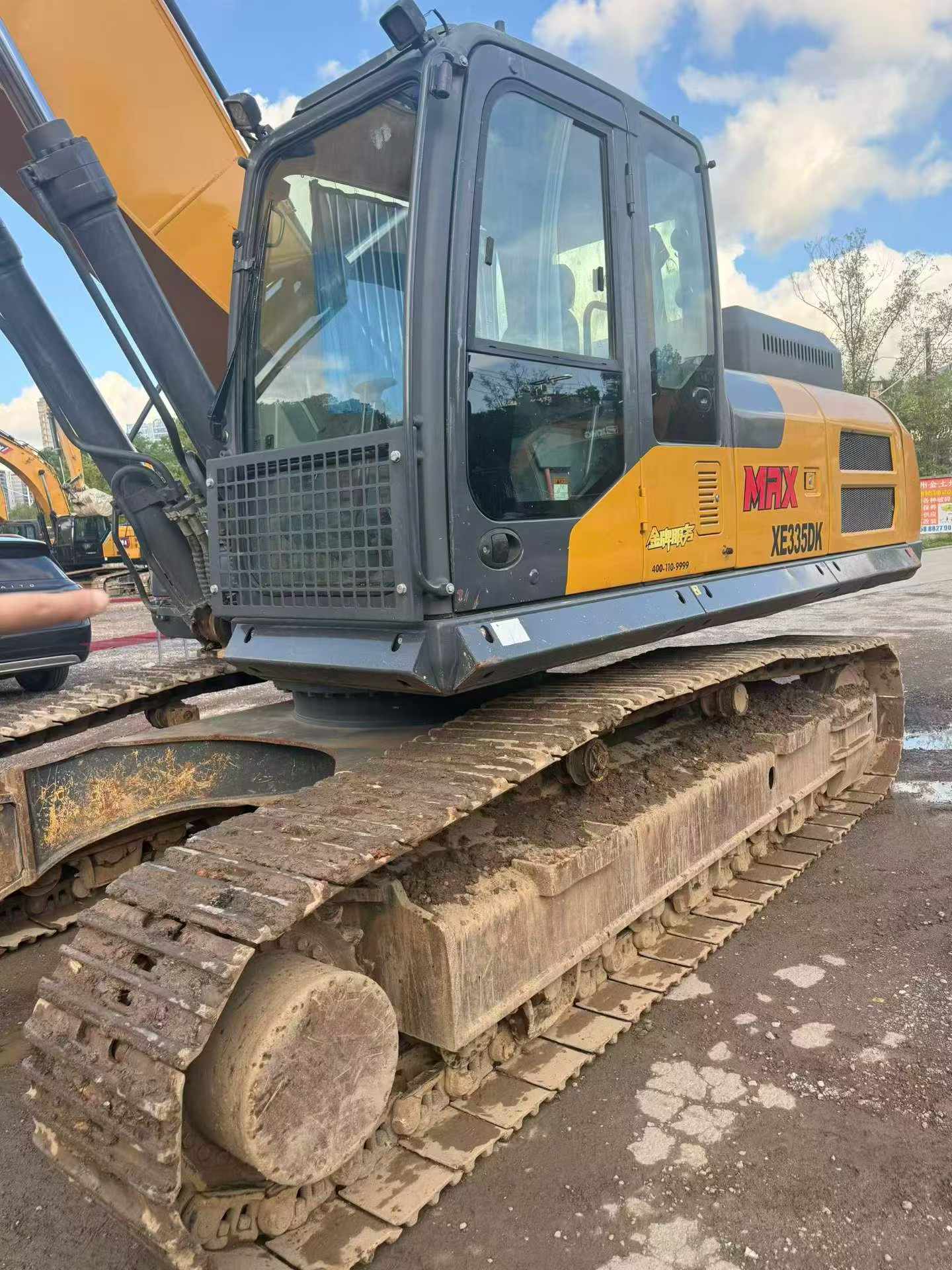

Buy XCMG XE335DK Used Excavator / 5
Buy XCMG XE335DK Used Excavator / 6

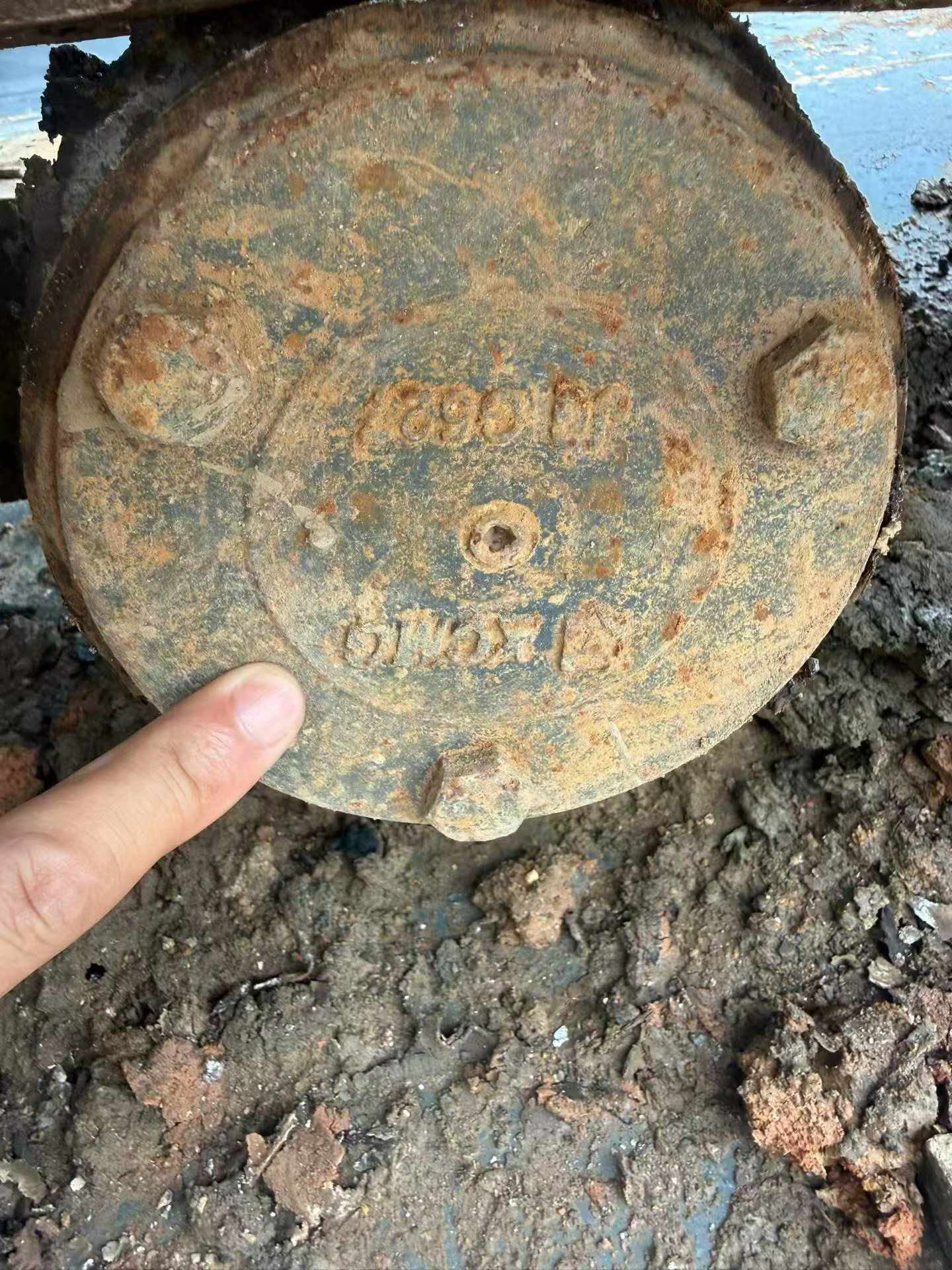

Buy XCMG XE335DK Used Excavator / 7
Buy XCMG XE335DK Used Excavator / 8

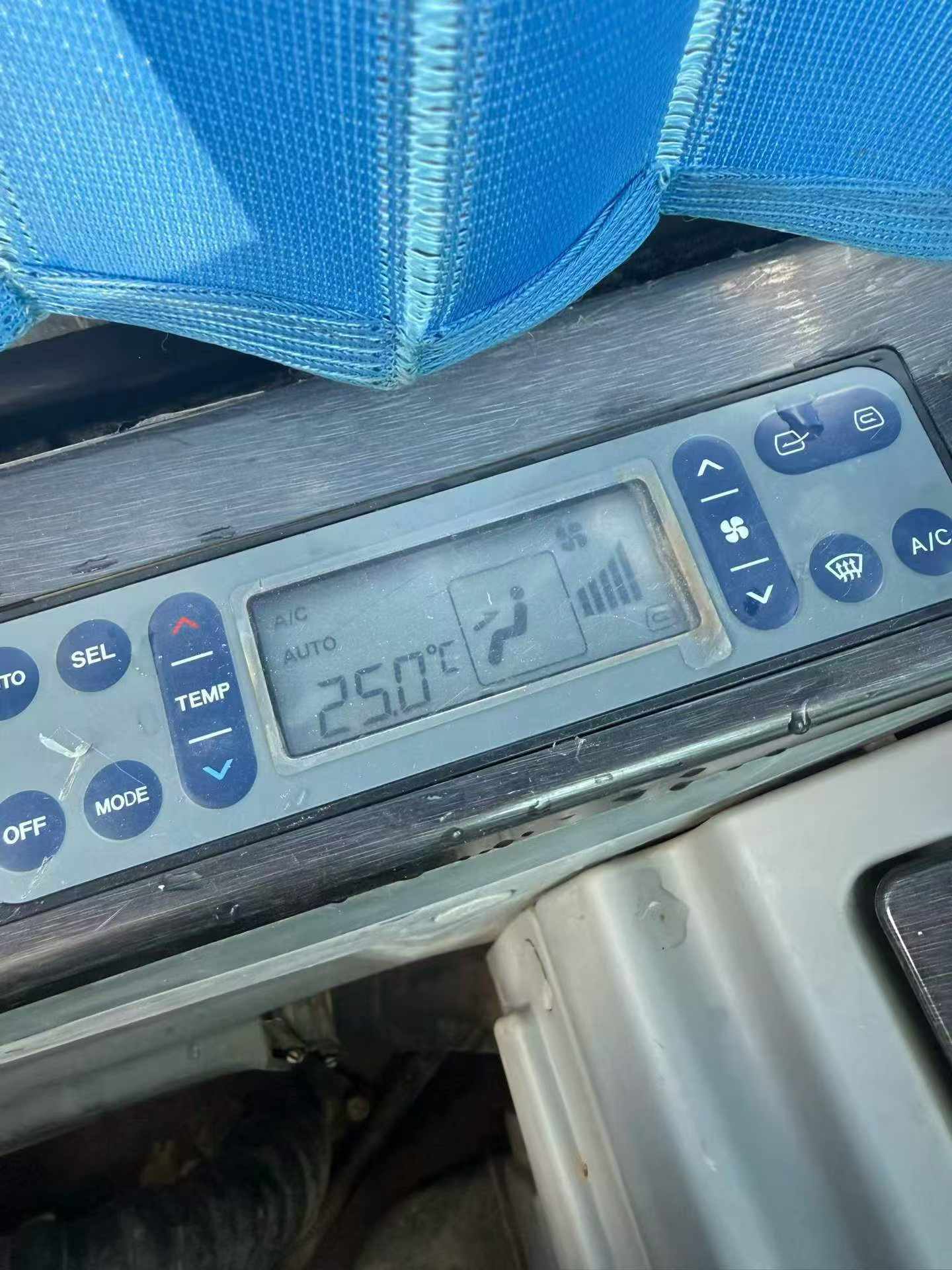

Buy XCMG XE335DK Used Excavator / 9

Product Description

Discover the 2020 XCMG XE335DK, a robust and reliable excavator currently available in Zhejiang, China. This machine boasts an authentic hour meter, ensuring transparency and trust. The undercarriage is in excellent condition, with nearly all of its original paint intact. Designed for high-efficiency earthmoving, this model outperforms similar class machines, including the XCMG 370 and 380, in terms of productivity. Known for its fuel efficiency, it is a cost-effective choice for demanding projects. Major components are covered by warranty, providing peace of mind. Ideal for construction and mining operations, the XE335DK is equipped with high-end features that enhance its operational capabilities.

  • Year: 2020
  • Brand: XCMG
  • Model: XE335DK
  • Location: Zhejiang, China
  • Authentic hour meter
  • Excellent undercarriage condition
  • Highly efficient for earthmoving tasks
  • Warranty on major components
SpecificationsValue
No.1131642
Tonnage (tons)33
Working weight (kg)33500
Bucket capacity (m³)1.6-2.0
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)202/2100
Displacement (L)8.9
Ground specific pressure (Kpa)61.4
Rotation speed (rpm)10.5
Climbing ability (%)70
Bucket digging force (kN)206
Rod digging force (kN)160
Maximum tractive force (kN)260
Travel speed (km/h)5.3/3.2
Maximum flow of main pump (l/min)2*272
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30
Fuel Tank (L)520
Hydraulic Tank (L)270
Engine Oil changes (L)30
Total transport length (mm)10790
Total transport width (mm)3200
Total transport height (mm)3640
Counterweight ground clearance (mm)1198
Minimum ground clearance (mm)538
Minimum turning radius of front working device (mm)4125
Back end turning radius (mm)3360
Total track length (mm)4944
Track gauge (mm)2590
Track plate width (mm)600
Maximum digging radius (mm)10680
Maximum digging depth (mm)6735
Maximum excavation height (mm)10265
Maximum unloading height (mm)7110
Maximum vertical digging depth (mm)5010
