Product Description

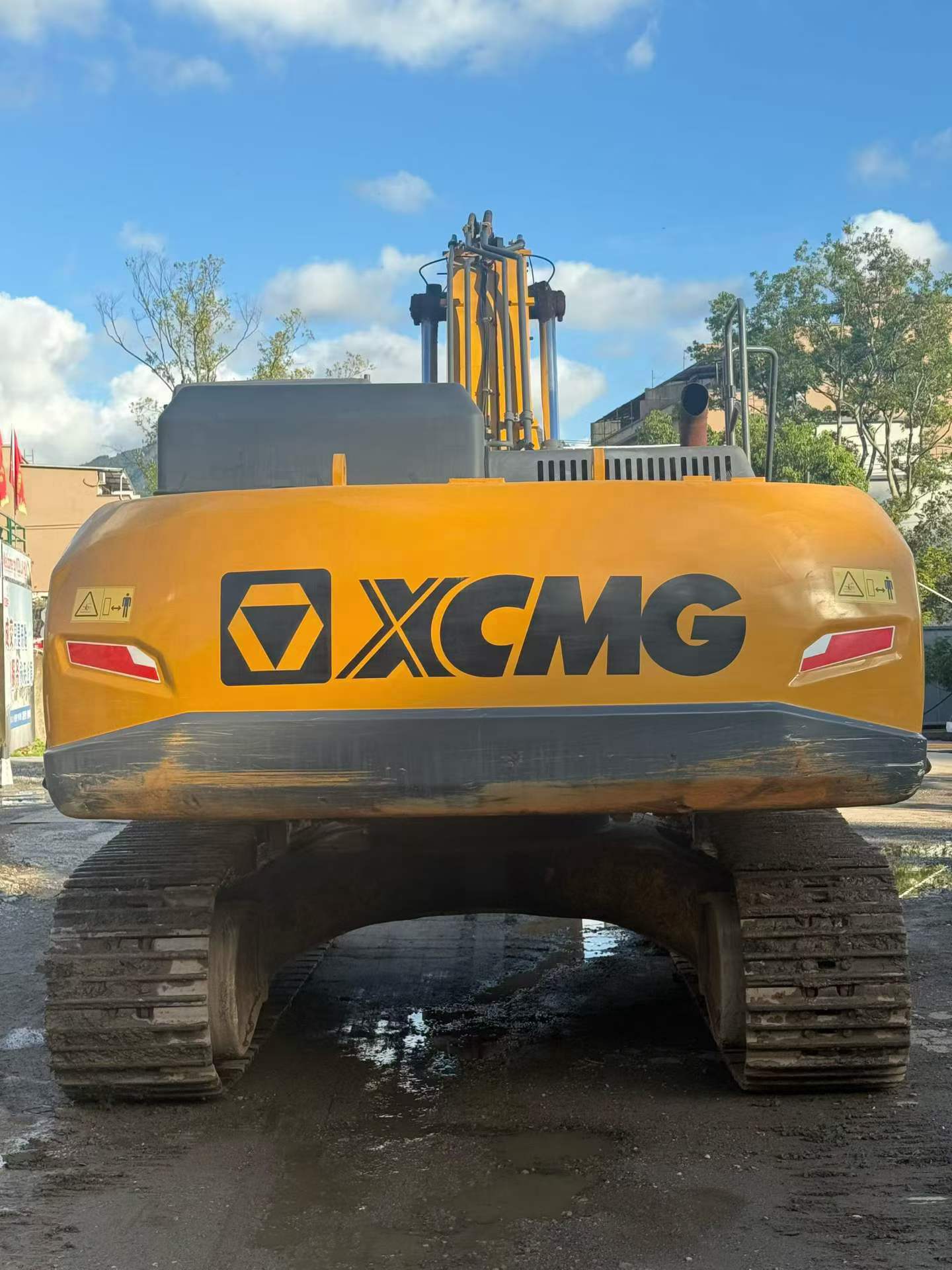

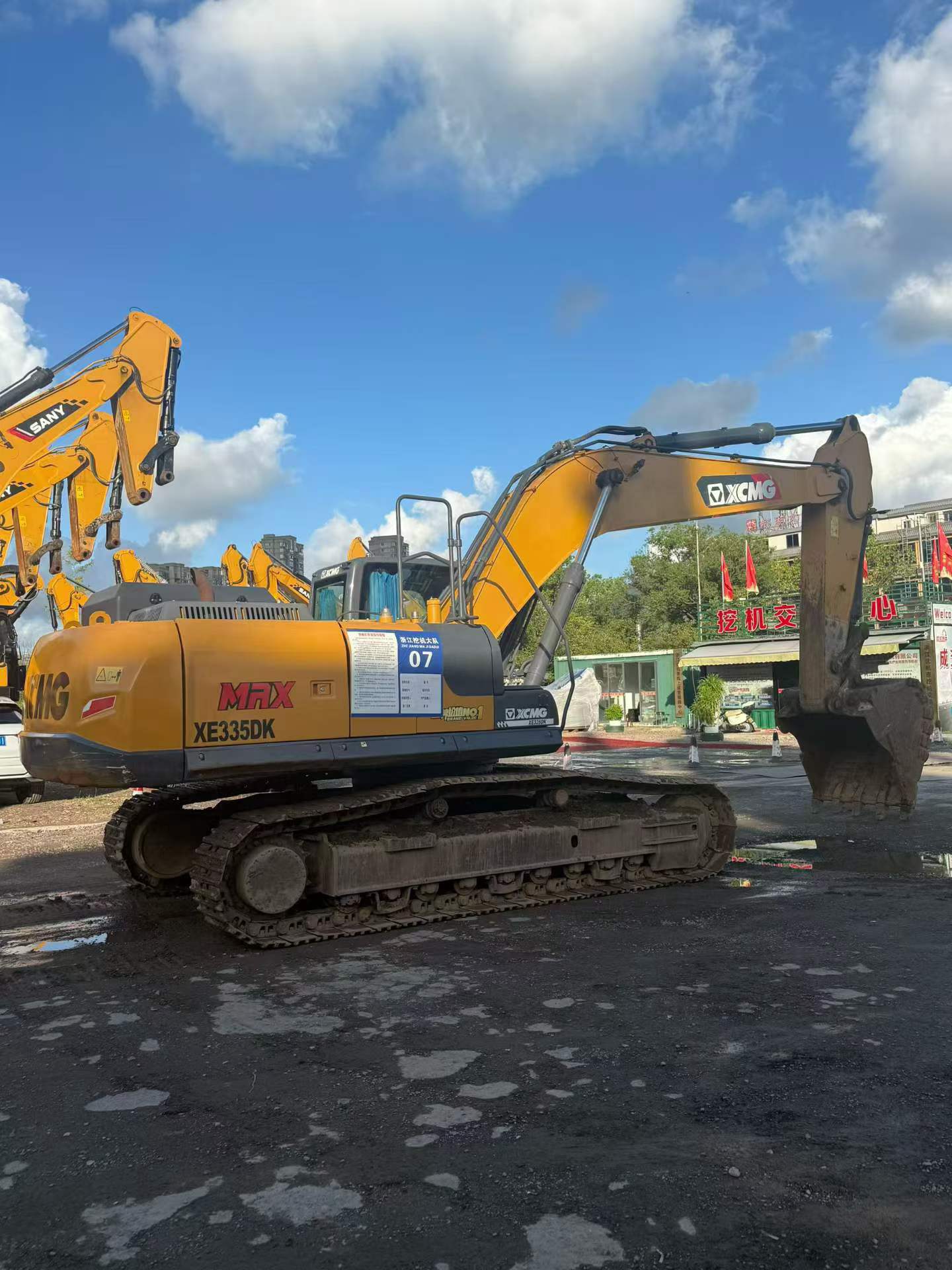

Discover the 2020 XCMG XE335DK, a premium excavator currently available in Zhejiang, China. Known for its exceptional performance, this machine boasts an authentic hour meter, ensuring transparency and reliability. The XE335DK retains its original undercarriage, with the sprockets, rollers, and tracks all in excellent condition, and the chassis still featuring nearly full paint coverage. Designed for earthmoving tasks, it offers high efficiency, surpassing even the XCMG 370 and 380 models in operational effectiveness. This model is also celebrated for its fuel efficiency, making it a cost-effective choice for any construction project. Major components are backed by warranty, providing additional assurance of its quality and durability.
- Year: 2020
- Brand: XCMG
- Model: XE335DK
- Location: Zhejiang, China

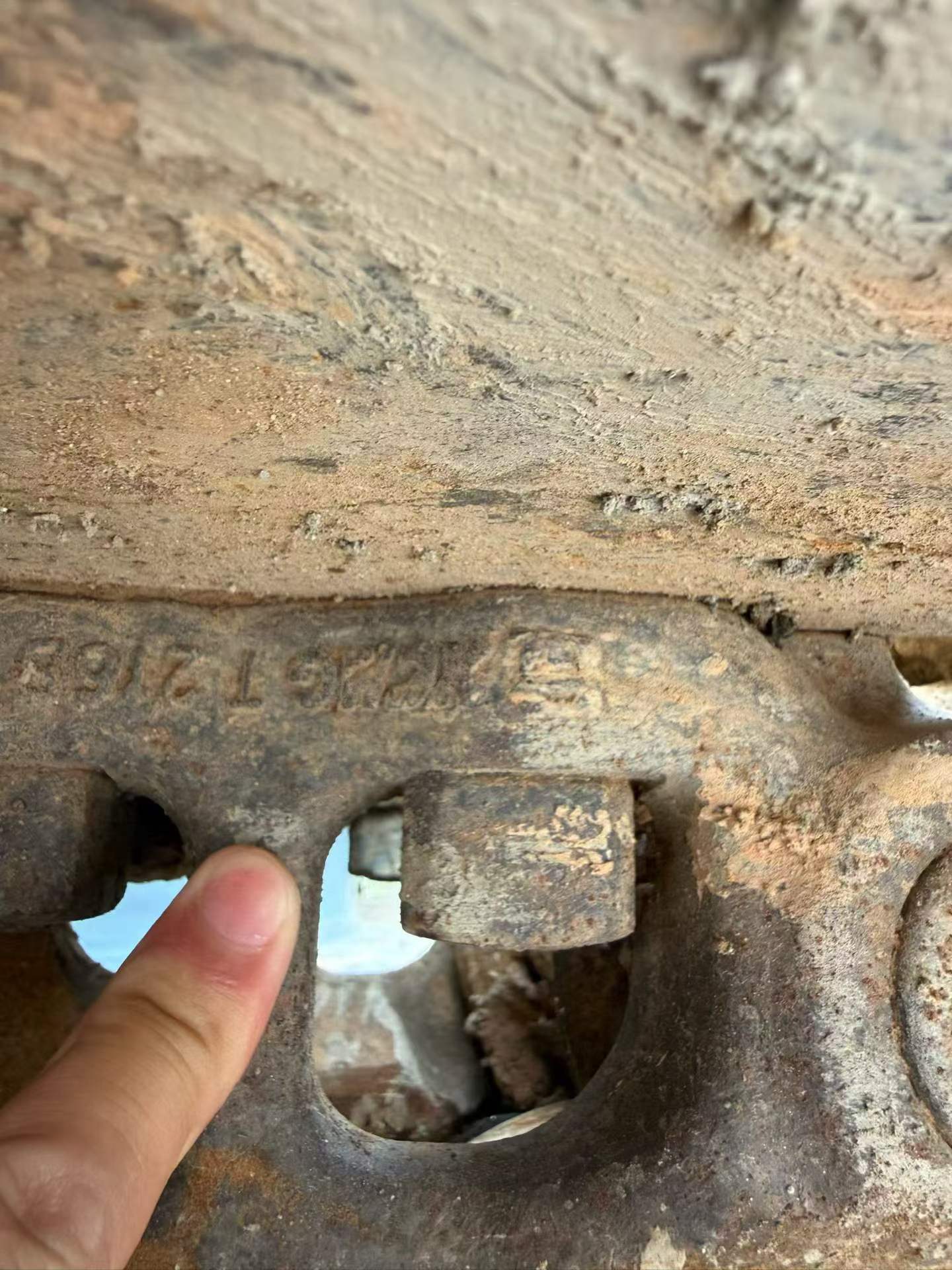

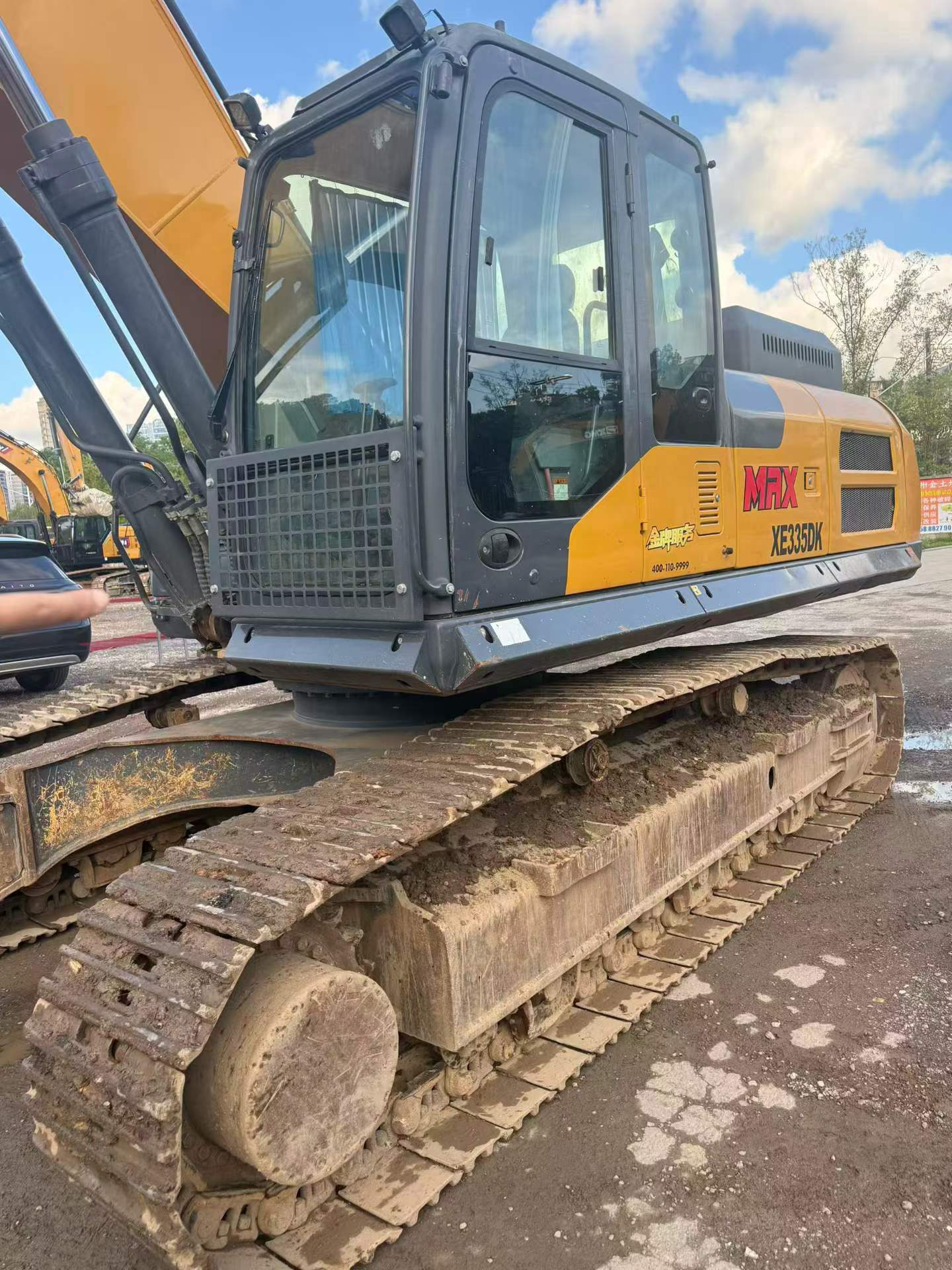

- Original undercarriage in excellent condition
- Highly efficient and fuel-saving
- Major parts warranty available
| Specifications | Value |
|---|---|
| No. | 1131673 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

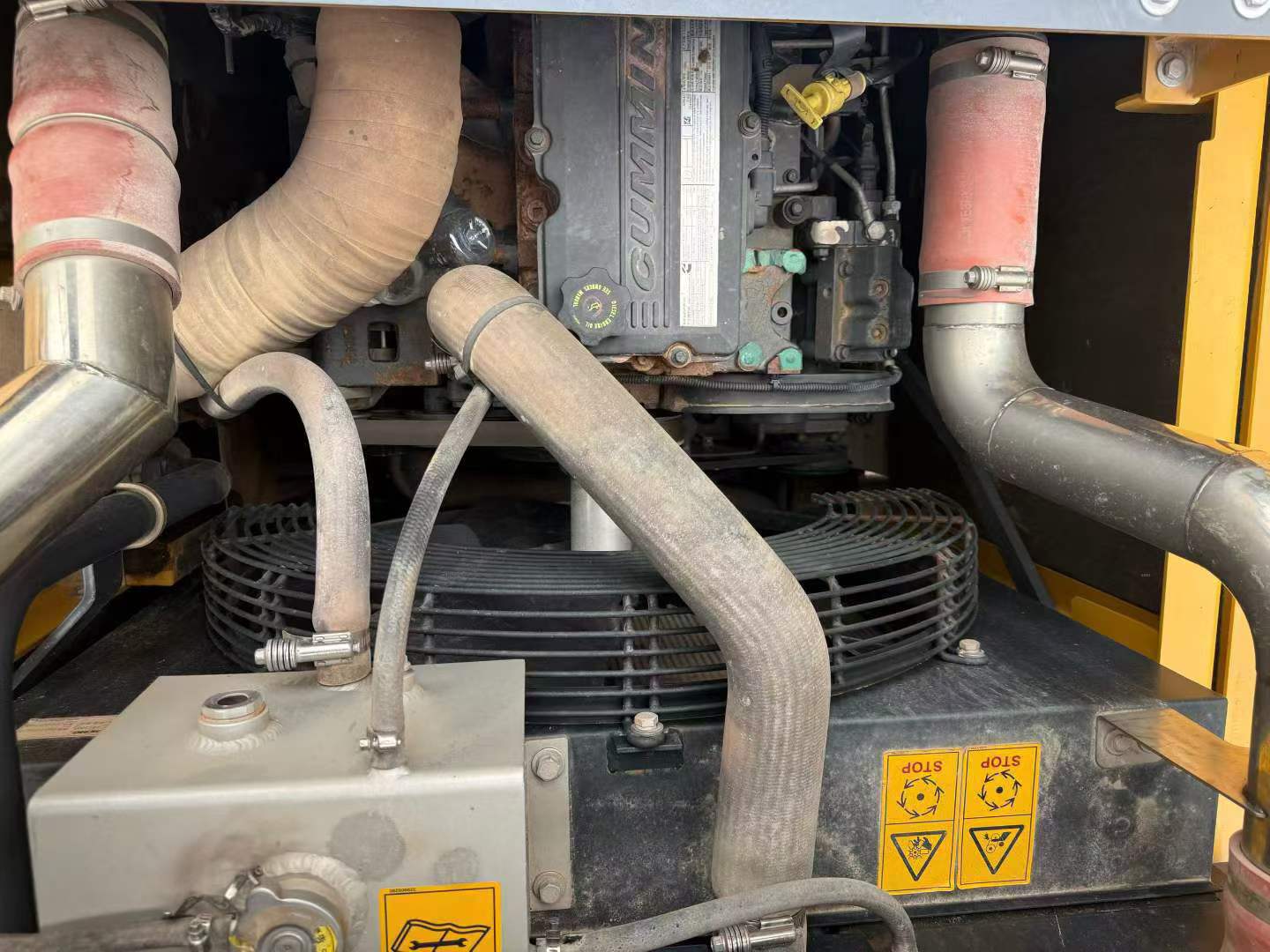

| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
