Product Description

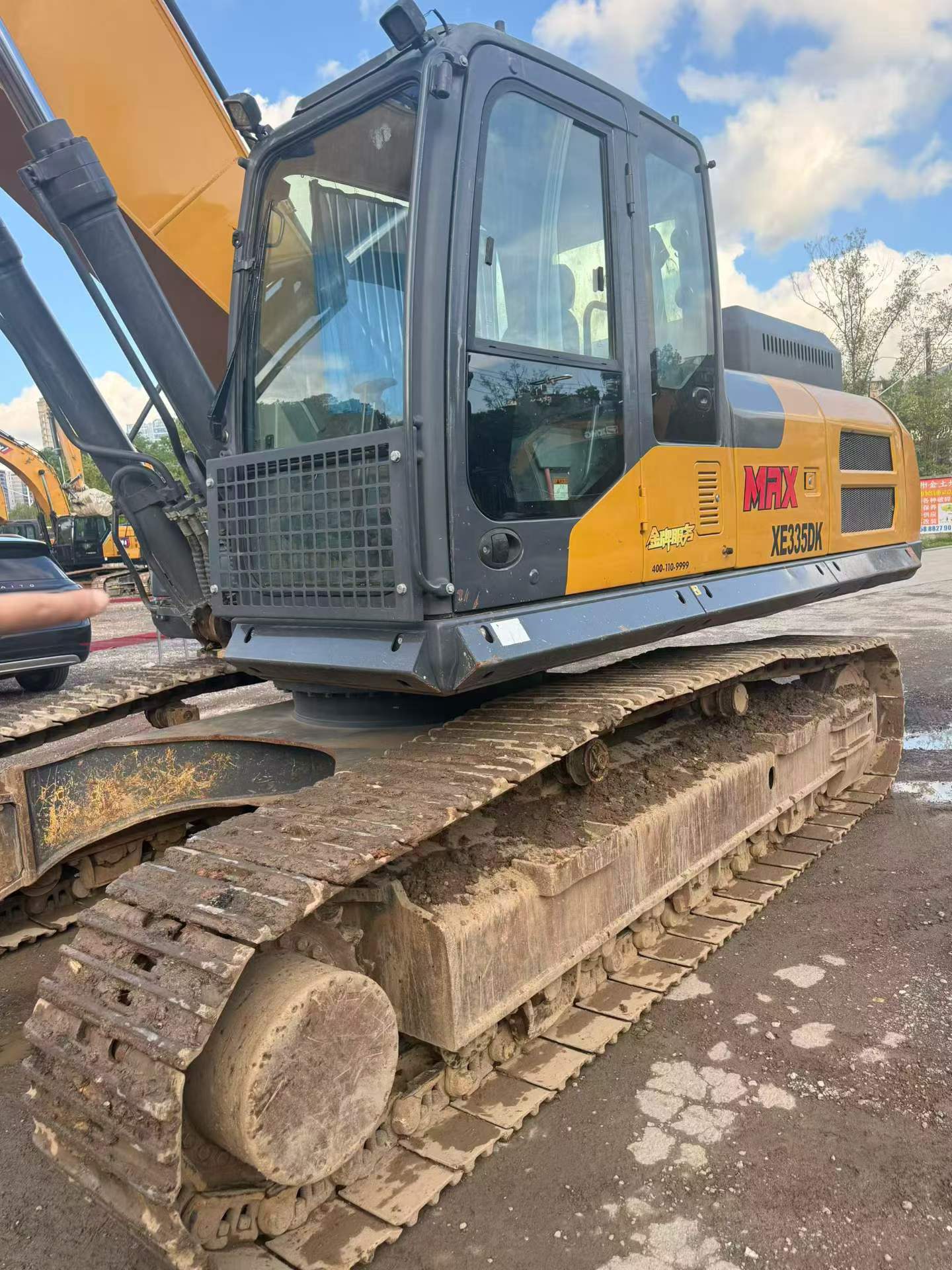

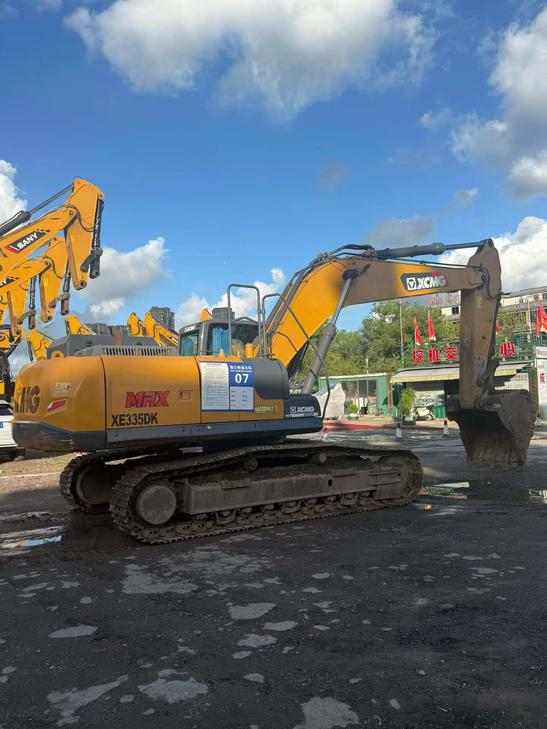

Discover the 2020 XCMG XE335DK, a premium used excavator located in Zhejiang, China. This machine is renowned for its reliability and efficiency, making it a top choice for construction and earthmoving projects. The XE335DK features an authentic hour meter, ensuring transparency and trust. All components, including the undercarriage, are original, with the chassis still retaining most of its original paint. Designed for high productivity, this model outperforms similar class machines like the XCMG 370 and 380 in terms of work efficiency. Additionally, it is known for its fuel efficiency, reducing operational costs. Major parts come with a warranty, providing peace of mind. Ideal for demanding tasks, this excavator is a robust and cost-effective solution.
- Year: 2020
- Brand: XCMG
- Model: XE335DK
- Location: Zhejiang, China
- Highly efficient and fuel-saving
- Warranty on major components
| Specifications | Value |
|---|---|
| No. | 1131728 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
