Product Description

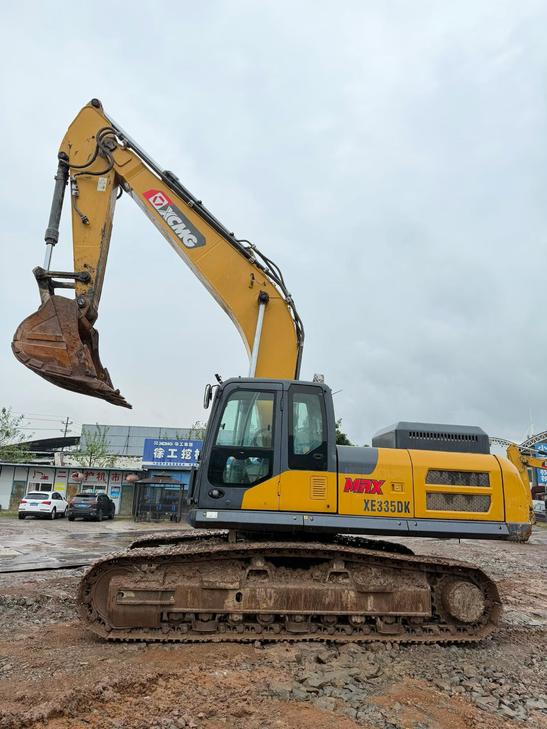

This 2021 XCMG XE335DK excavator is available from Chongqing, China. The machine retains its original factory paint and is in excellent cosmetic condition, indicating careful ownership and proper maintenance throughout its operational life.
The XE335DK is a reliable 35-ton class crawler excavator designed for heavy-duty earthmoving, demolition, and construction applications. XCMG's engineering delivers robust hydraulic performance and fuel efficiency suitable for demanding jobsite conditions.
This unit is available for both rental and purchase arrangements, with financing options supported to accommodate various acquisition strategies.
- Year: 2021
- Manufacturer: XCMG
- Model: XE335DK
- Operating Weight Class: ~35 tons
- Current Location: Chongqing, China
- Condition: Original paint, well-maintained
- Availability: Sale or rental with financing available
| Specifications | Value |
|---|---|
| No. | 1144702 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
