Product Description

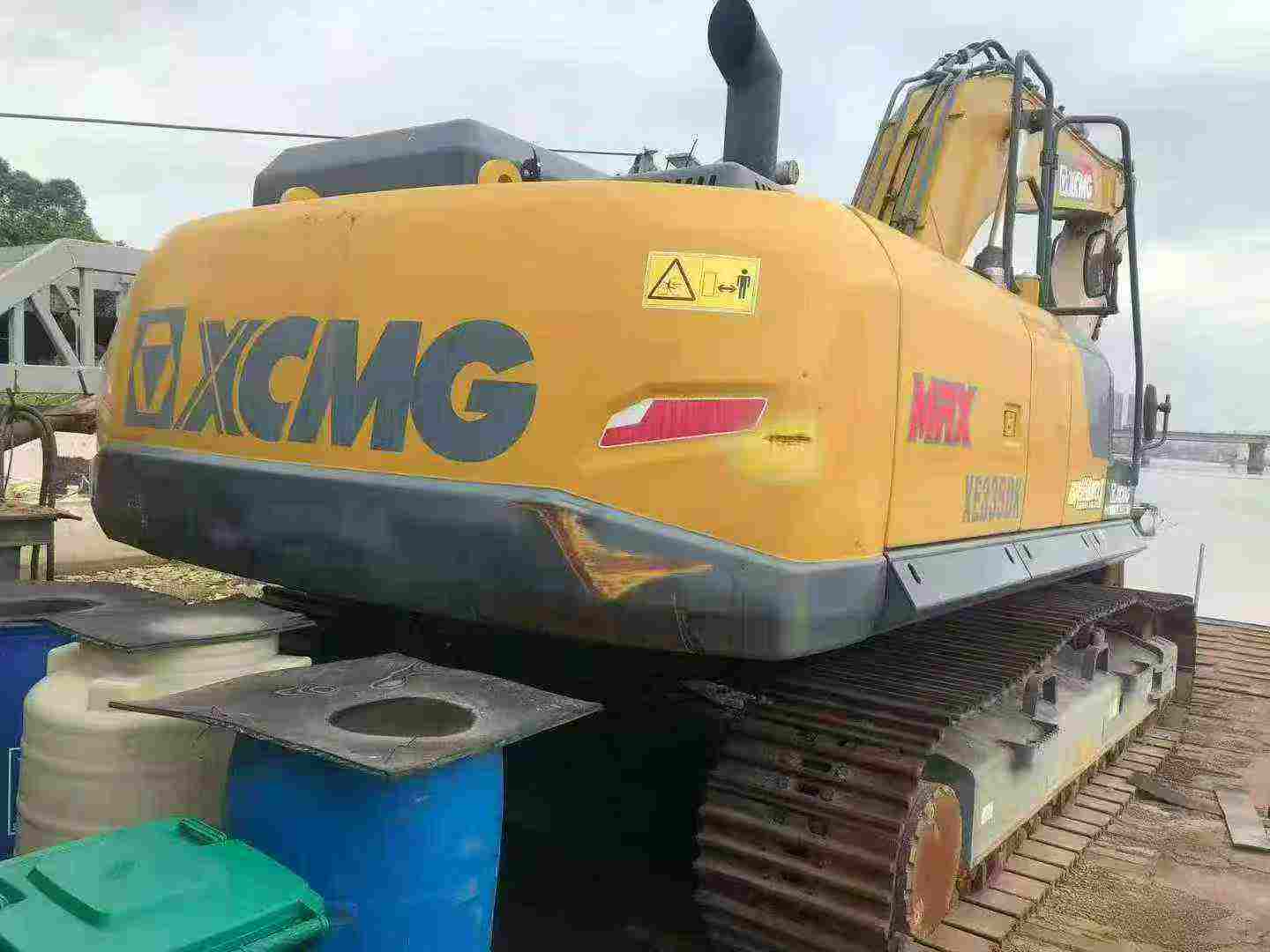

Featuring a robust 33-ton working weight and a powerful QSL9 engine, this 2022 XCMG XE335DK excavator is designed for durability and reliability. With a rated power of 202 kW at 2100 rpm, it ensures efficient performance on any job site. Located in Guangdong Huizhou, this machine boasts a bucket capacity ranging from 1.6 to 2.0 m³, making it versatile for various excavation tasks. The XE335DK is built to last, with a proven track record of handling demanding workloads. Its maximum digging depth of 6735 mm and maximum unloading height of 7110 mm make it a formidable tool for deep and high-reach operations. Equipped with a 520-liter fuel tank, it provides extended operational hours, reducing downtime and increasing productivity.
- Working weight: 33,500 kg
- Engine type: QSL9, 202 kW/2100 rpm
- Bucket capacity: 1.6-2.0 m³
- Maximum digging depth: 6735 mm
- Fuel tank capacity: 520 L
| Specifications | Value |
|---|---|
| No. | 1001710 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
