Product Description

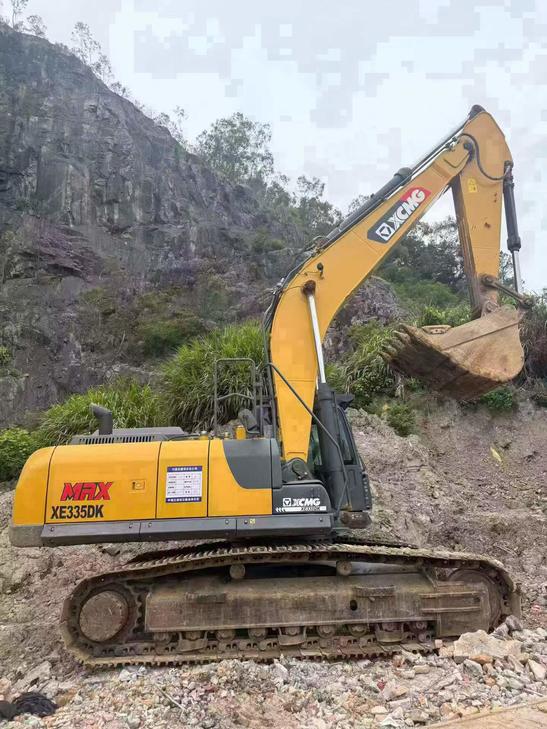

Available now from Zhejiang, China — skip the factory lead times and get this 2022 XCMG XE335DK 33-ton excavator moving to your site fast. Built for heavy-cycle earthmoving, this machine ships direct from one of China's most connected export hubs, cutting weeks off your deployment timeline.
Powered by a Cummins QSL9 engine producing 202 kW at 2,100 rpm with 8.9L displacement, the XE335DK delivers a bucket digging force of 206 kN and a maximum tractive force of 260 kN. A 1.6–2.0 m³ backhoe bucket and 6,735 mm maximum digging depth make it a capable performer across bulk excavation, foundation work, and heavy grading.
- Working weight: 33,500 kg | Ground pressure: 61.4 kPa
- Max digging radius: 10,680 mm | Max digging height: 10,265 mm
- Max unloading height: 7,110 mm | Vertical digging depth: 5,010 mm
- Travel speed: 5.3 / 3.2 km/h | Climbing ability: 70%
- Main pump flow: 2 × 272 L/min | Fuel tank: 520 L
- Transport dimensions: 10,790 × 3,200 × 3,640 mm
Sourced directly from Zhejiang and ready for immediate export, this unit bypasses the wait associated with new factory orders. Fast documentation, competitive freight options, and a machine that's ready to work from day one.
| Specifications | Value |
|---|---|
| No. | 1073516 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
