Product Description

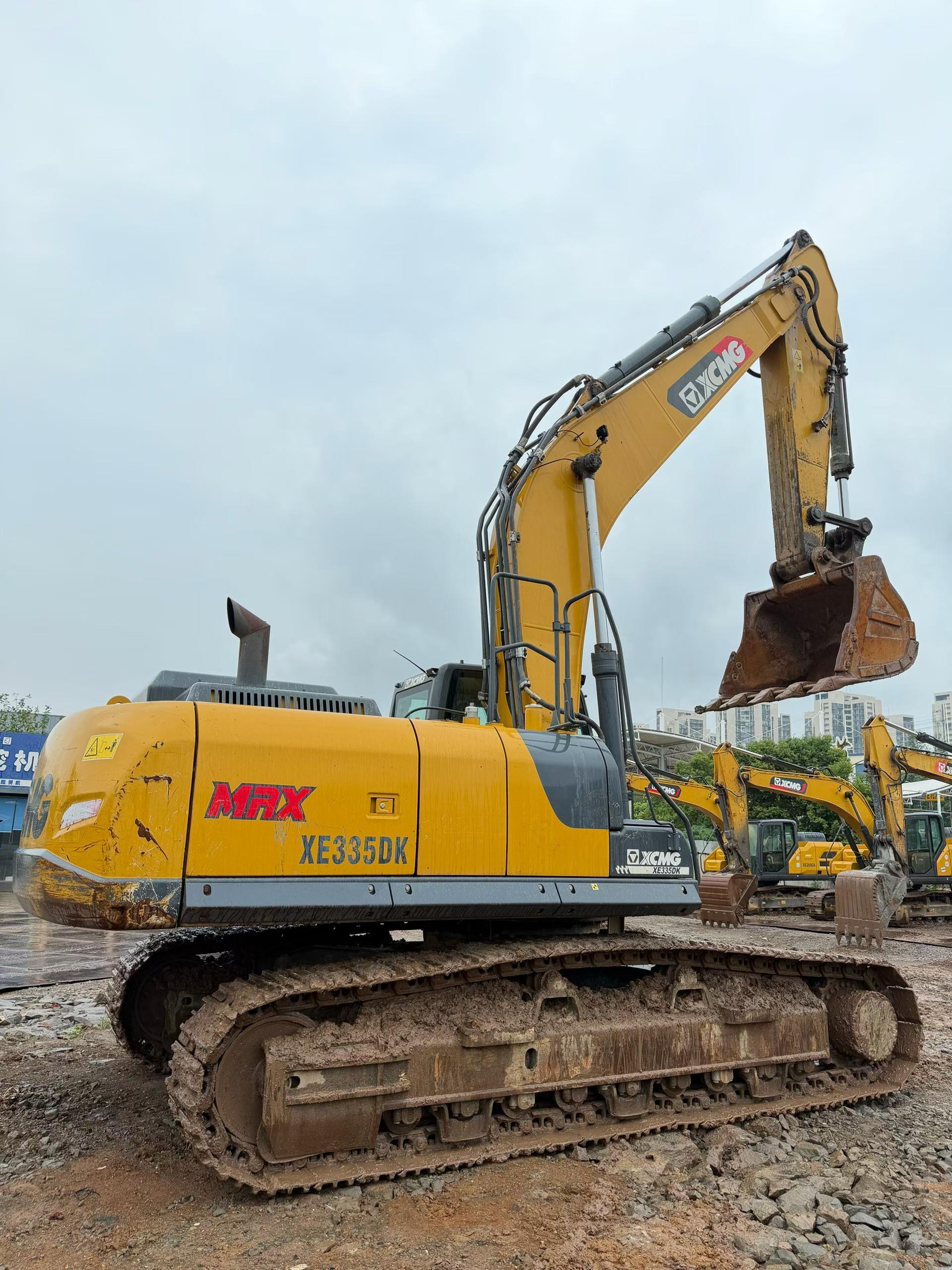

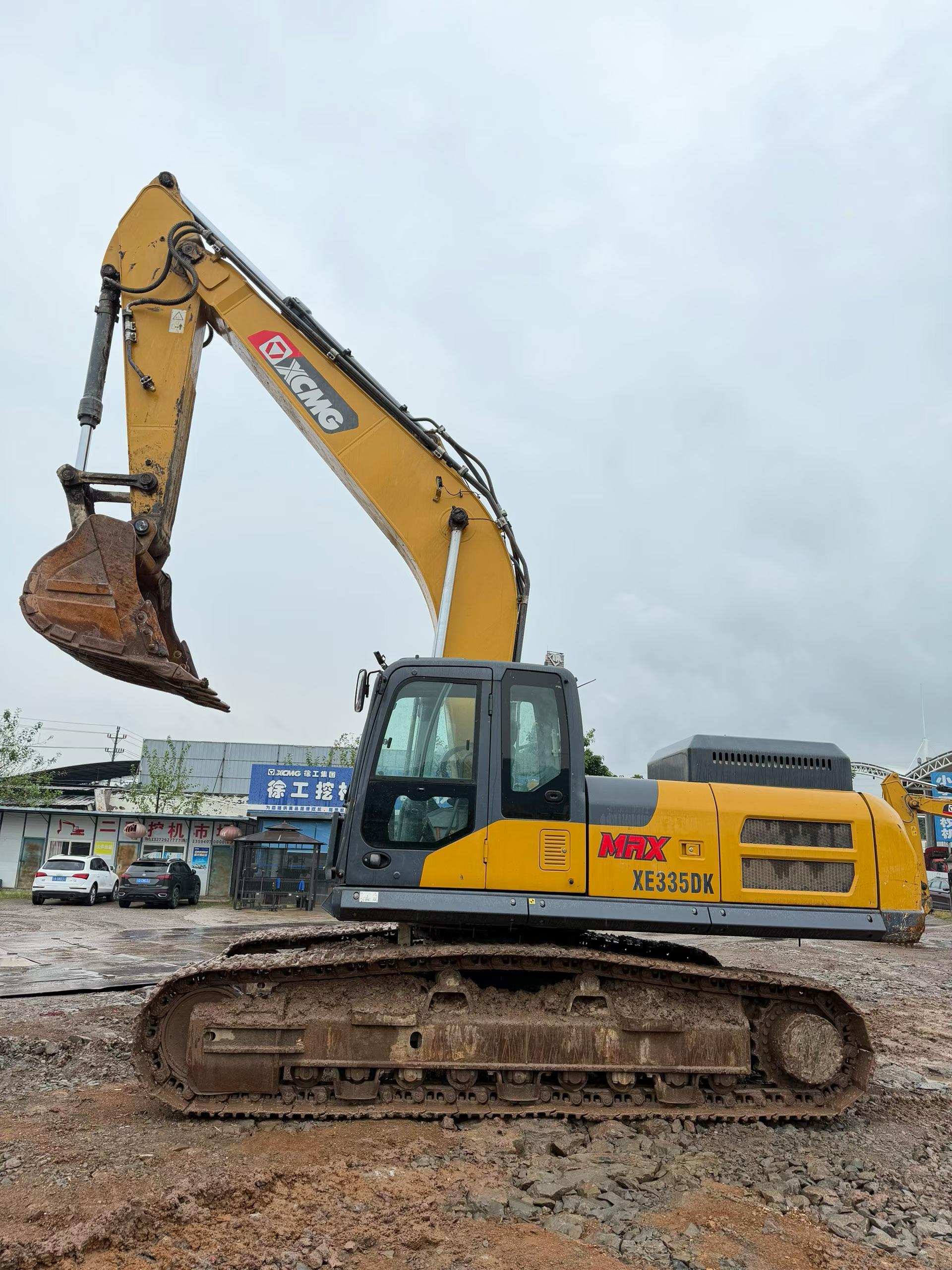

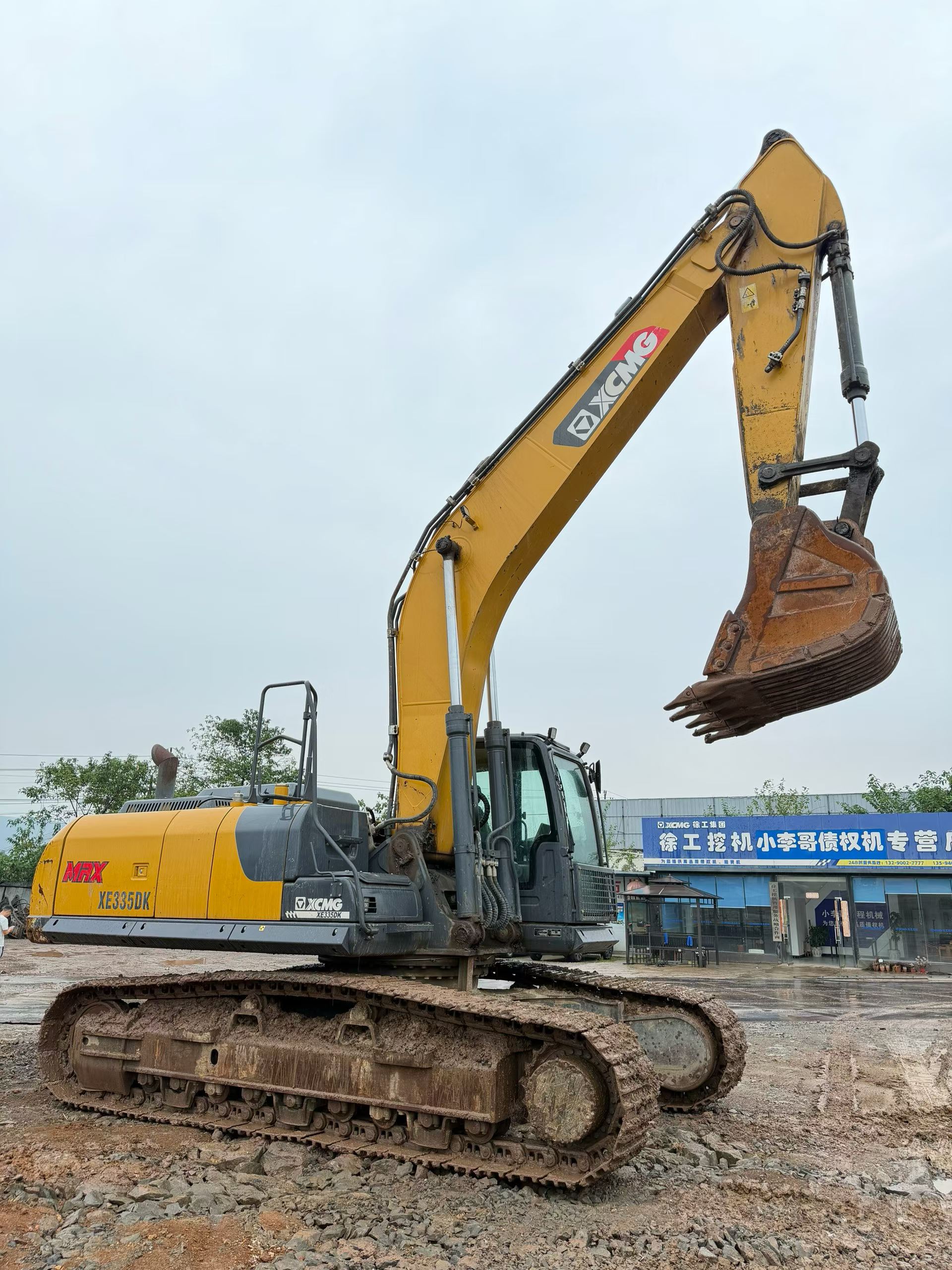

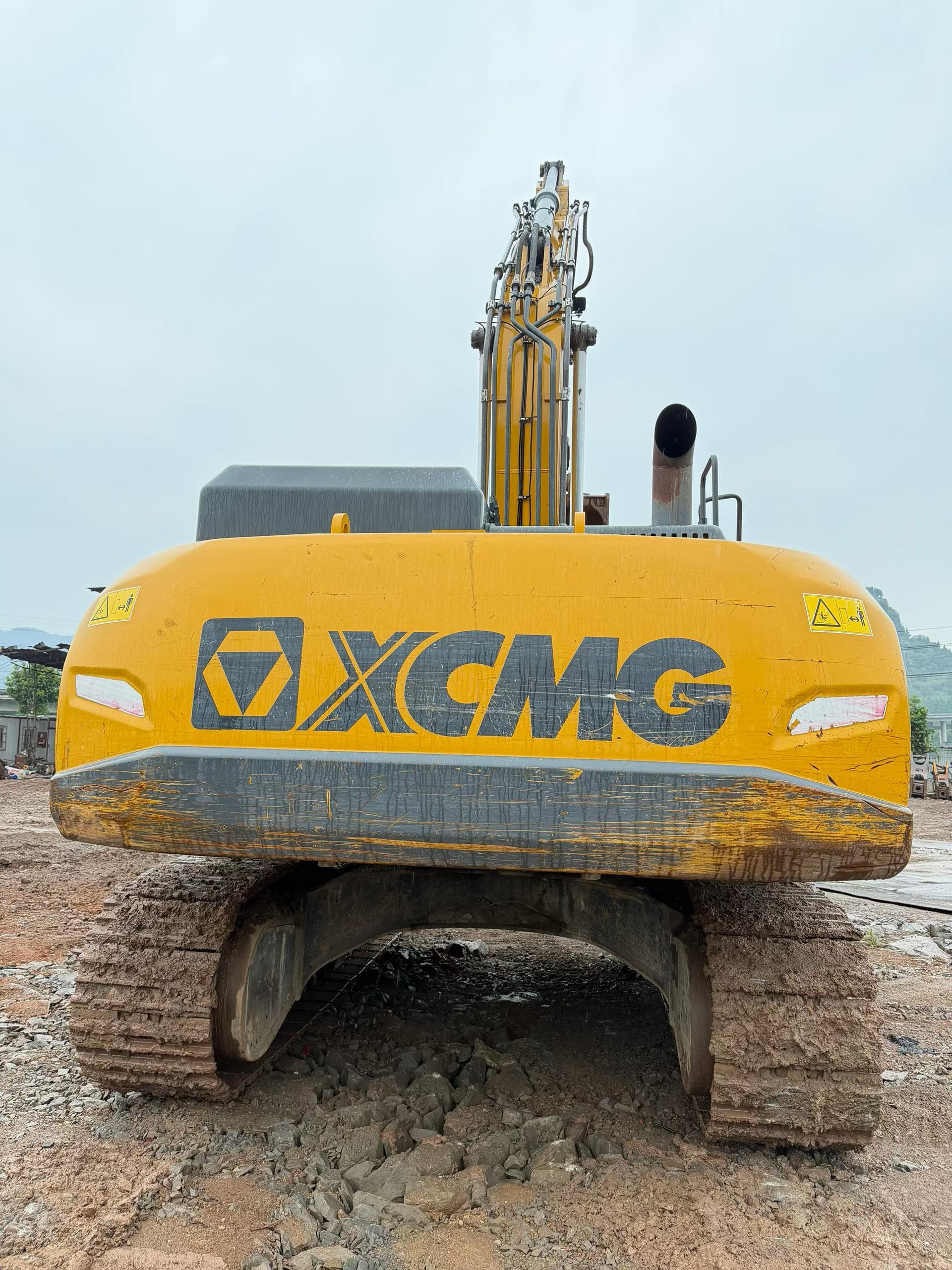

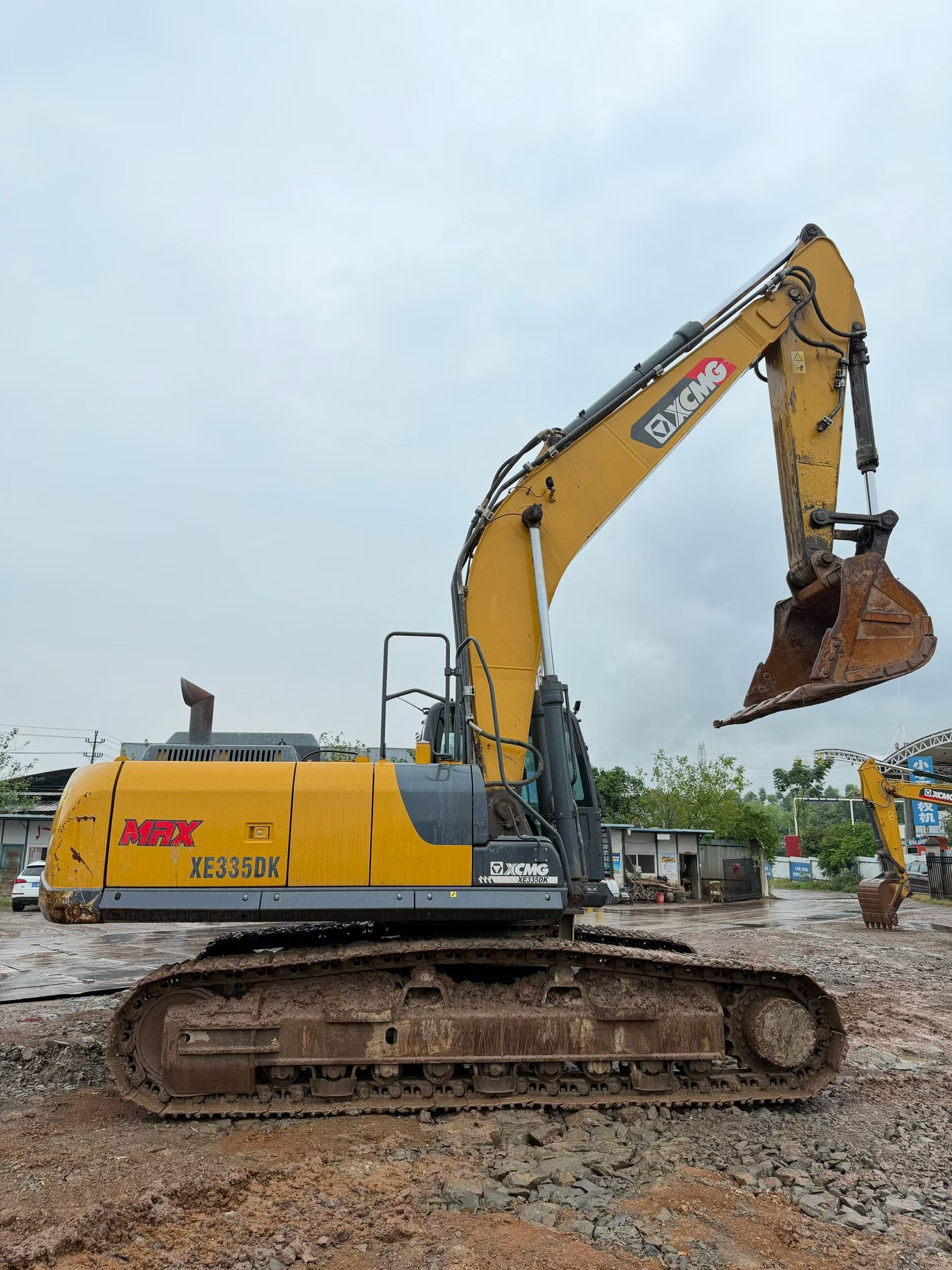

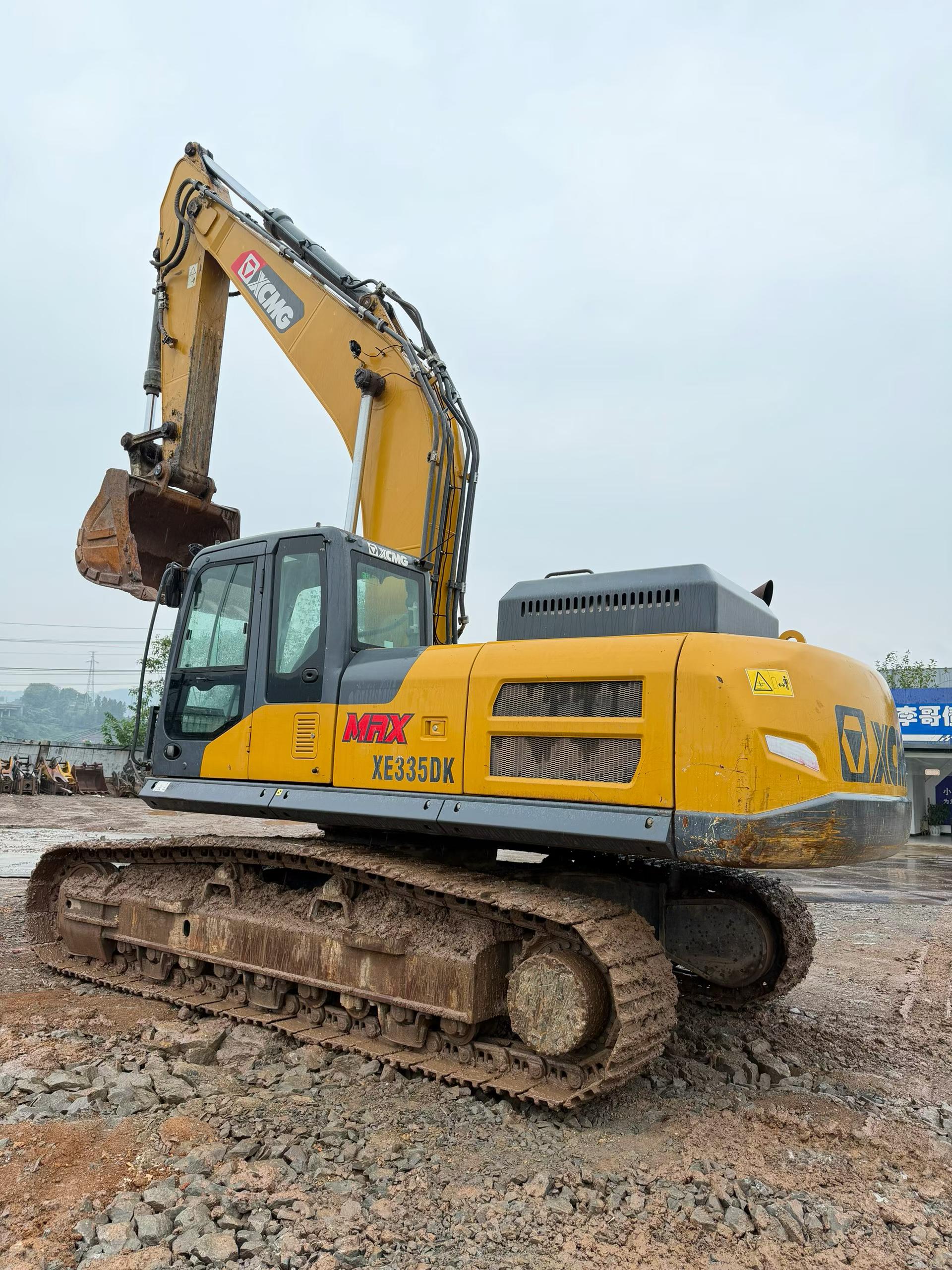

This 2022 XCMG XE335DK hydraulic excavator offers reliable performance with approximately 4,000 operating hours. Located in Chongqing, China, this machine features original paint and maintains factory condition throughout.
- Model: XCMG XE335DK
- Year: 2022
- Hours: ~4,000
- Bucket Capacity: 1.65 m³
- Engine: Cummins (imported)
- Condition: Original paint, well-maintained
- Location: Chongqing, China

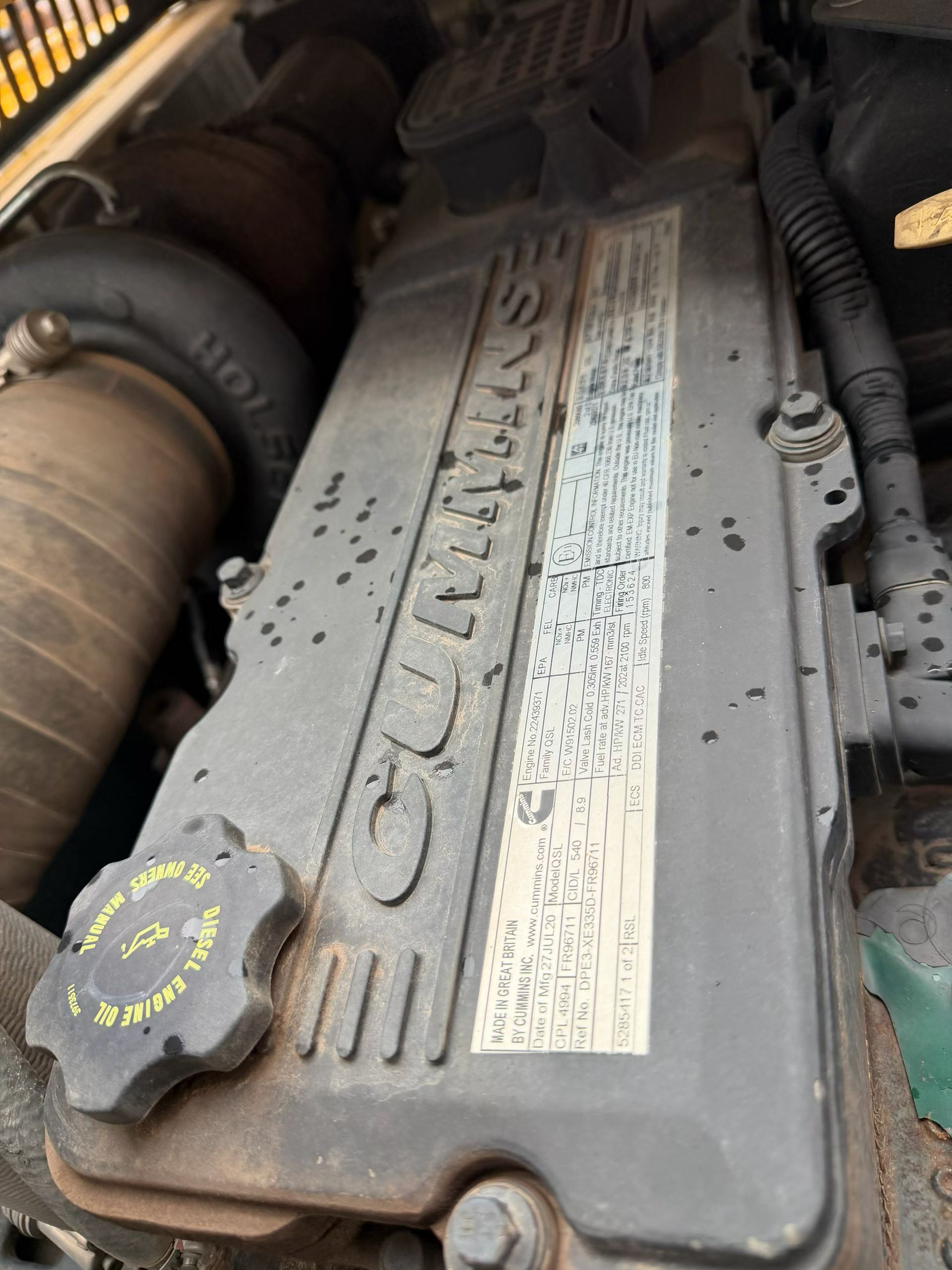

The XE335DK is equipped with an imported Cummins engine, delivering dependable power for demanding excavation work. The 1.65 cubic meter bucket provides substantial capacity for earthmoving and material handling operations. This unit represents a cost-effective opportunity for contractors and fleet operators seeking proven mid-size excavator performance. Financing options may be available. Suitable for construction, mining, and civil engineering applications.
| Specifications | Value |
|---|---|
| No. | 1144893 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
