2021 XCMG XE35U

1/9
Buy XCMG XE35U Used Excavator / 1

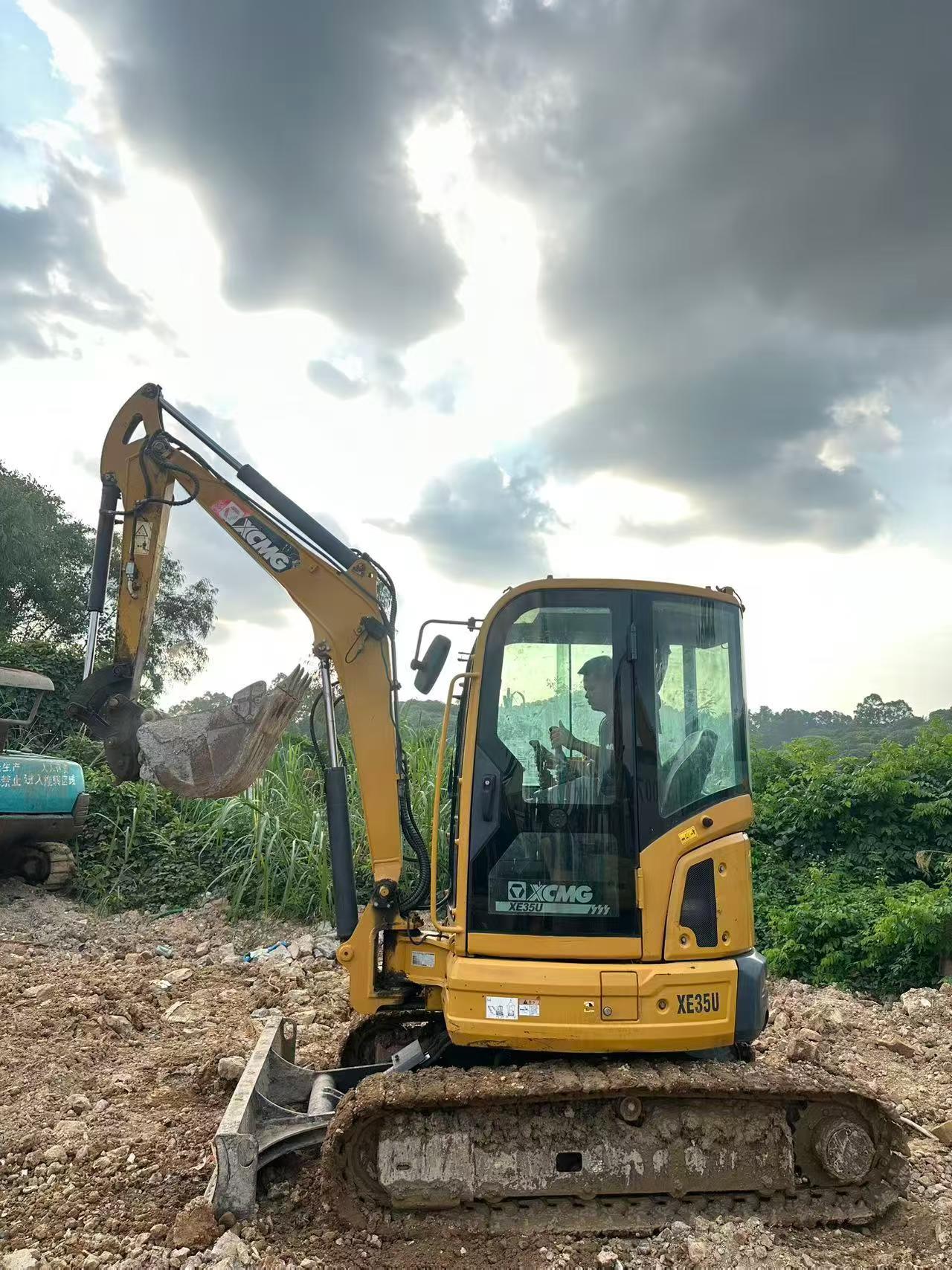

Buy XCMG XE35U Used Excavator / 2

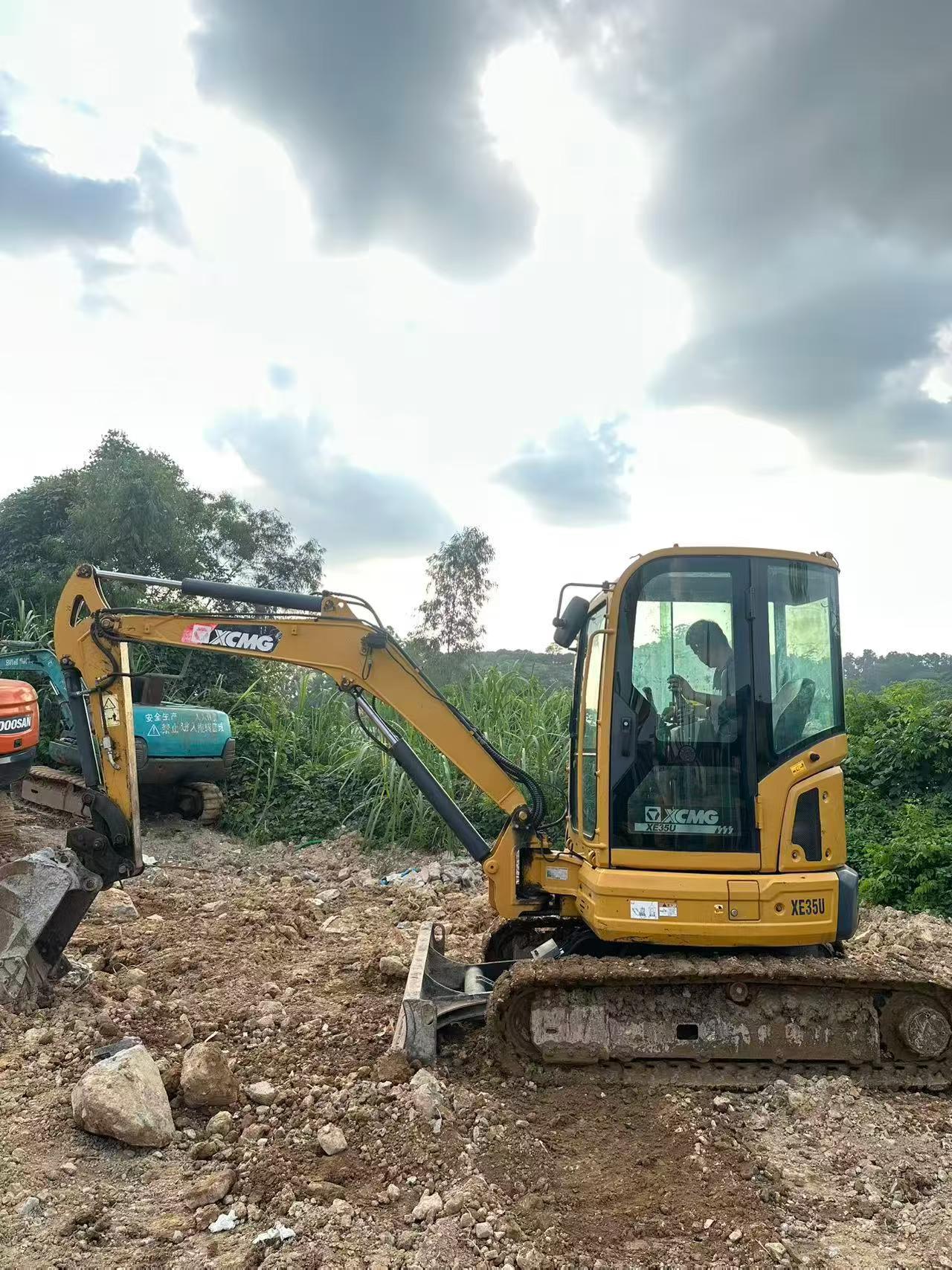

Buy XCMG XE35U Used Excavator / 3

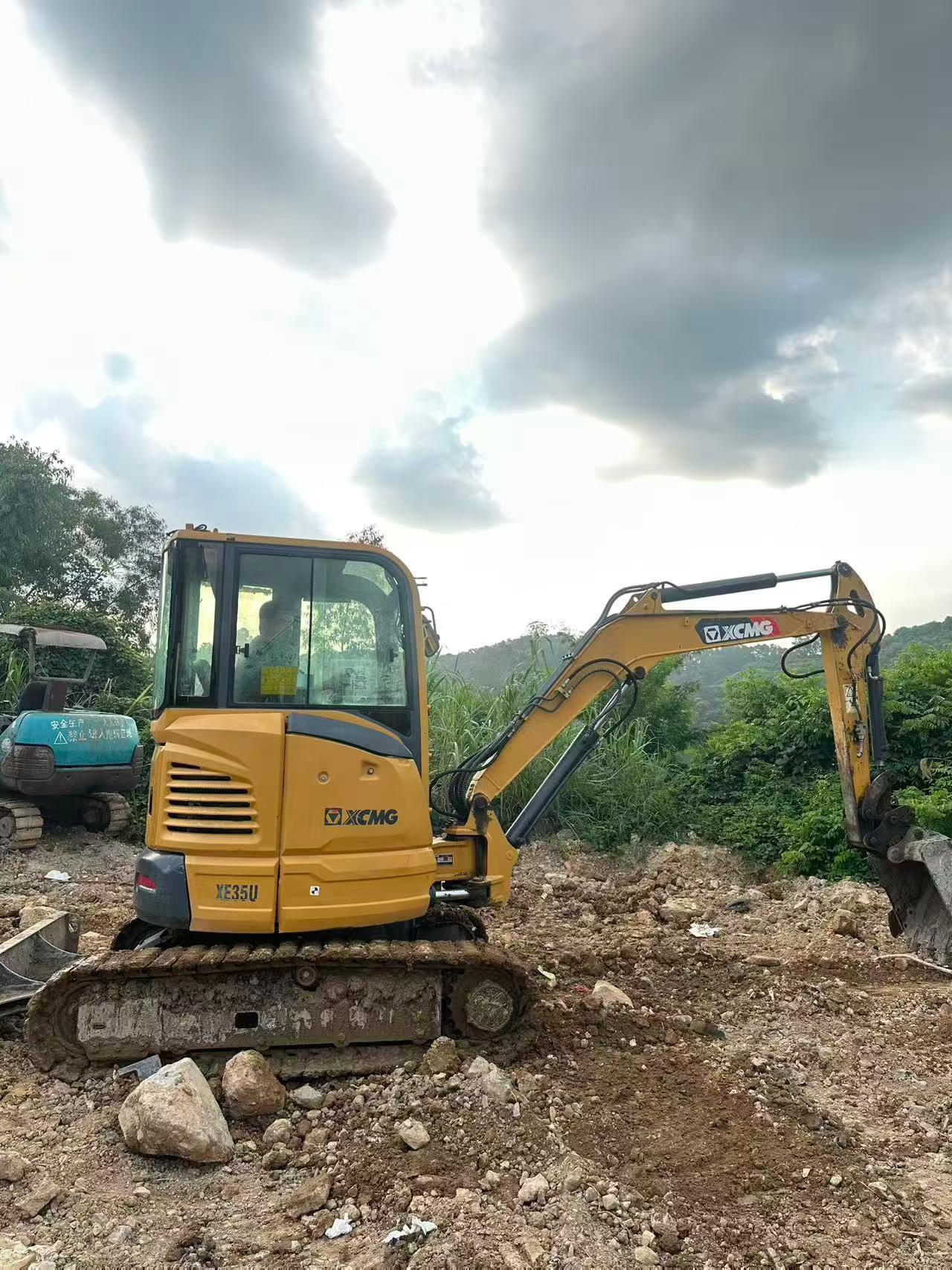

Buy XCMG XE35U Used Excavator / 4

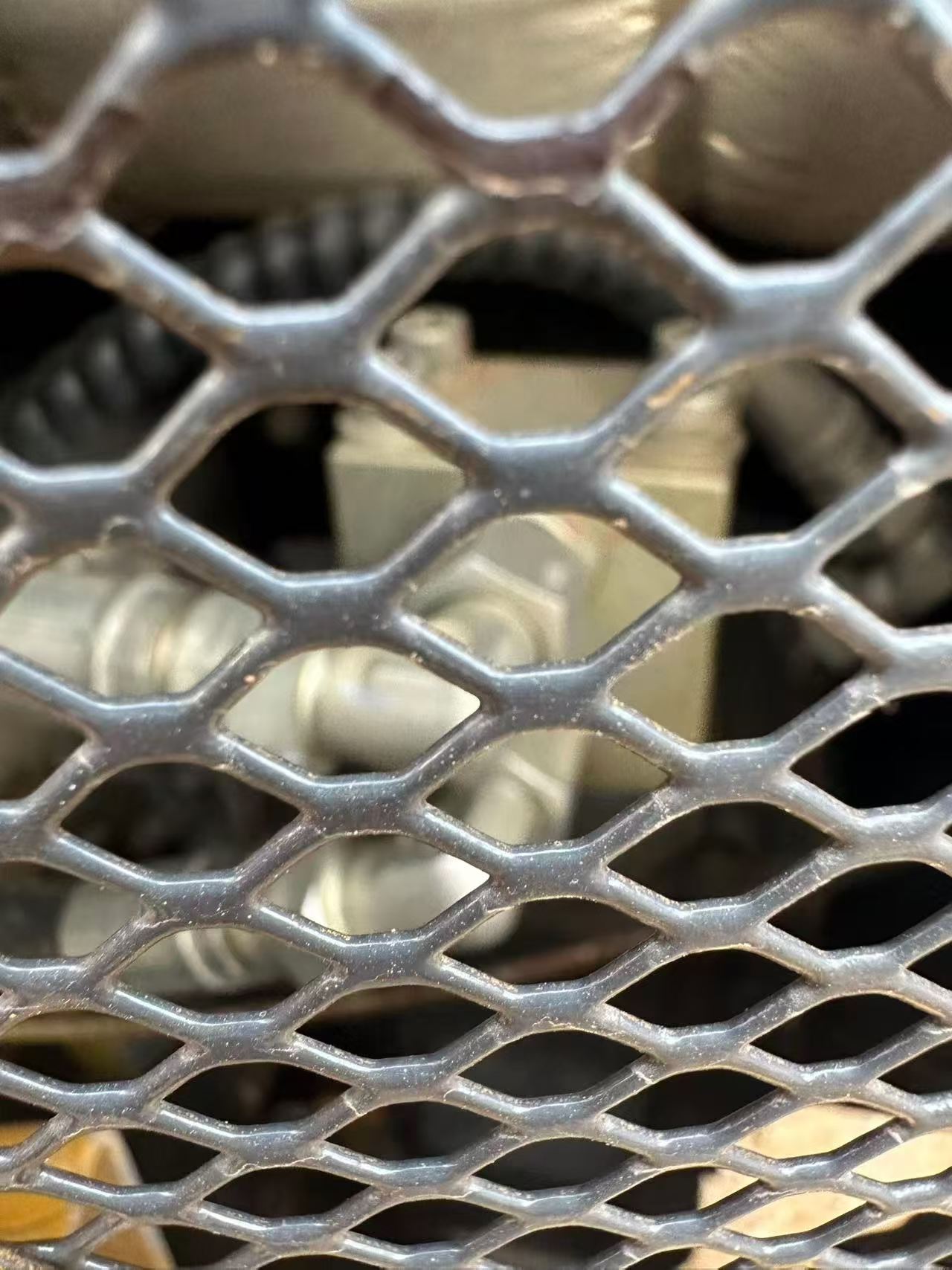

Buy XCMG XE35U Used Excavator / 5

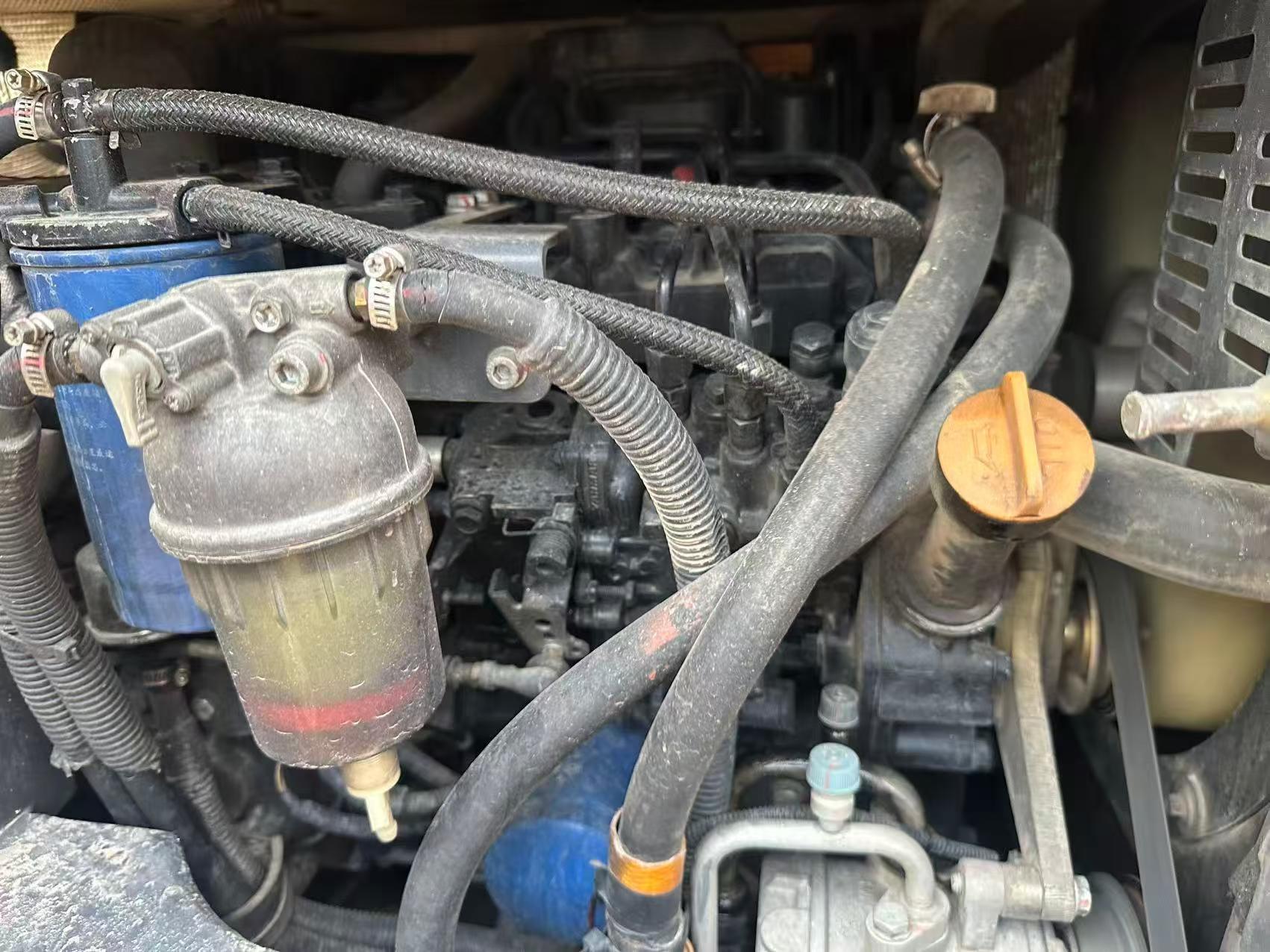

Buy XCMG XE35U Used Excavator / 6

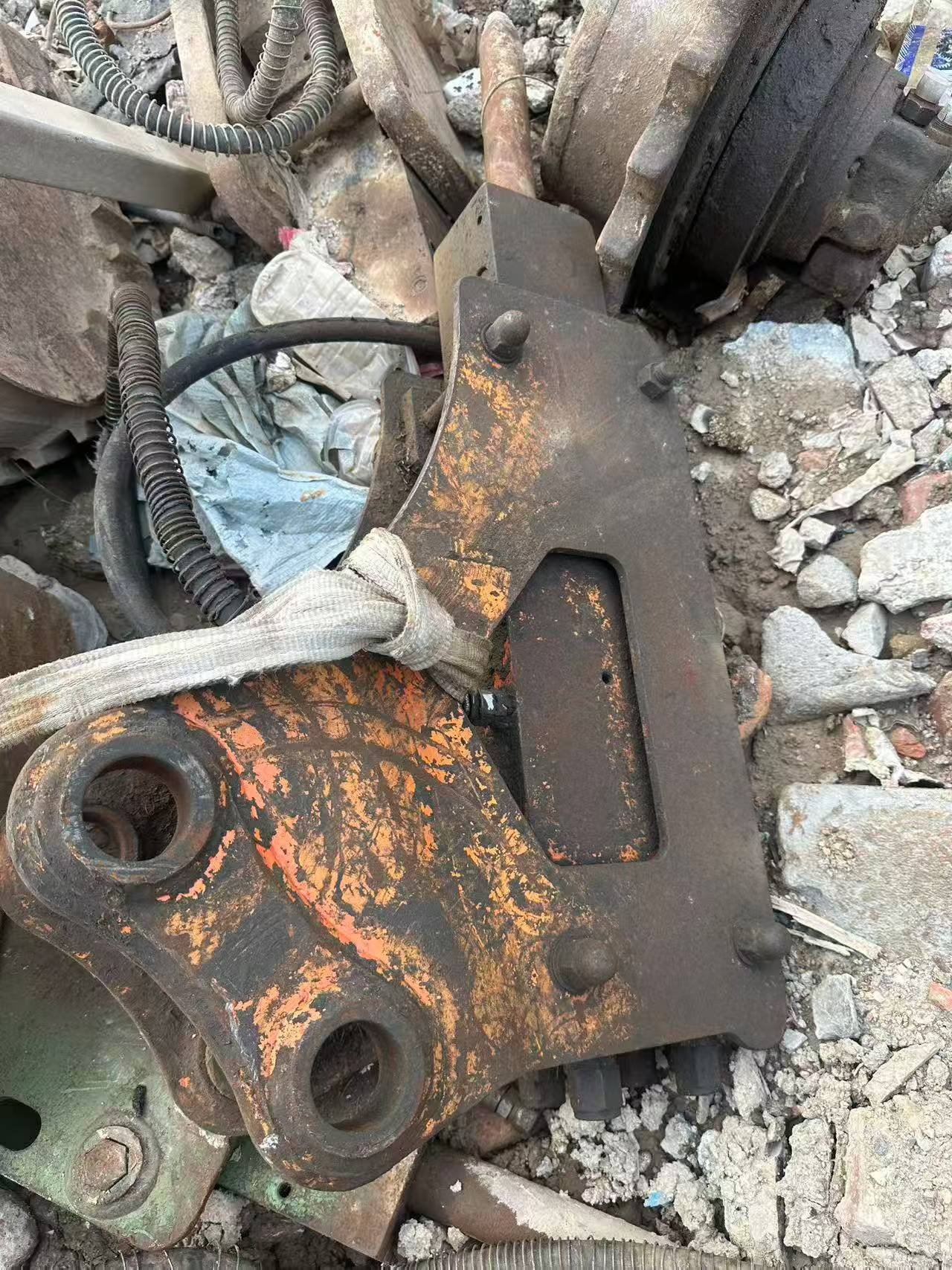

Buy XCMG XE35U Used Excavator / 7

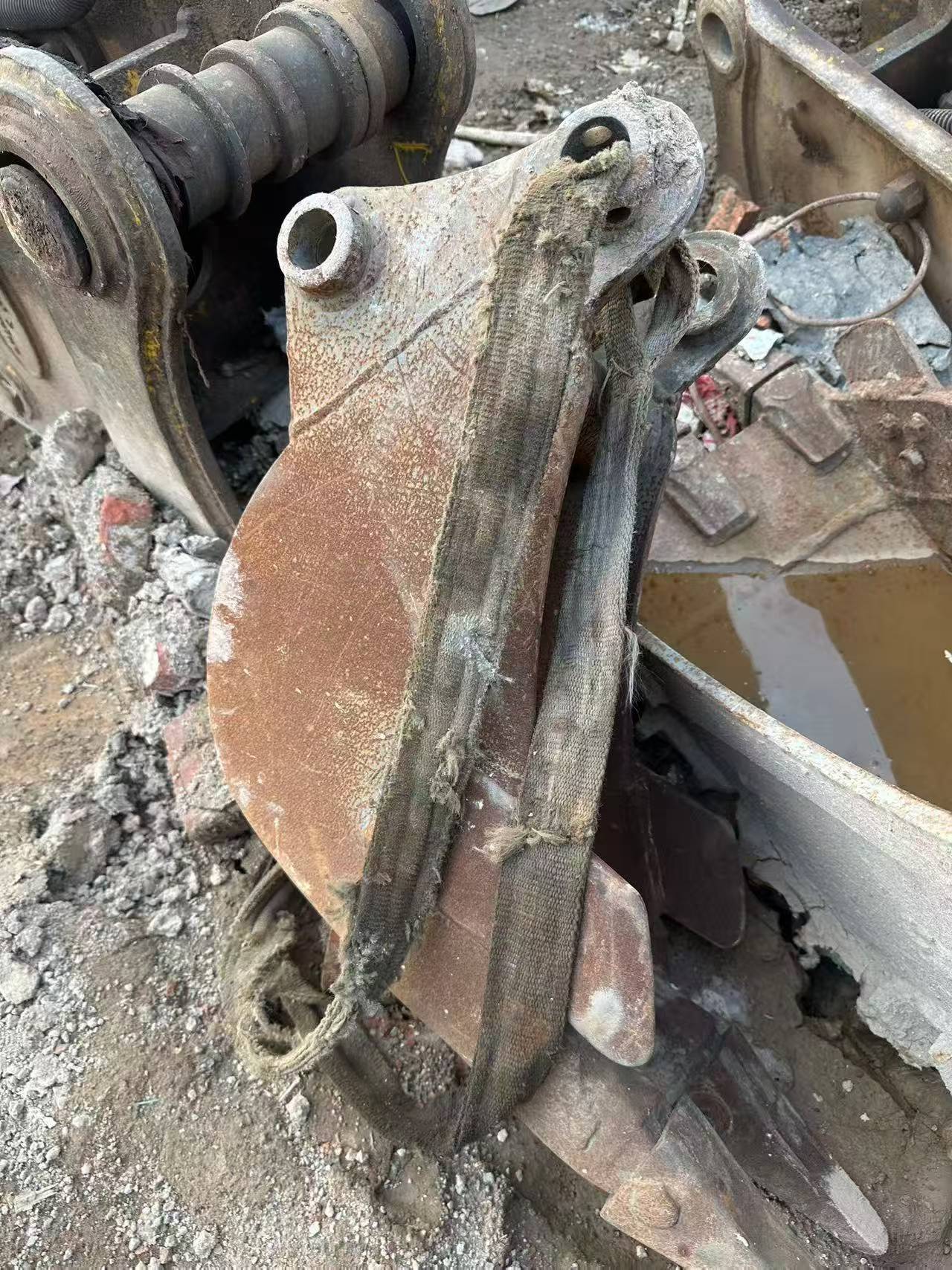

Buy XCMG XE35U Used Excavator / 8

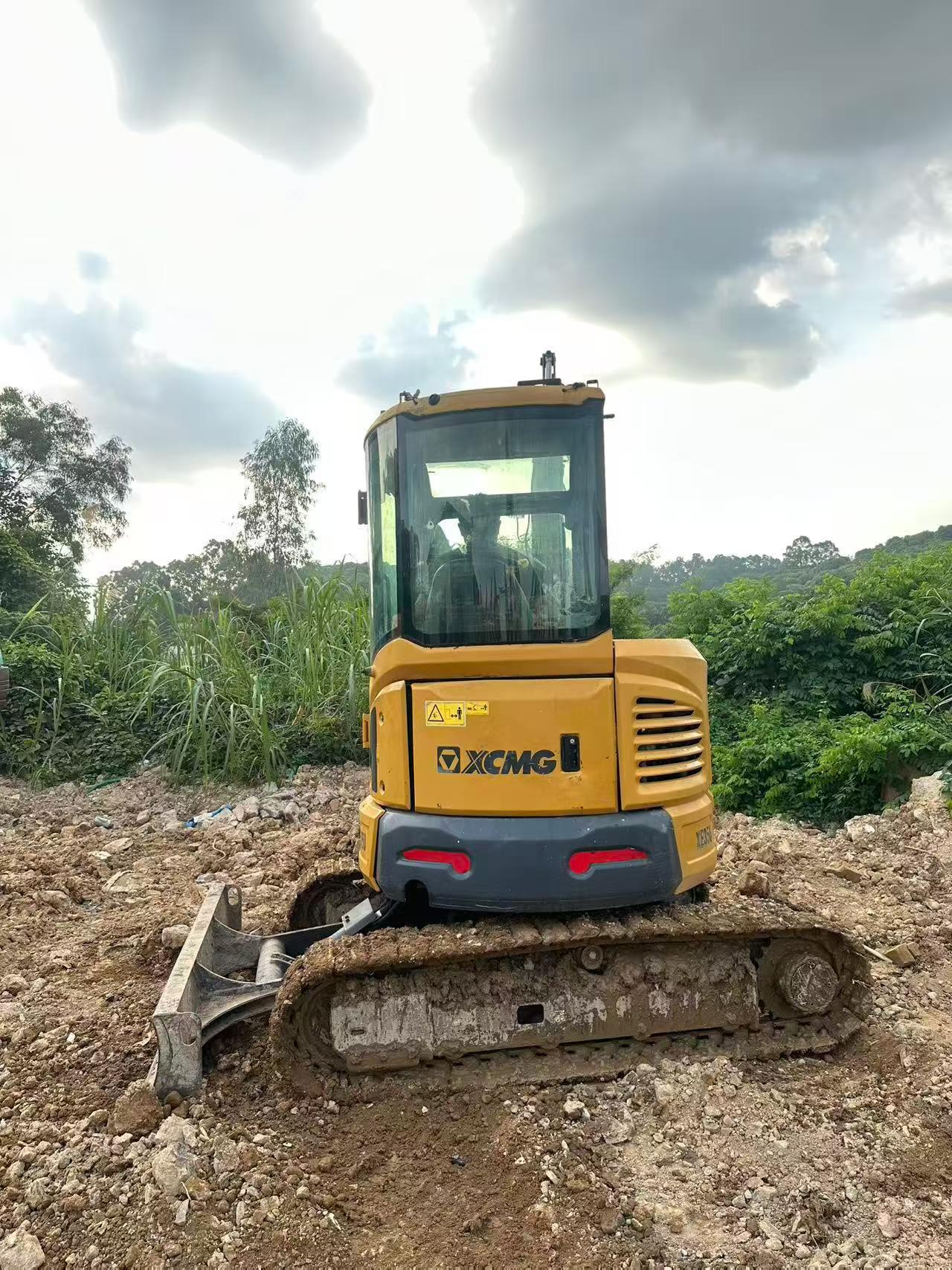

Buy XCMG XE35U Used Excavator / 9

Product Description

Discover the exceptional 2021 XCMG XE35U, a robust and reliable compact excavator currently available in Guangdong, China. This machine is in impeccable condition, having passed rigorous inspections to ensure its quality and performance. Equipped with a quick coupler, along with a large and small bucket, and a breaker, this model is ready for a variety of tasks. The XE35U is known for its swift and efficient operation, making it a valuable asset for any construction or excavation project. Priced competitively, it offers an excellent balance of cost and capability, ideal for businesses looking to enhance their fleet without compromising on quality.

  • Year: 2021
  • Brand: XCMG
  • Model: XE35U
  • Location: Guangdong, China
  • Features: Quick coupler, large and small buckets, breaker
SpecificationsValue
No.1072999
Tonnage (tons)4
Working weight (kg)4200/4100
Bucket capacity (m³)0.12
Boom length (mm)2560
Rod length (mm)1350
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type3TNV88-B
Rated power (kw/rpm)22.2/2400
Cooling modewater-cooling
Displacement (L)1.642
Working formDirect injection, 4 strokes
Ground specific pressure (Kpa)36.6
Rotation speed (rpm)9
Climbing ability (%)30
Bucket digging force (kN)28.6
Rod digging force (kN)20.3
Maximum tractive force (kN)31.6
Travel speed (km/h)3.6/2.2
Maximum flow of main pump (l/min)108
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)16.7
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)40
Hydraulic Tank (L)45
Engine Oil changes (L)7
Total transport length (mm)4970
Total transport width (mm)1740
Total transport height (mm)2535
Counterweight ground clearance (mm)587
Minimum ground clearance (mm)297
Minimum turning radius of front working device (mm)870
Track gauge (mm)1440
Total track width (mm)300
Center distance of support wheel (mm)1721
Maximum digging radius (mm)5300
Maximum digging depth (mm)3060
Maximum excavation height (mm)5000
Maximum unloading height (mm)3600
Maximum vertical digging depth (mm)2260
Bulldozer lift or depth (mm)305/360
Dodging plate width × height (mm)1740*358
see more

Overview

No.1072999

Brand Name:

XCMG

Model Number:

XE35U

Year:

2021

Location:

Guangdong China

Pub Date
