Product Description

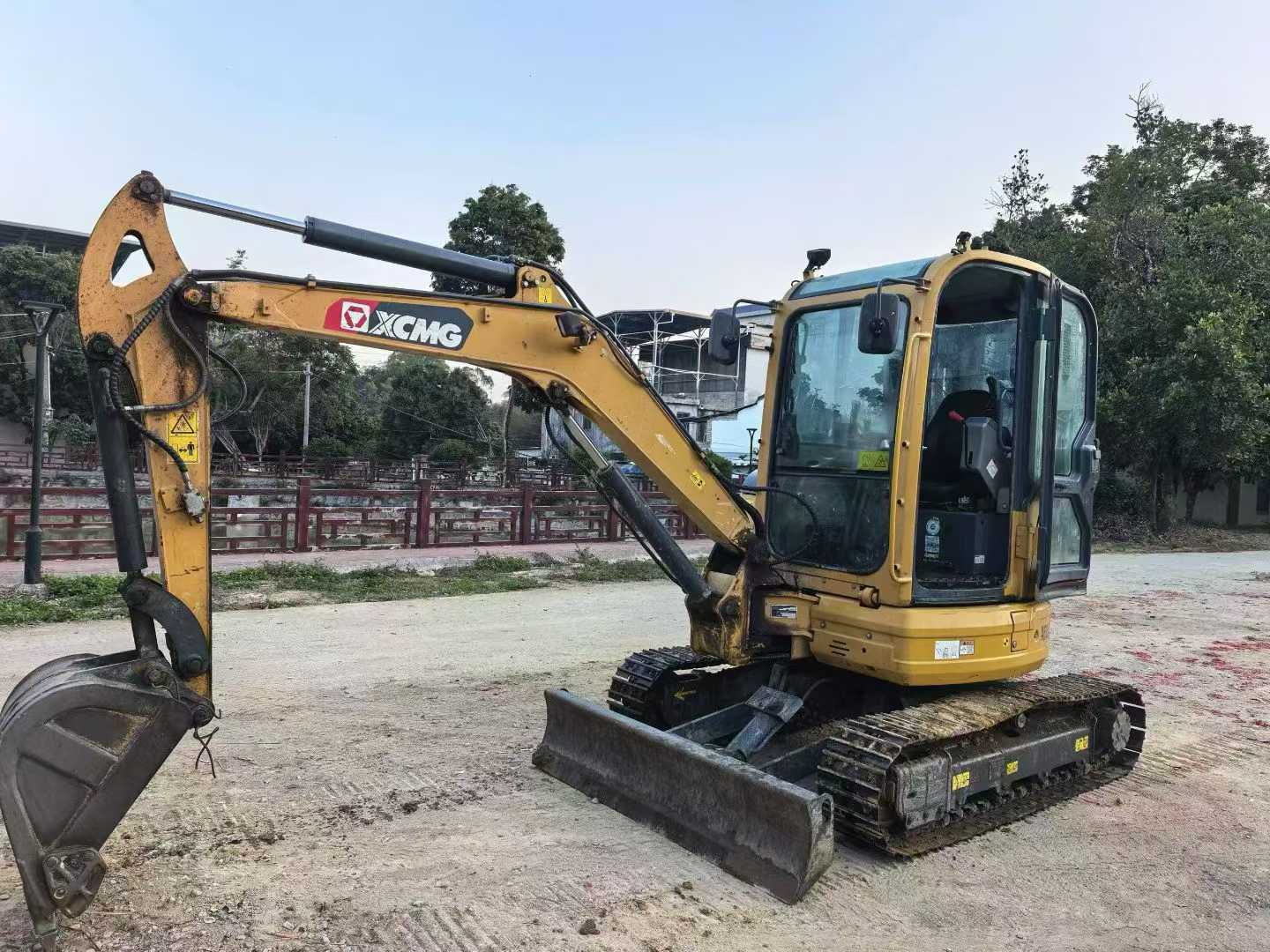

Expand your operational capacity with this 2023 XCMG XE35U mini excavator, purpose-built for contractors requiring reliable fleet reinforcement. Operating at 4.2 tons with a compact 4,970mm transport length, this unit maneuvers through tight urban sites while delivering 28.6kN bucket digging force and 3,060mm maximum digging depth. Powered by a Yanmar 3TNV88-B engine producing 22.2kW, the water-cooled system ensures consistent performance during extended shifts alongside your primary equipment.
- Fleet-Ready Dimensions: 1,740mm width navigates restricted access points without transport permits
- Hydraulic Efficiency: 108 L/min main pump flow matches productivity demands of larger machines
- Operational Range: 5,300mm maximum reach radius covers standard utility and foundation work
- Quick Deployment: 9 rpm rotation speed and 3.6 km/h travel maintain project timelines
- Backup Insurance: 40L fuel tank and proven Japanese engine technology minimize downtime risks
Currently located in Dongguan, Guangdong, this conventional-power excavator integrates immediately into existing maintenance protocols.
| Specifications | Value |
|---|---|
| No. | 1017344 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
