Product Description

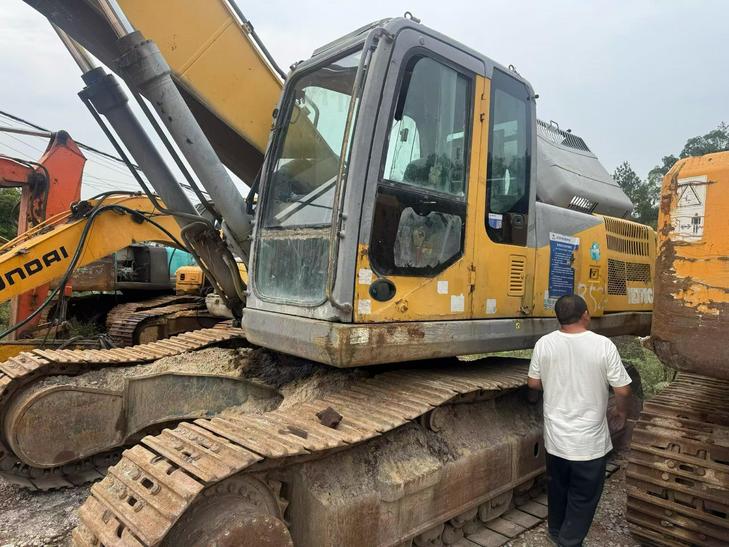

This 2020 XCMG XE370CA hydraulic excavator is currently available in Zhejiang, China. With a 37-ton operating weight class, this model delivers reliable performance for demanding earthmoving and excavation operations. The XE370CA features XCMG's proven hydraulic system and reinforced undercarriage designed for extended service life in construction and infrastructure projects.
Key features include:
- 37-ton operating weight class for heavy-duty applications
- Fuel-efficient engine meeting emission standards
- Spacious operator cabin with ergonomic controls
- Reinforced boom and arm structure for durability
- Available for immediate inspection on-site
This unit is ready for deployment and represents solid value for contractors seeking proven Chinese excavator technology. Contact us to arrange an inspection or request additional operating hour details and service records.
| Specifications | Value |
|---|---|
| No. | 1170025 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection; 4 strokes; Water cooling; Turbocharging; Air to air cold; Maximum torque 872.8/1700N.m |
| Ground specific pressure (Kpa) | 66.6 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 242 |
| Rod digging force (kN) | 207 |
| Travel speed (km/h) | 5.4/3.2 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*320 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6893 |
| Maximum excavation height (mm) | 10379 |
| Maximum unloading height (mm) | 7153 |
| Maximum vertical digging depth (mm) | 6461 |
