2020 XCMG XE380DK

1/9
Buy XCMG XE380DK Used Excavator / 1

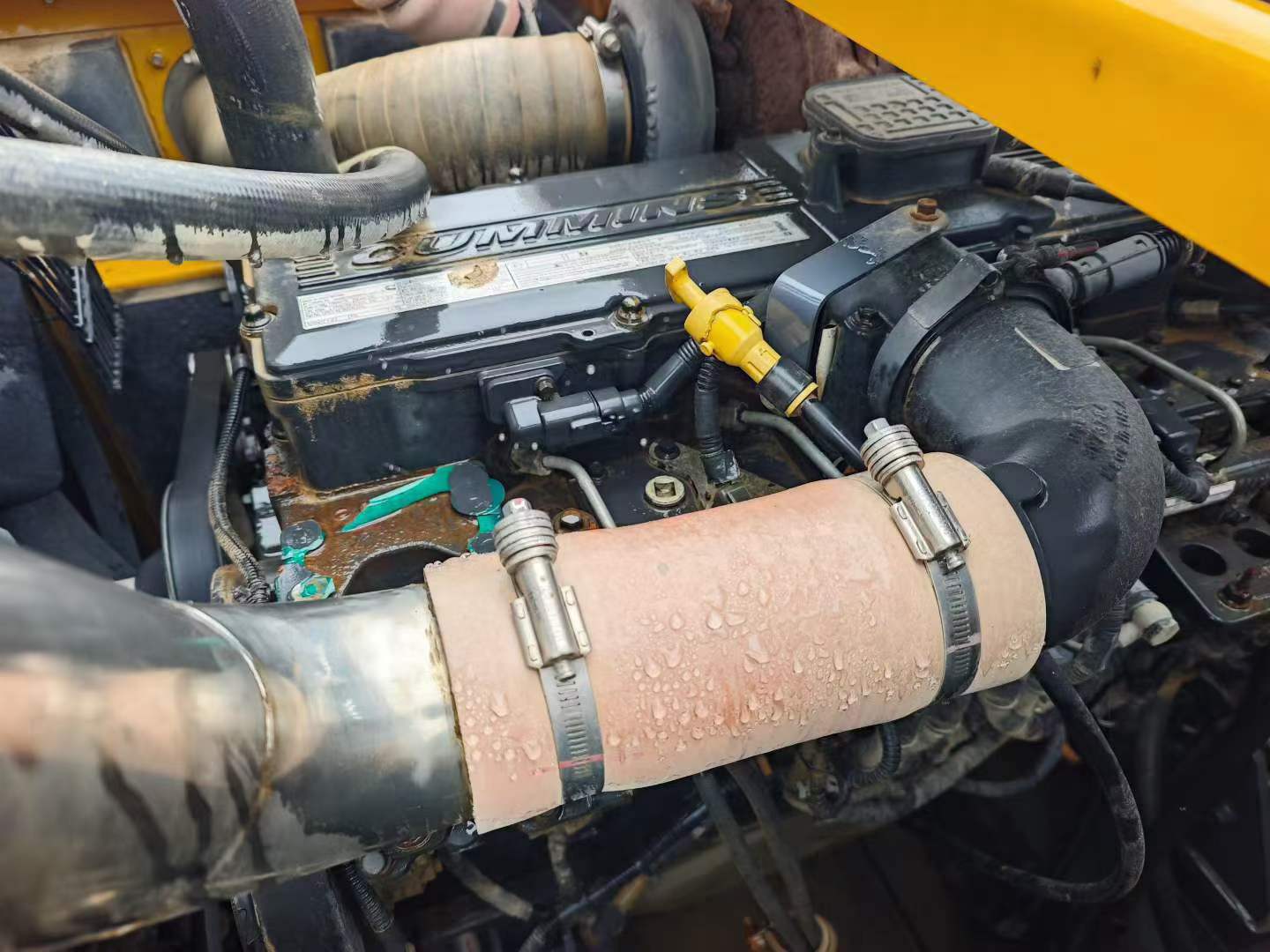

Buy XCMG XE380DK Used Excavator / 2

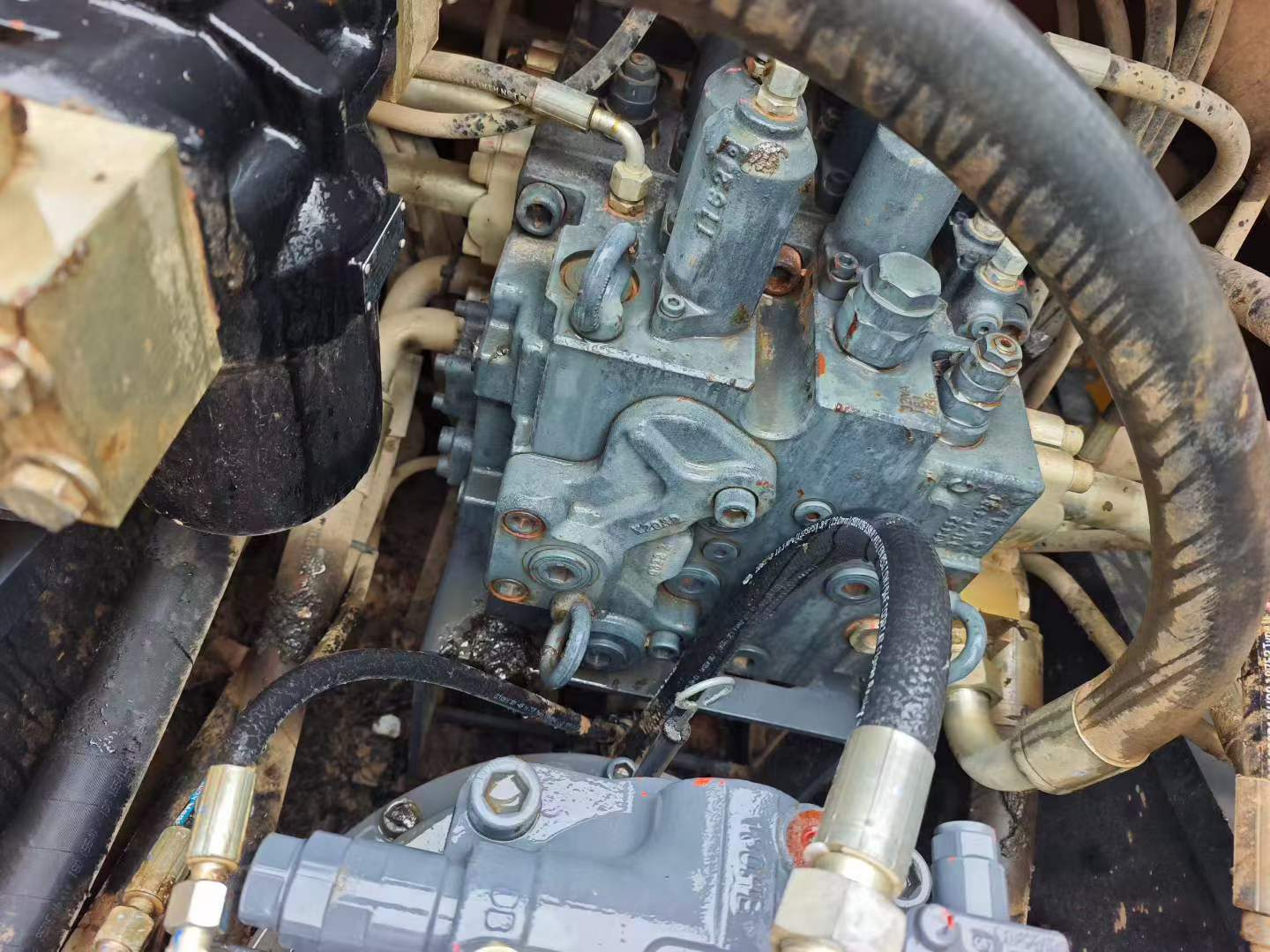

Buy XCMG XE380DK Used Excavator / 3

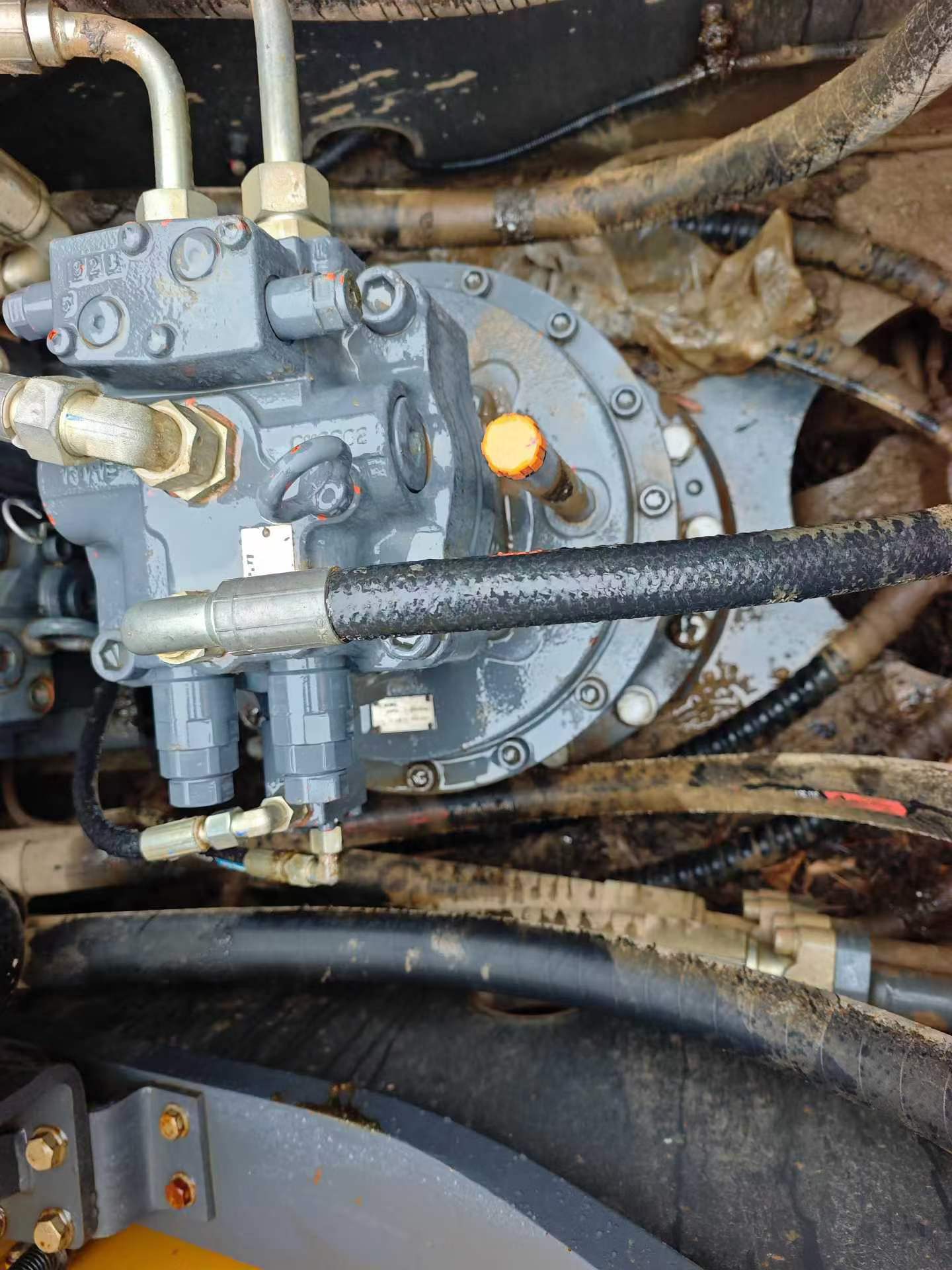

Buy XCMG XE380DK Used Excavator / 4

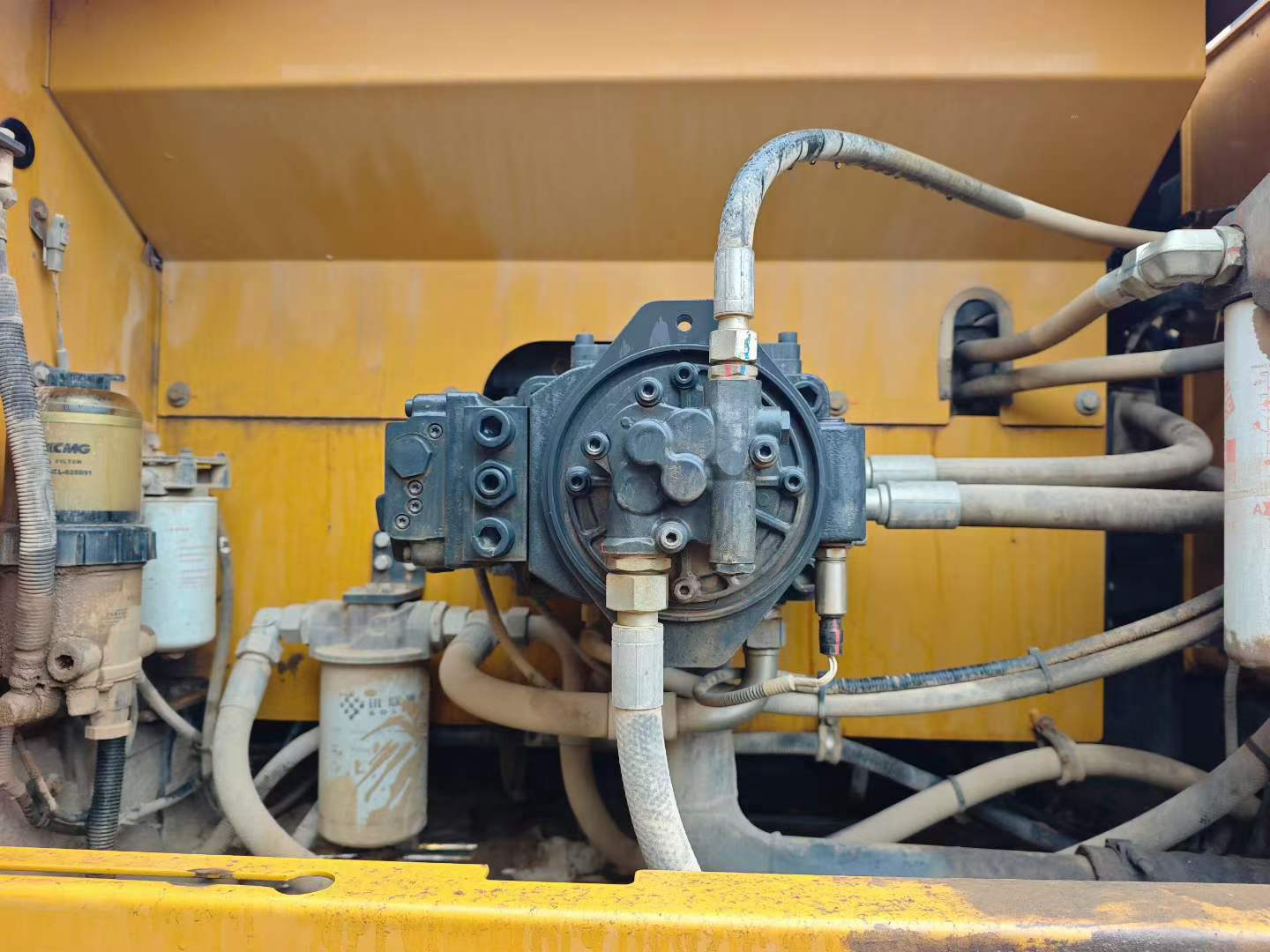

Buy XCMG XE380DK Used Excavator / 5
Buy XCMG XE380DK Used Excavator / 6
Buy XCMG XE380DK Used Excavator / 7

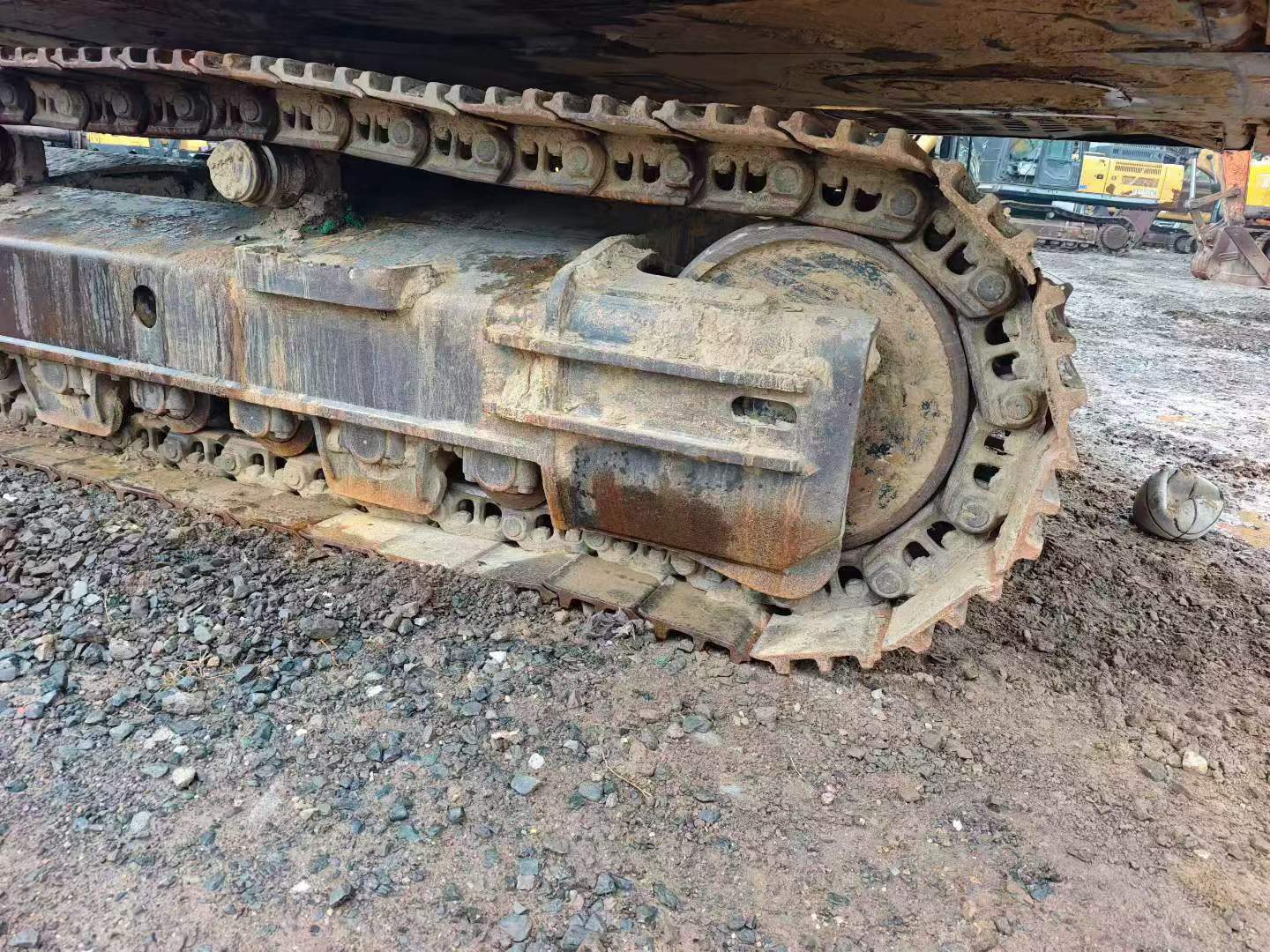

Buy XCMG XE380DK Used Excavator / 8

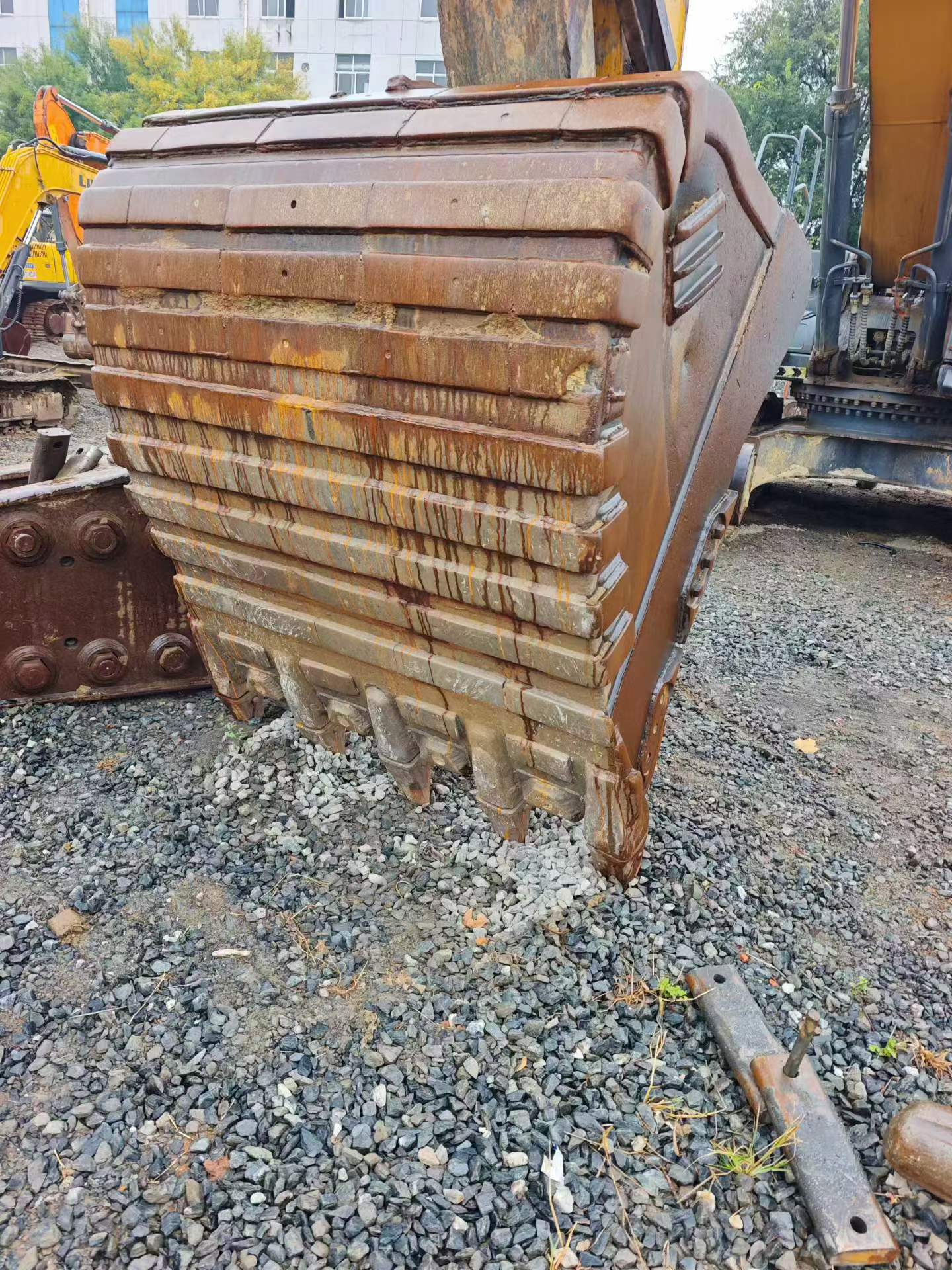

Buy XCMG XE380DK Used Excavator / 9

Product Description

This 2020 XCMG XE380DK hydraulic excavator represents exceptional value in the used heavy equipment market. With approximately 5,000 hours of documented operation, this machine has been well-maintained and remains in excellent working condition. Manufactured by XCMG, one of China's leading construction equipment producers, the XE380DK offers reliable performance for demanding excavation, demolition, and earthmoving applications.

Currently located in Zhejiang, China, this excavator features:

  • Low operational hours for a 2020 model year unit
  • XCMG's proven hydraulic system for efficient power delivery
  • Robust undercarriage and track assembly
  • Suitable for construction, mining, and infrastructure projects
  • Ready for inspection and immediate deployment

Contact our sales team for detailed specifications, current condition reports, and competitive export pricing. Shipping arrangements to international destinations can be coordinated from our Zhejiang facility.

SpecificationsValue
No.1167421
Tonnage (tons)38
Working weight (kg)38200
Bucket capacity (m³)1.9-2.3
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)214/2100
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.9
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)69
Rotation speed (rpm)9.6
Climbing ability (%)35
Bucket digging force (kN)292
Rod digging force (kN)209
Maximum tractive force (kN)285
Travel speed (km/h)5.6/3.3
Fuel Tank (L)660
Hydraulic Tank (L)350
Engine Oil changes (L)30
Total transport length (mm)11437
Total transport width (mm)3225
Total transport height (mm)3715
Full cab height (mm)3050
Counterweight ground clearance (mm)1227
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4560
Back end turning radius (mm)3700
Total track length (mm)5035
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10968
Maximum digging depth (mm)7147
Maximum excavation height (mm)10508
Maximum unloading height (mm)7300
Maximum vertical digging depth (mm)6542
see more

Overview

No.1167421

Brand Name:

XCMG

Model Number:

XE380DK

Year:

2020

Location:

Zhejiang China

Pub Date:
