Product Description

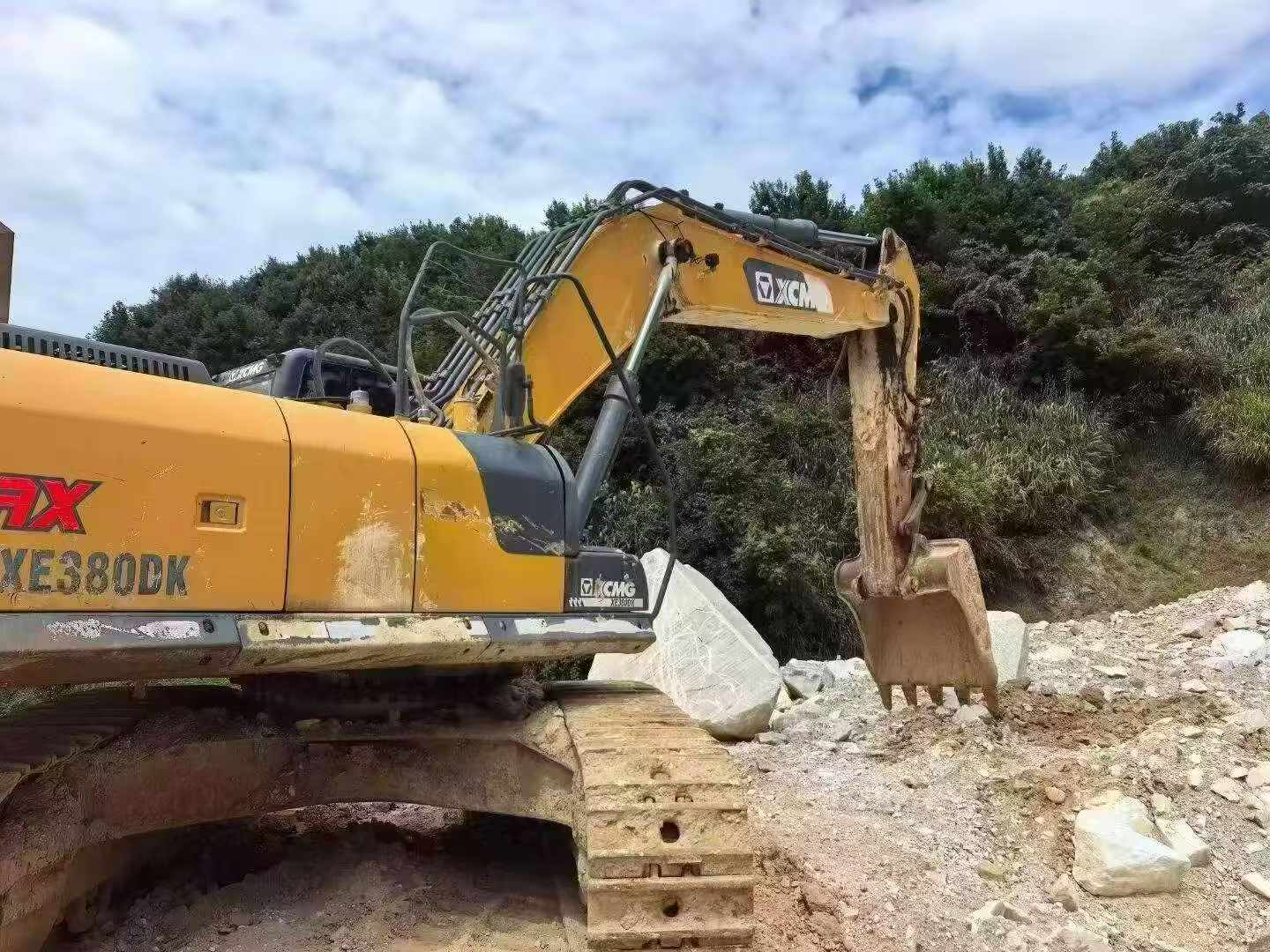

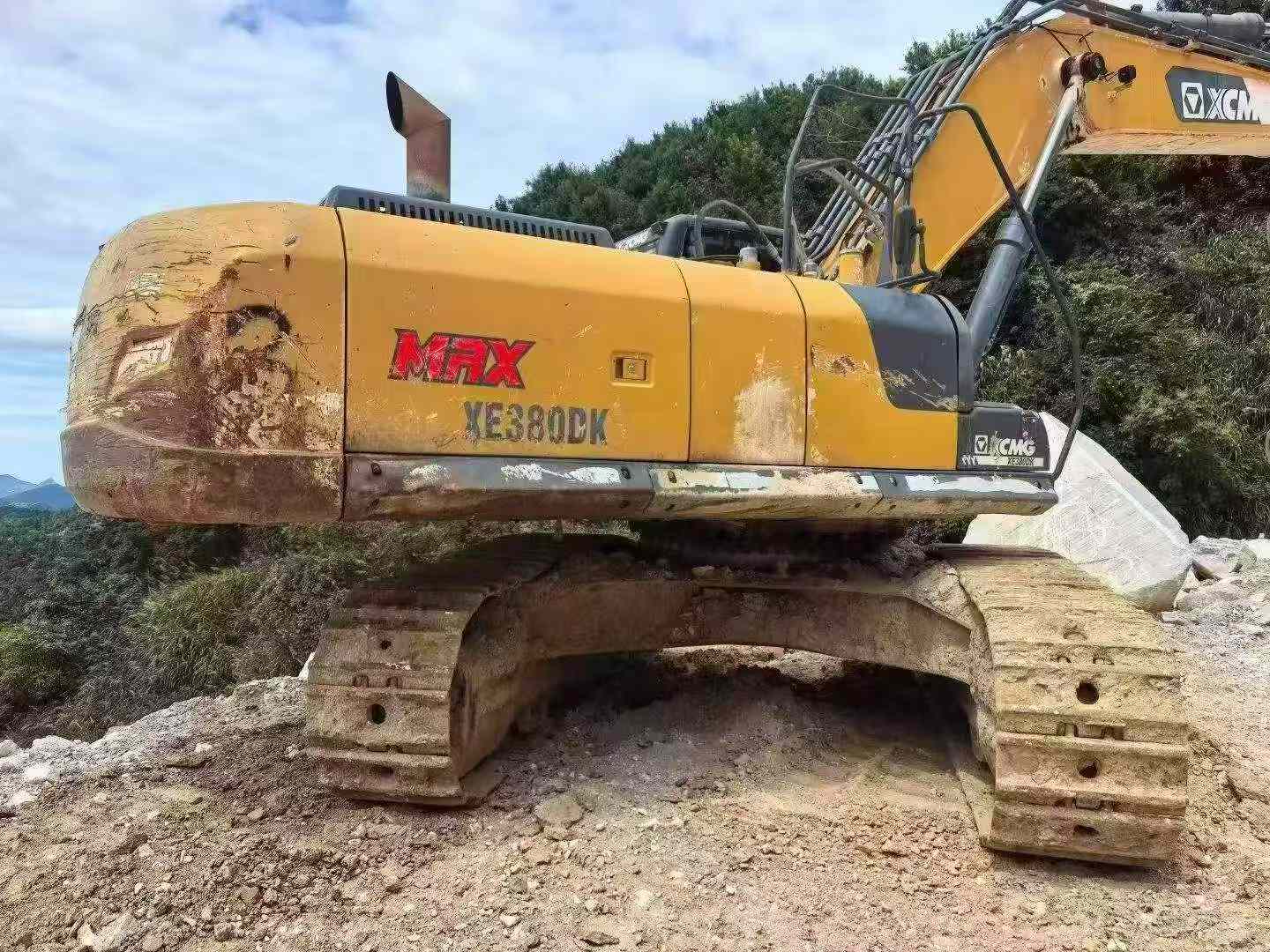

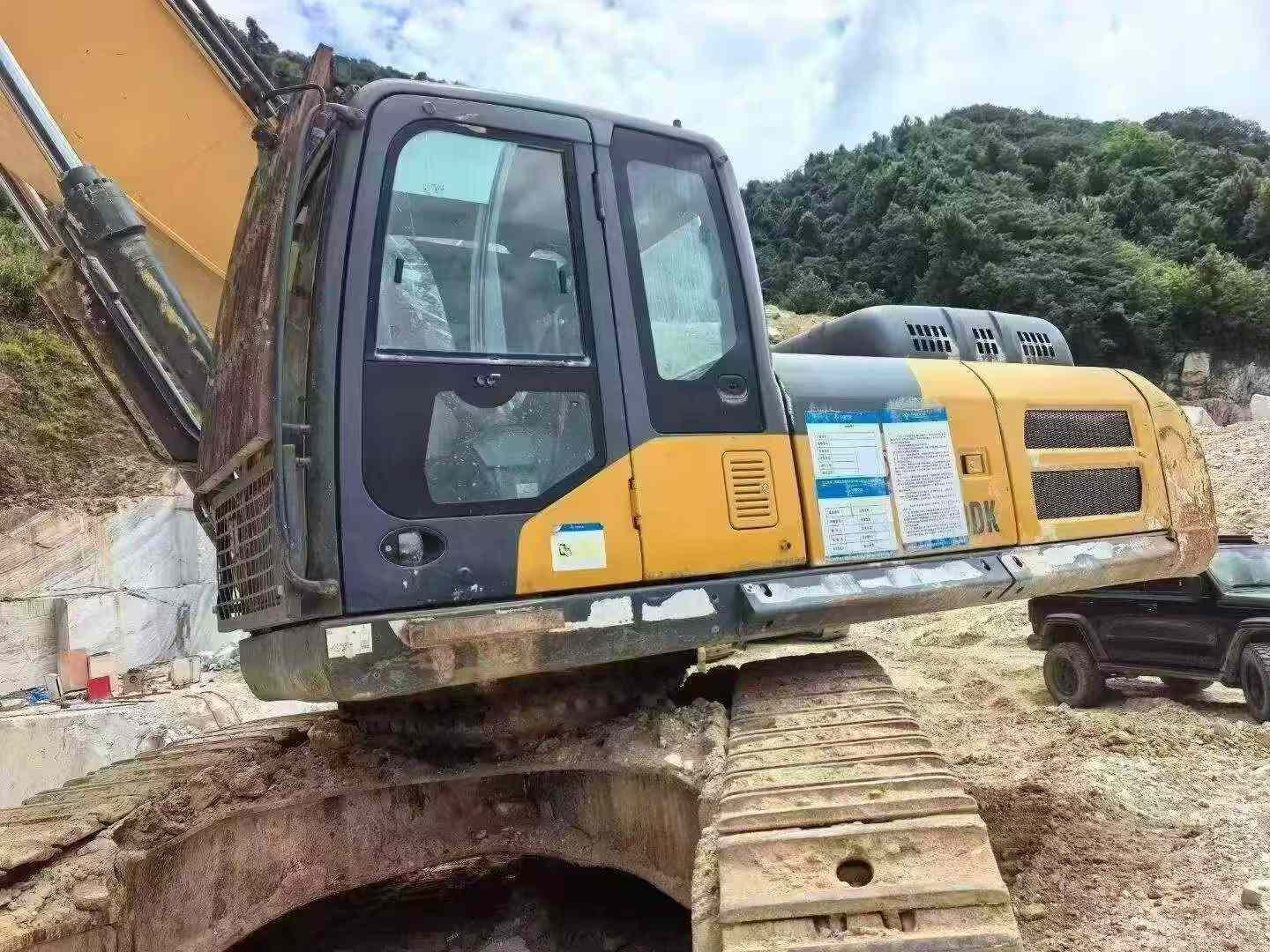

This 2021 XCMG XE380DK hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Built by one of China's leading heavy equipment manufacturers, this machine features XCMG's proven engineering and robust construction quality. The XE380DK series is designed for durability in high-intensity jobsite conditions, with efficient hydraulic systems and operator-focused ergonomics.
Currently located in Hunan, China, this unit represents a cost-effective solution for contractors seeking quality excavation equipment at competitive pricing. The machine has been maintained in operational condition and is ready for deployment.
- Year of Manufacture: 2021
- Make: XCMG
- Model: XE380DK
- Location: Hunan Province, China
- Condition: Used
Contact us for detailed specifications, inspection arrangements, and shipping quotes to your destination.
| Specifications | Value |
|---|---|
| No. | 1144196 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
