Product Description

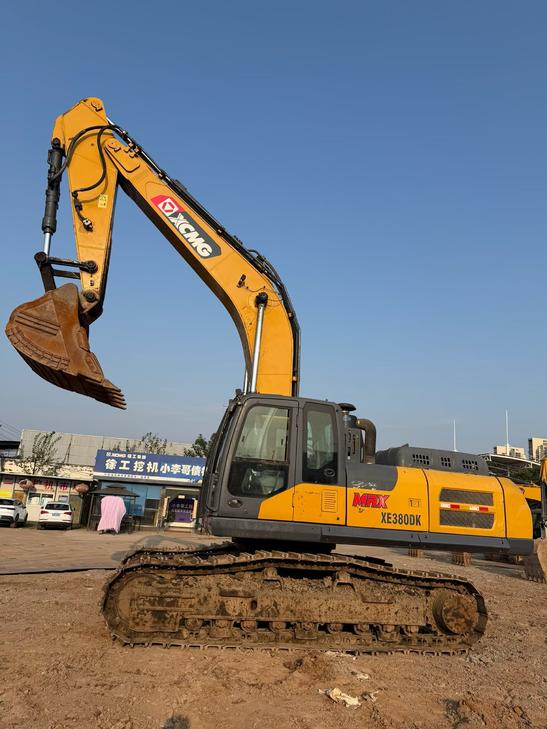

This 2021 XCMG XE380DK excavator represents a compelling opportunity for contractors seeking proven performance at competitive pricing. Sourced from Chongqing, China, this machine features the premium Kawasaki hydraulic system configuration, delivering the reliability and fuel efficiency expected from top-tier import components.
With minimal operating hours since late 2021, this XE380DK offers the capabilities of a flagship 38-ton class excavator including robust digging forces, extended reach, and advanced hydraulic control. The unit is available for both purchase and rental arrangements, with financing options to accommodate various acquisition strategies.
- Year: 2021 (late production)
- Model: XCMG XE380DK
- Hydraulic System: Kawasaki (premium configuration)
- Location: Chongqing, China
- Financing: Purchase, rental, and installment plans available
Contact us for current pricing, inspection scheduling, and shipping logistics to your project site.
| Specifications | Value |
|---|---|
| No. | 1163144 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
