Product Description

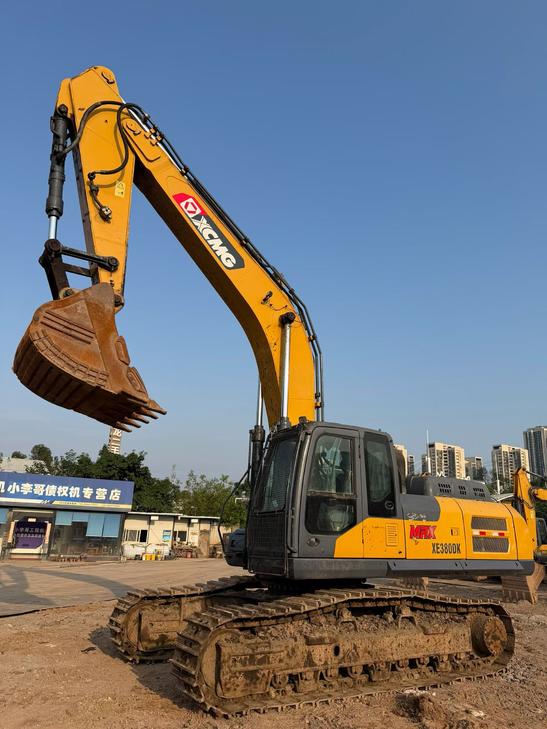

This 2021 XCMG XE380DK excavator is available from our Chongqing, China location. Built by one of China's leading construction equipment manufacturers, this model offers reliable performance for heavy-duty excavation and earthmoving operations. The machine features XCMG's proven hydraulic system, robust undercarriage, and operator-focused cab design.
Key highlights include:
- Low operating hours with well-maintained core components
- 38-ton operating weight suitable for medium to large-scale projects
- Efficient fuel consumption and hydraulic performance
- Comprehensive inspection completed and verified
- Flexible purchase options available including rental and financing
This excavator represents excellent value for contractors seeking dependable performance at competitive pricing. Ideal for construction sites, mining operations, and infrastructure development projects throughout Asia and emerging markets.
| Specifications | Value |
|---|---|
| No. | 1169602 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
