Product Description

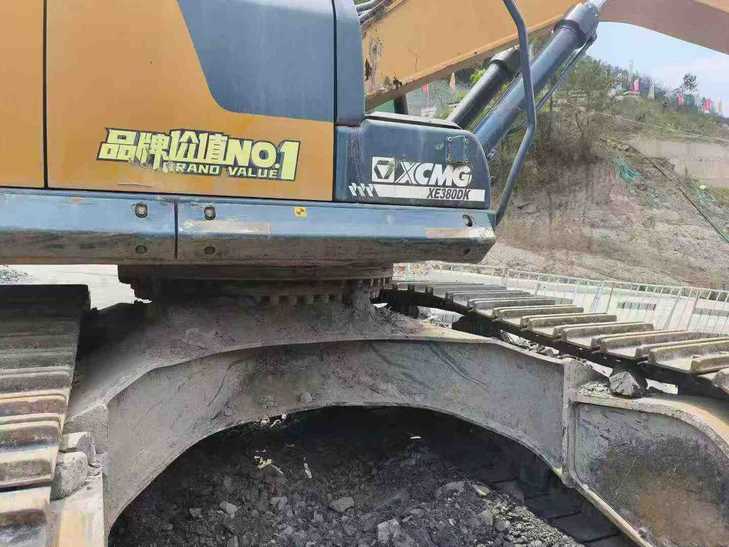

With a robust 214 kW of power at 2100 rpm, the XCMG XE380DK excavator delivers exceptional performance and reliability. Located in 江西新余, this 2022 model boasts a 38-ton working weight and a bucket capacity ranging from 1.9 to 2.3 m³, making it ideal for demanding construction sites. Equipped with a QSL9 engine, this machine features a 6-cylinder, 8.9-liter displacement, providing efficient and powerful operation. The water-cooled, 4-stroke, turbocharged, and air-to-air cold system ensures optimal performance in various conditions.
- Enhanced visibility: The full cab height of 3050 mm offers a clear, unobstructed view of the work area, ensuring precise and safe operation.
- Stability and traction: With a ground specific pressure of 69 Kpa and a maximum tractive force of 285 kN, the XE380DK maintains stability on challenging terrains.
- Efficient handling: A minimum turning radius of 4560 mm and a back end turning radius of 3700 mm provide excellent maneuverability, allowing for smooth and controlled operations.
| Specifications | Value |
|---|---|
| No. | 1020501 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
