2022 XCMG XE380DK

1/9
Buy XCMG XE380DK Used Excavator / 1

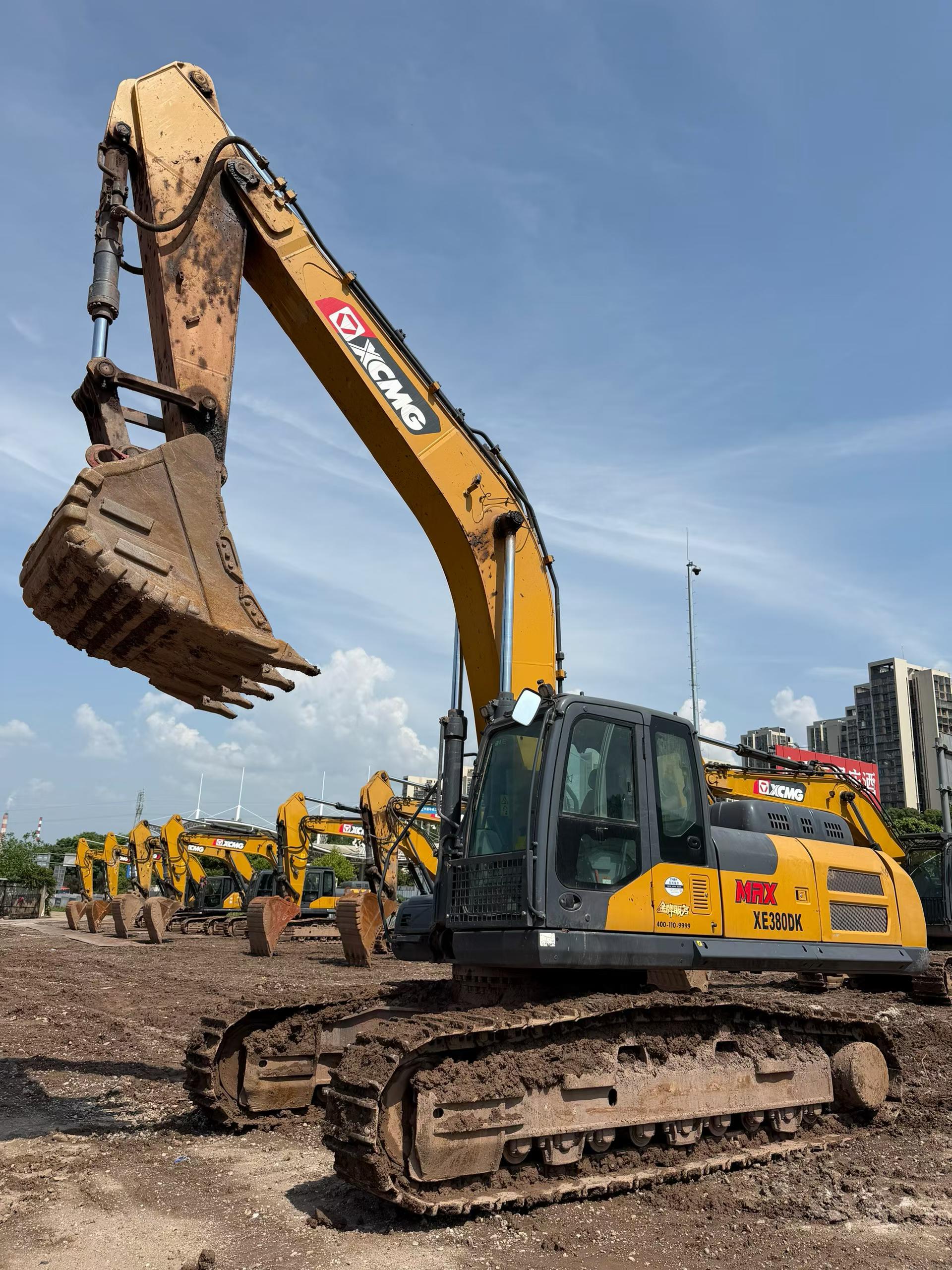

Buy XCMG XE380DK Used Excavator / 2

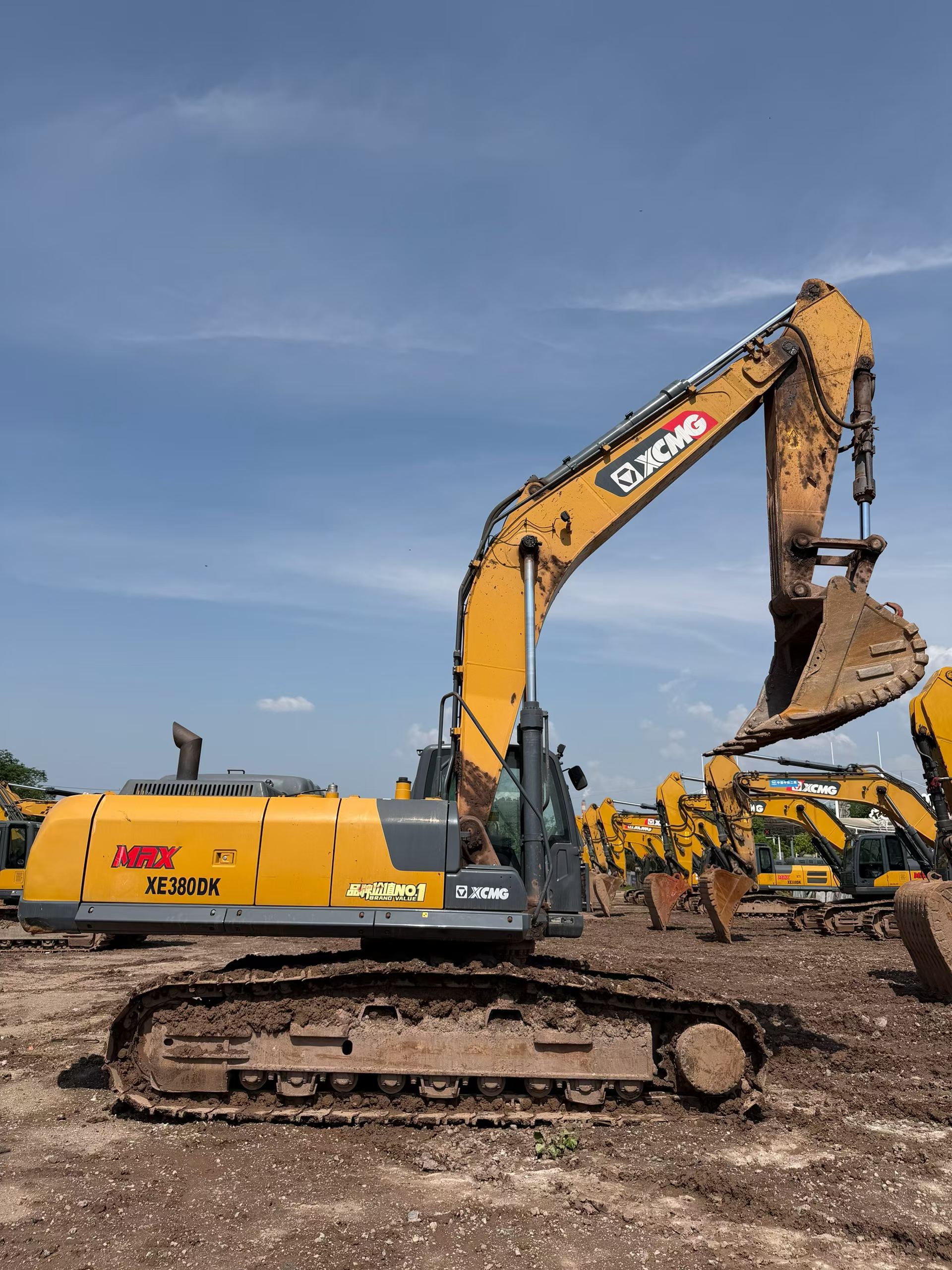

Buy XCMG XE380DK Used Excavator / 3

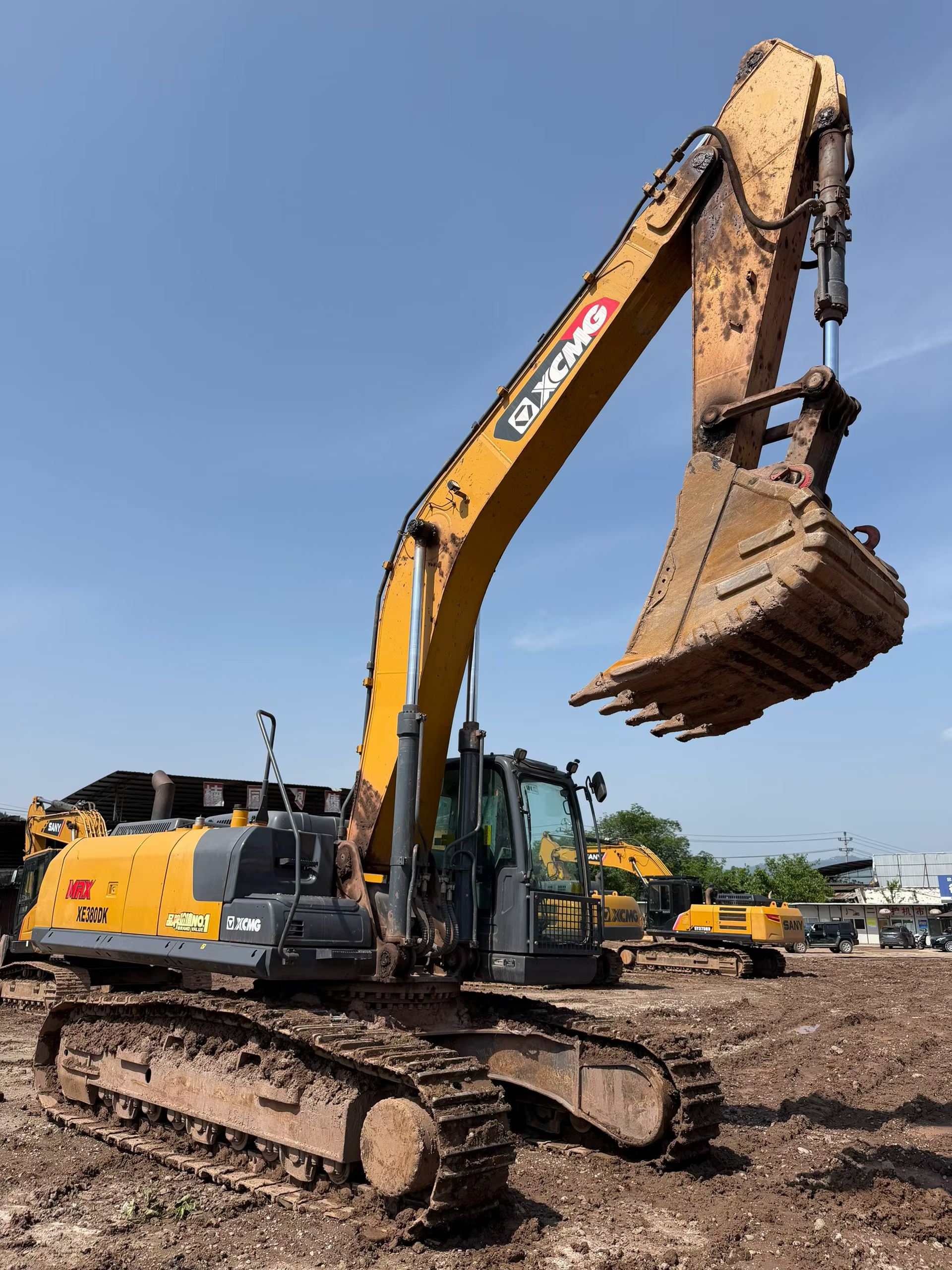

Buy XCMG XE380DK Used Excavator / 4

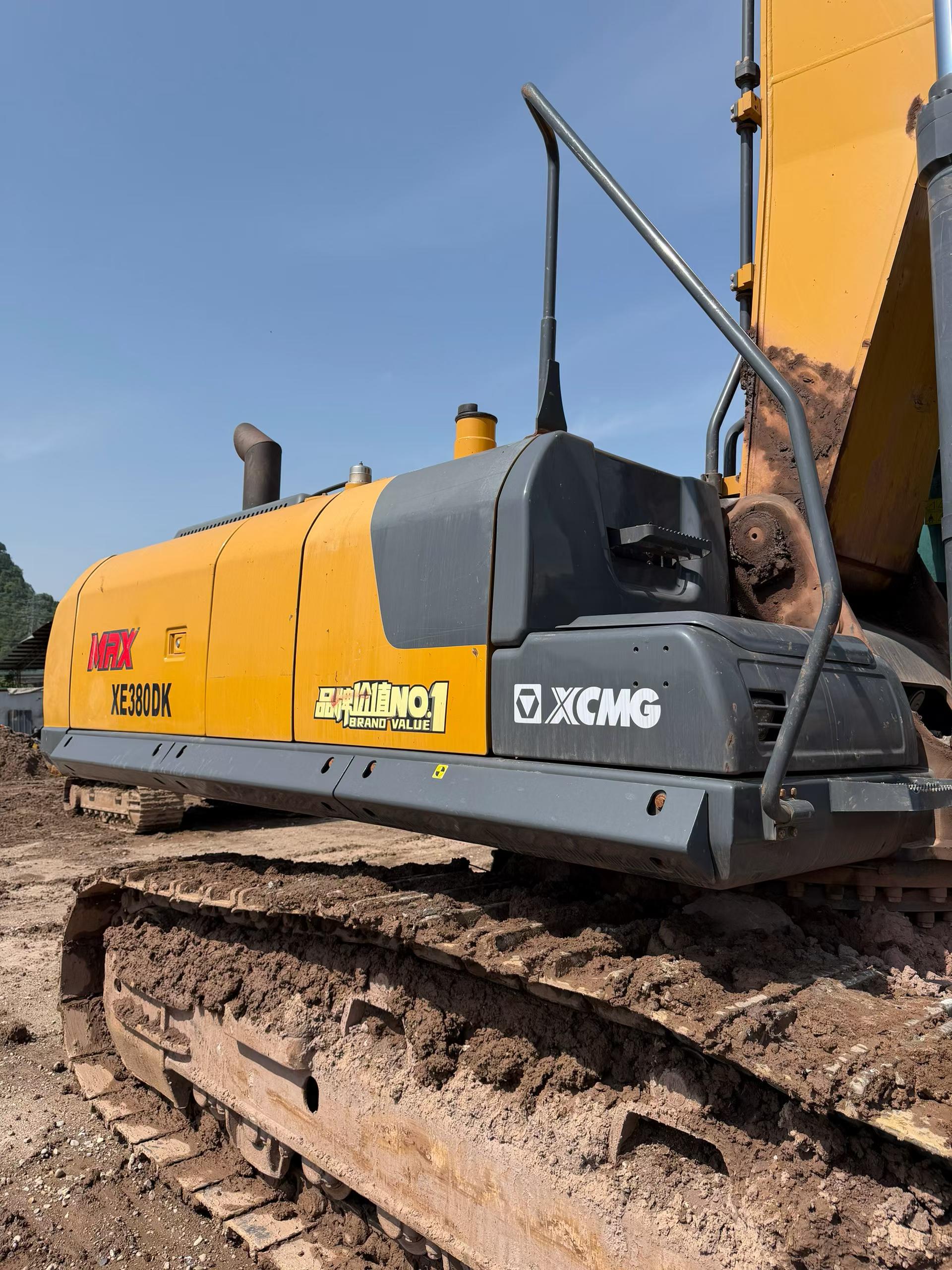

Buy XCMG XE380DK Used Excavator / 5

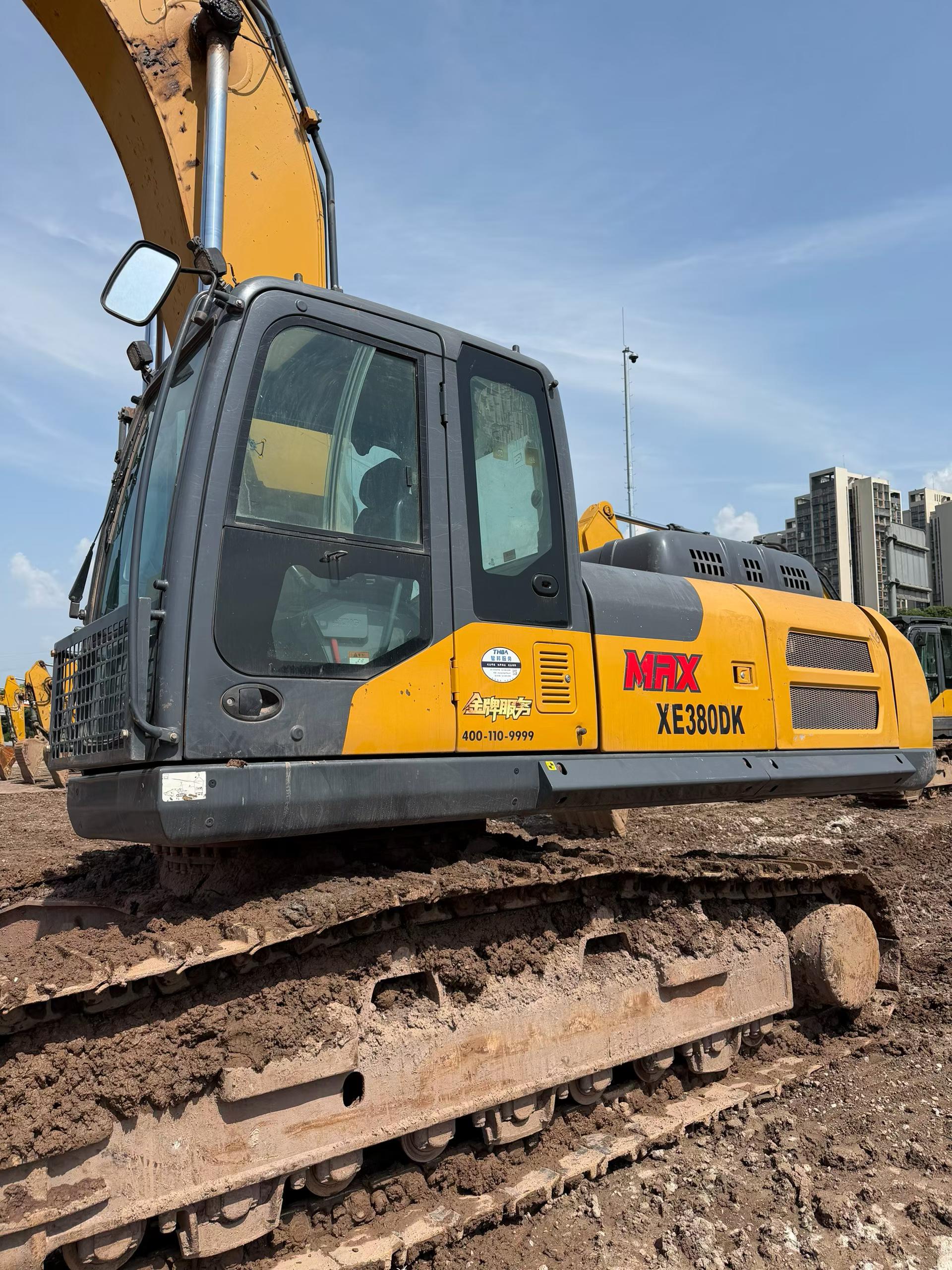

Buy XCMG XE380DK Used Excavator / 6

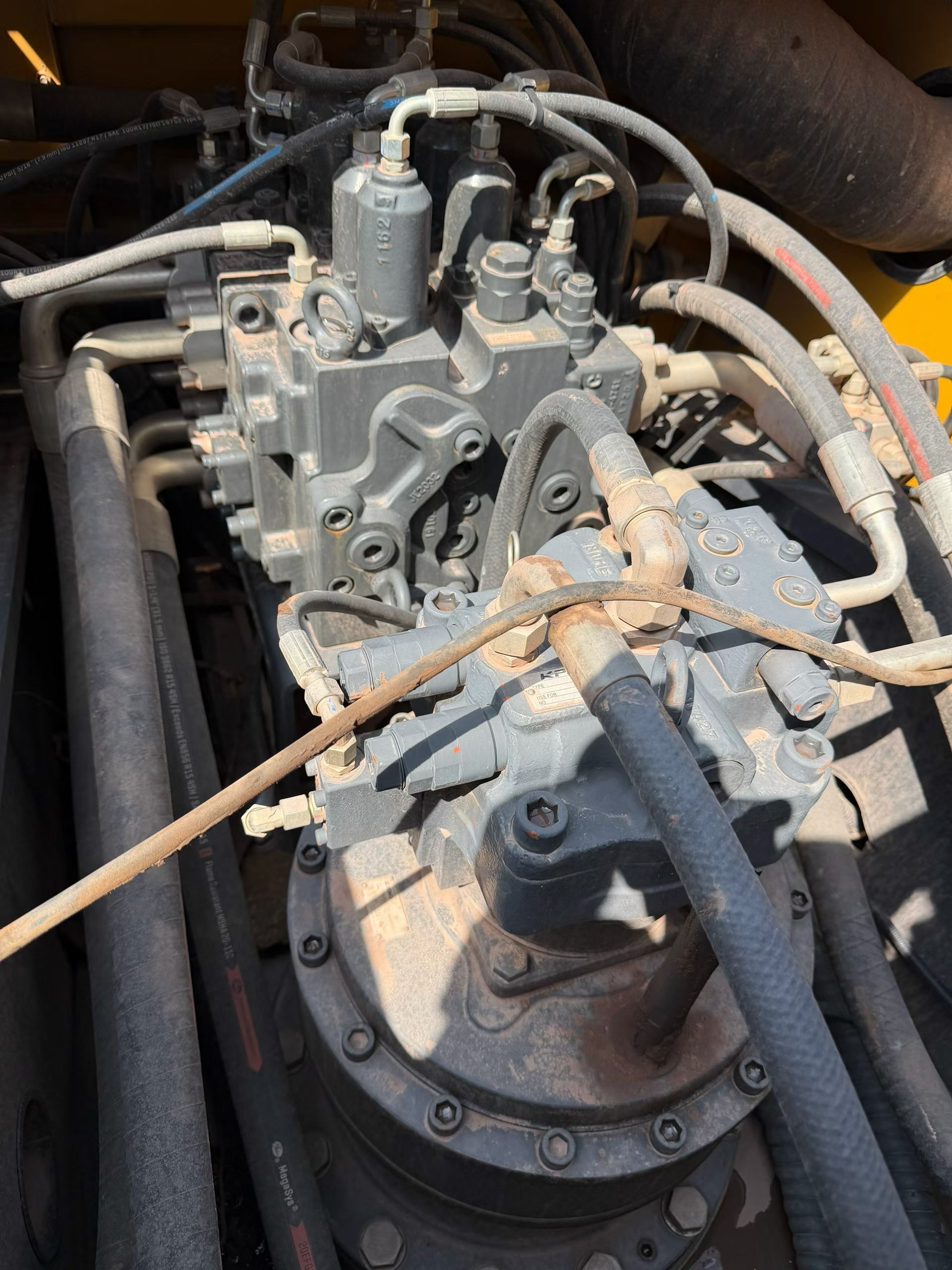

Buy XCMG XE380DK Used Excavator / 7

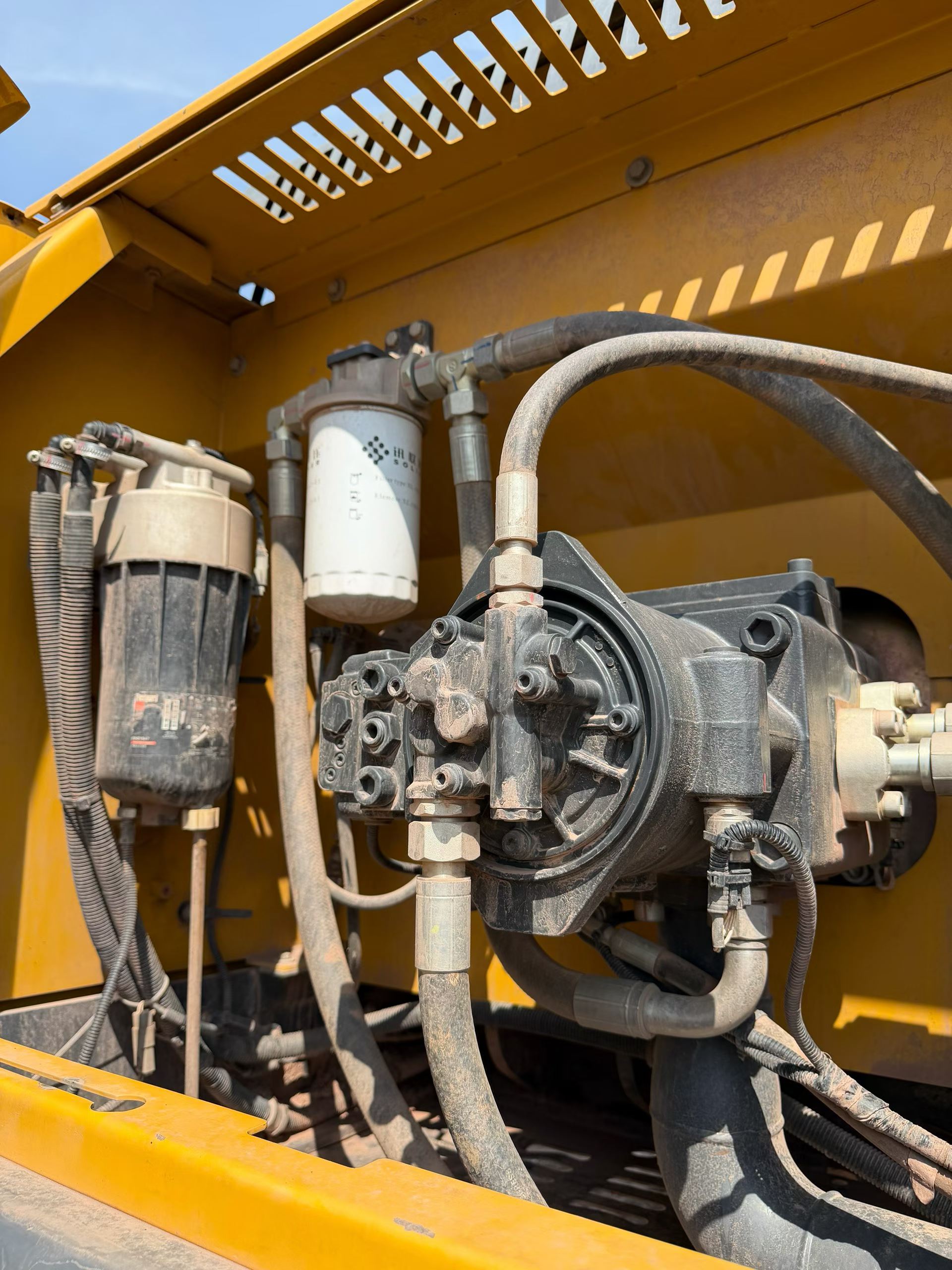

Buy XCMG XE380DK Used Excavator / 8

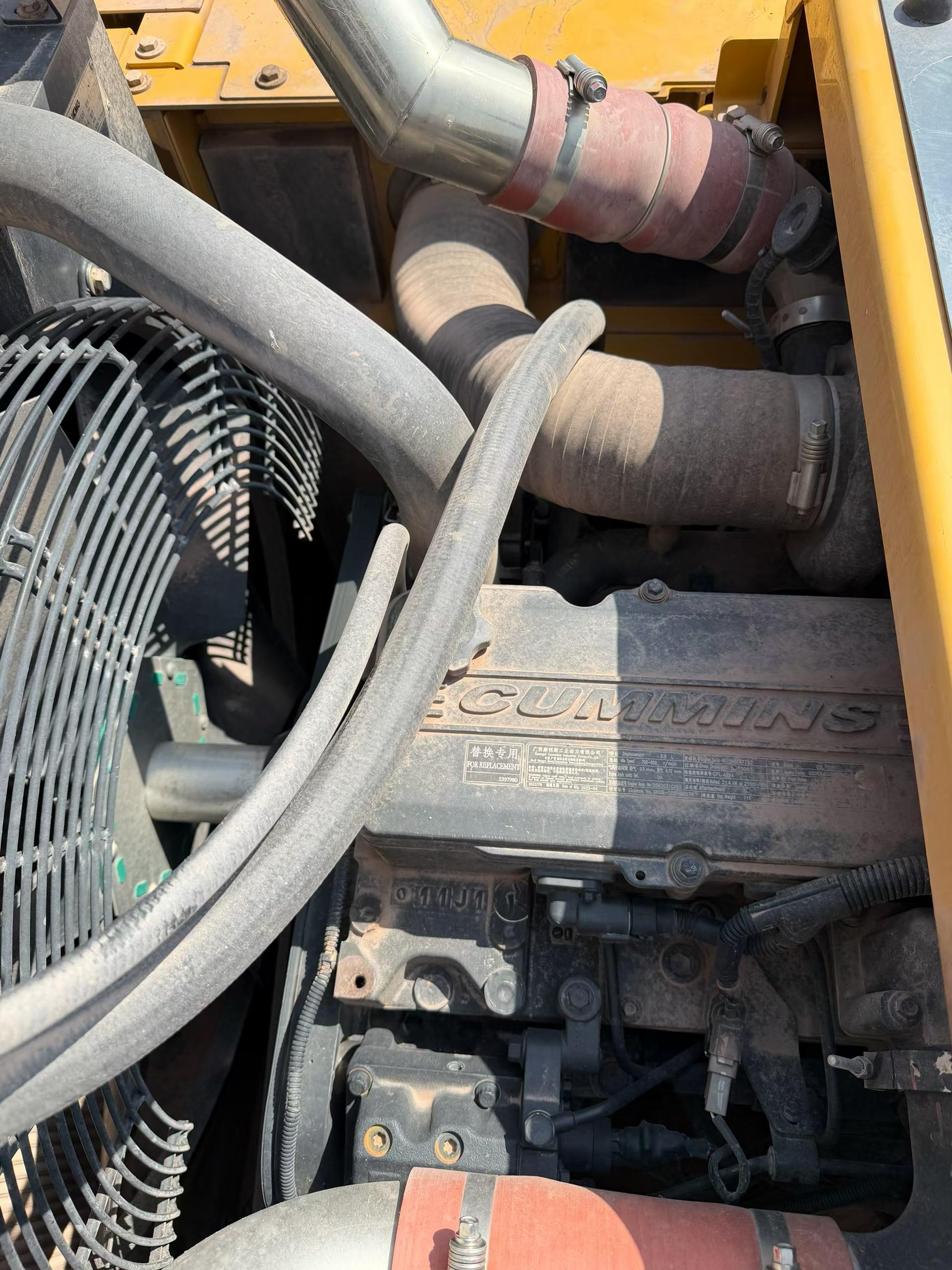

Buy XCMG XE380DK Used Excavator / 9

Product Description

This 2022 XCMG XE380DK excavator, currently located in Chongqing, China, represents a well-maintained earthmoving asset from a creditor sale. Designed for pure excavation and bulk earthwork operations, this late-2022 model delivers reliable performance for contractors seeking proven Chinese heavy machinery at competitive pricing.

Key attributes include:

  • Operating weight class: 38 tons
  • Application focus: Earthmoving and site development
  • Verified operational condition with standard performance parameters
  • Available for immediate inspection in Chongqing

XCMG's XE380DK series offers robust hydraulic systems and durable undercarriage components suited for medium to large-scale excavation projects. This unit has been assessed for mechanical integrity and is ready for export or domestic deployment. Contact us for detailed service records and shipping arrangements.

SpecificationsValue
No.1082207
Tonnage (tons)38
Working weight (kg)38200
Bucket capacity (m³)1.9-2.3
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)214/2100
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.9
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)69
Rotation speed (rpm)9.6
Climbing ability (%)35
Bucket digging force (kN)292
Rod digging force (kN)209
Maximum tractive force (kN)285
Travel speed (km/h)5.6/3.3
Fuel Tank (L)660
Hydraulic Tank (L)350
Engine Oil changes (L)30
Total transport length (mm)11437
Total transport width (mm)3225
Total transport height (mm)3715
Full cab height (mm)3050
Counterweight ground clearance (mm)1227
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4560
Back end turning radius (mm)3700
Total track length (mm)5035
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10968
Maximum digging depth (mm)7147
Maximum excavation height (mm)10508
Maximum unloading height (mm)7300
Maximum vertical digging depth (mm)6542
see more

Overview

No.1082207

Brand Name:

XCMG

Model Number:

XE380DK

Year:

2022

Location:

Chongqing China
