Product Description

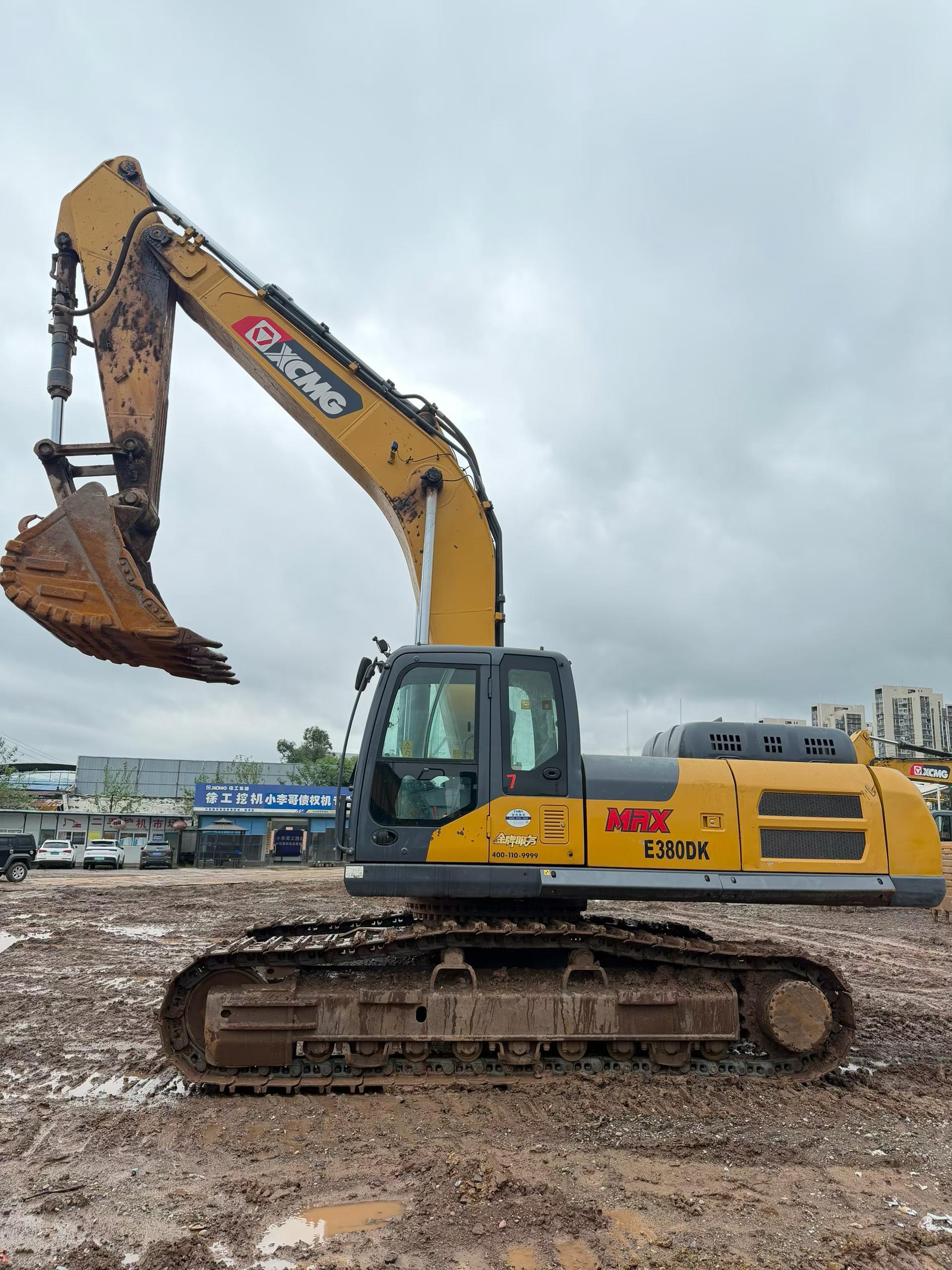

This 2022 XCMG XE380DK hydraulic excavator is a practical earthmoving machine currently located in Chongqing, China. With minimal operating hours since late 2022, this crawler excavator demonstrates the reliable performance XCMG is known for in demanding excavation applications. The XE380DK is designed for high-volume earthwork projects, offering solid digging force and fuel efficiency for contractors focused on productivity.
- Year of Manufacture: 2022
- Model: XCMG XE380DK
- Primary Application: Earthmoving operations
- Current Location: Chongqing, China
- Configuration: Crawler-mounted hydraulic excavator
- Availability: Purchase or lease options available
This unit represents an economical entry point for operators seeking late-model performance without new equipment pricing. Suitable for construction sites, mining support, and large-scale land development projects requiring dependable excavation capacity.
| Specifications | Value |
|---|---|
| No. | 1173251 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

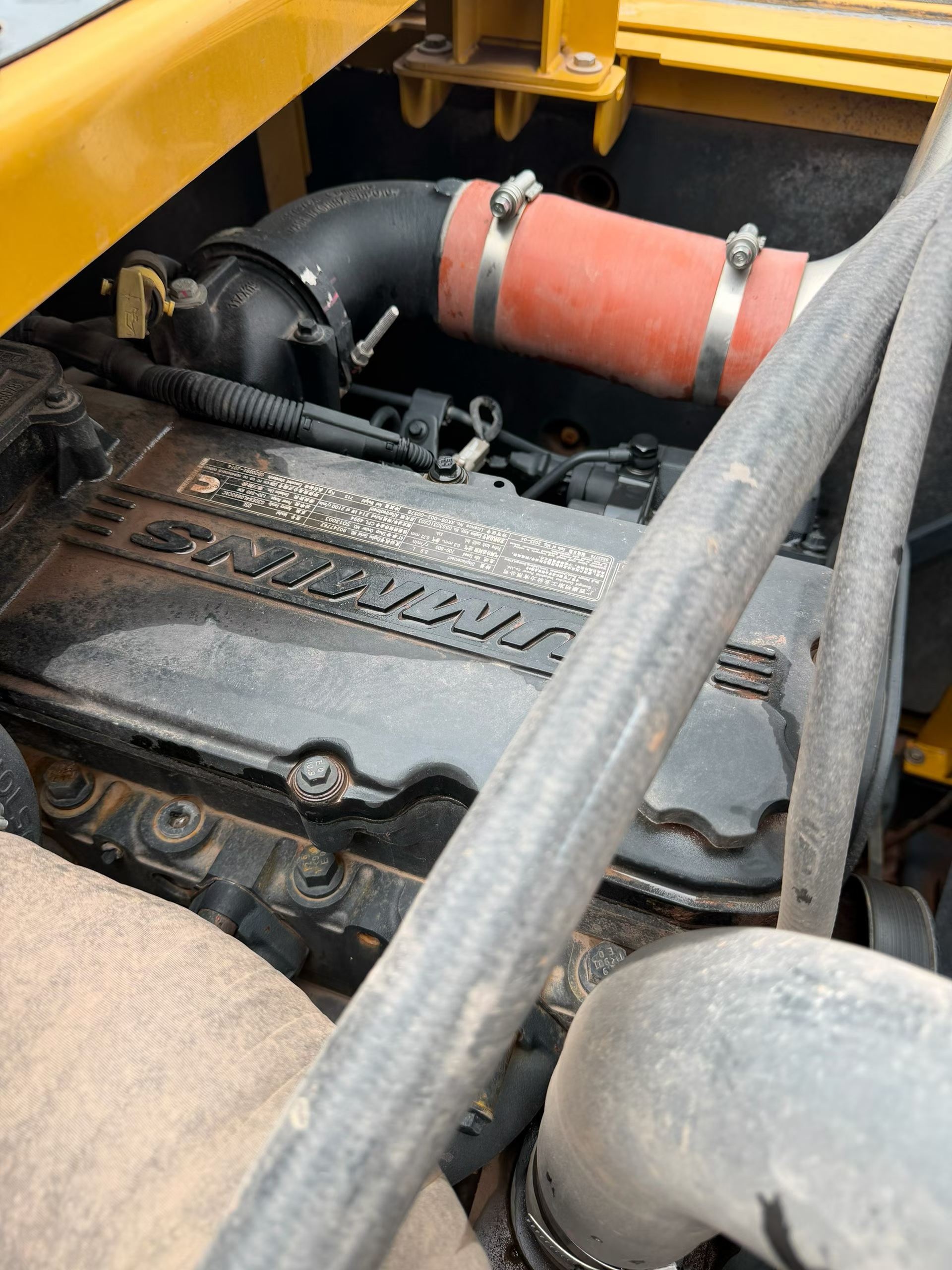

| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
